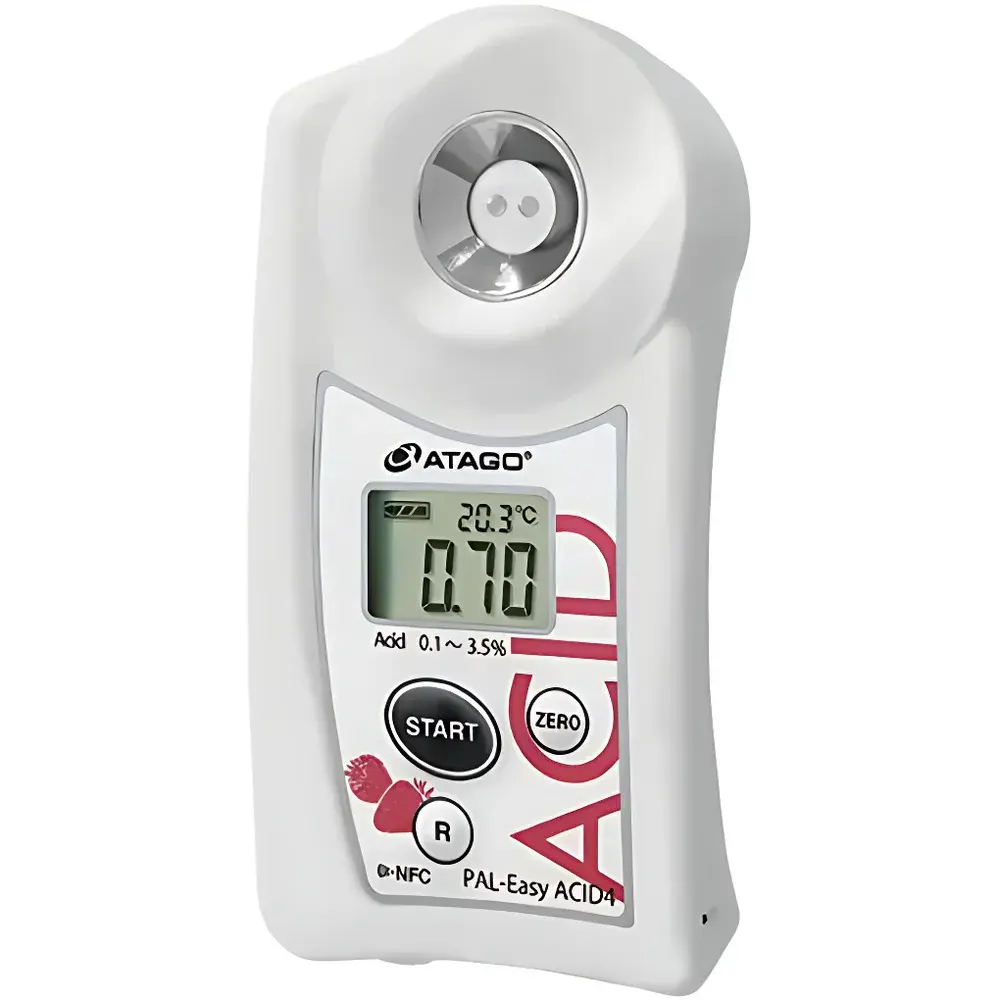

ATAGO PAL-Easy ACID4 Strawberry Acidimeter

Overview

The ATAGO PAL-Easy ACID4 Strawberry Acidimeter is a dedicated portable electrochemical analyzer engineered for rapid, reagent-free quantification of total acidity in fresh and processed strawberry samples. Unlike conventional titrimetric methods requiring standardized NaOH solutions, indicators, burettes, and trained personnel, the PAL-Easy ACID4 employs a calibrated conductivity-based measurement principle. It correlates electrical conductance—induced by dissociated hydrogen ions in aqueous strawberry homogenates—to citric acid concentration, expressed as % (w/w) citric acid equivalent. This approach eliminates chemical waste, reduces operator dependency, and delivers repeatable results in under three seconds per measurement. Designed specifically for horticultural quality control laboratories, berry processing facilities, and on-farm ripeness assessment, the instrument operates within a physiologically relevant temperature range (10–40 °C) with automatic temperature compensation to ensure stability across ambient field or production-line conditions.

Key Features

• Dedicated strawberry-optimized calibration curve preloaded in firmware, validated against AOAC 975.03 and ISO 750:2018 reference titration protocols.
• Integrated linear OFFSET correction function (y = ax ± b), enabling traceable alignment with laboratory titration data or alternate acid reporting units (e.g., malic or tartaric acid equivalents).
• IP65-rated enclosure ensures resistance to dust ingress and low-pressure water jets—suitable for humid packinghouse environments and outdoor orchard use.
• Self-contained handheld architecture (100 g) with built-in AAA battery power—no external power supply or PC connection required for field operation.
• High-resolution LCD display showing acid content (%) with 0.01% resolution in the critical 0.10–9.99% range, supporting precise grading decisions aligned with USDA and EU strawberry marketing standards.
• Factory-calibrated sensor system with documented metrological traceability to NIST-traceable citric acid reference materials.

Sample Compatibility & Compliance

The PAL-Easy ACID4 is validated for use with homogenized whole-fruit strawberry pulp, crushed berries, and clarified juice extracts. Sample preparation requires only mechanical blending (e.g., using the included 100 mL beaker and 1 mL spoon) followed by brief settling to remove large particulates—no filtration, dilution, or pH adjustment is necessary. The device complies with ISO/IEC 17025:2017 general requirements for competence of testing and calibration laboratories when operated per ATAGO’s certified SOPs. Its measurement methodology supports adherence to GLP documentation practices, including audit-ready OFFSET log entries and user-defined calibration verification records. While not FDA 21 CFR Part 11 compliant out-of-the-box (due to absence of electronic signature and full audit trail functionality), it may be integrated into validated workflows where manual recordkeeping meets internal QA requirements.

Software & Data Management

The PAL-Easy ACID4 operates as a standalone instrument with no embedded software or wireless connectivity. All calibration, OFFSET parameters, and measurement history are retained in non-volatile memory. Users manually record results in paper logs or LIMS-compatible spreadsheets. ATAGO provides downloadable calibration verification templates and OFFSET validation worksheets compatible with Excel-based QA documentation systems. For laboratories requiring digital integration, the device output can be transcribed via barcode-assisted entry into validated LIMS platforms such as LabWare LIMS or Thermo Fisher SampleManager, supporting structured data capture for ISO 9001 and IFS Food audits.

Applications

• Ripeness assessment during harvest scheduling—correlating acid content with sugar-to-acid ratio (SSC/TA) for optimal picking windows.
• In-process quality control in jam, puree, and frozen berry production lines to maintain batch consistency per Codex Alimentarius Standard CXS 203-1995.
• Supplier qualification and incoming raw material inspection against contractual acid specifications (e.g., ≥1.80% citric acid for premium dessert varieties).
• Research applications in plant physiology studies evaluating genotype-dependent acid metabolism under varying irrigation or fertilization regimes.
• Educational use in food science curricula demonstrating principles of conductometric analysis and method validation against classical wet chemistry.

FAQ

What acid standard is used for calibration and reporting?
The PAL-Easy ACID4 reports total acidity as % (w/w) citric acid monohydrate equivalent, consistent with AOAC Official Method 975.03 and industry-standard strawberry quality specifications.
Can the instrument measure other fruits besides strawberries?
It is factory-calibrated exclusively for strawberry matrix behavior; use with other fruits (e.g., raspberries, blackberries) requires full method validation—including recovery studies and correlation with reference titration—and is not supported by ATAGO’s warranty or regulatory claims.
Is temperature compensation automatic or manual?
Automatic temperature compensation is applied in real time across the 10–40 °C operating range using an integrated thermistor; no user input is required.
How often must the instrument be recalibrated?
ATAGO recommends daily verification using a certified 1.00% citric acid standard prior to first use; full recalibration is required every 30 days or after exposure to extreme thermal shock, physical impact, or prolonged storage above 45 °C.
Does the device meet IP65 for washdown environments?
Yes—the housing meets IEC 60529 IP65 requirements for dust-tightness and protection against water jets from any direction at low pressure, making it suitable for routine cleaning in food-grade facilities.
