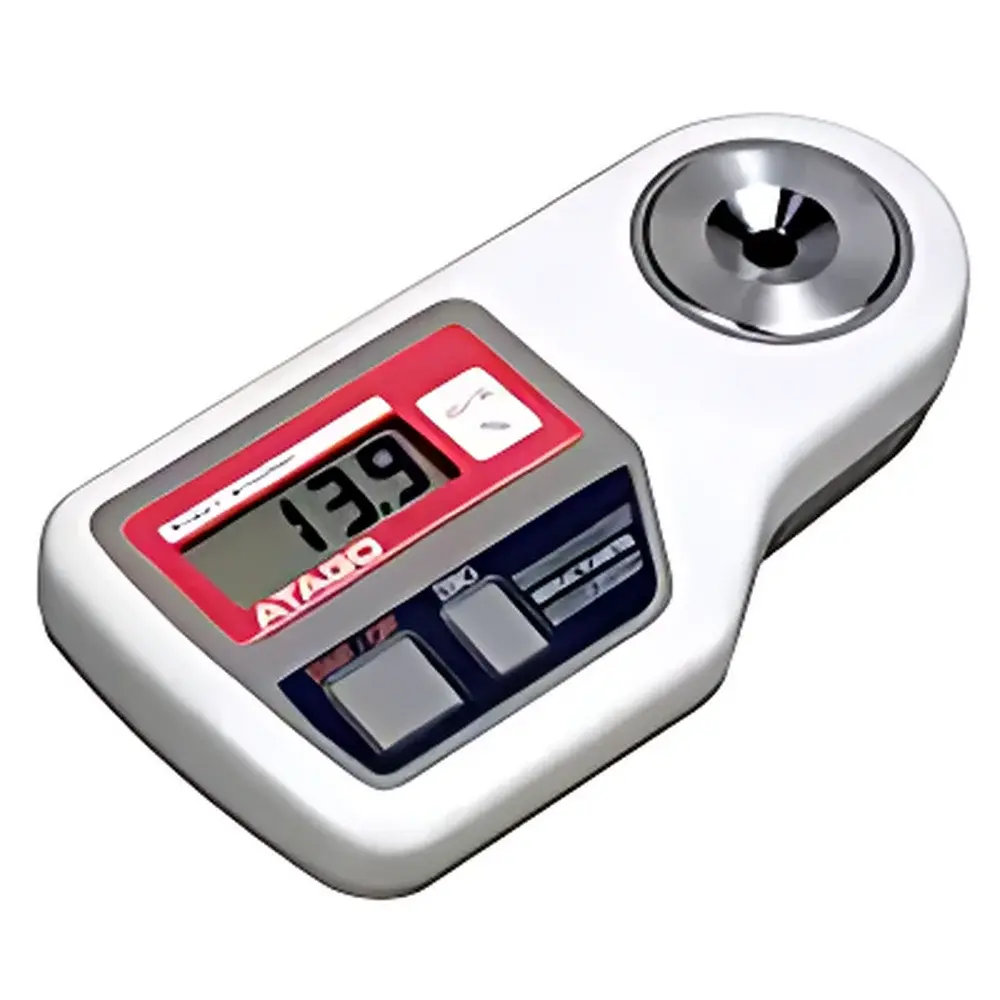

ATAGO PR-50HO Digital Hydrogen Peroxide Refractometer

Overview

The ATAGO PR-50HO Digital Hydrogen Peroxide Refractometer is a compact, handheld optical instrument engineered for rapid, field-deployable quantification of hydrogen peroxide (H₂O₂) concentration in aqueous solutions. It operates on the principle of critical-angle refractometry: incident light passes through a prism in contact with the sample, and the resulting refraction angle—directly correlated to the solution’s refractive index—is measured via an internal photodiode array. Since the refractive index of H₂O₂ solutions exhibits a well-characterized, monotonic relationship with mass fraction (w/w %) across the 0.0–50.0% range, the device converts optical measurements into calibrated concentration values without chemical reagents or consumables. Designed specifically for industrial hygiene and packaging sterilization validation, the PR-50HO supports real-time verification of H₂O₂ bath strength used in aseptic filling lines—particularly for carton-based beverage and dairy packaging where residual H₂O₂ must be tightly controlled to meet food safety standards (e.g., ISO 22000, FDA 21 CFR Part 110). Its solid-state optical architecture ensures long-term stability and minimal drift between calibrations.

Key Features

• Direct digital readout of H₂O₂ concentration in weight/weight percent (0.0–50.0% w/w), with 0.1% resolution and ±0.5% w/w accuracy at 20°C.
• Integrated Automatic Temperature Compensation (ATC) using a high-stability thermistor, correcting for thermal expansion effects across 5–40°C sample temperature range—eliminating manual correction tables or external thermostats.
• Rugged, portable design with IP64-rated enclosure: fully protected against dust ingress and water splashes, suitable for humid production-floor environments including cleanrooms and wet-packaging zones.
• Low sample volume requirement (typically < 0.3 mL), enabling non-destructive testing of limited or high-value batches without process interruption.
• Single-button operation with auto-power-off after 3 minutes of inactivity, extending battery life of the standard 9V alkaline (006P) cell to approximately 10,000 measurements per charge.
• No routine calibration fluids required beyond factory-certified H₂O₂ reference standards; user calibration verification is supported via two-point calibration mode using certified 0% and 30% w/w H₂O₂ solutions.

Sample Compatibility & Compliance

The PR-50HO is validated for use with aqueous hydrogen peroxide solutions containing no suspended solids, oils, or surfactants that could coat the prism surface or alter refractive behavior. It is not intended for viscous, foaming, or highly turbid media. The instrument complies with IEC 60529 for IP64 mechanical protection and meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While it does not generate audit trails or electronic records, its measurement output may be documented manually in GLP- or GMP-aligned quality systems. For regulated environments requiring full data integrity, integration with external logging devices (e.g., USB-connected data loggers) is feasible via analog voltage output (optional accessory).

Software & Data Management

The PR-50HO is a standalone, embedded-system instrument with no onboard memory, firmware updates, or wireless connectivity. All measurement data are displayed in real time on a high-contrast LCD screen and must be recorded externally. No proprietary software is supplied or required. However, users may interface the device with third-party data acquisition systems using its optional analog output module (PR-AO-1), which delivers a 0–5 V DC signal proportional to concentration. This enables traceable recording in LIMS or MES platforms compliant with 21 CFR Part 11 when paired with appropriate validation protocols and electronic signature controls.

Applications

• Verification of H₂O₂ concentration in sterilization baths for Tetra Pak® and similar aseptic carton packaging lines.
• In-process monitoring during pharmaceutical-grade H₂O₂ preparation for equipment surface disinfection (ISO 14644-1 Class 5–8 cleanrooms).
• Quality control of incoming H₂O₂ stock solutions prior to dilution in food processing facilities.
• Validation of rinse-cycle efficacy in H₂O₂ residue testing for dairy filling machines.
• Field service diagnostics for packaging line technicians performing preventive maintenance on sterilization modules.

FAQ

Does the PR-50HO require recalibration before each use?
No. Factory calibration remains stable for ≥6 months under normal operating conditions. Daily verification with a zero-reference (deionized water) and a mid-range standard (e.g., 30% w/w H₂O₂) is recommended for critical applications.
Can the instrument measure other oxidizing agents like sodium hypochlorite?
No. The optical calibration is specific to H₂O₂/water binary systems. Refractive index–concentration relationships differ significantly for NaOCl or peracetic acid, rendering readings invalid.
Is the prism surface resistant to H₂O₂ corrosion?
Yes. The sapphire-coated BK7 glass prism is chemically inert to concentrations ≤50% w/w H₂O₂ at ambient temperatures and withstands repeated cleaning with ethanol or mild detergent.
What is the minimum sample temperature for reliable ATC compensation?
The ATC algorithm is validated from 5°C upward. Measurements below 5°C will display “Lo” and should be avoided unless the sample is pre-conditioned within the specified range.
How often should the battery be replaced?
Under typical usage (≤50 measurements/day), the 9V alkaline battery lasts 12–18 months. Low-battery indication appears as a flashing “BAT” icon on the display.
