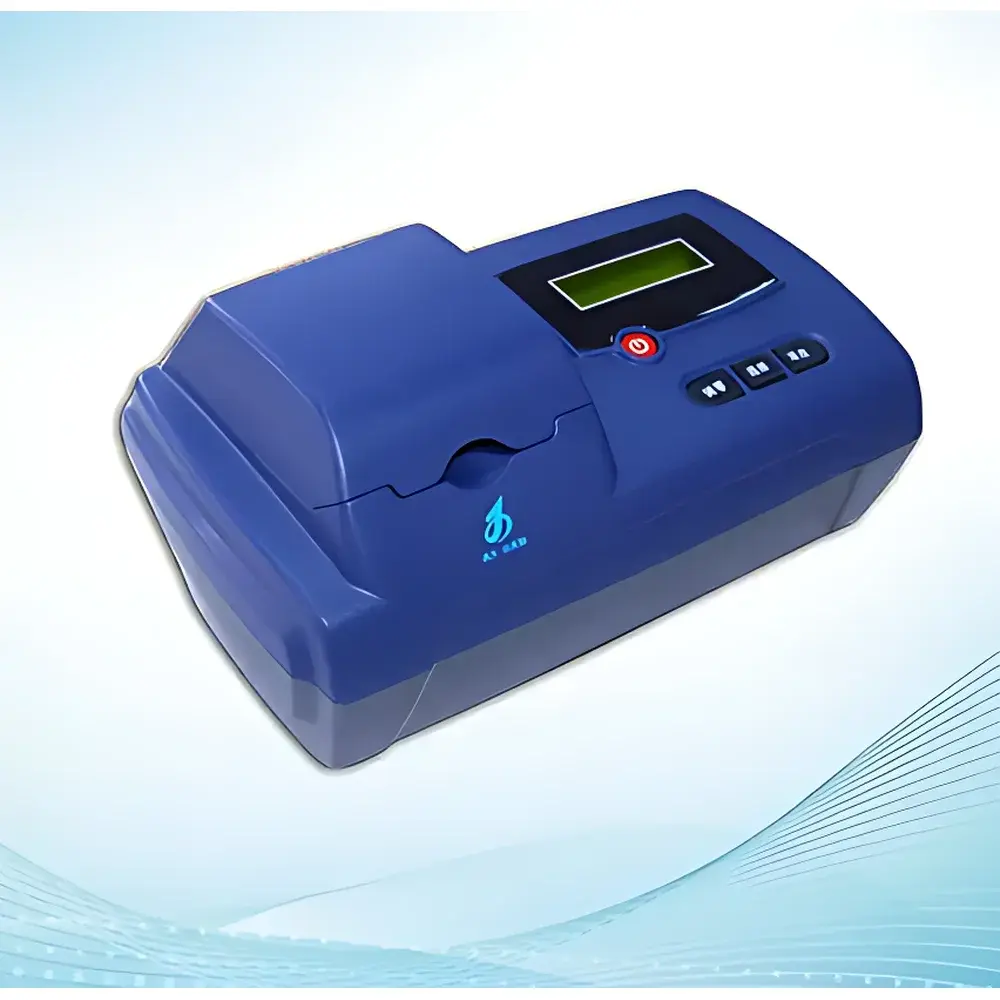

Beifen Sanpu GDYS-101SV Sulfide Analyzer
| Brand | Beifen Sanpu |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | GDYS-101SV |
| Application | Quantitative sulfide analysis in drinking water, surface water, domestic wastewater, and treated effluent |
| Detection Method | Colorimetric (methylene blue method per GB/T 5750.5–2006) |
| Detection Time | ≤10 min |
| Detection Limit | 0.02 mg/L |
| Measurement Range | 0.00–1.00 mg/L |
| Accuracy | ±5% |
| Power Supply | 9 V alkaline battery (operational life ≥40 h) |
| Reagent Format | Single-use, pre-packaged assay kits (50 tests per kit) |
| Included Accessories | Complete set of colorimetric glassware and reagents (50 assays) |
Overview
The Beifen Sanpu GDYS-101SV Sulfide Analyzer is a portable, field-deployable colorimetric instrument engineered for rapid, quantitative determination of dissolved sulfide (S²⁻) in aqueous environmental samples. It operates on the principle of the methylene blue spectrophotometric method—fully aligned with the Chinese national standard GB/T 5750.5–2006 for drinking water quality analysis. In this method, sulfide ions react under acidic conditions with N,N-dimethyl-p-phenylenediamine sulfate and ferric chloride to form methylene blue, a stable chromophore with maximum absorbance at 670 nm. The GDYS-101SV integrates optical detection, pulse-driven low-power electronics, and standardized single-use reagent cartridges to deliver laboratory-grade reproducibility in non-laboratory settings. Its design prioritizes operational robustness, minimal user training requirements, and compliance-ready documentation—making it suitable for routine monitoring by municipal water utilities, environmental inspection agencies, and third-party testing laboratories conducting GLP-aligned field assessments.
Key Features
- Standard-compliant methodology: Fully implements GB/T 5750.5–2006, ensuring regulatory traceability for public water supply reporting in China and compatibility with ISO 10303:2020 (water quality — determination of sulfide — spectrophotometric method) when adapted with appropriate calibration protocols.
- Rapid turnaround: Achieves full quantification within ≤10 minutes from sample introduction—including reagent addition, reaction incubation, and optical readout—enabling high-throughput screening during emergency response or routine surveillance campaigns.
- Low-power architecture: Utilizes pulsed LED illumination and microcontroller-based duty cycling to extend battery life; a single 9 V alkaline cell supports ≥40 hours of intermittent operation, eliminating dependency on external power sources during remote sampling.
- Pre-calibrated reagent system: Each disposable assay kit contains lyophilized reagents sealed under inert atmosphere, minimizing degradation and lot-to-lot variability. Kits are individually barcoded for traceability and include batch-specific calibration curves validated against NIST-traceable sulfide reference standards.
- Integrated optical path: Fixed-wavelength photometer (670 ± 5 nm) with temperature-compensated silicon photodiode detector ensures consistent sensitivity across ambient operating conditions (10–35 °C).
Sample Compatibility & Compliance
The GDYS-101SV accepts clarified liquid samples with turbidity <5 NTU and suspended solids <10 mg/L. It is validated for use with potable water, groundwater, surface water (rivers/lakes), and secondary-treated wastewater effluents. Sample pretreatment—such as zinc acetate fixation for volatile sulfide stabilization—is performed manually prior to analysis per standard protocol. While not certified to IEC 61000-6-3 (EMC) or ATEX for hazardous environments, the device meets GB/T 18268.1–2010 (electrical equipment for measurement, control and laboratory use) for safety and electromagnetic compatibility in typical field and office settings. Data output complies with basic audit trail requirements for internal QA/QC; for full 21 CFR Part 11 compliance, integration with Beifen Sanpu’s optional LIMS-connect module (sold separately) enables electronic signature, user access control, and immutable data archiving.
Software & Data Management
The GDYS-101SV operates in standalone mode without embedded software or touchscreen interface. All calculations—including blank subtraction, linear regression against factory-installed 5-point calibration curve, and concentration derivation—are executed in firmware using fixed-point arithmetic to ensure numerical stability and repeatability. Results display as mg/L S²⁻ on a dual-line LCD with backlight. Instrument-generated data can be manually recorded or transferred via optional RS-232 serial interface (cable and driver included) to Windows-based PCs running Beifen Sanpu’s free SulfideLog v2.1 desktop application. This application supports CSV export, QC flagging (e.g., out-of-range absorbance), and generation of PDF reports compliant with ISO/IEC 17025 documentation templates.
Applications
- Regulatory compliance monitoring of drinking water distribution systems per GB 5749–2022 (hygienic standard for drinking water).
- Effluent discharge verification for wastewater treatment plants subject to local environmental protection bureau permits.
- Field-based assessment of anaerobic digestion efficiency in biogas facilities through real-time sulfide tracking in digester supernatant.
- Source water vulnerability studies targeting sulfate-reducing bacterial activity in aquifers and reservoir sediments.
- Educational laboratory use in environmental engineering and analytical chemistry curricula, emphasizing method validation, LOD/LOQ estimation, and matrix interference evaluation.
FAQ
Does the GDYS-101SV require annual calibration certification?
No formal annual certification is mandated; however, users must perform daily blank verification and weekly calibration verification using the supplied 0.20 mg/L sulfide standard. Full recalibration is recommended every 6 months or after 200 assays, using Beifen Sanpu’s certified calibration kit (Cat. No. CAL-SV-06).
Can the instrument measure total sulfide (H₂S + HS⁻ + S²⁻)?
Yes—when paired with acidification and nitrogen purging per Standard Methods 4500-S²⁻ F, the GDYS-101SV quantifies total recoverable sulfide. The base configuration measures dissolved sulfide; total sulfide requires optional purge-and-trap accessory (Model PT-SV-1).
Is reagent cross-reactivity with thiosulfate or thiocyanate documented?
Interference testing per GB/T 5750.5–2006 confirms <±3% bias at thiosulfate concentrations ≤5 mg/L and negligible response to thiocyanate up to 10 mg/L. For high-thiosulfate matrices (e.g., photographic wastewater), inclusion of cadmium sulfate precipitation step is advised.
What is the shelf life of unopened reagent kits?
Two years from manufacture date when stored at 2–8 °C in original aluminum pouches. Do not freeze. After opening, use entire kit within 7 days under desiccated conditions.
Does the device support multi-point calibration outside factory presets?
No—the firmware implements only the 5-point linear calibration curve programmed at factory. Custom calibration is not user-accessible to maintain metrological integrity and regulatory alignment.
