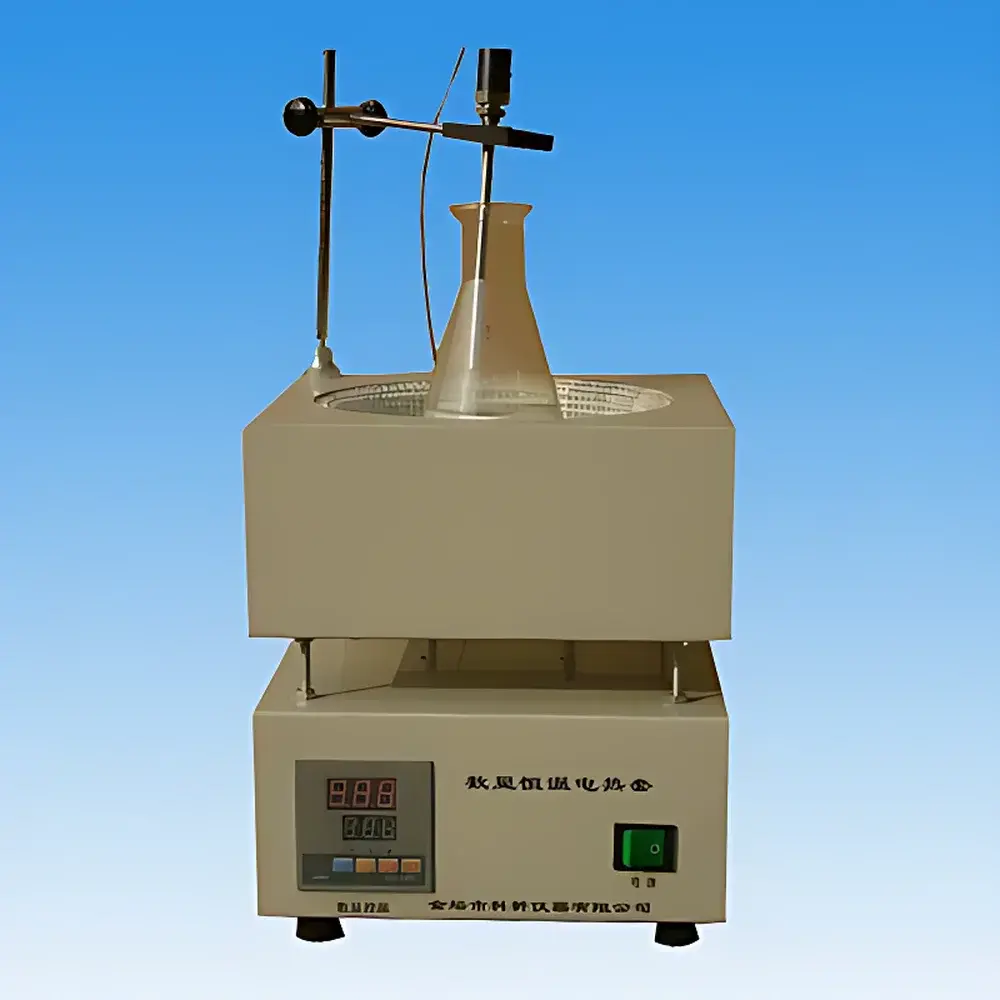

Beifen Sanpu HDM Series Digital Temperature-Controlled Heating Mantle

Overview

The Beifen Sanpu HDM Series Digital Temperature-Controlled Heating Mantle is an engineered thermal platform designed for precise, uniform, and repeatable heating of laboratory glassware during applications such as solvent evaporation, sample drying, controlled-temperature reactions, and pre-heating prior to distillation or extraction. Unlike open-heating elements or hot plates, the HDM series employs a conformal ceramic-fiber-insulated mantle structure that envelops round-bottom flasks, pear-shaped flasks, or other cylindrical vessels—ensuring radial heat distribution, minimizing thermal gradients, and reducing convective loss. Its core operating principle relies on resistive Joule heating combined with closed-loop PID temperature regulation, enabling stable setpoint maintenance within ±1.5 °C across the full 0–300 °C range. The unit is not intended for stirring; it serves exclusively as a thermostatic heating interface compatible with external mechanical or magnetic stirrers when agitation is required—a critical distinction in mixing & dispersion workflows where thermal control and mechanical shear must be independently optimized.

Key Features

• Microprocessor-based digital PID temperature controller with real-time display and programmable setpoint memory
• Four standardized capacity variants (250 mL, 500 mL, 1000 mL, 2000 mL) matched to corresponding heating power ratings (200–800 W) for optimal thermal response and energy efficiency
• Ceramic fiber insulation layer providing low thermal mass, rapid ramp-up (<15 min to 200 °C from ambient), and surface temperature containment below 60 °C under normal operation
• Robust aluminum alloy housing with integrated grounding terminal and reinforced silicone rubber power cord meeting IEC 61000-4 EMC immunity standards
• Over-temperature safety cutoff (activated at ≥320 °C) and automatic load fault detection to prevent dry-run damage or coil burnout
• Front-panel LED indicators for power status, heating active state, and error condition signaling

Sample Compatibility & Compliance

The HDM mantle is mechanically compatible with standard borosilicate glassware conforming to ISO 3585 and ASTM E438 Type I Class A specifications—including 24/40, 29/32, and 34/22 ground-glass joints. It accommodates flask geometries with diameters ranging from 60 mm (HDM-250B) to 130 mm (HDM-2000B). No direct contact between heating element and vessel occurs; thermal transfer is purely conductive-radiative through the insulated mantle wall. Units comply with GB/T 28977–2012 (Chinese national standard for laboratory electric heating equipment), carry CE marking per Directive 2014/35/EU (Low Voltage Directive) and 2014/30/EU (EMC Directive), and meet basic requirements for GLP-aligned thermal validation protocols when used with NIST-traceable thermocouple probes.

Software & Data Management

The HDM series operates as a standalone analog-digital hybrid instrument without embedded firmware upgradability or USB/RS-232 connectivity. Temperature logging requires external data acquisition: users may integrate calibrated Type-K thermocouples (inserted via flask neck or side-arm ports) with third-party DAQ systems compliant with IEEE 1451.2 or LabVIEW-compatible hardware. For audit-ready environments, manual calibration records—performed biannually against reference thermometers traceable to CNAS-accredited laboratories—must be retained per ISO/IEC 17025 clause 6.4. While the device lacks FDA 21 CFR Part 11 electronic signature capability, its deterministic control logic and physical lockout mechanisms support GMP Annex 11 risk assessments for non-critical thermal steps.

Applications

• Controlled dehydration of biological tissues, pharmaceutical intermediates, and environmental filter extracts
• Pre-concentration of aqueous samples prior to ICP-MS or GC-MS analysis
• Thermal conditioning of viscosity standards (e.g., Cannon-Fenske capillary calibration oils) within ASTM D445 tolerance bands
• Accelerated stability testing of polymer solutions under ISO 11348-3 defined thermal stress profiles
• Heating bath replacement in Soxhlet extraction assemblies where oil-bath fire hazards must be eliminated
• Teaching laboratory use in undergraduate chemistry courses for Arrhenius kinetics experiments requiring constant-temperature reaction vessels

FAQ

Can the HDM mantle be used with magnetic stir bars inside the flask?
Yes—provided the flask bottom is flat enough to allow bar rotation and the mantle’s internal geometry does not impede vortex formation. Stirring must be driven by an external magnetic stirrer placed beneath the mantle base.
Is the temperature sensor internally mounted or external?
The built-in sensor is a fixed-position RTD embedded in the mantle wall near the heating coil; it measures mantle shell temperature, not fluid temperature. For process-critical accuracy, users must employ an independent probe immersed in the sample.
What is the expected service life under continuous 200 °C operation?
Rated for ≥10,000 hours at ≤250 °C per IEC 60512-9-1 endurance testing; actual longevity depends on cycling frequency, ambient airflow, and absence of condensate ingress.
Does the unit support ramp-soak programming?
No—the controller supports only single-setpoint operation. Multi-step thermal profiles require external programmable controllers interfaced via 0–10 V analog input (not natively provided; retrofitting voids warranty).
Are replacement mantles available for different flask sizes?
Yes—Beifen Sanpu supplies interchangeable mantle inserts for all four capacity grades; each insert is mechanically keyed to prevent misfitting and includes serialized calibration documentation.
