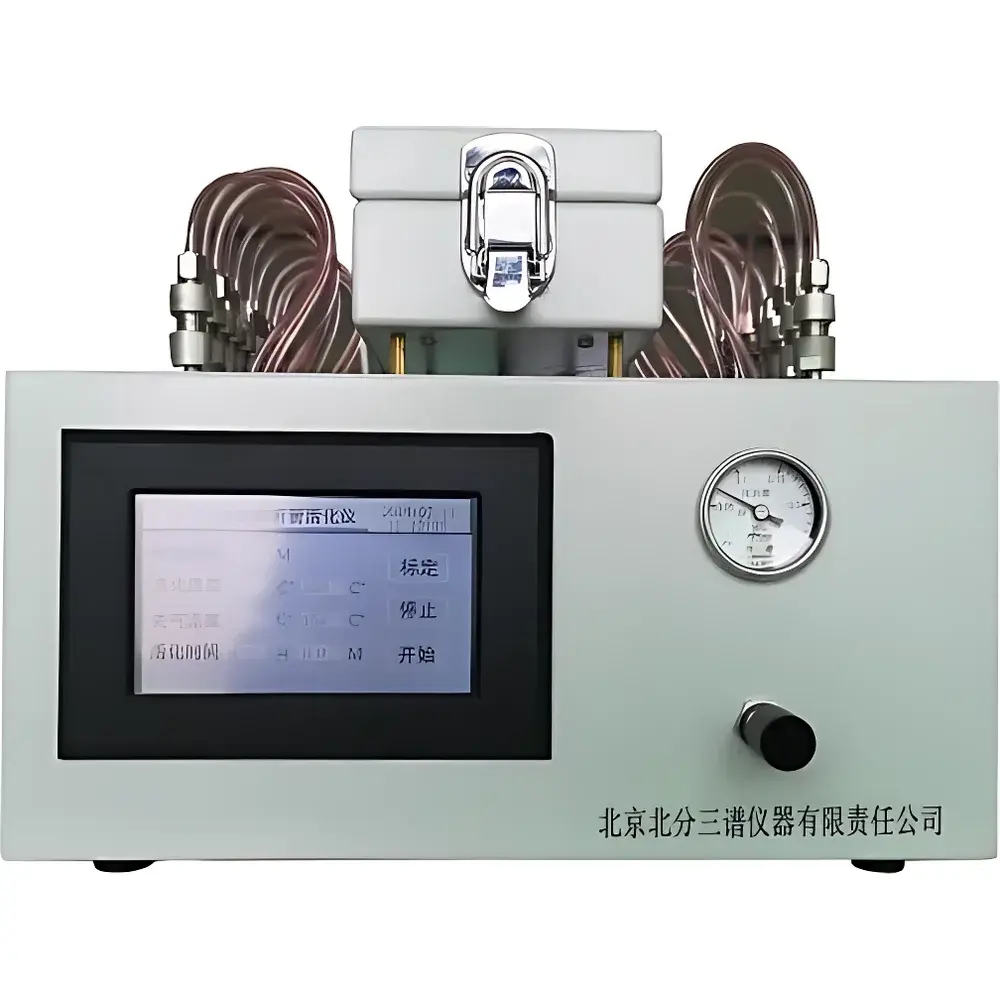

Beifen Sanpu HL-10A Imperial-Format Adsorption Tube Aging and Spiking System

Overview

The Beifen Sanpu HL-10A Imperial-Format Adsorption Tube Aging and Spiking System is a dedicated benchtop thermal conditioning instrument engineered for the precise and reproducible activation, cleaning, and performance validation of adsorbent-packed sampling tubes used in thermal desorption–gas chromatography (TD-GC) workflows. Designed specifically for 1/4-inch OD (6.35 mm) × 3.5-inch (88.9 mm) imperial-format tubes—commonly employed in EPA TO-17, ISO 16017-1, and ASTM D6196-compliant air monitoring protocols—the HL-10A integrates independent temperature control, programmable gas purging, and integrated spiking capability into a single compact unit. Its operation relies on controlled convective heating under inert gas flow to thermally desorb residual volatiles, moisture, and contaminants from sorbent beds (e.g., Tenax TA, Carbopack B/C, Carboxen 1000), thereby ensuring baseline stability, low blank response, and analytical reproducibility in trace-level VOC analysis.

Key Features

• 5-inch capacitive touchscreen interface with intuitive navigation, real-time parameter display, and password-protected method storage
• Dual-zone thermal architecture: independent heating elements and PID-controlled sensors per tube position ensure uniform temperature distribution across all 10 tube slots (±1 °C accuracy)
• Programmable gas flow regulation (0–1000 mL/min) via integrated mass flow controller, supporting both nitrogen and helium purge gases
• Automated thermal cycle sequencing: user-defined aging time (up to 999+ hours), ramp rate, hold temperature, and post-aging cooldown with automatic gas shutoff at target temperature
• Embedded simulated sampling module enabling direct liquid or gaseous standard introduction onto aged tubes for calibration verification or recovery testing
• Safety-critical hardware interlocks: overtemperature cutoff (>410 °C), open-circuit sensor detection, and thermal fuse redundancy
• Energy-efficient design with active cooling assistance and adaptive power modulation during standby and cooldown phases

Sample Compatibility & Compliance

The HL-10A accommodates standard 1/4-inch OD × 3.5-inch length stainless steel or quartz adsorption tubes, including those packed with multi-bed sorbents compliant with EPA Method TO-17 requirements. It supports routine QC procedures mandated under ISO/IEC 17025-accredited laboratories, including tube blank assessment, breakthrough volume verification, and spiking recovery studies. The system’s thermal stability and gas flow repeatability align with GLP documentation practices; all method parameters—including setpoints, actual temperatures, flow rates, timestamps, and operator IDs—are logged internally for audit readiness. While not FDA 21 CFR Part 11–certified out-of-the-box, its logging architecture supports integration with validated LIMS environments where electronic records and signature controls are implemented externally.

Software & Data Management

The embedded firmware provides non-volatile storage for up to 100 user-defined aging methods, each with configurable segments (ramp, hold, cooldown). All operational events—including start/stop times, temperature profiles, flow deviations >5%, and safety interrupts—are timestamped and retained in internal memory for ≥30 days. Data export is supported via USB flash drive in CSV format, enabling traceable reporting for QA/QC review. No proprietary software installation is required; exported logs are compatible with standard spreadsheet and statistical analysis tools (e.g., Excel, JMP, Minitab) used in laboratory validation protocols.

Applications

The HL-10A serves critical pre-analytical functions in environmental air quality monitoring (indoor/outdoor VOCs, SVOCs), occupational hygiene exposure assessment (NIOSH 5515, OSHA 1005), building material emissions testing (ASTM D5116, ISO 16000-9), automotive cabin air analysis, and regulatory compliance testing for third-party certification bodies. Its spiking function facilitates method validation activities such as spike recovery determination (per ISO 8466-1), limit of quantitation (LOQ) verification, and matrix effect evaluation in complex sample matrices. Academic and government research labs utilize the system for sorbent stability studies, breakthrough curve generation, and inter-laboratory comparison exercises.

FAQ

What tube dimensions does the HL-10A support?

The instrument is optimized for imperial-format tubes: 6.35 mm (1/4″) outer diameter and minimum length of 88.9 mm (3.5″). Custom fixtures for alternative formats are not supplied but may be engineered upon request.

Is the gas flow rate calibrated and traceable?

The integrated mass flow controller is factory-calibrated against NIST-traceable standards; recalibration is recommended annually or after 2000 operating hours.

Can aging data be exported for regulatory audits?

Yes—CSV-formatted logs include date/time stamps, setpoints, measured values, and event flags, supporting ISO/IEC 17025 and CAP accreditation requirements.

Does the system meet electrical safety standards for international use?

The unit complies with IEC 61010-1:2010 for laboratory electrical equipment; CE marking is available upon request with region-specific voltage configuration.

How is tube-to-tube thermal uniformity verified?

Each slot undergoes individual thermal mapping during factory acceptance testing; a certificate of uniformity (±1.5 °C max deviation at 350 °C) is provided with shipment.
