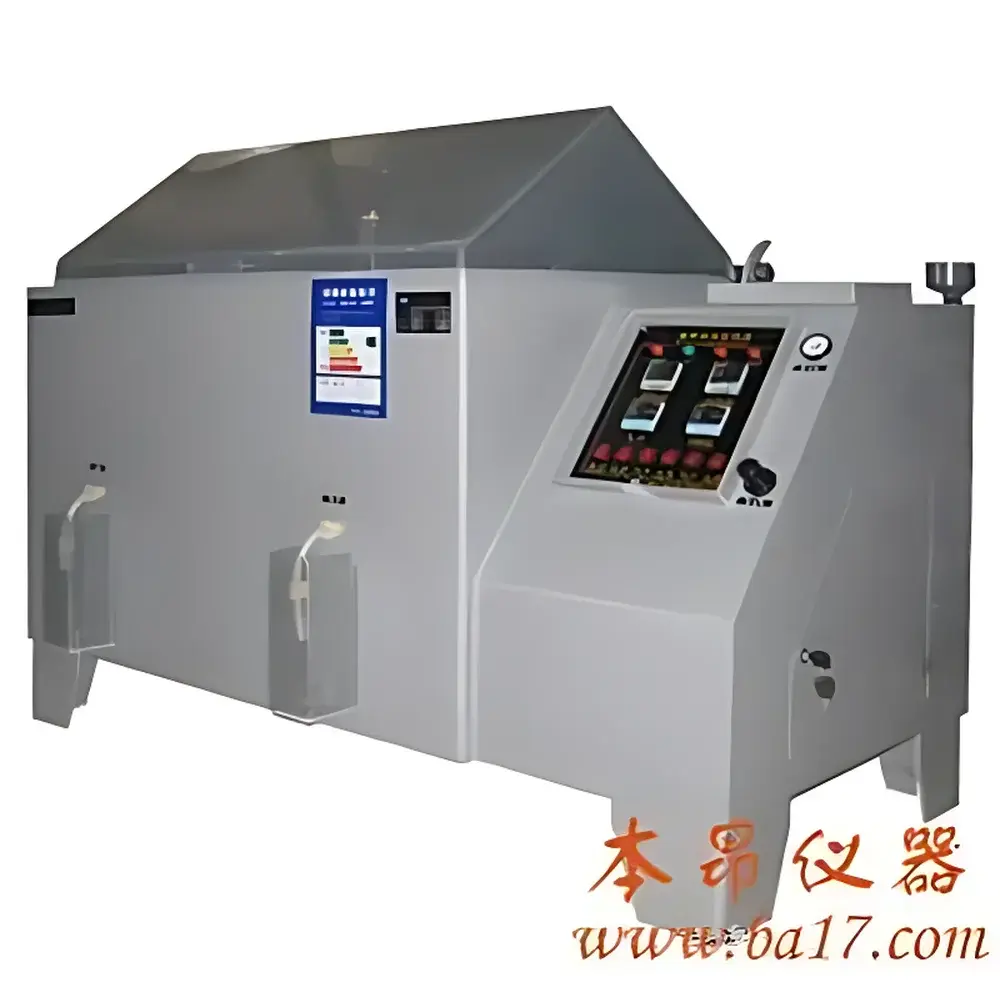

BenAng BA-YWP200 Salt Spray Test Chamber

Overview

The BenAng BA-YWP200 Salt Spray Test Chamber is an engineered environmental test system designed to replicate accelerated corrosive conditions found in marine, coastal, and industrial atmospheres. It operates on the principle of continuous or intermittent atomization of a standardized sodium chloride (NaCl) solution—typically 5% w/w—into a controlled, saturated, heated chamber environment. The resulting salt-laden aerosol deposits uniformly onto test specimens at a regulated rate (1–2 mL/h per 80 cm²), enabling quantitative assessment of corrosion resistance for metallic substrates, coated surfaces, electroplated layers, and polymer-based protective systems. This chamber complies with internationally recognized test protocols including ISO 9227, ASTM B117, JIS Z2243, GB/T 2423.17, and GJB 150.11A, making it suitable for quality assurance laboratories, R&D centers, and production-line validation under GLP- and ISO/IEC 17025-aligned workflows.

Key Features

• Chamber construction from 10 mm German-sourced gray PVC board—impact-resistant, UV-stable, and chemically inert to 5% NaCl mist at elevated temperatures up to +55 °C.
• Integrated saturated air supply system with stainless-steel (2 mm) humidification tank, equipped with dual auto-level controllers to ensure stable saturation pressure and consistent fog density.
• Transparent 5 mm European-grade acrylic lid with 120° conical geometry—prevents direct condensate drip onto samples while maintaining optical visibility during testing.
• Adjustable specimen rack fabricated from PVC angle profiles, supporting inclination angles of 15° (20 specimens, 150 × 70 mm each) or 30° (15 specimens), per ISO 9227 orientation requirements.
• Dual-stage pneumatic regulation: primary pressure stabilization (2–2.5 kgf/cm²) followed by precision secondary control (0–4.0 kgf/cm²), calibrated to deliver reproducible spray pressure at 1.0 kgf/cm².
• PYREX glass nozzles (Taiwan-origin, certified for long-term chemical durability) coupled with conical dispersion heads for uniform spatial distribution across the full test volume.
• VT4810-based PID temperature controllers (two units)—one for chamber air, one for saturator—each offering 0.1 °C resolution, dual-digit display, and auto-tuning capability.
• Comprehensive safety architecture: dual independent overtemperature cutouts, low-water detection circuitry, audible/visual fault indicators, and fail-safe solenoid valve sequencing.

Sample Compatibility & Compliance

The BA-YWP200 accommodates flat, rigid, and moderately contoured specimens up to 150 × 70 mm per unit, with total load capacity limited only by rack configuration and airflow dynamics. It supports both bare-metal evaluation and multi-layer coating integrity testing—including zinc plating, chromate conversion coatings, epoxy-polyester powder coatings, and automotive clearcoats. All internal wetted components meet ASTM D1654 compatibility criteria for saline exposure. The chamber satisfies mandatory calibration traceability requirements under ISO/IEC 17025:2017 for accredited corrosion testing labs. Documentation includes factory calibration certificates for temperature sensors and deposition rate verification using imported 80 cm² standard funnels. System design aligns with IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emission) for electromagnetic compatibility in shared laboratory environments.

Software & Data Management

While the BA-YWP200 utilizes a dedicated hardwired control panel without embedded software, its analog/digital hybrid interface enables seamless integration into external data acquisition ecosystems. All critical parameters—including chamber temperature, saturator temperature, elapsed test time, and operational status—are accessible via isolated 4–20 mA or 0–10 V analog outputs. Optional RS-485 Modbus RTU communication module (sold separately) allows connection to SCADA platforms or LIMS systems for automated logging, alarm triggering, and audit trail generation compliant with FDA 21 CFR Part 11 Annex 11 requirements. Time-stamped event logs—including door-open intervals, power interruptions, and safety interlock activations—are retained locally via non-volatile memory within the VT4810 controllers.

Applications

• Corrosion resistance validation of automotive fasteners, brake calipers, and chassis components per SAE J2334 and VW PV1210.
• Quality control of printed circuit board (PCB) surface finishes—including ENIG, immersion silver, and OSP—per IPC-J-STD-003.
• Evaluation of aerospace aluminum alloys (e.g., 2024-T3, 7075-T6) and titanium Grade 5 (Ti-6Al-4V) per AMS 2700 and ASTM F1110.
• Accelerated aging studies of marine-grade stainless steels (316L, duplex 2205) and cathodic protection systems.
• Verification of packaging barrier performance for medical device sterilization trays exposed to saline-humid environments.
• Pre-compliance screening for MIL-STD-810H Method 509.6 (Salt Fog) prior to formal qualification testing.

FAQ

What standards does the BA-YWP200 comply with?
It meets ISO 9227, ASTM B117, GB/T 2423.17, GJB 150.11A, and JIS Z2243. Full compliance documentation—including test reports and calibration records—is supplied with each unit.
Is the chamber suitable for cyclic salt spray testing?
The base configuration supports only continuous and intermittent salt fog modes. For full cyclic testing (e.g., ISO 14993 or ASTM G85 Annex A5), optional humidity/temperature ramping modules and programmable sequence controllers must be integrated externally.
How is salt fog deposition rate verified and maintained?
Deposition is measured hourly using the included imported 80 cm² funnel collector and 50 mL graduated cylinder. Calibration is performed at installation and recommended quarterly using NIST-traceable volumetric standards.
Can the chamber operate unattended for extended durations?
Yes—equipped with automatic water replenishment, thermal cutouts, and fault-lockout logic, it supports uninterrupted operation up to 9999.9 hours. Remote monitoring requires optional analog or Modbus connectivity.
What maintenance is required for long-term reliability?
Monthly inspection of nozzles for crystallization, quarterly cleaning of saturator internals with deionized water, and annual verification of temperature sensor accuracy against reference thermistors are recommended.
