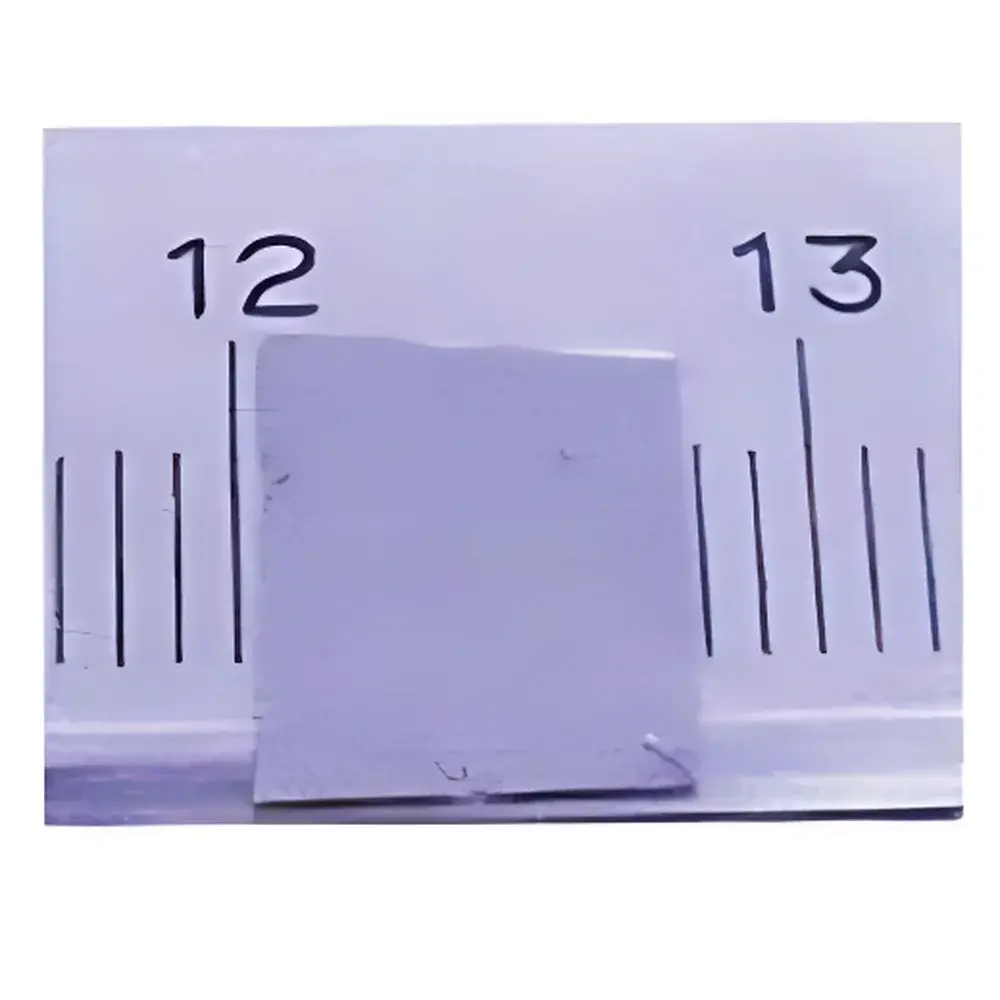

Bi2Se2Te Single Crystal (合肥科晶 | Hexagonal R-3m Structure, 99.999% Purity)

Overview

The Bi₂Se₂Te single crystal is a high-purity, stoichiometrically tunable topological insulator material engineered for fundamental condensed matter physics research and advanced thermoelectric characterization. Crystallizing in the hexagonal R-3m space group (No. 166), this compound exhibits layered van der Waals bonding along the c-axis, enabling mechanical exfoliation to yield atomically smooth, non-metallic thin flakes with preserved bulk band topology. Its exceptionally high carrier mobility—ranging from 1000 to 5000 cm²/V·s at low temperatures—and resistivity spanning 0.1–5 mΩ·cm make it uniquely suited for quantum transport studies, surface-state spectroscopy, and benchmarking of spin-momentum locked Dirac fermion behavior. Unlike conventional thermoelectrics, Bi₂Se₂Te demonstrates one of the highest experimentally measured ZT values among pure-phase bulk materials near room temperature, attributable to its intrinsic phonon-glass electron-crystal character and suppressed lattice thermal conductivity.

Key Features

• Ultra-high purity (99.999%, 5N) verified by GDMS and ICP-MS, minimizing defect-mediated scattering and enabling reproducible quantum oscillation measurements.
• Precise stoichiometric control within ±5% atomic ratio across Bi:Se:Te composition, facilitating systematic investigation of band structure evolution and Fermi level tuning.
• Well-defined cleavage along the (0001) basal plane, yielding mirror-like surfaces with monolayer-level thickness uniformity after mechanical exfoliation.
• Engineered for cryogenic (<4 K) and variable-temperature (2–300 K) transport experiments, compatible with standard dilution refrigerator probe stations and UHV STM/ARPES systems.
• Supplied in certified Class 100 cleanroom bags, pre-characterized via XRD (full-width half-maximum < 0.05° for (0006) reflection) and Hall-effect mapping to confirm homogeneity.

Sample Compatibility & Compliance

This crystal is fully compatible with standard microfabrication workflows including electron-beam lithography, thermal evaporation (Cr/Au, Ti/Pd), and reactive ion etching (SF₆/O₂). All wafers undergo post-growth annealing under Te-rich atmosphere to suppress Se vacancies and stabilize the topological surface state. Material traceability includes batch-specific certificates of analysis (CoA) reporting residual impurity levels (e.g., Fe < 0.1 ppm, Cu < 0.05 ppm). While not certified to ISO 17025 for metrological calibration, the product conforms to ASTM F1529-20 guidelines for semiconductor-grade crystalline materials used in academic and industrial R&D laboratories. It meets GLP-compliant documentation requirements for materials used in federally funded basic research (NSF, DOE).

Software & Data Management

No proprietary software is bundled with the crystal itself; however, structural and electronic property data are provided in standardized formats (CIF, POSCAR, and VASP input sets) for immediate integration into density functional theory (DFT) simulation pipelines (Quantum ESPRESSO, WIEN2k). Experimental datasets—including XRD patterns, magnetotransport raw files (2-probe and 4-probe configurations), and ARPES intensity maps—are available upon request in HDF5 format, compliant with FAIR (Findable, Accessible, Interoperable, Reusable) data principles. Metadata follows the ICDD PDF-4+ schema for crystallographic reference and includes full uncertainty propagation for lattice parameter determination.

Applications

• Angle-resolved photoemission spectroscopy (ARPES) studies of topological surface states and spin-texture mapping.
• Low-temperature magneto-transport measurements (Shubnikov–de Haas, quantum Hall effect) in high-mobility 2D electron gases.
• Heterostructure integration with h-BN or graphene for gate-tunable topological junctions.
• Thermoelectric performance benchmarking under controlled thermal gradients (ASTM E1530-21).
• In-situ scanning tunneling microscopy (STM) and spectroscopy (STS) of pristine cleaved surfaces.
• Validation substrate for epitaxial growth of related chalcogenides (e.g., Bi₂Te₃, Sb₂Te₃) in MBE systems.

FAQ

Is this crystal suitable for exfoliation into monolayer or few-layer flakes?
Yes—its weak interlayer van der Waals bonding and atomically flat (0001) cleavage plane enable reliable mechanical exfoliation down to sub-5-nm thicknesses using PDMS or PC film stamps.
What is the typical carrier concentration range measured in Hall bar devices fabricated on this material?
Reported values fall between 1 × 10¹⁹ and 5 × 10¹⁹ cm⁻³, depending on stoichiometry and thermal history; full Hall coefficient vs. temperature datasets are available in supplementary CoA documents.
Can I request custom dimensions or alternative orientations (e.g., (10-10) side faces)?
Yes—custom cutting and orientation polishing (±0.1° tolerance) are available upon technical consultation; lead time extends by 4–6 weeks.
Are there any handling or storage recommendations to preserve surface integrity?
Store under inert atmosphere (Ar or N₂) in sealed quartz ampoules; avoid exposure to ambient moisture for >30 minutes prior to exfoliation or device fabrication.
Does the material require post-cleavage annealing before STM or ARPES measurement?
Not routinely—cleaved surfaces remain stable for ≥48 hours in UHV (<1 × 10⁻¹⁰ Torr); brief annealing (150 °C, 30 min) may be applied to remove adventitious carbon if required.
