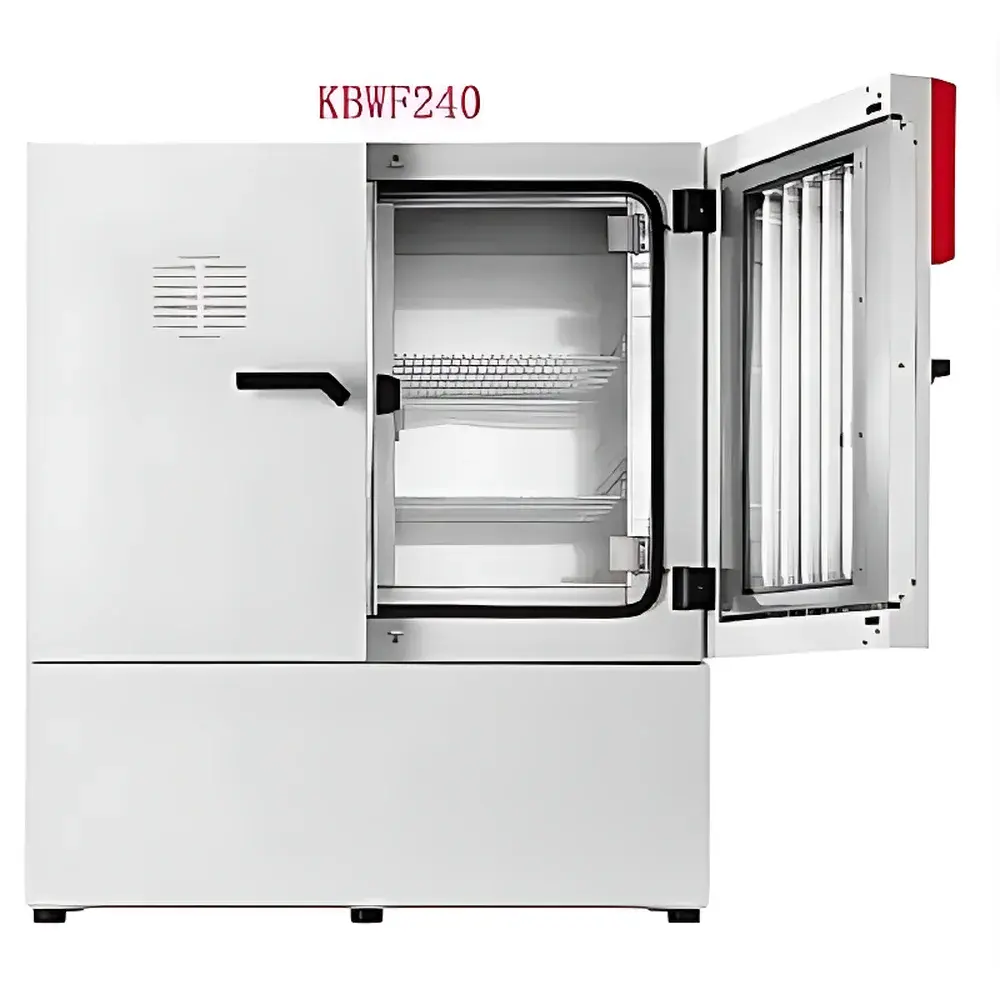

Binder KBWF Programmable Plant Growth Chamber

Overview

The Binder KBWF Programmable Plant Growth Chamber is an engineered environmental simulation platform designed for reproducible, long-term cultivation of plants under precisely controlled climatic conditions. Built upon BINDER’s decades of expertise in precision incubation systems, the KBWF integrates thermodynamic stability, photobiological fidelity, and regulatory-ready control architecture. Its core operational principle relies on a dual-path air management system: a preheating chamber ensures uniform thermal conditioning of incoming air, while a variable-speed turbine fan delivers laminar, horizontally directed airflow—mimicking natural convective patterns critical for stomatal function, transpiration dynamics, and morphological development. Unlike conventional vertical-flow chambers, this horizontal convection minimizes thermal stratification and light-shadow artifacts, enabling homogeneous microclimate distribution across the entire growth volume. The chamber supports simultaneous, independent regulation of temperature, relative humidity, and spectral light intensity—making it suitable for phenotyping studies, stress response assays, circadian rhythm investigations, and seed germination standardization in academic, agricultural, and pharmaceutical research settings.

Key Features

• Horizontal airflow architecture with integrated preheating chamber and electronically controlled turbine fan for consistent, low-turbulence air distribution.
• DCT (Direct Cooling Technology) with environmentally compliant refrigerant (R-290), continuous defrost cycle, and integrated condensate collection tray—eliminating manual drainage requirements.
• Capacitive humidity sensor with ±1.5 % RH accuracy across 10–90 % RH range; fully integrated into closed-loop humidification/dehumidification system using tap water without external demineralization.
• FLUORA full-spectrum fluorescent lighting system comprising ten lamps arranged in three independently addressable groups—enabling dynamic photoperiod programming and spectral tuning for C3/C4 plant models or photomorphogenic studies.
• 4-channel color touchscreen controller supporting up to 25 multi-segment programs (100 segments per program), each defining time-resolved setpoints for temperature, humidity, lighting intensity, and on/off states.
• Robust stainless-steel inner chamber with enhanced thermal insulation and anti-condensation design to prevent moisture accumulation on internal surfaces and optical components.

Sample Compatibility & Compliance

The KBWF accommodates a wide range of botanical specimens—from Arabidopsis thaliana seedlings and tissue culture plates to mature cereal plants and hydroponic modules—within its 240 L and 720 L cavity configurations. Its modular interior allows flexible shelving layouts and optional top-mounted supplemental lighting integration. From a regulatory perspective, the system supports audit-ready operation: all parameter changes, program executions, and alarm events are timestamped and logged locally. While not inherently 21 CFR Part 11 compliant out-of-the-box, the RS232 interface enables integration with validated third-party data acquisition software supporting electronic signatures, audit trails, and secure user access controls—facilitating adherence to GLP, ISO 17025, and OECD Test Guidelines (e.g., TG 208, TG 227). Calibration documentation and factory verification reports are provided per unit.

Software & Data Management

The embedded controller firmware stores all operational logs internally, including real-time sensor values, program progression status, and fault diagnostics. Data export is supported via RS232 serial connection to external PCs running custom or vendor-supplied terminal applications. Users may configure automatic log dumps at defined intervals or trigger manual exports for offline analysis in MATLAB, Python (Pandas), or statistical packages such as JMP or R. No proprietary cloud service or subscription is required; data sovereignty remains fully under institutional control. Firmware updates are delivered via USB stick, ensuring compatibility with air-gapped laboratory networks.

Applications

• Controlled-environment phenotyping for drought, heat, or cold stress tolerance screening.
• Photoperiodic and vernalization studies in crop breeding programs.
• Standardized germination testing per ISTA or AOSA protocols.
• Pre-acclimation protocols prior to field transplantation or greenhouse transfer.
• Secondary metabolite production optimization under defined light spectra and humidity regimes.
• Microbial–plant interaction studies requiring stable, contaminant-minimized atmospheric conditions.

FAQ

Can the KBWF operate without external deionized water?
Yes. The integrated humidification system is engineered to function reliably with standard municipal tap water, eliminating the need for reverse osmosis or distillation units.
Is remote monitoring possible via Ethernet or Wi-Fi?
No. The KBWF features only an RS232 serial interface. Network connectivity requires an external RS232-to-Ethernet converter configured within the user’s IT infrastructure.
What is the typical temperature uniformity across the chamber volume?
At 22 °C setpoint, BINDER specifies ±0.5 °C spatial uniformity (measured per DIN 12880-1) in the 720 L configuration when operated at mid-volume loading conditions.
Are UV-emitting lamps compatible with the KBWF lighting system?
No. The FLUORA lamp holders and ballasts are rated exclusively for T5 fluorescent tubes meeting IEC 60081 specifications. UV-B or UV-C retrofitting is not supported and voids warranty and safety certification.
Does the system include validation documentation for IQ/OQ protocols?
Yes. Each unit ships with a Factory Acceptance Test (FAT) report. Optional on-site Installation Qualification (IQ) and Operational Qualification (OQ) services are available through authorized BINDER service partners.
