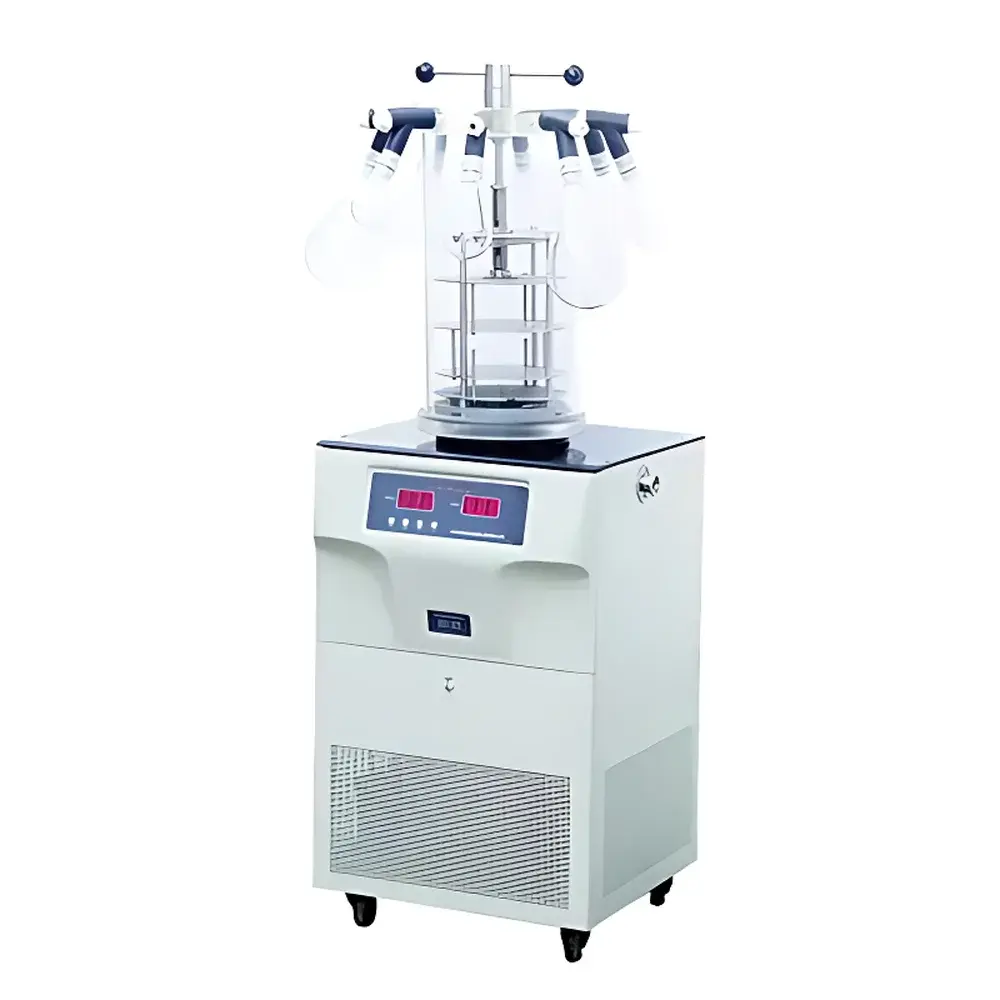

BIOCOOL FD-1D-80 Benchtop Freeze Dryer

Overview

The BIOCOOL FD-1D-80 is a benchtop freeze dryer engineered for laboratory-scale lyophilization of heat-sensitive biologicals, pharmaceuticals, and organic-solvent-based formulations. It operates on the fundamental principles of sublimation under high vacuum and deep-cold condensation—where frozen water or solvent is removed directly from the solid phase without passing through liquid state. Its dual-stage cascade refrigeration system achieves condenser temperatures below −80 °C, enabling efficient capture of volatile solvents such as ethanol, acetone, and ethyl acetate—critical for stabilizing APIs, monoclonal antibodies, and small-molecule compounds prone to degradation during conventional drying. The unit features a vertical footprint with casters for mobility, stainless-steel condenser chamber (no internal cooling coils), and an integrated pre-freezing function—eliminating the need for external ultra-low temperature freezers in many workflows.

Key Features

• Vertical, space-efficient design with leveling feet and industrial-grade casters for lab repositioning.
• Dual-compressor cascade refrigeration system delivering stable condenser temperatures ≤ −80 °C—validated per ISO 22000-compliant thermal mapping protocols.
• Condenser chamber constructed entirely from electropolished 316L stainless steel; smooth, coil-free interior ensures rapid defrosting, corrosion resistance, and compliance with cGMP cleaning validation requirements.
• Patented conical baffle (导流筒) enhances vapor path efficiency and increases effective ice-trapping surface area by >25% compared to conventional cylindrical traps.
• Optically transparent acrylic bell jar with reinforced safety seal—enables real-time visual monitoring while maintaining Class I vacuum integrity (leak rate < 0.1 Pa·m³/s).
• Integrated inert gas backfill valve (standard ISO-KF25 port) supports nitrogen or argon purging—essential for oxygen-sensitive biologics and oxidation-prone small molecules.
• Digital PID-controlled vacuum and temperature display with RS-485 communication interface for integration into centralized lab data systems.
• Modular configuration: FD-1D-80 variant includes both hydraulic pressure-sealing capability (for vial stoppering post-lyophilization) and universal hanging flask ports compatible with 100–1000 mL lyophilization flasks.

Sample Compatibility & Compliance

The FD-1D-80 accommodates heterogeneous sample formats—including bulk solutions in 3-tier stainless-steel trays (Φ180 mm), sealed glass vials (with optional stopper compression), and solvent-rich suspensions in hanging flasks. Its −80 °C condenser and 4 kg/24 h ice capacity meet ASTM F2375-21 criteria for residual moisture control in lyophilized protein formulations. All wetted surfaces comply with USP material classification; vacuum seals conform to ISO 10100:2018 for static sealing performance. The system supports GLP-compliant operation when paired with optional temperature probes (Pt100 Class A, traceable to NIST standards) and audit-trail-enabled software modules compliant with FDA 21 CFR Part 11.

Software & Data Management

While the base FD-1D-80 operates via embedded microcontroller with local digital readouts, it is fully compatible with BIOCOOL’s LyoLog™ PC-based control suite (optional). LyoLog™ provides time-stamped logging of chamber pressure, condenser temperature, shelf temperature (when equipped), and vacuum ramp profiles—with automatic export to CSV or PDF for regulatory submission. Data encryption, user role management (admin/operator/auditor), and electronic signature support satisfy ALCOA+ principles. Raw sensor data is stored locally on removable SD card (2 GB included) with write-protection switch—ensuring data integrity during power interruption.

Applications

• Lyophilization of monoclonal antibodies, vaccines, and recombinant enzymes where residual solvent content must remain < 500 ppm.
• Stabilization of microbial cultures and fungal spores in T-type manifold configurations (FD-1E-80 variant).
• Preparative drying of natural product extracts containing terpenes or phenolic glycosides susceptible to thermal decomposition.
• Method development for GMP process transfer—leveraging identical thermal kinetics between FD-1D-80 and larger BIOCOOL production-scale units (e.g., LGJ-50F).
• Routine QC drying of reference standards prior to HPLC or mass spectrometry analysis—minimizing adsorption artifacts and improving quantitative reproducibility.

FAQ

Does the FD-1D-80 support validation documentation (IQ/OQ/PQ)?

Yes—BIOCOOL provides factory-verified calibration certificates for vacuum transducer and condenser thermocouples, along with protocol templates aligned with ASTM E2500-22 and EU Annex 15.
Can the unit be operated continuously for extended cycles?

The dual-compressor architecture and oversized condenser permit uninterrupted operation up to 72 hours; recommended maintenance interval is every 500 operational hours or annually, whichever occurs first.
Is remote monitoring possible without upgrading to LyoLog™?

Basic analog outputs (0–10 V for vacuum, 4–20 mA for condenser temp) are available on the rear I/O panel for integration with third-party SCADA or building management systems.
What vacuum pump compatibility is supported?

KF-25 standard interface accepts oil-lubricated, dry scroll, or diaphragm pumps rated ≥ 4 m³/h at ultimate vacuum ≤ 5 × 10⁻² Pa—recommended models include Edwards RV8, KNF NP2010, or Agilent IDP-10.
How is defrosting performed safely and efficiently?

Manual defrost mode activates automatic heater cycling (max 60 °C surface temp) with timed condensate drainage via bottom-mounted valve—no disassembly required. Full defrost cycle duration: < 45 minutes.
