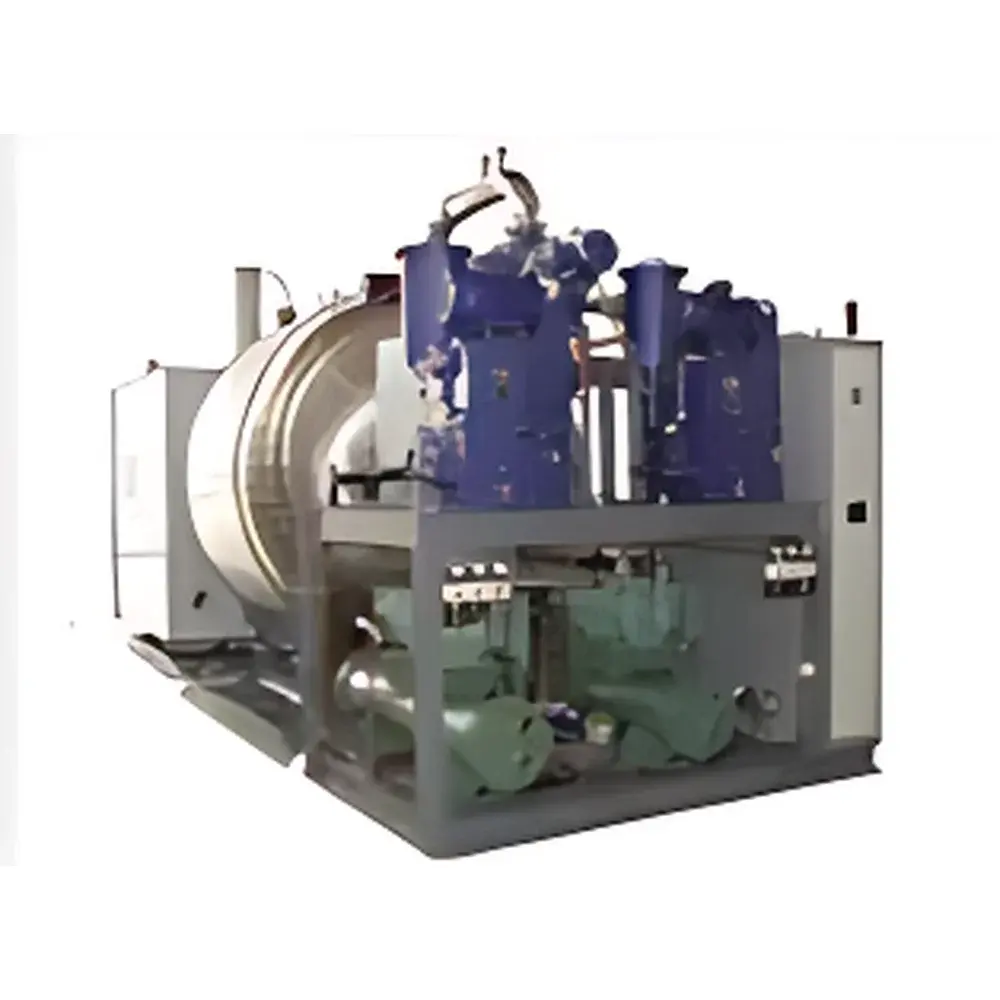

BIOCOOL LYO-15E Production-Scale Freeze Dryer

Overview

The BIOCOOL LYO-15E is a production-scale shelf-type freeze dryer engineered for consistent, reproducible lyophilization of thermolabile biopharmaceuticals, herbal extracts, functional food ingredients, and advanced materials. It operates on the fundamental principle of sublimation under deep vacuum: frozen water is removed directly from the solid phase to vapor without passing through the liquid state, preserving structural integrity, biological activity, and chemical stability. Designed for batch processing in pilot and small-scale manufacturing environments, the LYO-15E delivers 15 m² of uniform shelf surface area, enabling parallel processing of up to 42,900 vials (Ø22 mm) per cycle. Its robust architecture integrates a high-efficiency cascade refrigeration system capable of maintaining condenser temperatures below −75 °C—critical for capturing volatile solvents and ensuring stable primary drying kinetics. The system meets foundational requirements for Good Manufacturing Practice (GMP)-aligned operations, including configurable process logging, calibration traceability, and hardware-level interlocks for thermal and vacuum safety.

Key Features

• Programmable Shelf-Controlled Freezing: Integrated pre-freeze function enables precise control over nucleation and ice crystal formation, minimizing product heterogeneity and maximizing reconstitution performance.
• Vacuum Modulation System: Dynamically adjusts chamber pressure during both primary and secondary drying phases to suppress boil-over, prevent vial tipping, and optimize mass transfer rates—particularly critical for high-viscosity or low-eutectic formulations.
• Pulse Backfill Technology: Three-stage inert gas reintroduction (slow/medium/fast) ensures gentle, controlled repressurization—preventing powder dispersion, particle attrition, or loss of fine particulates post-drying.
• Leak-Tight Welded Shelf Construction: Shelves fabricated using certified orbital welding techniques; validated for zero leakage under full operational vacuum and thermal cycling conditions.
• End-Point Detection Algorithm: Automated residual moisture assessment during desorption drying, based on real-time pressure rise tests (PRT) and comparative shelf/product temperature differentials.
• Industrial HMI Interface: 15-inch capacitive touchscreen with intuitive workflow navigation, multilingual support, and context-sensitive guidance—enabling operation without reference to external documentation.
• Comprehensive Safety Architecture: Independent overcurrent and overload protection per subsystem; vacuum-dependent interlocks; shelf overtemperature cutoff; condenser defrost safeguard; and vacuum pump dry-run prevention.

Sample Compatibility & Compliance

The LYO-15E accommodates diverse sample formats—including serum vials (Ø22 mm), trays, and custom stainless-steel containers—within its pass-through wall configuration, supporting segregated cleanroom integration. Its design aligns with core elements of ISO 22000 (food safety), ISO 13485 (medical devices), and ICH Q5C (biopharmaceutical stability). While the economic variant does not include CIP/SIP capabilities, it supports validation-ready operation: temperature sensors (PT100 Class A) and vacuum transducers (capacitance manometers) are field-calibratable per ISO/IEC 17025 guidelines. All firmware logs timestamped process data—including shelf temperature, chamber pressure, condenser temperature, and elapsed time—with audit trail capability compliant with FDA 21 CFR Part 11 when paired with optional PC-based supervision software.

Software & Data Management

Embedded control firmware provides real-time visualization of all critical parameters at 50 ms resolution, with automatic storage of complete lyophilization curves (shelf temp, product temp, chamber pressure, condenser temp). Up to 2000 user-defined or standardized protocols can be stored locally, each supporting multi-step ramp/hold sequences, vacuum setpoints, and conditional logic triggers. Optional remote monitoring enables secure Ethernet/WiFi-based access to live status, alarms, and historical trend exports (CSV/PDF). Process data export complies with ASTM E2500-21 for equipment qualification documentation. Calibration records—including date, technician ID, reference standards used, and deviation reports—are retained within the device memory and exportable for QA review.

Applications

• Lyophilization of monoclonal antibodies, vaccines, and recombinant proteins under controlled nucleation conditions
• Stabilization of botanical actives (e.g., ginsenosides, curcuminoids) and probiotic cultures for nutraceutical formulations
• Production-scale drying of enzyme powders, diagnostic reagents, and chromatographic standards
• Processing of nanoemulsions, liposomal suspensions, and polymer-based drug delivery systems
• Drying of specialty food ingredients (e.g., matcha extracts, fermentation metabolites) while retaining volatile aroma compounds
• Preparation of porous scaffolds for tissue engineering and catalyst supports in material science research

FAQ

What distinguishes the LYO-15E from GMP-compliant models?
The LYO-15E is classified as an economic production model: it omits Clean-in-Place (CIP) and Steam-in-Place (SIP) functionality and lacks full 21 CFR Part 11 electronic signature support out-of-the-box. However, it retains essential validation enablers—calibration ports, audit-trail-capable logging, and hardware redundancy—for IQ/OQ execution in non-sterile or quality-controlled manufacturing settings.
Can the system handle organic solvent-based formulations?
Yes—when equipped with the optional solvent trap and cold trap extension, the LYO-15E safely condenses acetone, ethanol, and ethyl acetate vapors, preventing pump oil contamination and extending vacuum pump service life.
Is remote troubleshooting supported?
With the optional PC remote monitoring module installed, authorized technicians can access real-time diagnostics, view alarm history, and initiate controlled shutdown sequences—subject to network security policies and firewall configuration.
What maintenance intervals are recommended?
Vacuum pump oil replacement every 500 operating hours; condenser coil inspection quarterly; door seal integrity verification before each batch; annual calibration of all PT100 sensors and vacuum transducers per internal SOP or third-party metrology lab.
Does the system support freeze-drying cycle development services?
BIOCOOL offers one complimentary lyophilization cycle optimization study per unit purchase, conducted using customer-supplied samples at their Beijing application laboratory—covering formulation-specific ramp rates, annealing steps, and endpoint determination validation.
