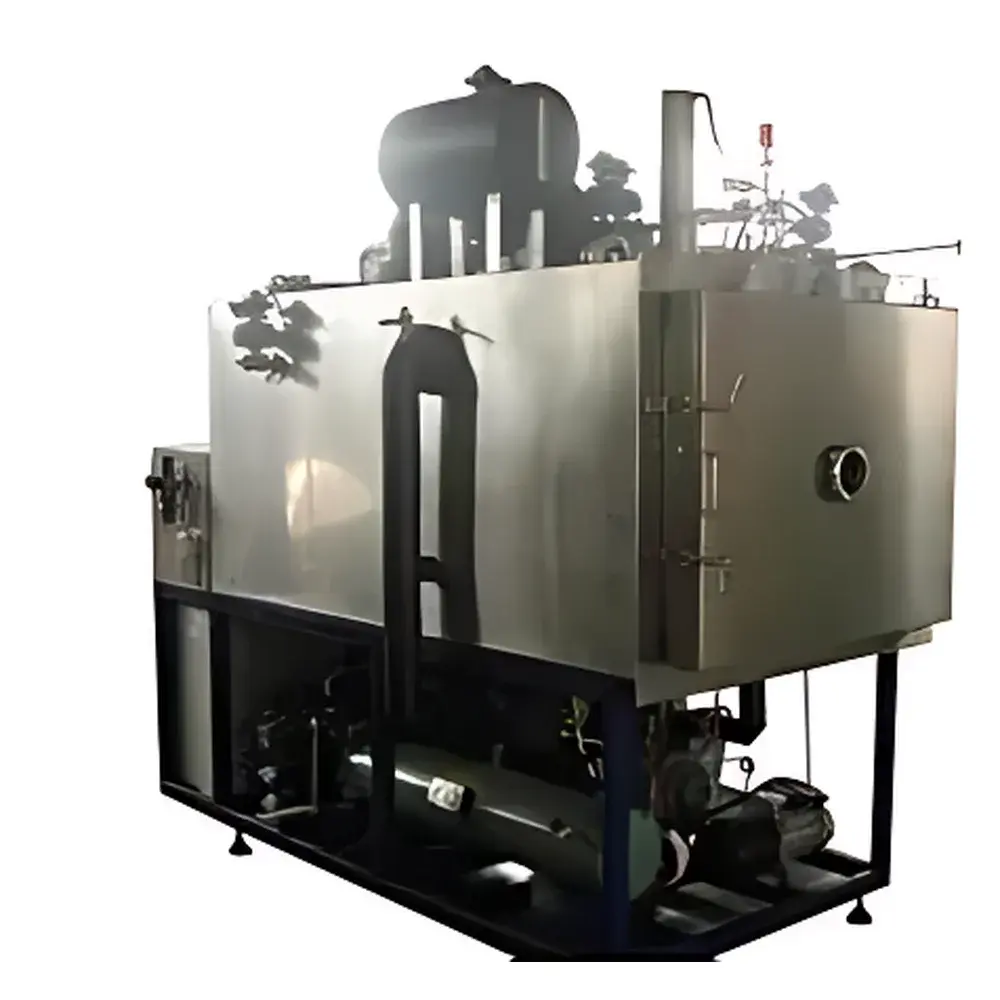

BIOCOOL LYO-2SE Production-Scale Freeze Dryer

Overview

The BIOCOOL LYO-2SE is a production-scale, shelf-type vacuum freeze dryer engineered for robust, repeatable lyophilization of heat-sensitive biopharmaceuticals, herbal extracts, functional foods, and advanced materials. It operates on the fundamental principle of sublimation—removing water from frozen samples under deep vacuum while maintaining product integrity through precise thermal control. Designed for GMP-adjacent environments and pilot-to-production transition workflows, the LYO-2SE delivers scalable performance with industrial-grade reliability. Its architecture integrates a high-efficiency dual-stage cascade refrigeration system, a large-capacity cold trap, and programmable shelf temperature control across a range of −55 °C to +110 °C—enabling both primary freezing and secondary drying stages with thermal stability and spatial uniformity critical for batch consistency.

Key Features

• Programmable Process Control: Full-cycle automation—from pre-freezing and primary drying to secondary drying and controlled inert gas backfill—via an intuitive industrial touchscreen interface with 50 ms real-time data acquisition.
• Shelf Integrity & Uniformity: Welded stainless-steel shelves manufactured using certified vacuum-tight welding processes; validated for zero leakage and ±0.5 °C temperature uniformity across the 2 m² active area.
• Intelligent Vacuum Regulation: Dynamic pressure modulation during sublimation and desorption phases prevents melt-back, foaming, or vial disturbance—especially critical for low-viscosity formulations and porous matrices.
• Multi-Mode Backfill System: Pulse-controlled nitrogen or inert gas reintroduction with selectable slow/medium/fast rates to preserve delicate particulate morphology and prevent powder dispersion.
• End-Point Detection: Integrated residual moisture assessment logic triggers automatic termination when predefined vapor pressure differentials indicate completion of desorption, supporting consistent final moisture content (typically ≤1–2% w/w).
• Calibration & Traceability: Field-accessible temperature and vacuum sensor calibration routines ensure long-term metrological reliability; audit-ready logs support GLP-compliant documentation requirements.
• Scalable Data Management: Stores up to 2,000 user-defined or factory-standard lyo protocols; supports optional PC-based remote monitoring (up to 1.5 km via Ethernet) and encrypted process data export (CSV/Excel).

Sample Compatibility & Compliance

The LYO-2SE accommodates standard pharmaceutical vials (Φ22 mm), serum bottles, trays, and custom containers—supporting batch loads up to 6,300 units per cycle. It meets mechanical and operational benchmarks aligned with ISO 22042 (freeze-drying equipment), ASTM F2476 (lyophilization process validation guidance), and USP (sterile processing considerations). While the economic variant does not include CIP/SIP functionality or full FDA 21 CFR Part 11 compliance out-of-the-box, its modular architecture permits integration of optional upgrades—including dry scroll vacuum pumps, solvent condensers, and vacuum oil mist filters—to meet enhanced regulatory expectations in qualified facilities.

Software & Data Management

The embedded control system runs on a deterministic real-time OS with non-volatile memory for protocol retention and event logging. All process parameters—including shelf temperature, chamber pressure, condenser temperature, and time stamps—are recorded at 50 ms intervals and visualized as overlayable trend curves (temperature vs. time, pressure vs. time). Optional add-ons include co-located co-crystallization point measurement (via integrated thermocouple array), extended data archiving with timestamped digital signatures, and CSV export compatible with LIMS and statistical process control (SPC) platforms. Calibration certificates and firmware revision history are accessible directly from the HMI.

Applications

This system is routinely deployed in applications requiring reproducible, scalable lyophilization without full GMP infrastructure investment: upstream development of monoclonal antibody formulations; stabilization of probiotic cultures and enzyme complexes; production of standardized botanical extracts for nutraceuticals; dehydration of peptide-based cosmeceuticals; preparation of nanostructured carriers (e.g., liposomal or polymeric micelles); and manufacturing of food-grade functional ingredients (e.g., encapsulated vitamins, yeast extracts, and fermentation-derived metabolites). Its thermal range and vacuum performance also support research into cryo-concentrated reaction media and low-temperature material synthesis.

FAQ

What is the difference between the LYO-2SE and standard GMP-compliant models?
The LYO-2SE is an economic-tier production dryer optimized for cost-sensitive pilot and commercial-scale operations where full CIP/SIP, Part 11 compliance, or vendor-supplied validation documentation are not required. Standard models offer enhanced containment, automated cleaning cycles, and formal IQ/OQ/PQ support packages.
Can the LYO-2SE be upgraded for solvent-laden samples?
Yes—optional organic solvent condensers and deep-cold cascade compressors extend compatibility with acetone, ethanol, or tert-butanol-based formulations.
Is remote diagnostics supported natively?
Remote monitoring is available as an optional Ethernet module; full remote diagnostics and firmware updates require additional cybersecurity configuration and IT coordination.
What validation documentation is provided with delivery?
Factory acceptance test (FAT) reports, installation qualification (IQ) templates, and basic operational qualification (OQ) checklists are included. Full PQ execution and regulatory submission-ready documentation are offered as paid consulting services.
Does the system support temperature mapping per ICH Q5C guidelines?
Yes—the system’s 12-channel thermocouple input capability (with optional expansion) enables simultaneous shelf and product temperature mapping during qualification runs.
