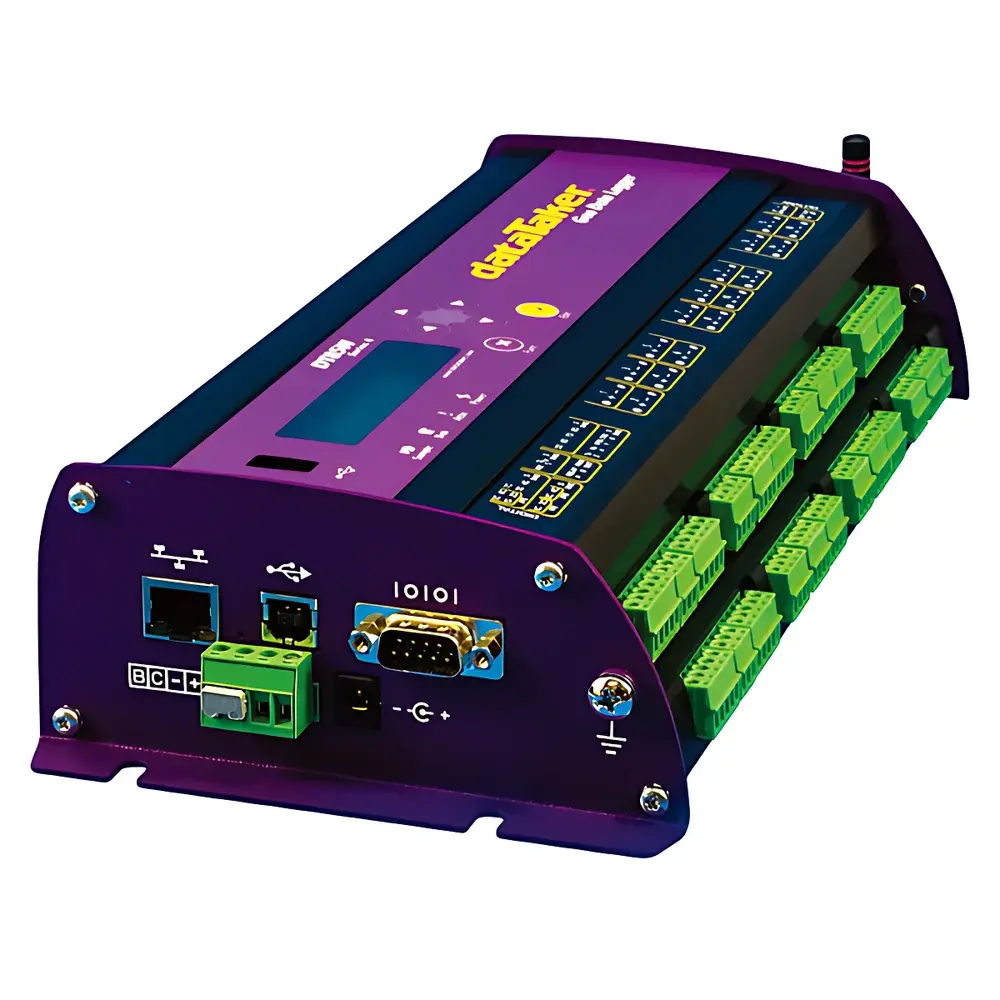

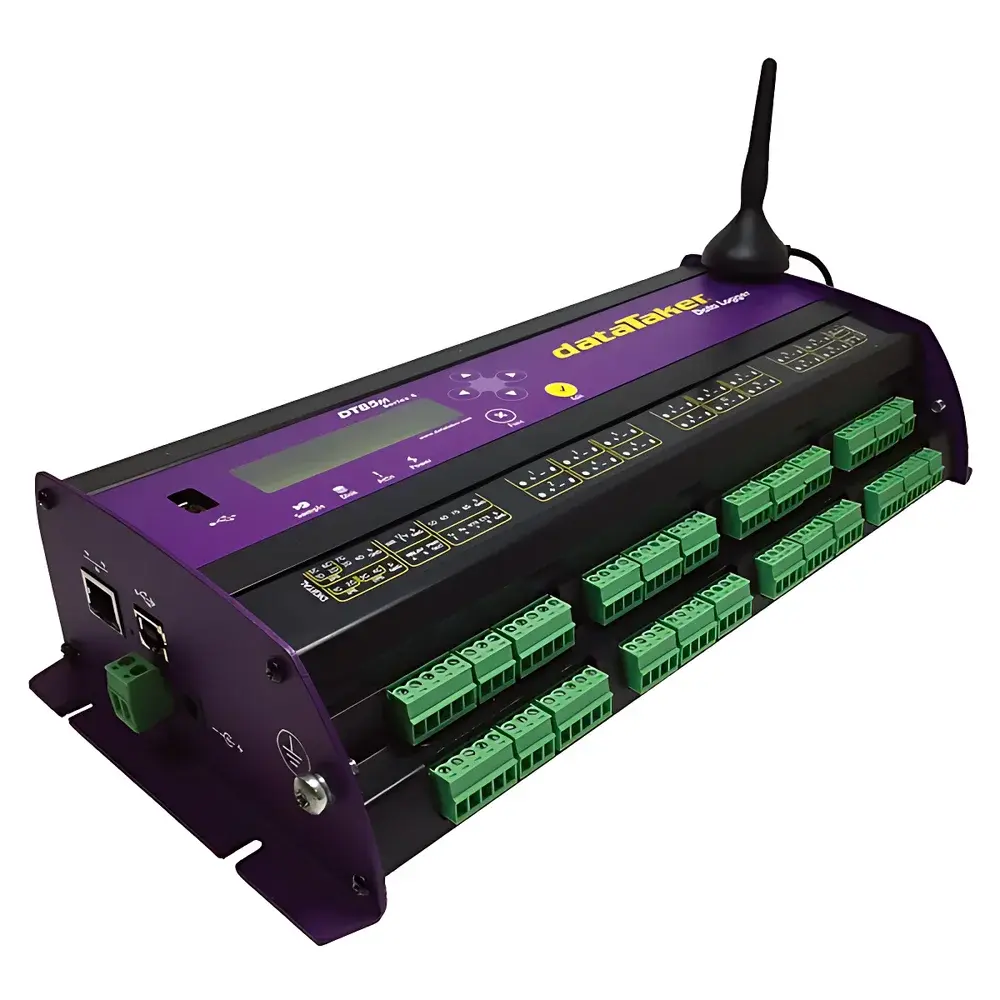

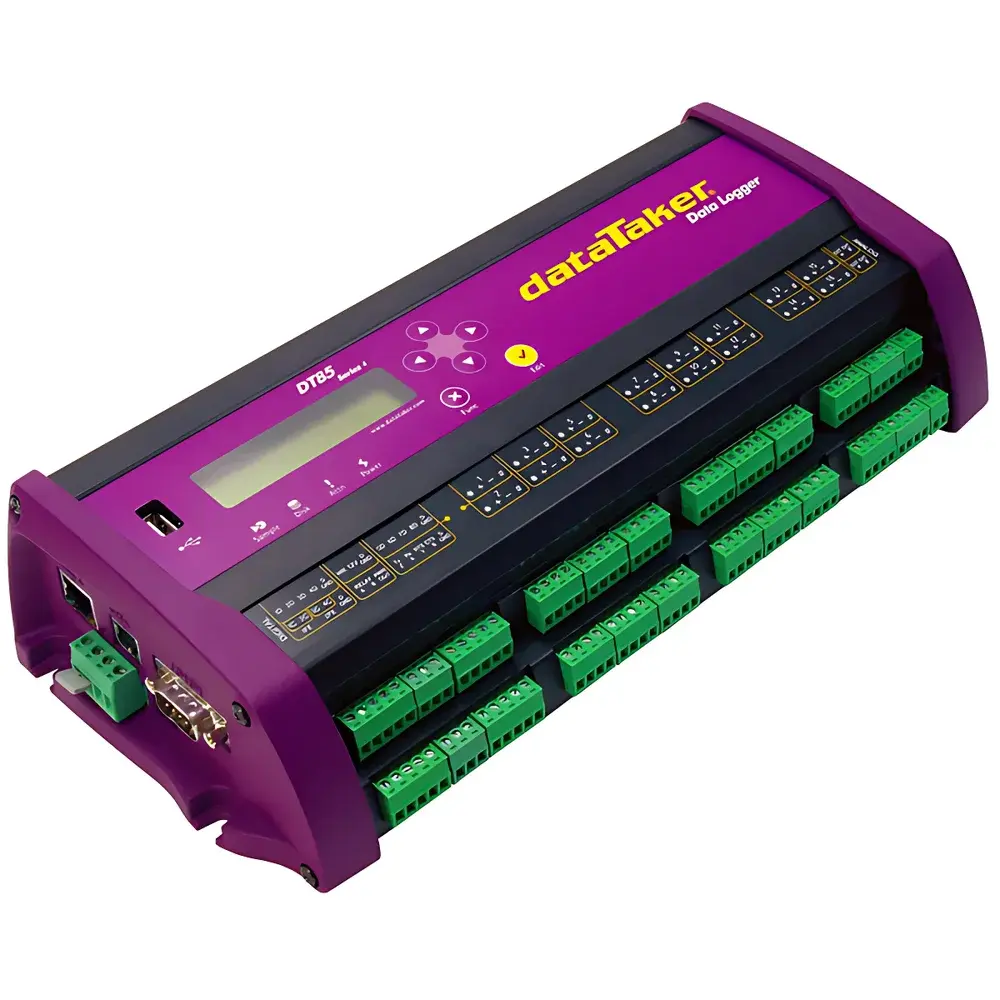

DataTaker DT85G Geotechnical Data Acquisition Unit

Overview

The DataTaker DT85G is a rugged, industrial-grade geotechnical data acquisition unit engineered for long-term, unattended monitoring in demanding field environments. Unlike general-purpose loggers, the DT85G integrates a dedicated vibrating wire (VW) measurement module—compliant with ASTM D5879 and ISO 18674-2—enabling direct, high-stability acquisition from VW strain gauges, piezometers, tiltmeters, and crack meters without external signal conditioners. Its core architecture employs galvanically isolated analog inputs, programmable excitation sources, and synchronized timing control to ensure traceable, low-drift measurements across temperature extremes. Designed for deployment in remote civil infrastructure projects—including dams, tunnels, embankments, and mine slopes—the DT85G operates autonomously for months on its 6 V @ 4 Ah internal battery, with optional solar-charged operation. It functions as both a standalone recorder and a networked node within SCADA or IoT telemetry systems, supporting deterministic data delivery via scheduled FTP uploads, email alerts, or MODBUS TCP polling.

Key Features

• Vibrating Wire Precision Engine: Integrated VW channel supports frequency measurement from 500 Hz to 5 kHz with ±0.02 % full-scale accuracy, automatic temperature compensation via embedded thermistor, and pulse excitation (36 V @ 200 µs) optimized for sensor coil resistances of 50–200 Ω.
• Multi-Protocol Connectivity: Dual-mode Ethernet (RJ45) with native MODBUS TCP server/client, SDI-12 master capability, and ASCII command interface—enabling seamless integration with third-party SCADA platforms and cloud-based dashboards.
• Field-Ready Ruggedness: Aluminum enclosure rated IP54 for dust resistance and limited water ingress; operational over −40 °C to +70 °C with condensation-free humidity tolerance up to 85 % RH.
• Configurable Signal Conditioning: Programmable 18-bit analog inputs support voltage (±10 V), current (4–20 mA), thermocouples (Type J/K/T/E), RTDs (Pt100/Pt1000), strain gauges (full/half-bridge), and resistive sensors—all scalable to engineering units in firmware.
• Deterministic Data Integrity: Real-time clock with ±1 minute/year drift (0–40 °C); onboard 128 MB CompactFlash storage with wear-leveling and optional 8 GB USB expansion; cyclic redundancy check (CRC-16) applied to all stored records.
• Low-Maintenance Architecture: No moving parts; passive cooling; firmware-upgradable via USB or Ethernet; minimal calibration drift verified per ISO/IEC 17025-accredited procedures.

Sample Compatibility & Compliance

The DT85G natively acquires data from industry-standard geotechnical sensors including GEOKON, Slope Indicator, and Roctest vibrating wire transducers, as well as generic analog and digital devices compliant with IEC 61000-4 electromagnetic immunity standards. Its analog input isolation (500 Vrms channel-to-channel, 1500 Vrms channel-to-ground) ensures signal integrity in electrically noisy environments such as substations or conveyor zones. The unit complies with FCC Part 15 Class A and CE EN 61326-1 for EMC, and meets UL 61010-1 safety requirements for industrial measurement equipment. For regulated applications—including dam safety monitoring under USACE EM 1110-2-1906 or EU Directive 2007/2/EC—the DT85G supports audit-trail-enabled configuration logging and timestamped raw-data export compatible with GLP/GMP validation protocols.

Software & Data Management

Configuration, real-time visualization, and post-processing are managed through dEX software—a Windows-based application certified for Windows 10/11 and validated for FDA 21 CFR Part 11 compliance (with optional electronic signature module). dEX provides drag-and-drop channel setup, script-driven alarm logic (e.g., “if VW frequency deviation > ±0.5 % for 3 consecutive readings, trigger SMS alert”), and statistical reporting (min/max/mean/std dev per interval). Raw binary files (.DTA) are convertible to CSV, Excel, or SQLite formats; time-synchronized datasets support cross-channel correlation analysis. Remote firmware updates and configuration backups can be scheduled via HTTP or FTP, and all communication sessions are logged with user ID, timestamp, and action type—supporting traceability for ISO 9001 quality audits.

Applications

• Geotechnical Monitoring: Continuous strain, pore pressure, and deformation tracking in earth-retaining structures, landslide early-warning networks, and tunnel convergence surveys.
• Civil Infrastructure Health: Long-term performance assessment of concrete curing (via embedded VW temperature-compensated strain gauges), bridge bearing movement, and foundation settlement.
• Environmental Compliance: Regulatory-grade groundwater level and quality parameter logging (pH, conductivity, turbidity) synchronized with VW piezometer readings for contaminant plume modeling.
• Mining & Exploration: In-situ stress monitoring during blast-induced vibration studies and slope stability assessment in open-pit operations.
• Research & Validation: Field verification of finite element models in soil-structure interaction studies, with sub-second timestamp resolution enabling dynamic load-response correlation.

FAQ

Does the DT85G require external signal conditioning for vibrating wire sensors?

No. The integrated VW module provides calibrated excitation, frequency demodulation, and temperature compensation—eliminating the need for external modules or manual scaling.
Can the DT85G operate without mains power?

Yes. It runs continuously on its internal 6 V @ 4 Ah rechargeable battery for up to 12 months (typical duty cycle), and supports external 10–30 VDC input—including solar charge controllers with MPPT regulation.
Is MODBUS TCP communication supported out-of-the-box?

Yes. The DT85G acts as a MODBUS TCP server by default, exposing all configured channels as holding registers (4x addresses) with configurable polling intervals and exception response handling.
How is data security handled during remote transmission?

FTP transfers support TLS 1.2 encryption when paired with compatible servers; SMTP email alerts use STARTTLS; and dEX configuration backups are AES-256 encrypted upon export.
What is the maximum number of channels achievable with expansion modules?

Using up to five CEM20 channel expansion modules, the DT85G supports up to 300 single-ended, 200 differential, or 100 three-/four-wire analog inputs—maintaining full synchronization and timestamp coherence across all channels.
