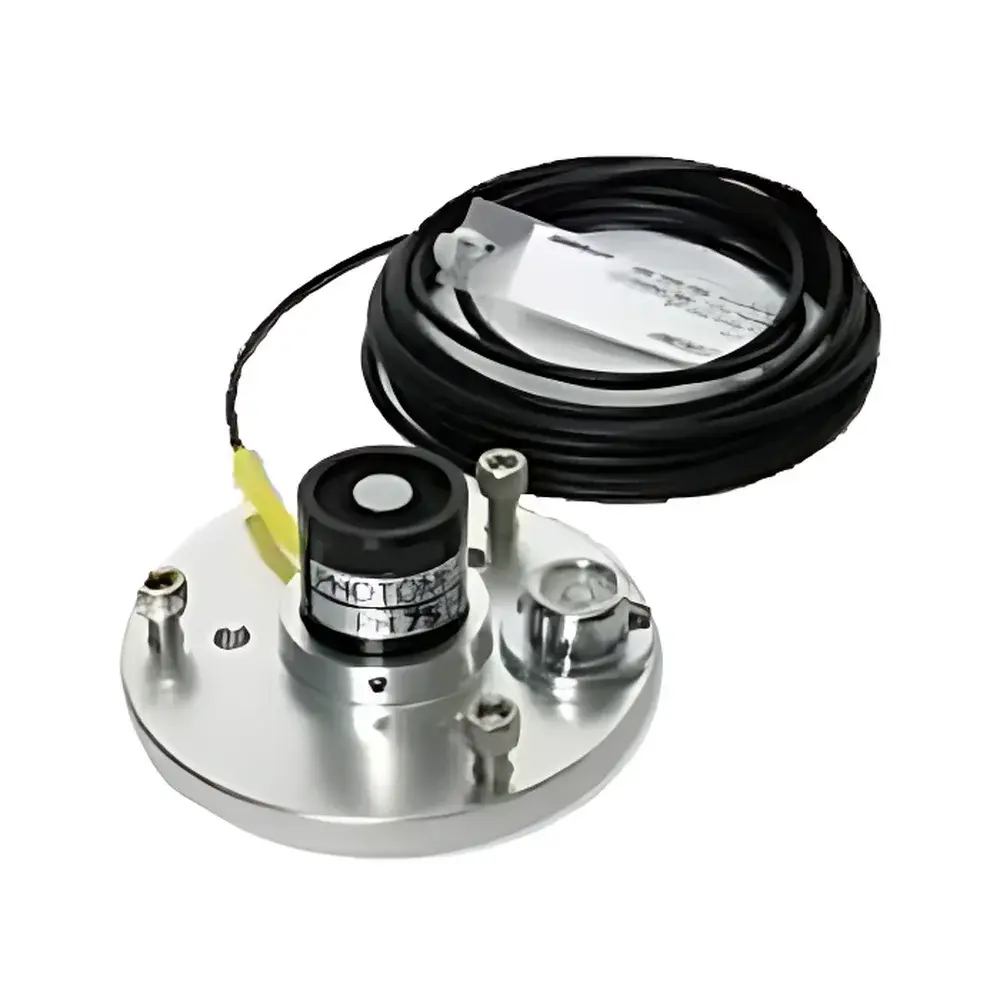

RainWise SOL-PAR Quantum Sensor

Overview

The RainWise SOL-PAR Quantum Sensor is a precision-calibrated photodiode-based instrument engineered for the accurate measurement of Photosynthetically Active Radiation (PAR) in scientific and industrial environmental monitoring applications. Operating on the fundamental principle of spectral responsivity matched to the CIE-defined photosynthetic action spectrum (400–700 nm), the SOL-PAR delivers traceable, field-stable quantification of photon flux density expressed in micromoles per square meter per second (μmol·m⁻²·s⁻¹). Unlike broadband radiometers, this quantum sensor employs a spectrally selective optical filter and temperature-compensated silicon photodiode architecture to minimize spectral mismatch error—ensuring high fidelity under both natural solar illumination and controlled artificial light sources such as LED grow lights, fluorescent lamps, and metal halide fixtures. Its robust mechanical design supports long-term deployment in unattended outdoor environments, including agricultural research stations, greenhouse climate control systems, ecological flux towers, and renewable energy site assessments.

Key Features

• Optimized spectral response aligned with the standardized PAR band (400–700 nm), certified against NIST-traceable reference standards
• High linearity (<1% maximum deviation across full operational range) and low temperature dependence (≤0.15% per °C)
• Rapid temporal response of ≤10 µs, enabling capture of transient irradiance fluctuations without signal averaging artifacts
• Long-term stability of <±2% drift over 12+ months under continuous exposure—validated per ISO 9060:2018 Class C specifications for pyranometric instrumentation
• Hermetically sealed, weather-resistant housing constructed from anodized aluminum, stainless steel fasteners, and UV-stabilized PVC mounting tubing
• Compatible with standard monopod mounting systems and industry-standard data loggers (e.g., Campbell Scientific CR series, Onset HOBO, Delta-T Devices DL2e)

Sample Compatibility & Compliance

The SOL-PAR sensor is designed for direct irradiance measurement on horizontal or tilted planes and requires no user calibration prior to deployment. It complies with internationally recognized metrological guidelines for quantum sensors, including ASTM E2533-21 (Standard Practice for Calibration of Quantum Sensors) and ISO 17166:2021 (Photobiological safety—Measurement of optical radiation). While not classified as a medical device, its output is suitable for integration into GLP-compliant environmental data acquisition workflows where audit trails, instrument identification, and calibration history documentation are maintained per ISO/IEC 17025 requirements. The sensor’s operating temperature range (−40 °C to +65 °C) and humidity tolerance (0–100% RH, non-condensing) enable reliable performance in extreme climatic conditions—from arctic tundra studies to tropical agroecosystem monitoring.

Software & Data Management

The SOL-PAR outputs a low-impedance analog current signal (typically 5 µA per 1000 μmol·m⁻²·s⁻¹), compatible with any data logger supporting 0–25 mV or 0–5 V input ranges via appropriate shunt resistor configuration. RainWise provides detailed wiring schematics, calibration certificates (including individual spectral responsivity curves), and unit-specific sensitivity coefficients in SI units. When integrated with compliant logging platforms, the sensor supports time-synchronized, timestamped datasets suitable for regulatory reporting frameworks—including USDA ARS field trial documentation and EU Horizon-funded ecosystem modeling projects. No proprietary software is required; raw voltage readings are converted to PAR values using linear scaling equations defined in the manufacturer’s technical manual and validated during factory calibration.

Applications

• Canopy-level PAR profiling in precision agriculture and controlled-environment agriculture (CEA) facilities
• Validation of lighting uniformity and spectral efficacy in vertical farms and plant tissue culture labs
• Net ecosystem exchange (NEE) and eddy covariance flux tower networks requiring sub-second PAR inputs
• Solar resource assessment for agrivoltaic system design and shading impact analysis
• Long-term ecological monitoring programs tracking phenological responses to light availability changes
• Calibration reference for secondary PAR sensors deployed in distributed sensor networks

FAQ

What is the recommended recalibration interval for the SOL-PAR sensor?

RainWise recommends annual recalibration against a NIST-traceable reference quantum sensor to maintain measurement integrity in mission-critical applications.
Does the SOL-PAR require desiccant or active ventilation in high-humidity environments?

No—its hermetic seal and hydrophobic optical window eliminate condensation risk; no maintenance or desiccant replacement is required under specified operating conditions.
Can the SOL-PAR be used underwater or submerged?

No—it is rated for outdoor atmospheric exposure only and is not submersible; immersion will compromise optical transmission and void warranty.
Is the output signal compatible with Modbus or SDI-12 protocols?

The native output is analog current; digital protocol support requires external signal conditioning hardware (e.g., analog-to-SDI-12 converter modules) configured per user system architecture.
How does the SOL-PAR differ from a traditional pyranometer?

Unlike thermopile-based pyranometers measuring total solar irradiance (W·m⁻²), the SOL-PAR measures photon flux density (μmol·m⁻²·s⁻¹) weighted by photosynthetic spectral sensitivity—making it functionally distinct and non-interchangeable for plant physiology applications.
