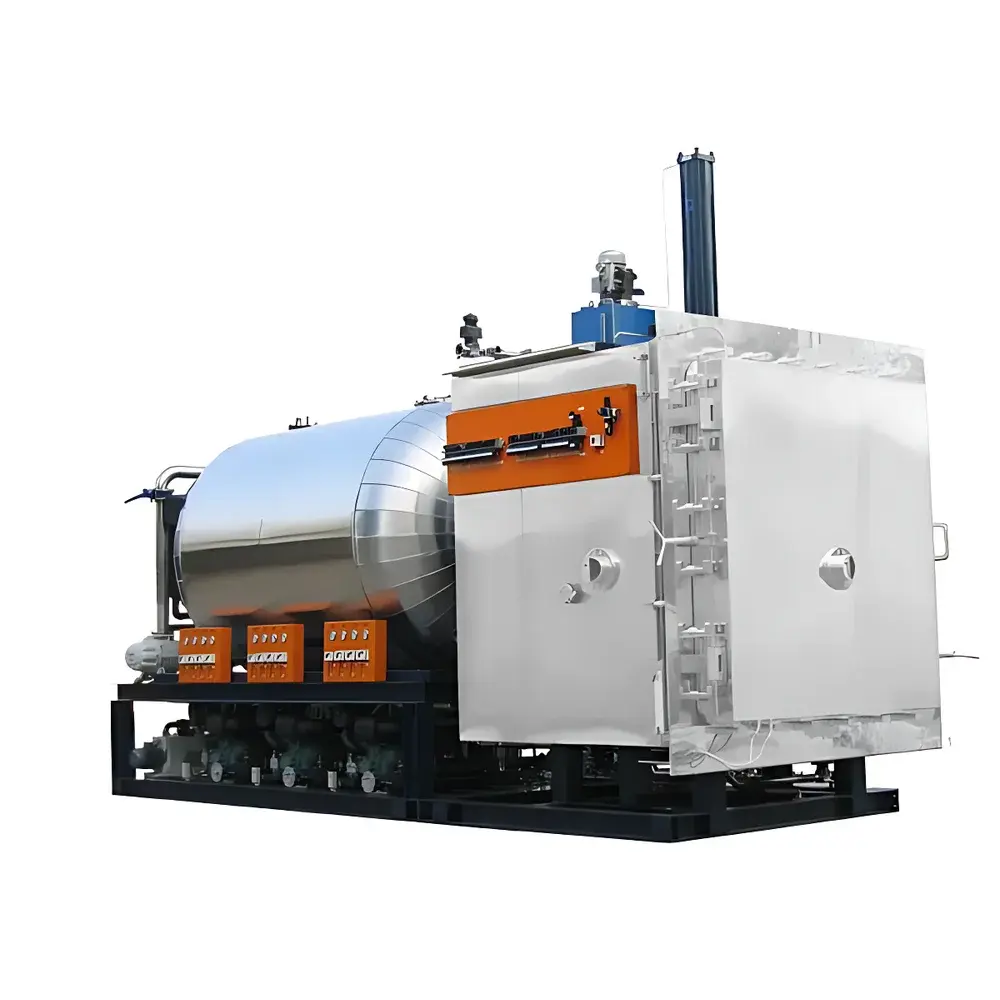

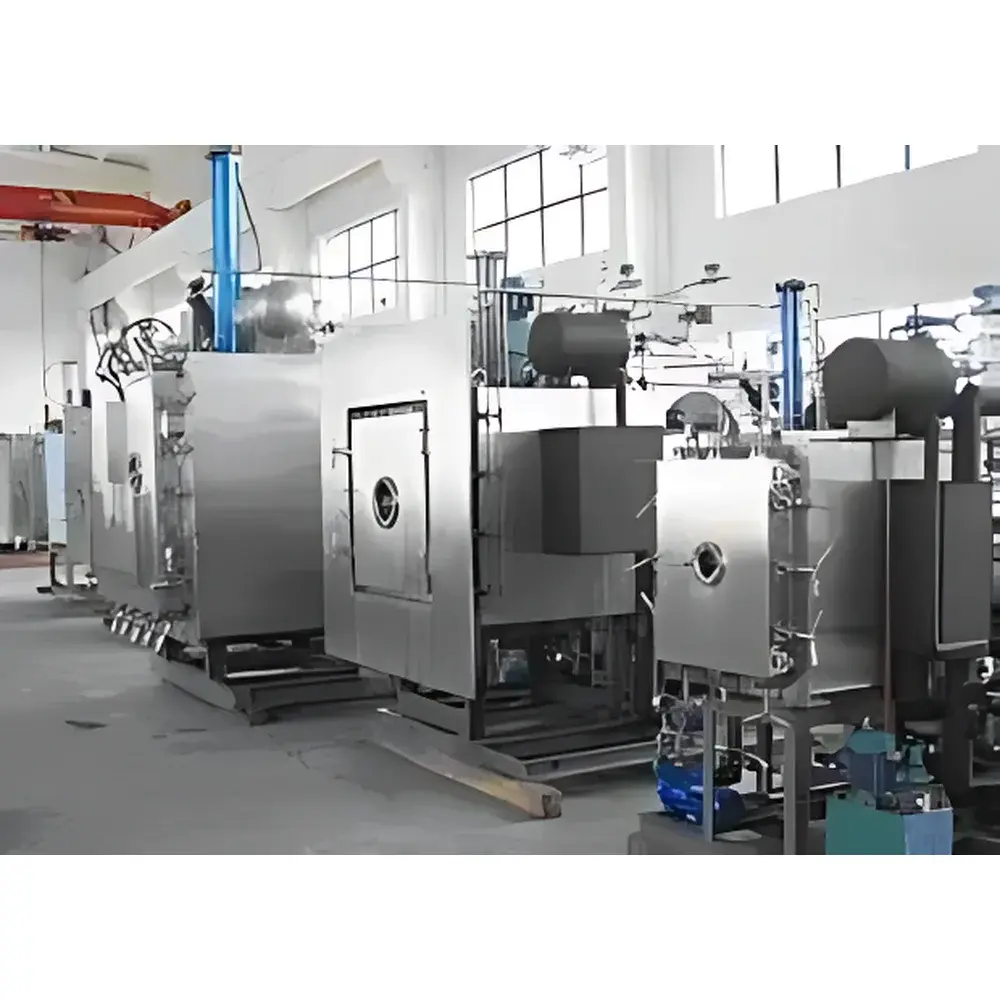

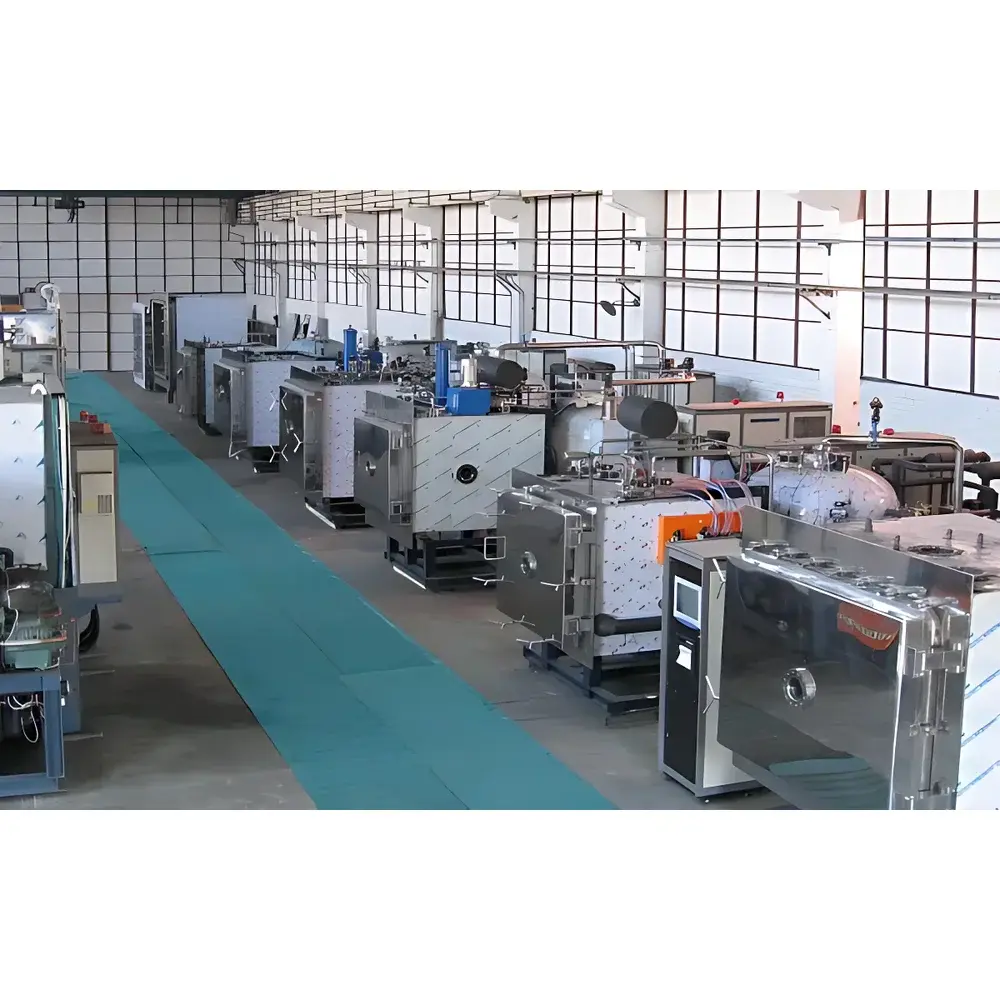

BIOCOOL LYO-50 Production-Scale Freeze Dryer

Overview

The BIOCOOL LYO-50 is a fully integrated, production-scale shelf-type freeze dryer engineered for robust, repeatable, and regulatory-compliant lyophilization of pharmaceuticals, biologics, diagnostics, and high-value industrial formulations. It operates on the fundamental principles of sublimation under controlled low-pressure and low-temperature conditions: frozen product water transitions directly from solid to vapor phase in the drying chamber, while non-volatile solutes remain structurally intact. Water vapor is captured via cryo-condensation on a high-efficiency cold trap maintained below −75 °C. The system supports full-cycle automation—from pre-freezing and primary drying through secondary drying and inert gas backfill—enabling consistent batch-to-batch performance across 50 m² of uniform shelf surface area. Designed to meet stringent process validation requirements, the LYO-50 integrates real-time monitoring, electronic audit trails, and hardware-level redundancy to support compliance with FDA 21 CFR Part 11, EU Annex 11, and WHO-GMP guidelines.

Key Features

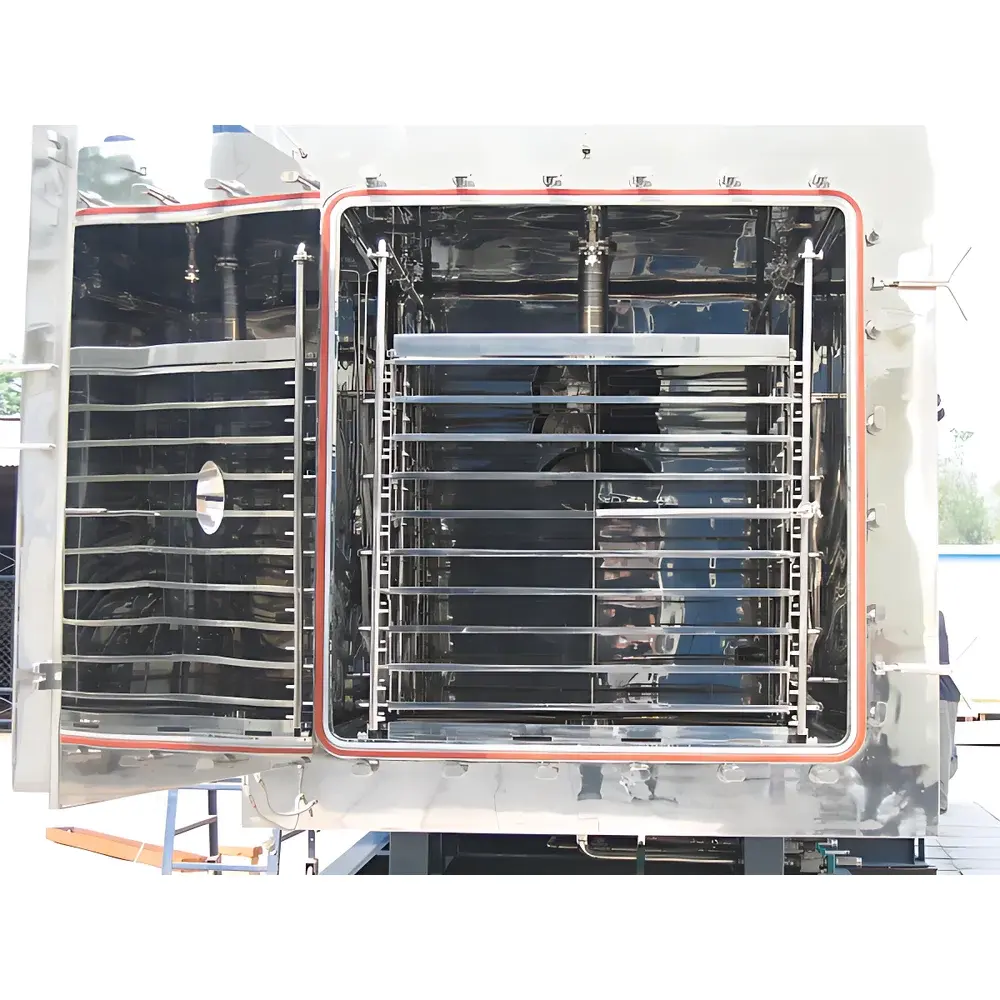

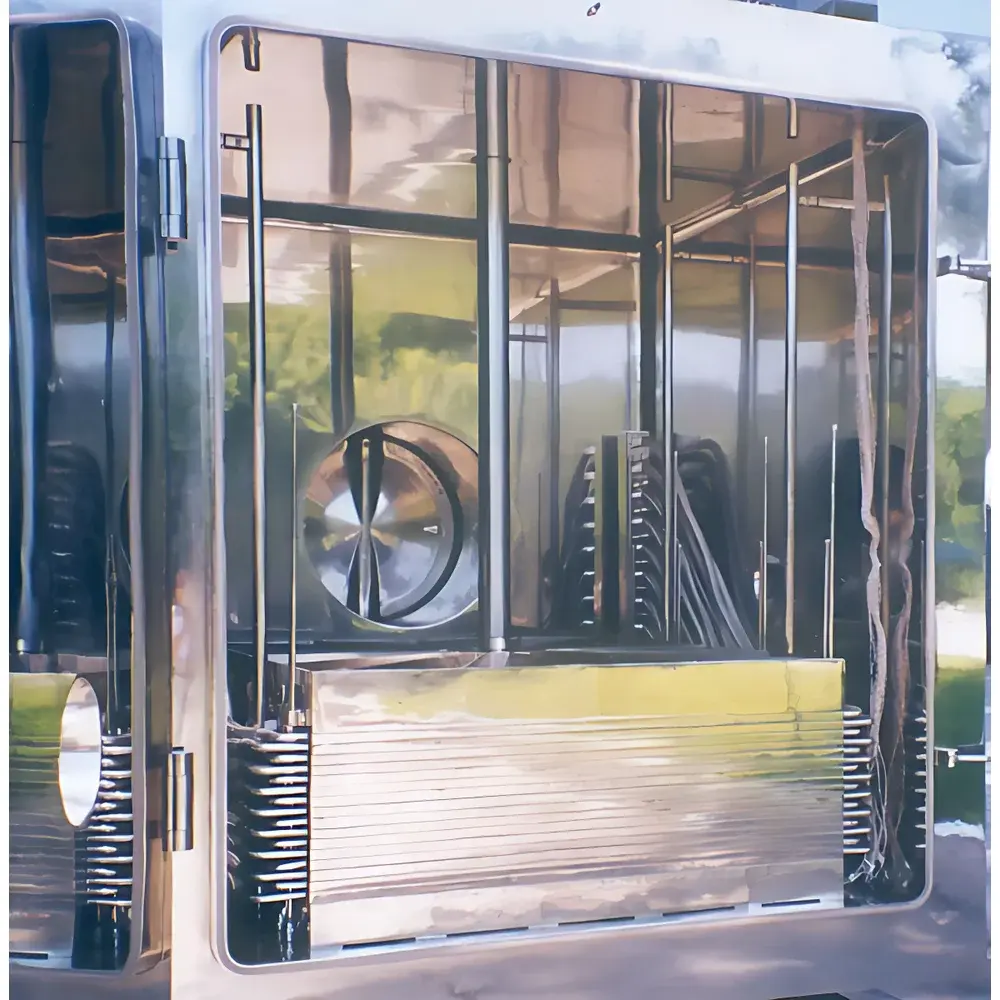

• Shelf system constructed using orbital TIG welding with internal weld inspection; guaranteed leak-tightness for 3 years under vacuum and pressure cycling.
• Chamber built to ASME Section VIII Div. 1 / PED 2014/68/EU standards; rated for ±0.15 MPa differential pressure; mirror-polished 316L stainless steel interior with sanitary-radius corners and sloped floor for complete CIP drainage.
• Advanced vacuum regulation system enabling dynamic control during both primary and secondary drying stages—prevents melt-back, boil-over, and vial deformation in sensitive formulations.
• Pulse-controlled inert gas backfill system with selectable slow/medium/fast modes to minimize particle displacement and active ingredient loss during final chamber pressurization.
• Integrated freeze-dry endpoint detection algorithm that automatically initiates moisture verification upon completion of desorption drying—supports quantitative residual moisture assessment per USP & Ph. Eur. methods.
• Full CIP/SIP capability: automated cleaning cycle with validated spray ball coverage; steam sterilization via pulsed vacuum method with Fo-value calculation, real-time temperature mapping, triple overpressure safety interlocks, and post-SIP moisture removal using imported German liquid-ring pump.
• Industrial-grade 15.6″ touchscreen HMI with intuitive workflow navigation; no manual reference required for routine operation or recipe execution.
• Comprehensive calibration framework supporting periodic verification of shelf temperature (±0.5 °C accuracy) and vacuum transducer (±0.1 Pa resolution) against traceable NIST-certified references.

Sample Compatibility & Compliance

The LYO-50 accommodates a broad range of sample formats including glass vials (Ø22 mm up to 105,000 units/batch), serum bottles, trays, and custom containers mounted on its 17+1 heated/cooled shelves. Its design conforms to ISO 13485:2016 for medical device manufacturing environments and supports qualification protocols aligned with ICH Q5C (stability), Q5A (viral clearance), and Q8 (pharmaceutical development). All wetted surfaces are electropolished to Ra ≤ 0.4 µm and passivated per ASTM A967. Vacuum integrity is verified via helium mass spectrometry (leak rate <1×10⁻⁹ mbar·L/s), and SIP cycle efficacy is documented with ≥12-log reduction of Geobacillus stearothermophilus spores. The system meets cGMP requirements for electronic records—including immutable audit trails, role-based access control, and digital signature enforcement per 21 CFR Part 11 Subpart B.

Software & Data Management

The embedded control software provides deterministic real-time logging at 50 ms intervals for all critical parameters: shelf temperature, condenser temperature, chamber pressure, vacuum pump status, and steam flow. Raw process data is stored locally in encrypted SQLite format and synchronized to networked servers via secure FTPS or OPC UA. Each lyophilization cycle generates a timestamped, digitally signed PDF report containing full thermodynamic curves (shelf temp vs. time, pressure vs. time), alarm history, operator actions, and deviation annotations. Optional add-ons include CSV export modules compliant with LIMS integration, third-party SCADA connectivity, and cloud-based fleet monitoring dashboards. All firmware updates undergo rigorous version-controlled release testing and maintain backward compatibility with legacy recipe libraries.

Applications

The LYO-50 serves as a scalable bridge between pilot-scale development and commercial manufacturing. It is routinely deployed for terminal sterilization of monoclonal antibodies, vaccine intermediates, cell therapy products, and mRNA-LNP formulations where structural integrity and biological activity preservation are non-negotiable. In bioprocessing, it enables stable long-term storage of enzyme preparations, diagnostic reagents, and microbial cultures without cryoprotectants. Non-pharma applications include food-grade botanical extracts, probiotic powders, and specialty ceramics precursors requiring ultra-low residual moisture (<0.5% w/w). Its modular architecture allows seamless integration into isolator-based aseptic filling lines or contained processing suites handling potent compounds.

FAQ

What regulatory standards does the LYO-50 comply with?
The system meets GB150-2011, PED 2014/68/EU, ASME Section VIII Div. 1, FDA 21 CFR Part 11, EU GMP Annex 15, and ISO 13485:2016 requirements.
Is the system qualified for sterile manufacturing?
Yes—it includes fully validated CIP and SIP subsystems with Fo-value tracking, thermal mapping, and spore challenge documentation per PDA TR#1 and ISO 17665-1.
Can the LYO-50 be integrated into an existing MES or SCADA infrastructure?
Yes—OPC UA server is standard; optional Modbus TCP and MQTT gateways support interoperability with major industrial automation platforms.
What is included in the standard warranty and service package?
One-year comprehensive parts-and-labor warranty; on-site installation and commissioning; two days of operator training; one lyophilization process optimization session using customer-supplied samples.
Are co-located engineering support and spare parts logistics available internationally?
BIOCOOL maintains regional technical hubs in Germany, Singapore, and the U.S., with 72-hour critical spare parts dispatch guarantee under extended service agreements.
