BIOCOOL Pilot10-15T Pilot-Scale Freeze Dryer

Overview

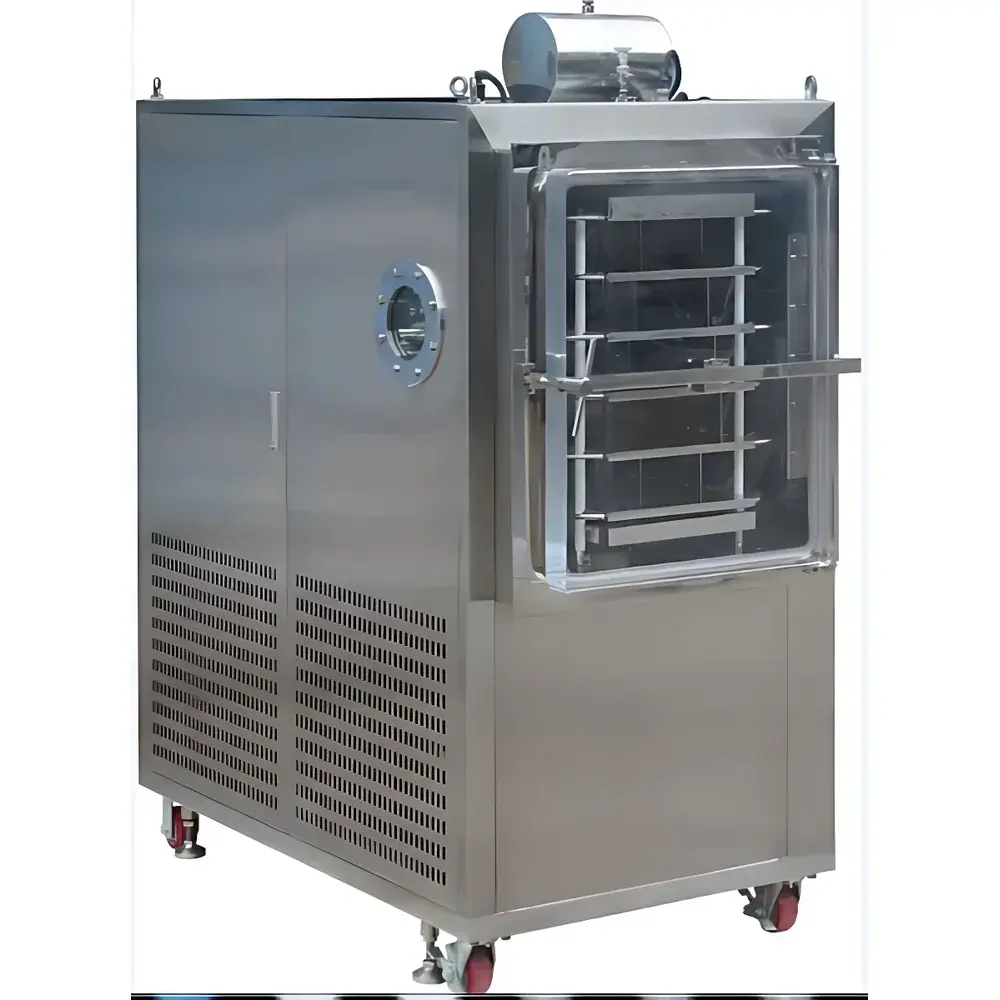

The BIOCOOL Pilot10-15T is a fully integrated, pilot-scale shelf-type freeze dryer engineered for reproducible lyophilization process development, scale-up validation, and small-batch production under controlled laboratory or cleanroom conditions. It operates on the fundamental principle of sublimation—removing water from frozen samples under deep vacuum while maintaining product integrity through precise thermal management. Unlike benchtop units, the Pilot10-15T supports active shelf temperature control across its 1.05 m² drying area, enabling uniform heat transfer during primary (sublimation) and secondary (desorption) drying phases. Its <−85 °C condenser and ≤1 Pa ultimate vacuum capability ensure efficient vapor capture and low-residual moisture levels, critical for biologics, diagnostics, pharmaceutical intermediates, and sensitive nutraceuticals. The system is constructed with GMP-aware mechanical architecture—including independent overcurrent/overload protection, logical interlocks, and vacuum-safety logic—to support audit-ready operation in regulated environments.

Key Features

• Aerospace-grade acrylic chamber door: Seamless, leak-tight construction with zero adhesive bonding—enabling full visual process monitoring without compromising vacuum integrity.
• Shelf pre-freezing capability: Allows sample freezing directly on shelves prior to primary drying, eliminating separate ultra-low temperature freezer dependency and reducing thermal history variability.
• Imported industrial compressors and high-speed vacuum pumps: Deliver stable cooling performance and rapid evacuation (<4 Pa base pressure achievable within minutes), with acoustic noise reduction compliant with ISO 7779 standards.
• Hydraulic stoppering system: Precision-controlled piston actuation ensures consistent vial compression force and minimizes glass breakage risk during lyophilization cycle termination.
• Oil mist filtration: Integrated coalescing filter prevents hydrocarbon contamination of the chamber and operator exposure during pump operation.
• Programmable multi-stage control: Full automation from freezing through primary/secondary drying to end-point detection and inert gas backfilling (N₂ or Ar).
• Fuzzy PID shelf heating algorithm: Dynamically adjusts power input based on real-time shelf thermocouple feedback and thermal load estimation, ensuring ±0.5 °C shelf temperature stability.
• Non-electric condenser defrost: Uses pressurized refrigerant reverse-flow methodology—eliminating resistive heating elements, reducing fire risk, and shortening downtime versus immersion-based methods.
• Vacuum regulation module: Enables dynamic setpoint control during sublimation and desorption stages to suppress boil-over, foaming, or collapse in heat-sensitive formulations.
• Pulse-controlled backfill system: Three adjustable flow rates (slow/medium/fast) mitigate particle displacement in porous or low-density cakes—preserving structural fidelity post-drying.

Sample Compatibility & Compliance

The Pilot10-15T accommodates aqueous solutions, suspensions, emulsions, and semi-solid formulations with eutectic temperatures above −40 °C. Its silicone oil-circulated shelves provide uniform thermal distribution across all 80 mm-spaced trays, minimizing edge effects common in air-cooled systems. Optional eutectic point measurement instrumentation enables empirical determination of critical formulation temperatures—essential for defining safe primary drying limits. The unit meets mechanical and electrical safety requirements per IEC 61010-1 and incorporates design features aligned with FDA 21 CFR Part 11 data integrity expectations (audit trail-enabled event logging, user-access controls, electronic signature readiness). While not certified as GMP-compliant out-of-the-box, its architecture—interlocked safety circuits, calibrated sensor inputs, and traceable parameter recording—supports qualification (IQ/OQ/PQ) per ASTM E2500 and EU Annex 15 guidelines.

Software & Data Management

The embedded industrial touchscreen HMI provides intuitive navigation without reference manuals, supporting both manual intervention (for process scouting) and fully automated execution (for validated protocols). All operational parameters—including shelf temperature, chamber pressure, condenser temperature, and elapsed time—are sampled at 50 ms intervals and logged with timestamped metadata. Data retention options include internal flash memory (buffered storage for ≥90 days), USB export (FAT32 formatted drives), and optional TCP/IP-linked PC database integration (ODBC-compliant SQL backend). Up to 500 custom lyophilization recipes may be stored—each containing multi-step ramp/soak profiles, vacuum setpoints, and endpoint logic triggers. Remote monitoring (up to 1.5 km via Ethernet or fiber) allows off-site supervision of run status, alarms, and real-time curves. Calibration functions for PT100 shelf sensors and capacitance manometers are accessible via administrator mode, supporting periodic verification per ISO/IEC 17025 metrological practices.

Applications

This system serves as a bridge between R&D and manufacturing, supporting: formulation stability studies under varied freezing rates and annealing conditions; optimization of primary drying time and shelf temperature ramps using real-time mass loss estimation; validation of container closure integrity during stoppering; comparative evaluation of bulking agents and cryoprotectants; production of clinical trial material batches (up to 5–10 L fill volume); and training platforms for cGMP lyophilization personnel. Its穿墙隔离 (wall-penetrating isolation) configuration option (standard on Pilot10-15T) permits installation between classified and non-classified spaces—facilitating aseptic processing integration without compromising environmental segregation.

FAQ

What is the maximum batch size this unit can handle?
Based on 1.05 m² shelf area and typical vial packing density (e.g., 16 mm diameter vials at 1.5 cm center-to-center spacing), the Pilot10-15T supports up to ~2,800 standard 10 mL vials or equivalent surface area for bulk tray drying.
Is the system suitable for organic solvent-containing formulations?
Standard configuration is optimized for aqueous systems. For solvents such as acetone or tert-butanol, an optional cold trap add-on with enhanced condensing surface and solvent-resistant seals must be specified at order stage.
Can the system be qualified for regulatory submissions?
Yes—the hardware architecture, sensor traceability, and data logging structure comply with foundational requirements for IQ/OQ/PQ execution. Full qualification documentation packages and third-party validation support services are available upon request.
Does it support continuous monitoring per 21 CFR Part 11?
The system records all critical events with user ID, timestamp, and parameter values. When paired with optional PC database software featuring role-based access, electronic signatures, and immutable audit trails, it satisfies core technical criteria for Part 11 compliance.
What maintenance intervals are recommended?
Compressor oil and vacuum pump oil should be replaced every 2,000 operating hours or annually—whichever occurs first. Condenser coil inspection and refrigerant charge verification are advised biannually. Preventive maintenance kits and certified technician dispatch services are available globally through BIOCOOL’s authorized service network.
