BJBY BY-WQP8001 Multi-Parameter Swimming Pool Water Quality Analyzer

Overview

The BJBY BY-WQP8001 Multi-Parameter Swimming Pool Water Quality Analyzer is a field-deployable, handheld spectrophotometric instrument engineered for rapid, on-site quantitative analysis of critical water quality parameters in recreational aquatic environments. It operates on the principle of colorimetric spectrophotometry—where analyte-specific chemical reactions generate chromophores whose absorbance intensities are linearly proportional to concentration—and integrates composite spectrum analysis to enhance spectral resolution and minimize interferences from turbidity or background matrix effects. Designed explicitly for compliance with Chinese national standards—including GB 37488–2019 (Hygienic Requirements for Swimming Pools), CJ/T 244–2016 (Water Quality Testing Methods for Swimming Facilities), and GB/T 5750 (Standard Methods for Examination of Drinking Water)—the analyzer delivers trace-level detection capability across four regulatory-mandated parameters: free chlorine, pH, urea, and cyanuric acid. Its optical architecture employs an imported cold-light LED source with stable spectral output over its rated 100,000-hour lifetime, ensuring long-term photometric reproducibility without lamp recalibration.

Key Features

• Field-optimized design: Compact dimensions (185 × 85 × 45 mm) and lightweight construction (<450 g) enable single-handed operation during routine poolside inspections.

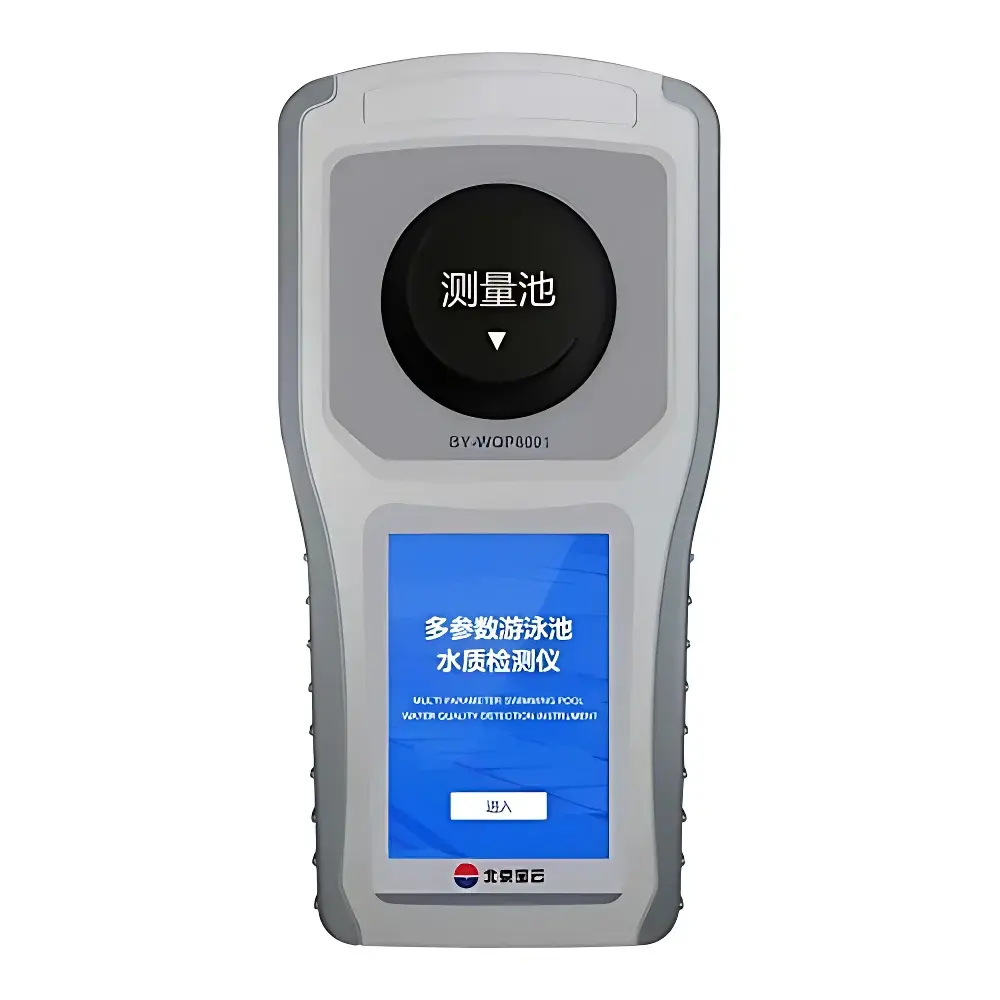

• Integrated 3.5-inch TFT color touch screen with intuitive icon-driven interface—no specialized training required for technicians or facility staff.
• Onboard rechargeable 8.4 V lithium-ion battery with real-time charge-level display and configurable auto-shutdown (2-hour idle timeout) for extended operational readiness.

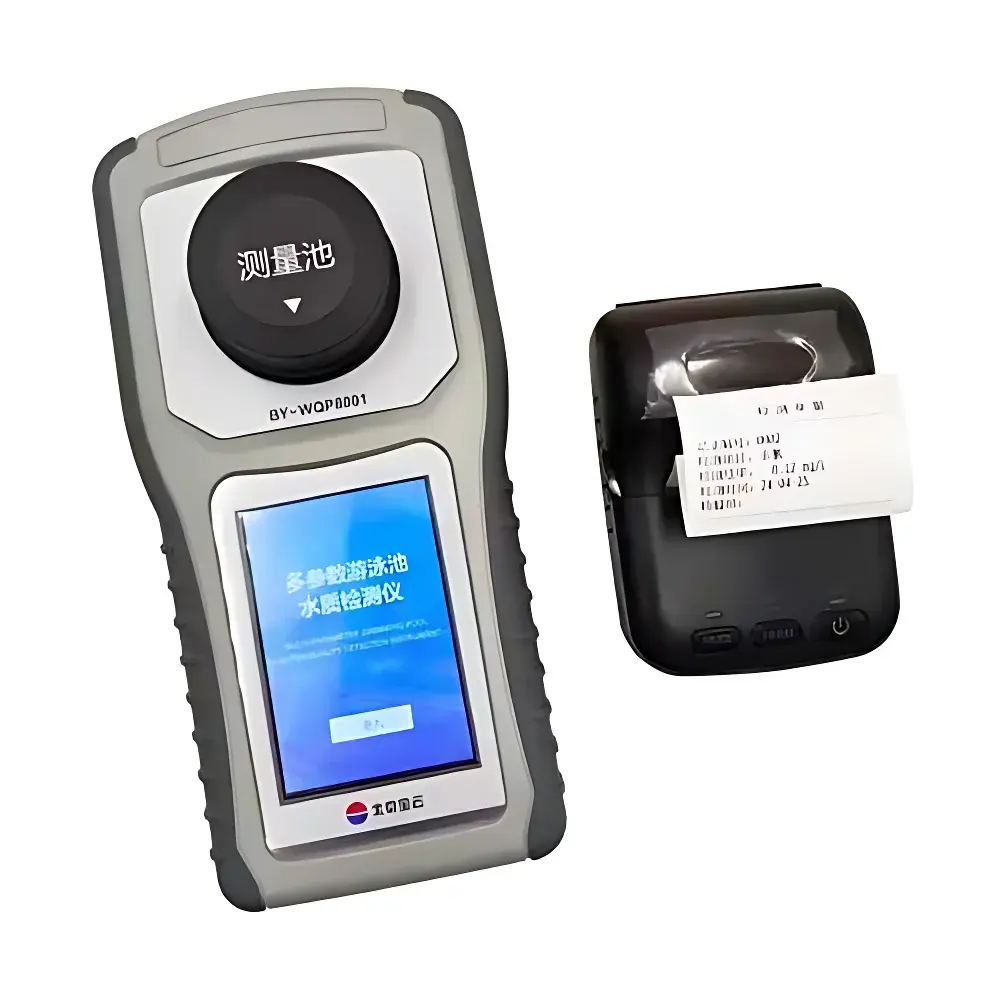

• Bluetooth 4.0 module supporting seamless pairing with certified thermal printers for immediate hard-copy generation of test reports compliant with internal QA logs.
• High-fidelity photometric detection: Absorbance sensitivity of 0.001 AU enables reliable quantification at low-concentration thresholds mandated by health regulations (e.g., urea ≤ 5 mg/L).
• Robust environmental tolerance: Validated performance across 0–40 °C ambient temperature and up to 85% relative humidity (non-condensing), suitable for indoor pools, outdoor seasonal facilities, and mobile inspection units.

Sample Compatibility & Compliance

The BY-WQP8001 is validated for use with clarified, filtered, or centrifuged swimming pool water samples meeting standard pretreatment requirements per CJ/T 244–2016. It accommodates standard 10-mm pathlength cuvettes and supports both reagent-based test kits (provided separately) and pre-formulated tablet reagents compatible with GB 37488–2019 protocols. All measurement algorithms are traceably aligned to reference methods defined in national standards, and instrument calibration is performed using NIST-traceable standard solutions. While not certified under ISO/IEC 17025, the system supports GLP-aligned documentation practices—including timestamped data logging, operator ID tagging (via optional PIN login), and audit-ready export of raw absorbance values and final concentrations. Regulatory reporting outputs conform to municipal public health department submission templates used across China’s provincial CDC networks.

Software & Data Management

Data acquisition, calculation, and storage occur entirely onboard without dependency on external software or cloud infrastructure. Each measurement session records date/time stamp, parameter name, numeric result, unit, method ID, and pass/fail flag against preset action limits (configurable per local jurisdiction). The internal database retains ≥2000 complete records with cyclic overwrite protection. Export is limited to Bluetooth-printed reports; no USB or Wi-Fi connectivity is implemented—intentionally minimizing cybersecurity exposure in decentralized facility environments. Firmware updates are delivered via micro-USB port using manufacturer-provided PC utility (Windows only), with version-controlled changelogs and rollback capability. All stored data persist through battery replacement and power cycling.

Applications

• Routine daily monitoring of free chlorine residual and pH balance in commercial and municipal swimming pools to verify disinfection efficacy and bather comfort.
• Urea quantification as an indirect indicator of organic loading and inadequate filtration turnover—critical for identifying overuse or poor hygiene practices.
• Cyanuric acid surveillance to prevent chlorine lock and ensure optimal hypochlorous acid availability under UV-exposed outdoor conditions.
• Pre-opening verification testing for seasonal aquatic centers and school-based recreational facilities prior to public access.
• Third-party inspection support for health supervision agencies conducting unannounced compliance audits under GB 37488–2019 enforcement frameworks.
• Technical training and student laboratory exercises in environmental science curricula requiring hands-on exposure to standardized water quality assessment protocols.

FAQ

Does the BY-WQP8001 comply with international standards such as ISO 9001 or ASTM D1293?
The instrument is designed and verified against Chinese national standards (GB, CJ/T) and does not carry formal certification to ISO 9001, ISO/IEC 17025, or ASTM methods. However, its photometric architecture and analytical workflows are functionally equivalent to ASTM D1293 (pH), D1888 (chlorine), and D5117 (cyanuric acid) where applicable.
Can the device be calibrated using third-party standard solutions?
Yes—calibration is performed manually using user-supplied, NIST-traceable standard solutions matching the target analyte concentration range. Factory calibration certificates are provided with initial shipment.
Is firmware update capability available outside mainland China?
Firmware updates require the official BJBY PC utility and are distributed exclusively through authorized regional distributors. Language localization and regulatory adaptation are managed regionally.
What is the expected service life of the optical system?
The imported cold-light LED source is rated for 100,000 hours of continuous operation under specified thermal conditions. No consumable optical components (e.g., filters, gratings) require periodic replacement within the first five years of normal use.

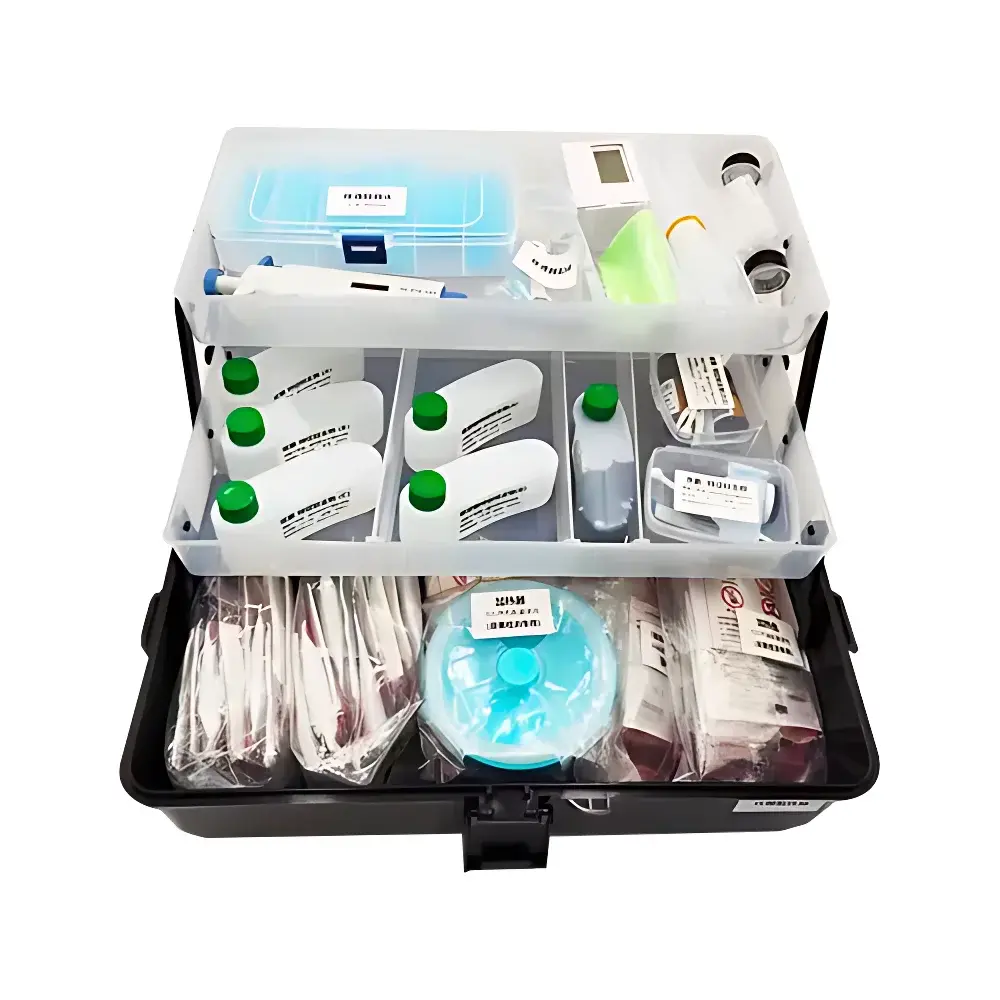

Are reagents included with the instrument?
No—reagent kits (for chlorine, pH, urea, and cyanuric acid) are sold separately and must be selected for compatibility with GB 37488–2019–specified reaction chemistries.
