BLDC 782 Brushless DC High-Shear Homogenizer

Overview

The BLDC 782 Brushless DC High-Shear Homogenizer is an industrial-grade laboratory homogenization system engineered for precision dispersion, emulsification, and particle size reduction in low-to-medium viscosity liquid-phase formulations. It operates on the rotor-stator principle: a high-speed rotating probe draws sample fluid axially into the stator head, where intense hydrodynamic shear forces—generated by the narrow annular gap between rotor and stator—induce cavitation, turbulent flow, and mechanical impact. This mechanism enables consistent sub-micron particle dispersion and stable emulsion formation without thermal degradation or excessive foaming. Designed for continuous-duty operation under controlled ambient conditions, the unit integrates a brushless DC motor architecture that eliminates carbon brush wear, electrical arcing, and particulate emission—making it suitable for cleanroom environments (ISO Class 5–7), solvent-based systems, and facilities requiring electromagnetic compatibility (EMC Class B compliance per EN 61326-1).

Key Features

• Brushless DC motor delivering 150 W nominal power with peak torque retention across full speed range (100–12,000 rpm)
• Digital microcontroller-based motion control system ensuring zero drift, ±1% speed accuracy, and real-time load compensation

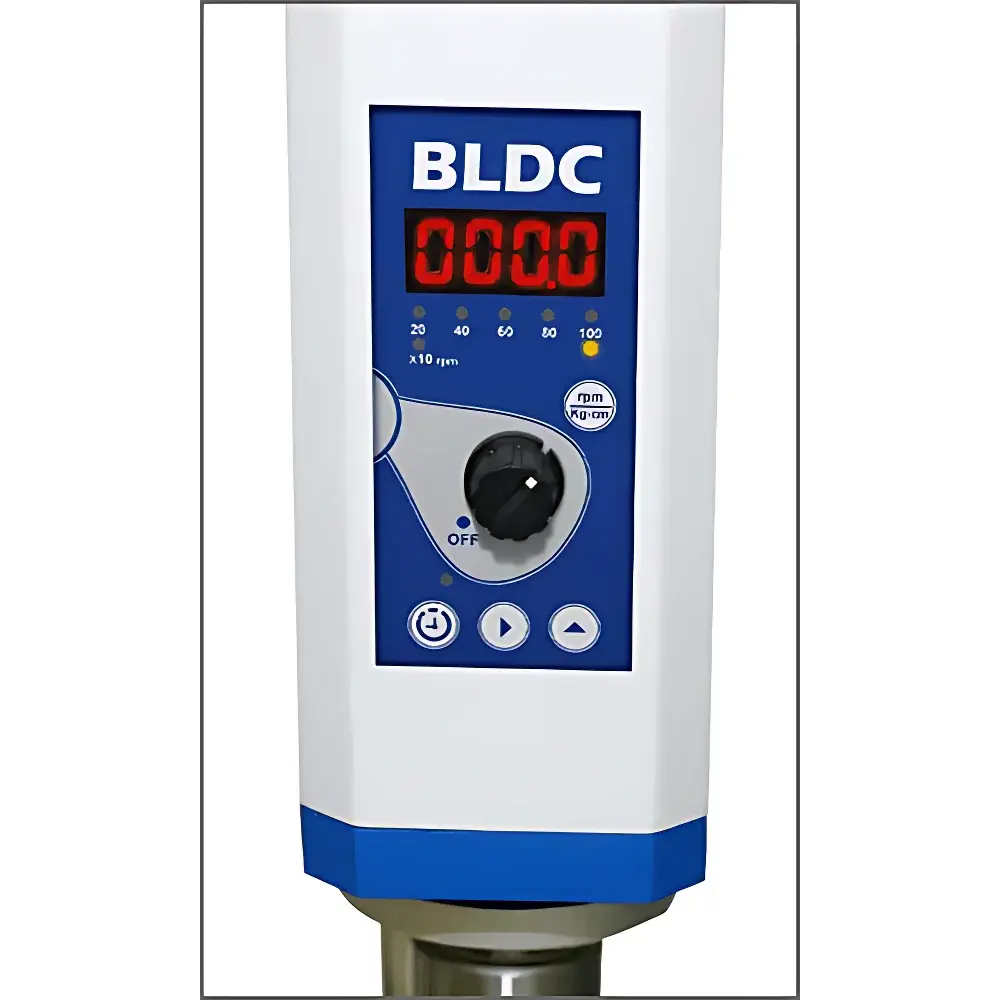

• Integrated dual-display interface showing either rotational speed (rpm) or relative torque (% of max), with five discrete load-level indicators (20%, 40%, 60%, 80%, 100%)
• Programmable timer function supporting run durations from 0 to 9999 minutes with automatic shutdown and memory retention
• Triple-layer safety architecture: electronic overcurrent protection, thermally activated cut-off circuitry, and redundant fuse-based isolation
• EMC-certified design compliant with EN 61326-1, minimizing electromagnetic interference with adjacent analytical instrumentation (e.g., HPLC, mass spectrometers)
• No maintenance required during standard operation; no carbon dust generation ensures compatibility with ISO-controlled manufacturing workflows

Sample Compatibility & Compliance

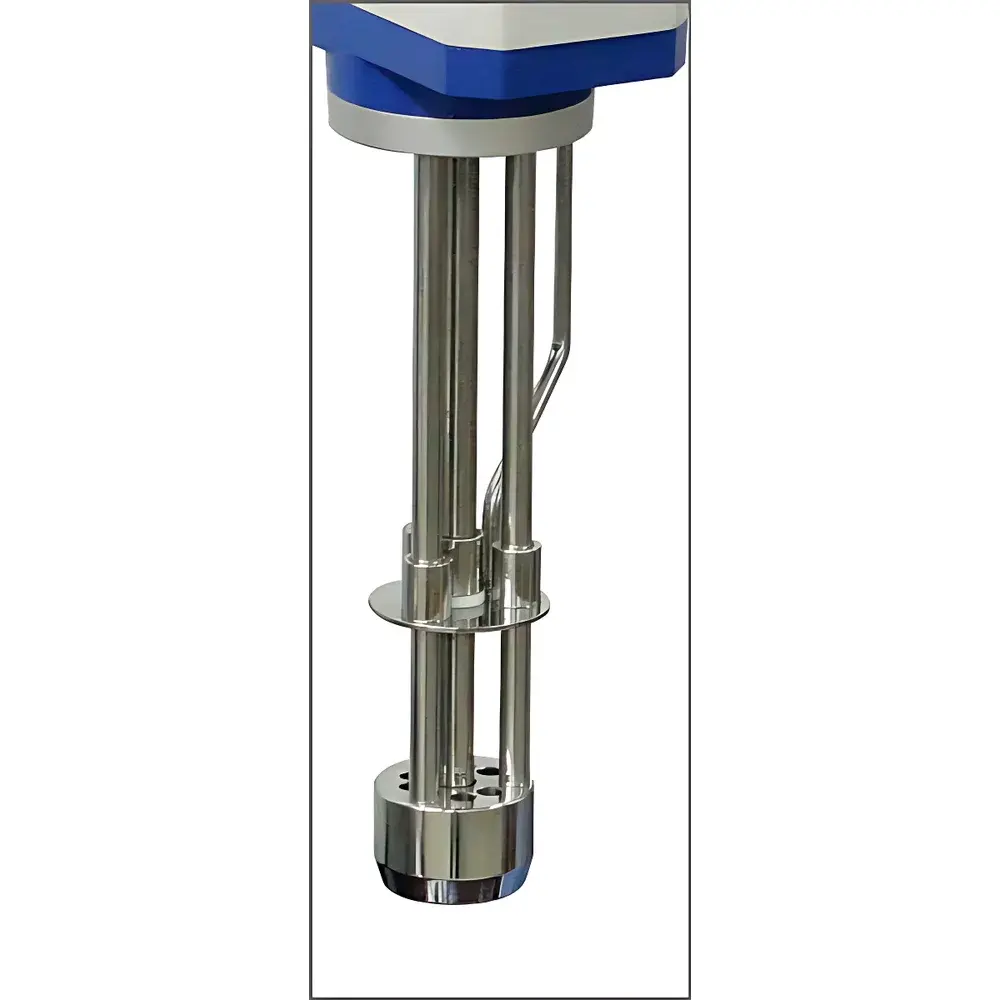

The BLDC 782 accommodates aqueous, organic, and semi-viscous media including cosmetic emulsions (creams, gels, shower gels), pharmaceutical ointments, functional food suspensions, polymer dispersions (acrylics, epoxy resins), pigment pastes, cleaning formulations, and electronic slurries (e.g., conductive ink precursors). Its stainless-steel probe assembly (SUS316L contact surfaces) meets FDA-compliant material requirements for non-sterile processing. While not certified for GMP manufacturing per se, the device supports GLP-aligned documentation practices through traceable operational parameters (speed, time, load profile) and is routinely deployed in R&D labs conducting ASTM D4290 (emulsion stability), ISO 787-21 (dispersion quality), and USP (light scattering assessment of lipid injectables) method development.

Software & Data Management

The BLDC 782 operates as a standalone instrument with embedded firmware; no external PC connection or proprietary software is required for basic operation. However, its digital interface supports optional RS-232 or USB-to-serial integration for lab information management system (LIMS) synchronization. When interfaced, the unit transmits timestamped records of speed setpoint, actual rpm, torque percentage, elapsed runtime, and fault codes (e.g., E-03 = overload event). These logs satisfy audit trail requirements under FDA 21 CFR Part 11 when paired with validated third-party data acquisition platforms. All parameter settings are retained after power cycling, eliminating reconfiguration overhead between batches.

Applications

• Development and scale-down validation of topical drug delivery systems (e.g., nanoemulsions for transdermal absorption)
• Routine preparation of stable oil-in-water and water-in-oil emulsions for cosmetic QA/QC testing
• Dispersion of nanomaterials (TiO₂, SiO₂, carbon black) in coating and ink formulations
• Homogenization of cell lysates and tissue suspensions prior to centrifugation or filtration
• Viscosity-controlled mixing of heat-sensitive nutraceutical blends containing probiotics or enzymes
• Batch reproducibility studies under DOE (Design of Experiments) protocols for process optimization

FAQ

What is the maximum allowable viscosity for optimal performance?

The BLDC 782 is optimized for fluids up to 5,000 mPa·s at 25°C. For viscosities exceeding this threshold, use lower speeds (≤3,000 rpm) and reduce batch volume to maintain laminar feed dynamics and avoid motor stalling.

Can the unit be used with corrosive solvents such as acetone or THF?

Yes—provided the rotor-stator head is constructed from SUS316L stainless steel (standard configuration) and all seals are chemically resistant (Viton or EPDM options available upon request). Always verify chemical compatibility using manufacturer-provided resistance charts.

Is calibration traceable to NIST or other national standards?

Speed calibration is factory-traceable to internal metrology standards aligned with ISO/IEC 17025 principles. Full NIST-traceable certification requires third-party service and is available as an add-on option.

Does the device support sterile processing or autoclaving?

The probe assembly is not autoclavable. Sterilization must be performed via ethanol wipe-down, UV-C exposure, or ethylene oxide (EtO) gas—validated per ISO 14937 for non-implantable devices.

What warranty and service support is included?

The BLDC 782 carries a 24-month limited warranty covering parts and labor for defects in materials or workmanship. Lifetime technical support and spare parts availability are guaranteed through authorized global distribution partners.
