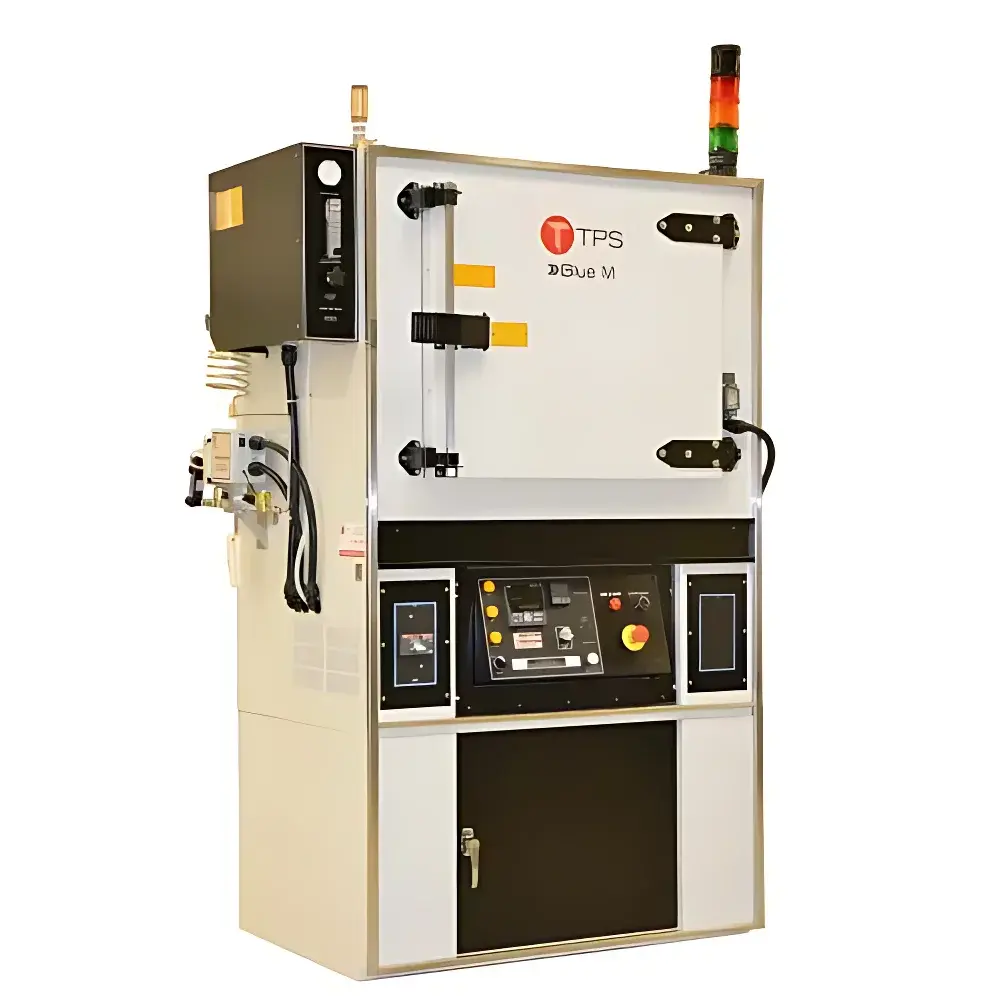

Blue M 146 Series Inert Atmosphere Forced-Air Convection Oven
| Brand | Blue M |
|---|---|
| Origin | USA |
| Model | 146 Series Inert Atmosphere Forced-Air Convection Oven |
| Temperature Range | Ambient +15°C to 350°C |
| Control Accuracy | ±1.0°C |
| Max Power | 24.0 kW |
| Heating Method | Forced-air recirculation |
| Internal Dimensions | 508 × 457 × 508 mm to 1219 × 635 × 940 mm |
| Compliance | UL 508A, CE Marked |
| Gas Compatibility | N₂, Ar, He, CO₂ |
Overview
The Blue M 146 Series Inert Atmosphere Forced-Air Convection Oven is an engineered solution for thermal processing under oxygen-controlled environments. Designed for applications requiring strict atmospheric regulation—such as annealing of reactive metals, moisture-sensitive polymer curing, catalyst activation, and low-oxidation sintering—the oven employs a fully sealed, welded chamber architecture combined with precision-controlled inert gas purging and high-uniformity forced convection. Its core operating principle relies on continuous volumetric air exchange via adjustable inlet/outlet flow paths, coupled with a differential-pressure interlock system that halts heating and fan operation upon detection of pressure loss or flow deviation beyond preset thresholds. This ensures stable O₂ levels typically below 50 ppm in steady-state operation when supplied with high-purity nitrogen or argon (≥99.998%). The unit operates across a validated temperature range from ambient +15°C to 350°C, with independent overtemperature protection and redundant safety circuitry compliant with UL 508A industrial control standards.
Key Features
- Fully welded 304 stainless steel interior chamber with seamless construction to minimize oxygen ingress and facilitate cleaning;
- Dual-layer insulated heavy-duty door with independent upper-limit controller and thermal cutoff;
- Adjustable inert gas management system featuring dual-directional valves, calibrated flow meters, and real-time pressure monitoring;
- High-efficiency recirculating blower with variable-frequency drive (VFD) for precise airflow modulation;
- Perforated, semi-porous duct wall design enabling directional airflow tuning across load configurations;
- Factory-assembled and individually tested; includes GFCI-protected main power circuit and UL 508A–certified control panel;
- White enamel-finished cold-rolled steel exterior with corrosion-resistant structural reinforcement;
- Door interlock mechanism disables heating and fan operation during door opening to preserve atmosphere integrity;
- Optional nine-point thermocouple mapping system for spatial uniformity validation per ASTM E2203 or ISO 17025 requirements.
Sample Compatibility & Compliance
The 146 Series accommodates diverse sample geometries and material classes—including powder metallurgy compacts, lithium-ion battery electrodes, thin-film substrates, and aerospace-grade alloys—within its five standard cavity configurations (DCI-206 through DCI-1406). All models meet CE marking requirements for electromagnetic compatibility (EMC) and low-voltage directives. Optional configurations support GLP/GMP-aligned data integrity: programmable controllers with audit-trail logging, 21 CFR Part 11–compliant electronic signatures, and encrypted USB/Ethernet data export. The oven’s inert gas interface complies with ISO 8573-1 Class 2 compressed air purity standards when integrated with certified gas purification modules. Trace solvent handling packages include explosion-proof ventilation routing and flame-arrestor fittings conforming to NFPA 86 Class A/B furnace safety protocols.
Software & Data Management
Standard configuration includes a microprocessor-based PID controller with 0.1°C resolution, ramp-soak programming, and real-time setpoint tracking. Optional Ethernet- or USB-enabled controllers support remote monitoring via Modbus TCP or ASCII protocol, enabling integration into centralized lab information management systems (LIMS). Data logging options include paperless chart recorders (IEC 61511 SIL 2–rated), time-stamped CSV exports, and trend visualization tools compatible with MATLAB® and Python-based analysis pipelines. Redundant overtemperature protection incorporates both primary and secondary limit sensors with independent alarm relays—fully documented in the factory calibration certificate provided with each unit.
Applications
- Oxidation-sensitive heat treatment of titanium, magnesium, and rare-earth alloys;
- Controlled-atmosphere drying of pharmaceutical excipients and hygroscopic APIs;
- Pre-sintering of ceramic green bodies and metal injection molding (MIM) feedstocks;
- Thermal aging studies of encapsulated electronics under inert nitrogen blanket;
- Low-oxygen post-curing of carbon fiber prepregs to prevent surface degradation;
- Calibration reference ovens for metrology labs requiring traceable thermal stability (ISO/IEC 17025).
FAQ
What inert gases are compatible with the 146 Series?
Nitrogen (N₂), argon (Ar), helium (He), and carbon dioxide (CO₂) are supported. Gas purity ≥99.998% is recommended for sub-50 ppm O₂ operation.
Does the oven support automated process validation?
Yes—optional nine-point thermocouple mapping, IQ/OQ documentation packages, and 21 CFR Part 11–enabled controllers are available for regulated environments.
Can the unit operate on single-phase power?
Select smaller cavity models (e.g., DCI-206, DCI-256) support 208/240 VAC single-phase input; larger units require three-phase supply.
Is third-party certification available for ISO 17025 compliance?
Factory-installed temperature uniformity verification reports are provided; full ISO 17025 accreditation requires on-site assessment by an accredited body.
What maintenance intervals are recommended?
Blower motor inspection every 12 months; gas line filter replacement every 6 months; annual recalibration of temperature sensors and pressure switches.
