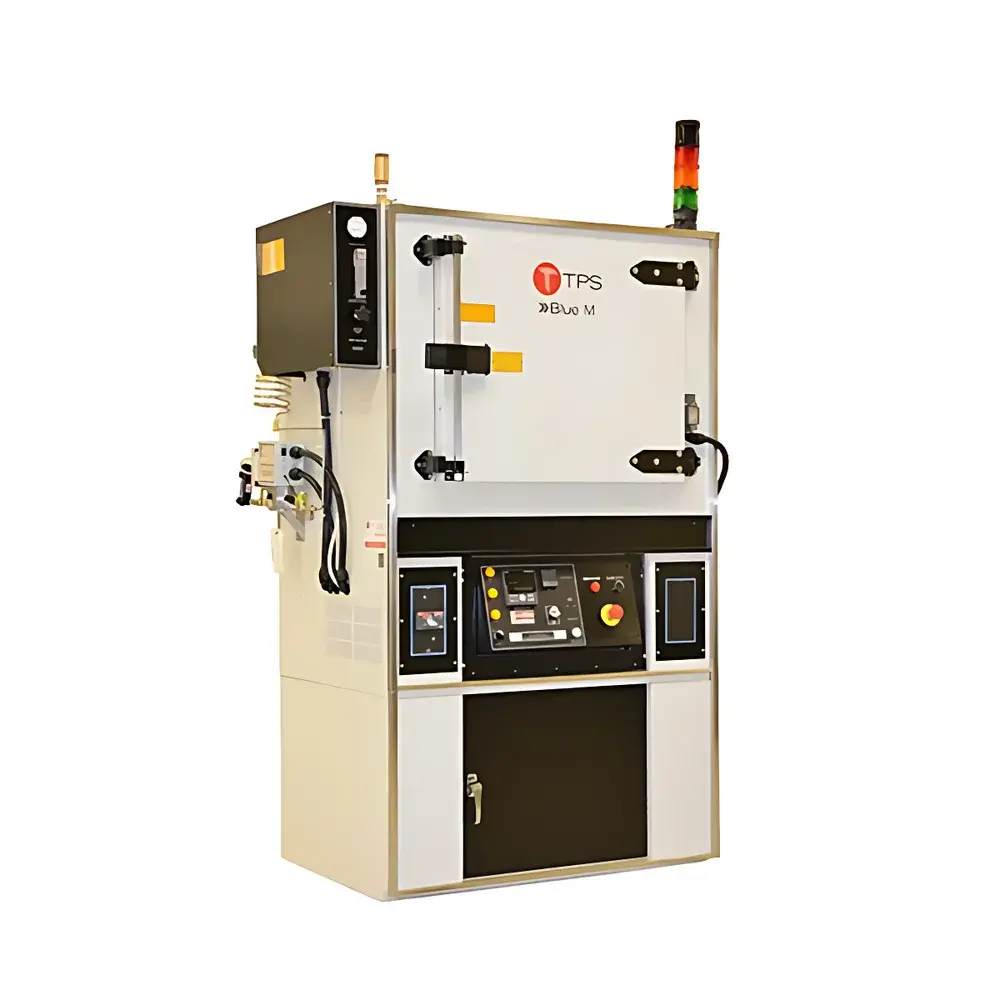

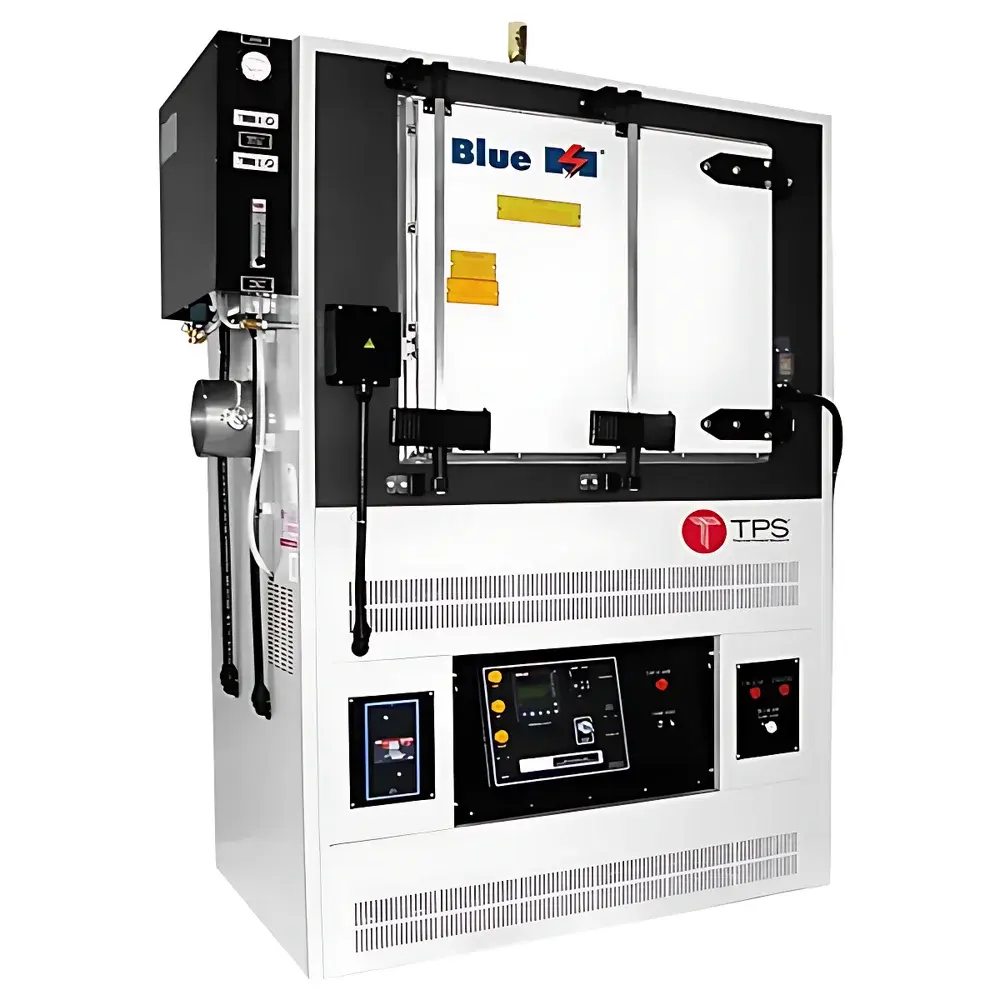

Blue M IGF-8880 Inert Atmosphere High-Temperature Bake Oven for Photoresist and Polyimide Curing

Overview

The Blue M IGF-8880 is a precision-engineered inert atmosphere high-temperature bake oven designed specifically for thermal processing of photoresist and polyimide (PI) films in semiconductor, MEMS, and advanced packaging manufacturing environments. It operates on the principle of controlled convection heating within a sealed, gas-purged chamber, enabling precise thermal curing, post-exposure bake (PEB), and imidization under oxygen-free conditions. Unlike standard air-circulating ovens, the IGF-8880 integrates real-time inert gas management—supporting nitrogen, argon, helium, carbon dioxide, and low-concentration forming gas (4% H₂ in N₂)—to prevent oxidation, carbonization, or surface degradation of sensitive organic thin films. Its NFPA 86 Class B certification confirms compliance with industrial safety standards for ovens operating in flammable or reducing atmospheres. The unit features a welded stainless steel inner chamber that eliminates pathways for gas leakage into insulation layers—a critical design element for maintaining process integrity and long-term calibration stability.

Key Features

• Water-cooled door assembly (standard on IGF-8880 and IGF-9980 models) prevents thermal distortion and extends gasket service life during extended high-temperature cycles up to 593°C.
• Horizontally oriented high-volume airflow system ensures uniform thermal distribution across the full chamber volume, minimizing edge-to-center gradients during PI imidization.
• Dual-stage safety interlock: door switch automatically de-energizes both heater and blower upon opening; gas leak detection triggers audible alarm and immediate heater shutdown.
• Integrated digital control panel with independent monitoring of chamber pressure, gas flow rate (via calibrated mass flow controller), and purge cycle timing.
• 6-inch thick mineral wool insulation combined with double-wall cavity construction delivers exceptional thermal efficiency and external surface temperature <45°C at maximum operating temperature.
• Fiberglass-reinforced silicone door gasket maintains hermetic seal integrity over repeated thermal cycling from ambient to 593°C without compression set or outgassing.

Sample Compatibility & Compliance

The IGF-8880 accommodates wafers, reticles, ceramic substrates, and flexible printed circuit boards requiring inert-atmosphere baking between 150°C and 400°C—typical ranges for polyimide curing and photoresist stabilization. Its chamber geometry (25 × 20 × 20 cm internal volume) supports standard 8-inch wafer carriers and multi-level quartz boats. The oven meets ASTM E145-22 requirements for gravity-convection and forced-air laboratory ovens, and its construction adheres to UL 746C for electrical insulating materials used in high-temperature equipment. For regulated environments, optional data logging and audit trail modules support 21 CFR Part 11 compliance when integrated with validated software platforms.

Software & Data Management

While the base IGF-8880 operates via an intuitive analog/digital hybrid front-panel interface, it is fully compatible with Blue M’s optional Ethernet-enabled Process Controller (PC-4000 series). This enables remote parameter setting, real-time graphing of temperature, pressure, and flow profiles, and export of time-stamped CSV datasets for SPC analysis. All thermal cycles can be saved as repeatable recipes with user-defined ramp/soak segments, gas purge durations, and safety threshold overrides. Optional validation packages include IQ/OQ documentation templates aligned with ISO/IEC 17025 and GMP Annex 15 guidelines.

Applications

• Post-application and post-exposure baking of positive/negative photoresists (e.g., AZ®, Shipley®, TOK®) under nitrogen to suppress standing wave effects and improve line-edge roughness.
• Thermal imidization of polyimide films (e.g., HD Microsystems PI-2611, Toray Pyralin®) at 300–400°C to achieve full aromatic ring closure and mechanical stability.
• Pre-bake and hard-bake steps in MEMS encapsulation processes where residual moisture or oxygen must be excluded to prevent delamination or stress-induced cracking.
• High-temperature aging of thin-film transistors (TFTs), OLED encapsulation layers, and flexible electronics substrates under controlled forming gas atmospheres.
• Research-scale thermal decomposition studies of polymer precursors in inert or mildly reducing environments.

FAQ

What inert gases are certified for use with the IGF-8880?
Nitrogen (N₂), argon (Ar), helium (He), carbon dioxide (CO₂), and forming gas (4% H₂ in N₂) are approved per NFPA 86 and Blue M’s factory validation reports.
Is the IGF-8880 suitable for vacuum operation?
No—it is engineered exclusively for positive-pressure inert gas environments; vacuum capability requires alternative chamber designs (e.g., Blue M VAC series).
Can the oven be integrated into a factory automation system?
Yes—RS-485 Modbus RTU and optional Ethernet/IP interfaces enable PLC-level integration for recipe loading, status reporting, and fault logging.
What maintenance intervals are recommended for the gas delivery system?
Mass flow controllers should be calibrated annually; door gaskets inspected quarterly; and mineral wool insulation integrity verified during biannual chamber cleaning.
Does the IGF-8880 support GLP-compliant electronic records?
When paired with the PC-4000 controller and validated software, full audit trail, electronic signatures, and data backup functions satisfy GLP and GMP documentation requirements.
