BOXUN DZF-6020MBE Microprocessor-Controlled Vacuum Drying Oven

Overview

The BOXUN DZF-6020MBE is a microprocessor-controlled vacuum drying oven engineered for precision thermal processing under reduced-pressure conditions. It operates on the principle of vacuum-assisted dehydration—lowering the ambient pressure inside the chamber to depress the boiling point of volatile solvents and moisture, thereby enabling gentle, uniform drying of thermally labile, oxidation-prone, or structurally delicate samples. Unlike forced-air convection ovens, this system eliminates convective heat transfer and mechanical disturbance, making it ideal for powders, granular materials, porous substrates, sterilized glassware, and sensitive biological matrices where surface integrity, compositional stability, and residue-free desiccation are critical. Designed for routine use in QC laboratories, R&D facilities, and academic research settings, the DZF-6020MBE complies with foundational operational requirements aligned with ISO 17025–recommended environmental control practices and supports GLP-aligned documentation workflows when integrated with external data logging systems.

Key Features

• Stainless steel (SUS304) interior chamber with seamless semi-circular corner design for enhanced cleanability and corrosion resistance
• Microprocessor-based PID temperature controller with dual LED display (setpoint & actual temperature), tactile membrane keypad interface, and programmable timer (0–999 minutes)
• Adjustable silicone door gasket with full-perimeter compression seal, ensuring stable vacuum maintenance up to 133 Pa
• Tempered double-layer observation window providing real-time visual monitoring without compromising vacuum integrity
• Robust cold-rolled steel exterior with electrostatic epoxy powder coating for long-term durability and chemical resistance
• Intelligent power recovery function: automatically resumes pre-set parameters after unexpected power interruption
• Jacketed electric heating system delivering rapid, uniform thermal distribution across the 25 L working volume
• Built-in over-temperature alarm and safety cutoff to prevent thermal runaway during unattended operation

Sample Compatibility & Compliance

The DZF-6020MBE accommodates diverse sample formats including lyophilized powders, ceramic precursors, polymer films, pharmaceutical excipients, botanical extracts, and pre-sterilized laboratory glassware. Its inert vacuum environment mitigates oxidative degradation pathways—particularly beneficial for compounds susceptible to thermal decomposition above 100°C or those containing volatile organic residues. While not certified to IEC 61010-1 or UL 61010B as a standalone medical device, the unit meets general electrical safety standards applicable to Class II laboratory equipment operating within CE-marked environments. Vacuum performance aligns with ASTM E145–22 Annex A3 guidelines for low-pressure thermal treatment validation. Users performing regulated work (e.g., USP , ISO 11140–5) should validate vacuum hold time, temperature homogeneity, and residual moisture content per internal SOPs.

Software & Data Management

This model does not include embedded PC software or Ethernet connectivity. However, analog output signals (0–5 V or 4–20 mA optional upon request) can be interfaced with third-party DAQ systems for continuous temperature and vacuum logging. The microcontroller retains last-used settings—including target temperature, dwell time, and alarm thresholds—across power cycles, supporting audit-ready repeatability in non-GxP environments. For labs requiring 21 CFR Part 11 compliance, external validation packages may be deployed using calibrated reference sensors and timestamped acquisition hardware. All firmware operations are deterministic and non-volatile, with no user-accessible configuration memory that could introduce undocumented state changes.

Applications

• Drying heat-sensitive APIs and intermediates without polymorphic transition or degradation
• Removing trace solvents from nanoparticle suspensions prior to TEM grid preparation
• Dehydrating soil or sediment samples for gravimetric water content analysis (ASTM D2216)
• Conditioning humidity-sensitive calibration standards (e.g., NIST SRM 2890)
• Sterilizing pipette tips, Petri dishes, and volumetric flasks under vacuum followed by dry-heat exposure
• Pre-treating composite material substrates before adhesive bonding or coating application
• Accelerated aging studies of packaging films under controlled low-humidity thermal stress

FAQ

What vacuum level can the DZF-6020MBE achieve, and how is it measured?

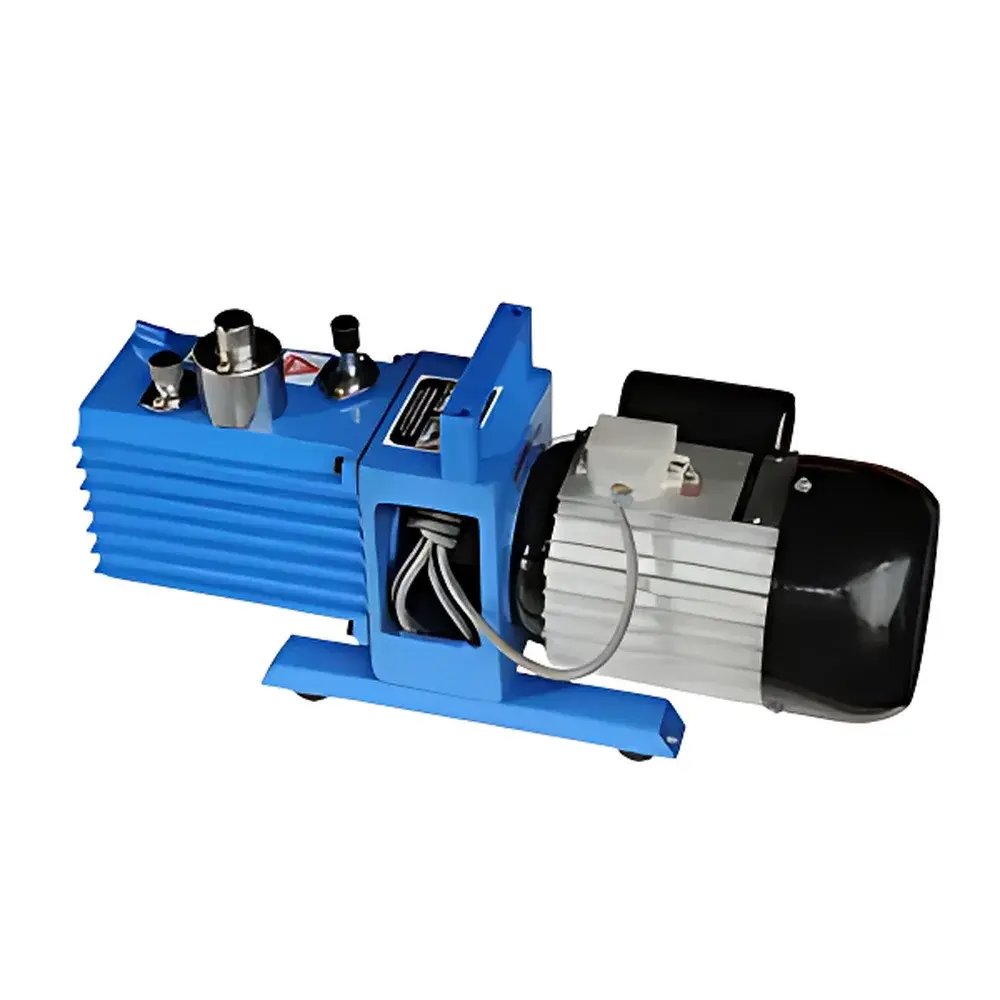

The chamber achieves a base pressure of ≤133 Pa (1 Torr) using the included BX-1 rotary vane pump. Ultimate vacuum is verified with a calibrated Pirani gauge referenced to atmospheric zero prior to each operational cycle.
Is the stainless steel chamber electropolished or passivated?
The interior uses standard mill-finish SUS304 stainless steel. Electropolishing is not factory-standard but can be specified as an OEM option for high-purity applications.
Can the oven operate continuously at 250°C under vacuum?
Yes—continuous operation at maximum setpoint is supported, provided ambient room temperature remains below 30°C and ventilation clearance exceeds 20 cm on all sides.
Does the unit support nitrogen purge functionality?
No built-in gas inlet port is provided; however, users may adapt a custom Schrader valve assembly to the vacuum port for inert gas backfilling post-drying.
Are calibration certificates available for temperature and vacuum sensors?
Factory calibration reports (traceable to national standards) are available upon request at time of order, with optional third-party certification via accredited metrology labs.
