Branson Sonifier® 450D Digital Ultrasonic Cell Disruptor

Overview

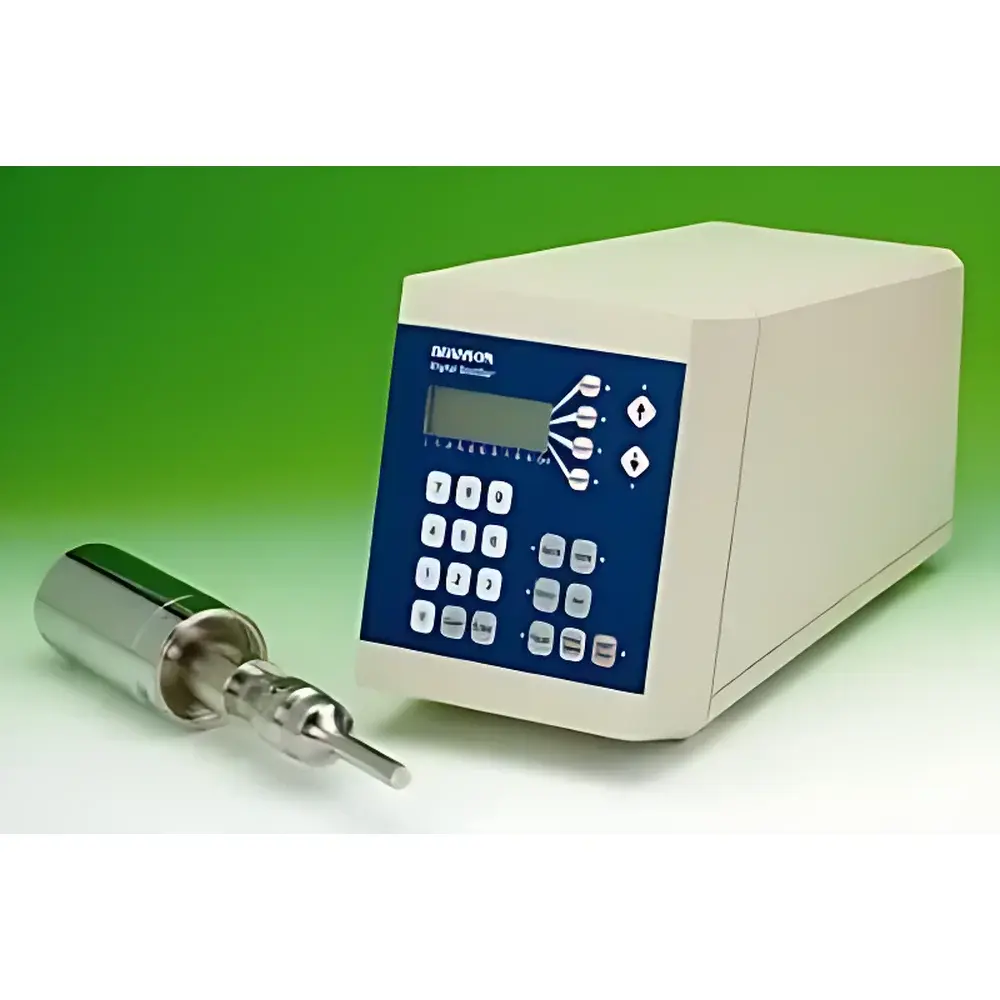

The Branson Sonifier® 450D Digital Ultrasonic Cell Disruptor is a high-performance, microprocessor-controlled laboratory instrument engineered for precise and reproducible cell lysis, homogenization, emulsification, and extraction across life science, pharmaceutical, and bioprocessing applications. It operates on the physical principle of acoustic cavitation—where controlled 20 kHz ultrasonic energy induces rapid formation and collapse of microscopic vapor bubbles in liquid media, generating localized shear forces, microstreaming, and transient extreme temperatures (>5000 K) and pressures (>1000 atm). This mechanism enables efficient disruption of bacterial cells, yeast, spores, mammalian tissues, subcellular organelles, and viral particles without chemical additives or thermal denaturation when properly temperature-managed. Designed for benchtop use in GLP-compliant and regulated environments, the Sonifier 450D delivers stable 400 W of continuous, digitally regulated output power, supporting scalable processing from microliter-scale lysates to liter-volume suspensions.

Key Features

• Digital amplitude control (10–100% in 1% increments) ensures repeatable energy delivery and minimizes sample overheating—critical for preserving labile proteins and nucleic acids.
• Programmable pulse modes (pulse duration: 0.1–9.9 s; interval: 0.1–9.9 s) allow fine-tuned duty cycle management to balance disruption efficiency with thermal load.
• Integrated digital timer (1 s to 9 h 59 min 59 s) and 20-user protocol memory enable unattended operation and full experimental traceability.
• Real-time energy bar graph display provides immediate visual feedback on instantaneous acoustic output during sonication.
• RS-232 interface supports bidirectional communication with Windows-based PCs for remote parameter configuration, operational logging, and timestamped report generation—compatible with FDA 21 CFR Part 11–ready data acquisition systems when paired with validated software.
• Multi-language interface (English, Spanish, French, German, Chinese) facilitates international lab deployment and operator training consistency.
• Remote I/O port enables integration with external temperature probes or PLCs for closed-loop thermal monitoring and interlock safety protocols.

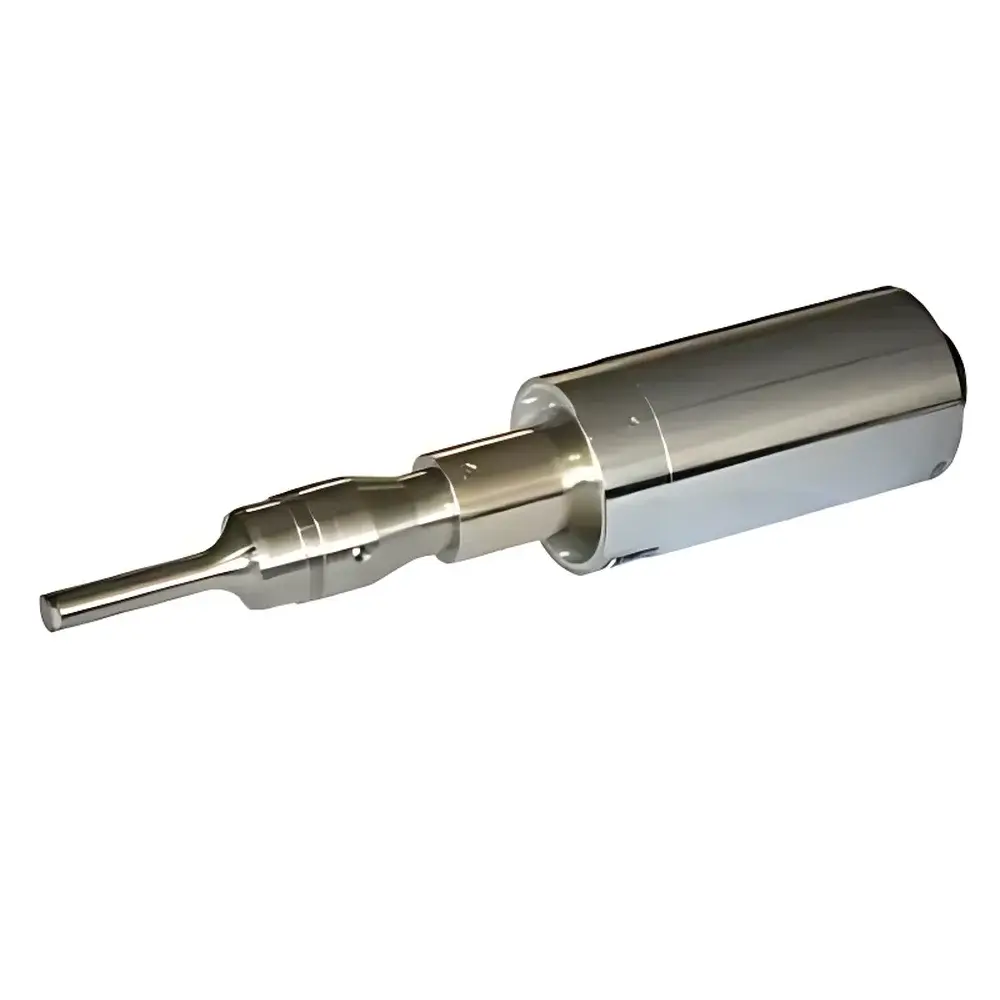

• High-efficiency 7–4 Ti-6Al-4V titanium alloy probe (standard 13 mm diameter) offers superior acoustic transmission and mechanical durability—delivering up to 30% higher effective energy transfer compared to conventional Grade 2 or Grade 5 titanium probes.

Sample Compatibility & Compliance

The Sonifier 450D accommodates a broad range of biological matrices—including Gram-positive and Gram-negative bacteria, fungal hyphae, plant tissue homogenates, frozen mammalian liver samples, and lipid-rich suspensions—across volumes from 10 mL (microprobe-compatible) to >1000 mL (with flow-through or cup-horn accessories). All standard probes are manufactured from ASTM F136–certified Ti-6Al-4V alloy, meeting ISO 13485 material traceability requirements for medical device R&D. The system complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its electrical safety design conforms to UL 61010-1 and EN 61010-1. When operated with optional temperature-sensing probes and validated SOPs, it supports compliance with USP , ISO/IEC 17025, and GMP Annex 11 documentation standards.

Software & Data Management

While the Sonifier 450D operates autonomously via its front-panel interface, its RS-232 port enables connection to third-party laboratory information management systems (LIMS) or custom-developed applications using ASCII command protocol. Operators can export session logs—including start time, amplitude setting, total sonication duration, pulse parameters, and protocol ID—to CSV or text files for audit trail reconstruction. For regulated environments, the instrument’s deterministic timing architecture and non-volatile protocol storage support ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) when integrated into a validated electronic record workflow. Firmware updates are performed via serial download under controlled change management procedures.

Applications

• Preparative lysis of E. coli, Bacillus subtilis, and Saccharomyces cerevisiae for recombinant protein purification.
• Nucleic acid isolation (genomic DNA, plasmid DNA, total RNA) from clinical, environmental, and agricultural samples.
• Chromatin shearing for ChIP-seq and ATAC-seq library preparation.
• Emulsification of nanostructured lipid carriers (NLCs) and liposomes in pharmaceutical formulation development.
• Extraction of intracellular metabolites and secondary plant compounds under non-thermal conditions.
• Cleaning and decontamination of microfluidic devices and capillary electrophoresis tubing.
• Accelerated solvent extraction (ASE) of pesticides and mycotoxins from grain and feed matrices per AOAC Official Method 2007.01.

FAQ

What is the minimum pulse duration supported by the Sonifier 450D?
The shortest selectable pulse duration is 0.1 second, with equivalent minimum interval duration between pulses.

Can the instrument be used with temperature-sensitive samples?

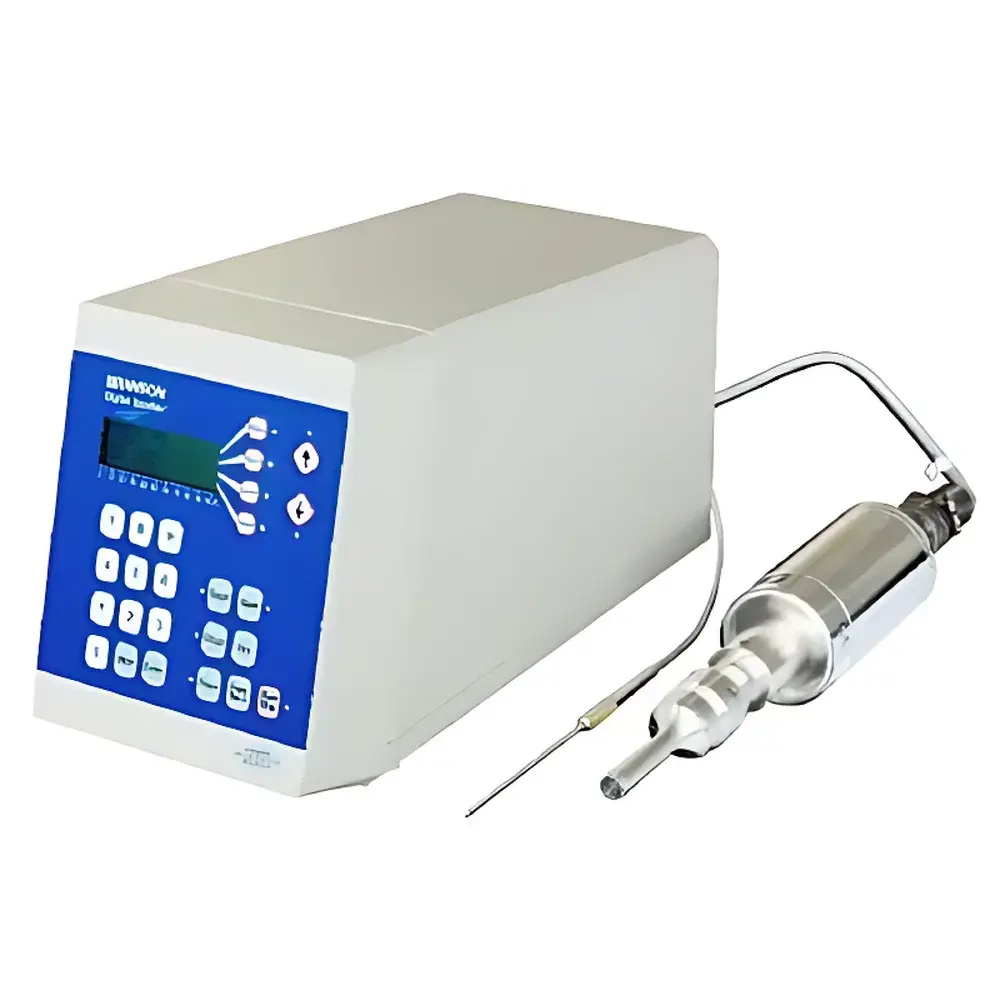

Yes—when paired with an optional external temperature probe and configured in temperature-controlled mode, the system pauses sonication if preset thresholds are exceeded, ensuring thermal integrity of heat-labile biomolecules.

Is probe calibration required before use?
No routine calibration is needed; however, amplitude verification using a calibrated calorimetric method (e.g., ASTM E2861) is recommended annually or after probe replacement to maintain measurement traceability.

Does the Sonifier 450D meet regulatory requirements for pharmaceutical manufacturing?
It is qualified for R&D and process development under cGMP guidelines; final validation for commercial production must be performed per site-specific IQ/OQ/PQ protocols aligned with FDA, EMA, or PMDA expectations.

What safety features are built into the system?

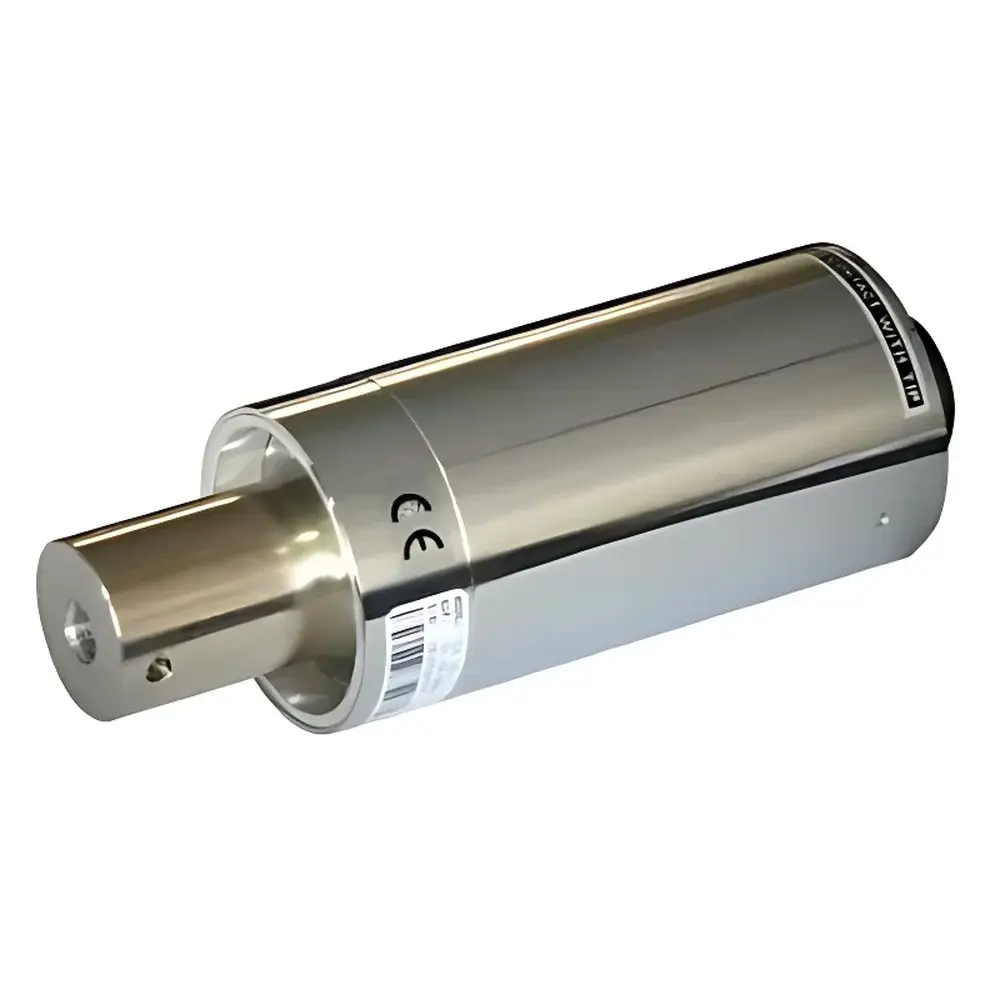

The unit includes automatic overtemperature shutdown, overload current protection, real-time fault detection, and mandatory probe detection—preventing operation without a properly coupled transducer.
