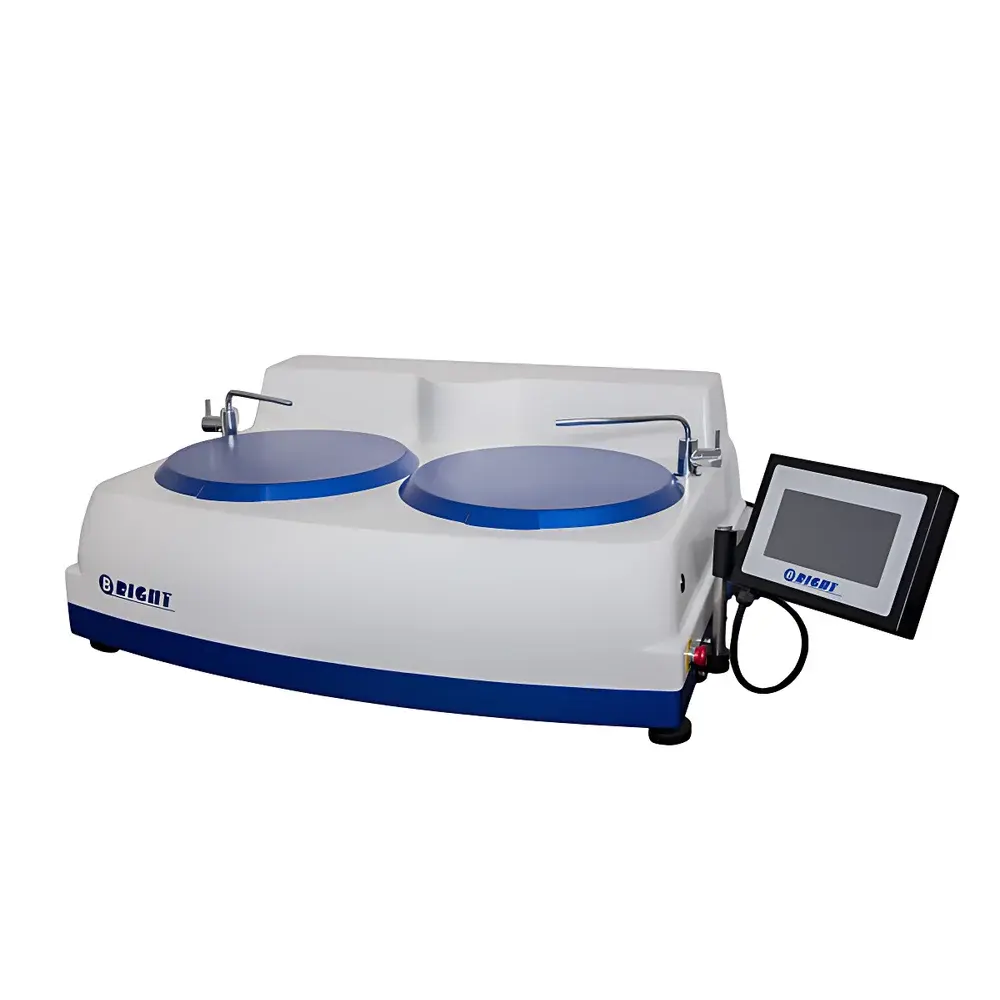

BRIGHT Chiron 250D Dual-Station Automated Metallographic Grinding and Polishing System

Overview

The BRIGHT Chiron 250D is a dual-station, microprocessor-controlled metallographic grinding and polishing system engineered for high-reproducibility specimen preparation in metallurgical laboratories. It operates on the principle of controlled mechanical abrasion—applying precisely regulated rotational force, axial load, and coolant flow to progressively reduce surface topography and achieve planar, scratch-free surfaces suitable for optical microscopy, SEM imaging, and quantitative image analysis. Designed for post-sectioning and mounting workflows, the system accommodates a broad range of metallic materials—including ferrous alloys (carbon steels, stainless steels), non-ferrous metals (copper, aluminum, titanium), and hard-brittle intermetallics—while maintaining dimensional integrity and minimizing edge rounding or relief effects. Its robust cast-iron base ensures minimal vibration transmission during operation, critical for achieving consistent material removal rates and surface finish uniformity across batches.

Key Features

• Dual independent grinding/polishing stations with synchronized or asynchronous operation—each equipped with a 254 mm diameter platen driven by a maintenance-free brushless DC motor (1.1 kW, 220 V)
• Stepless speed control from 100 to 1000 rpm in 10 rpm increments, plus four preset speeds (250 / 500 / 750 / 1000 rpm) for rapid method recall and SOP compliance
• Reversible rotation direction (CW/CCW) programmable per station to optimize abrasive wear patterns and mitigate directional artifact formation
• High-resolution LCD touchscreen interface with intuitive icon-driven navigation, real-time parameter feedback, and multi-language support (English, German, French, Spanish)
• Z-axis vertical adjustment with 0.1 mm incremental precision for calibrated downforce application—enabling repeatable load control during coarse grinding, fine grinding, and final polishing stages
• Integrated ABS safety enclosure and waste tray designed for splash containment, ergonomic access, and simplified cleaning; meets IEC 61000-6-2 EMC immunity standards
• PTFE-coated quick-change platen system enabling tool-free, residue-free replacement of 250 mm abrasive papers or polishing cloths—reducing cross-contamination and setup time between sample types
• Optimized coolant delivery via 6 mm OD tubing at regulated 40–100 psi pressure, ensuring consistent lubrication and thermal management without overspray or pooling

Sample Compatibility & Compliance

The Chiron 250D supports specimens mounted in thermosetting resins (epoxy, phenolic), thermoplastic resins (acrylic), or cold-mounting compounds, with diameters ranging from 15 mm to 35 mm. It is routinely validated for ASTM E3, ISO 14487, and EN 10365 standard-compliant preparation of steel microstructures, copper grain boundary delineation, and aluminum alloy phase contrast enhancement. The system’s mechanical stability, repeatable Z-axis positioning, and low-noise (<65 dB(A)) operation align with GLP laboratory infrastructure requirements. All electrical components conform to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD), and the control firmware supports audit-trail-enabled user logins—facilitating 21 CFR Part 11 readiness when integrated with compliant LIMS platforms.

Software & Data Management

While the Chiron 250D operates as a standalone instrument with embedded firmware, its touchscreen interface stores up to 50 customizable grinding/polishing protocols—including speed, direction, duration, and Z-height settings—with timestamped execution logs. Optional RS-232 or USB-C connectivity enables export of operational metadata (start/stop times, motor load profiles, error codes) for traceability. When deployed in networked QA/QC environments, the device integrates with BRIGHT’s optional LabLink™ software suite for centralized protocol distribution, remote diagnostics, and automated report generation aligned with ISO/IEC 17025 documentation frameworks.

Applications

• Routine metallographic preparation of rolled, forged, and heat-treated steel components for inclusion rating (ASTM E45) and decarburization depth measurement
• Grain structure analysis of aerospace-grade titanium alloys (e.g., Ti-6Al-4V) requiring minimal deformation layer for EBSD indexing
• Quality assurance of sintered powder metallurgy parts, where porosity distribution and binder phase continuity must be preserved
• Failure analysis labs preparing fracture surfaces for fractographic evaluation under reflected light microscopy
• Academic research on corrosion-resistant coatings (e.g., Ni-P electroless deposits) where interfacial delamination and coating thickness uniformity are quantified
• Foundry process development involving aluminum-silicon eutectic microstructure optimization and secondary dendrite arm spacing (SDAS) measurement

FAQ

What is the maximum recommended specimen height for optimal clamping and planarity?
The Chiron 250D accommodates mounted specimens up to 40 mm in height; however, for best flatness and edge retention, specimens between 20–30 mm are advised.
Can the machine be used for diamond grinding wheels or electrolytic polishing accessories?
No—the Chiron 250D is configured exclusively for mechanical abrasion using bonded abrasive papers, silicon carbide films, and woven/non-woven polishing cloths; it does not support electrolytic or ultrasonic modules.
Is calibration certification available for metrological traceability?
Yes—BRIGHT provides optional UKAS-accredited calibration services covering rotational speed accuracy (±0.5% full scale), Z-axis displacement linearity (±0.02 mm), and motor torque consistency, documented per ISO/IEC 17025.
How often does the brushless DC motor require maintenance?
The motor is sealed and requires no scheduled maintenance over its rated service life of ≥20,000 operating hours; only periodic inspection of cooling vents and drive belt tension (if applicable) is recommended.
Does the system support automatic cycle termination based on time or force thresholds?
Yes—each protocol can be programmed with time-based or load-based stop conditions, and the system logs actual runtime and average motor current draw for post-process validation.
