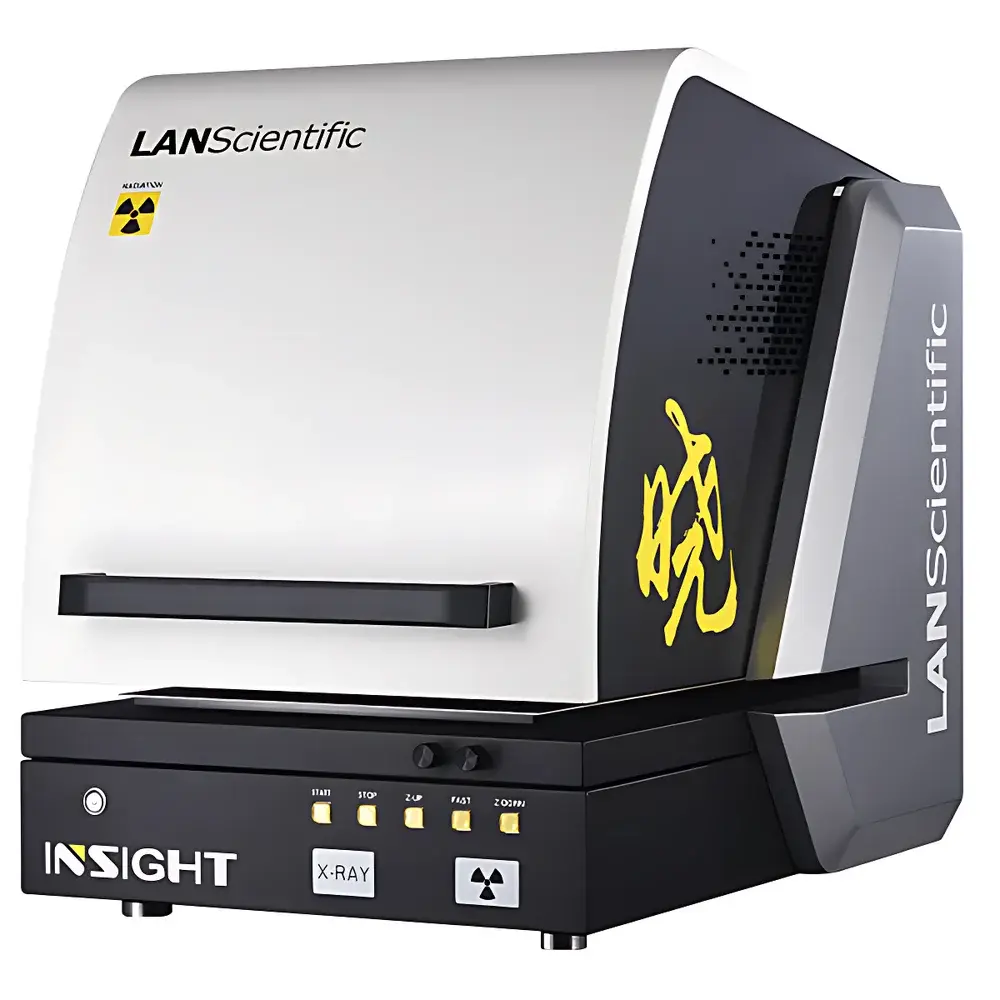

Brookfield LANScientific INSIGHT Desktop XRF Coating Thickness Analyzer for Hardware & Sanitaryware

Overview

The LANScientific INSIGHT Desktop XRF Coating Thickness Analyzer is an upper-beam, energy-dispersive X-ray fluorescence (ED-XRF) instrument engineered for non-destructive, quantitative measurement of metallic and alloy coating thicknesses on conductive and non-conductive substrates. Designed specifically for the hardware, plumbing, and sanitaryware industries, it operates on the fundamental principle of characteristic X-ray emission: when a sample is irradiated with primary X-rays, atoms in the coating and substrate emit secondary (fluorescent) X-rays at energies unique to each element. By measuring the intensity ratio of fluorescent lines from the coating layer(s) and substrate, and applying fundamental parameter (FP) or empirical calibration models, the system calculates single- or multi-layer coating thicknesses with high reproducibility. Its compact benchtop architecture integrates industrial-grade X-ray optics, precision mechanics, and embedded spectral processing—enabling rapid, operator-independent analysis without sample preparation or destruction.

Key Features

• Upper-beam ED-XRF geometry optimized for irregular, curved, and small-format hardware components—including faucets, showerheads, hinges, and ABS-plated fixtures.
• Multi-aperture collimator system with software-controlled automatic switching between 0.1 mm, 0.3 mm, and 1.0 mm spot sizes—enabling flexible spatial resolution for micro-area analysis or bulk averaging.
• Motorized auto-focusing stage with live HD video imaging (10× digital zoom), crosshair overlay, and real-time focus confirmation—ensuring optimal excitation geometry across height-varied samples.
• C-shaped open measurement chamber (W × D × H: 300 × 250 × 150 mm) accommodates large flat parts (e.g., PCBs, nameplates) and complex 3D assemblies without disassembly.
• High-resolution silicon PIN (Si-PIN) semiconductor detector (50 mm² active area, 2 years without recalibration).
• Manual high-precision X-Y translation stage (25 µm step resolution) for repeatable positioning of measurement points on heterogeneous surfaces or patterned coatings.
• One-click analysis workflow: automated spectrum acquisition, peak deconvolution, FP-based thickness calculation, and report generation in ≤45 seconds per measurement point.

Sample Compatibility & Compliance

The INSIGHT Hardware & Sanitaryware Edition supports direct analysis of electroplated, electroless, PVD, and conversion-coated layers on substrates including brass, stainless steel, zinc die-cast, aluminum alloys, and ABS plastic with metallized surfaces. It routinely quantifies common systems such as Cu/Ni/Cr trilayers on faucets, Zn/Ni on fasteners, Sn on terminals, and decorative Au/Pd on bathroom accessories. All measurements comply with ISO 3497:2022 (Metallic coatings — Measurement of coating thickness — X-ray spectrometric methods) and ASTM B568–98(2021) (Standard Test Method for Measurement of Coating Thicknesses by X-Ray Spectrometry). The instrument’s firmware and data handling architecture support audit trails, user access levels, and electronic signatures—facilitating alignment with GLP, ISO/IEC 17025, and internal QA/QC documentation requirements.

Software & Data Management

Powered by LANScientific’s proprietary INSIGHT Analyze Suite v3.2, the system provides intuitive GUI navigation, pre-loaded calibration libraries for >60 industry-standard coating-substrate combinations (e.g., Ni on Cu, Cr on Ni, Sn on Fe), and customizable method templates. Spectral data are stored in vendor-neutral .csv and .dxp formats; thickness reports include full metadata (date/time, operator ID, collimator setting, live time, dead time, peak area uncertainties). Batch reporting supports SPC charting (X̄-R, Cpk), trend analysis across production lots, and export to LIMS via ODBC or CSV. Software validation documentation (IQ/OQ protocols) is available upon request for regulated environments.

Applications

• Quality assurance of decorative chromium plating on brass bathroom fixtures
• In-line verification of nickel undercoat thickness in multi-layer ABS electroplating
• Supplier incoming inspection for zinc-nickel alloy coatings on automotive hardware
• R&D optimization of tin-lead-free solder finishes on terminal blocks
• Failure analysis of blistering or peeling due to insufficient interlayer thickness
• Process capability studies (Cp/Cpk) for electroplating bath control

FAQ

Does the INSIGHT require radioactive sources or vacuum pumping?

No. It uses a low-power, air-cooled X-ray tube (50 kV, 1 mA max) and operates under ambient atmospheric conditions—no vacuum chamber or regulatory licensing required.
Can it measure coatings on non-metallic substrates like ABS or PC?

Yes. The FP algorithm accounts for matrix absorption and enhancement effects in polymer substrates, provided the coating is ≥0.05 µm thick and contains elements with Z ≥ 13 (Al and above).
Is traceability to NIST standards supported?

Yes. Certified reference materials (CRMs) from NIST (e.g., SRM 2136, SRM 2137) and BAM (e.g., BAM RoHS-1) are integrated into calibration workflows, with uncertainty budgets traceable to SI units.
What maintenance is required beyond annual calibration?

Only periodic cleaning of the X-ray window and collimator aperture; no consumables or detector cooling gases are needed—the Si-PIN detector is thermoelectrically cooled and sealed for life.
