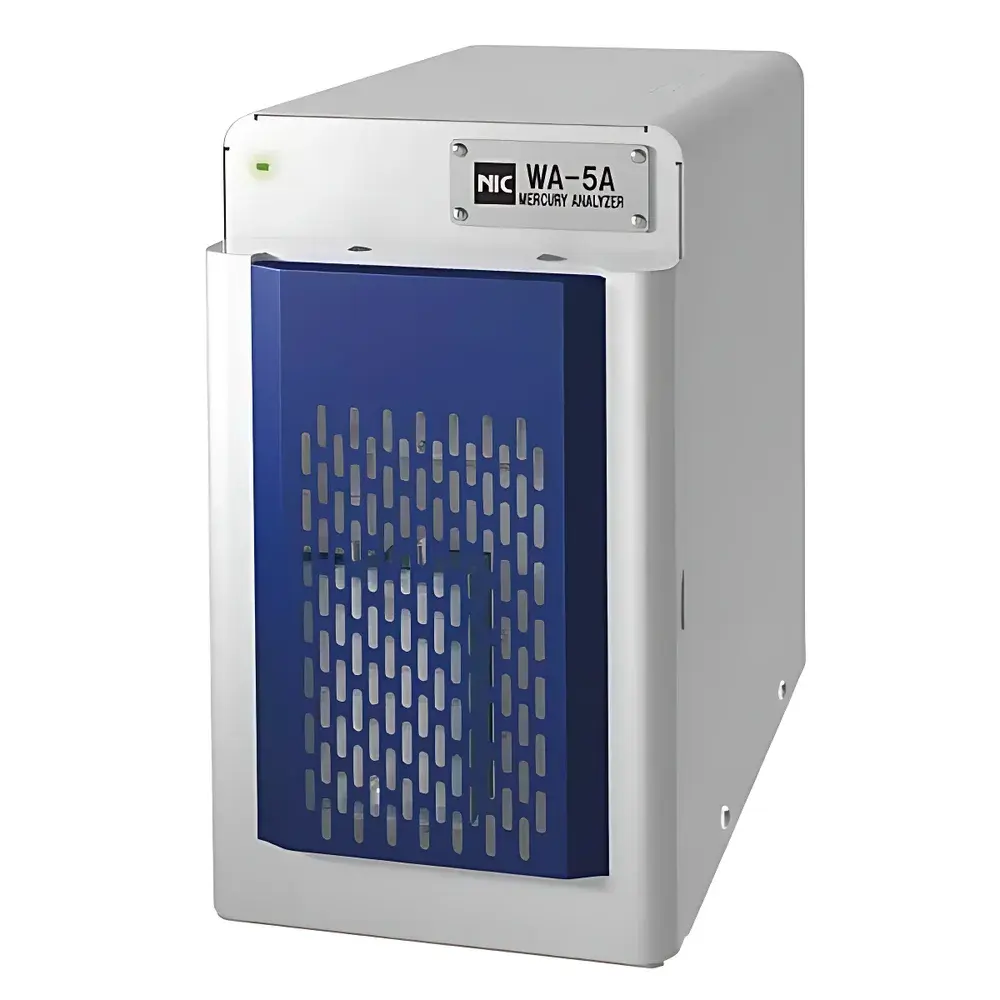

Brookfield WA-5A Gas-Phase Mercury Analyzer

Overview

The Brookfield WA-5A Gas-Phase Mercury Analyzer is a benchtop cold vapor atomic absorption spectrometry (CVAAS) instrument engineered for the precise quantification of total gaseous mercury (TGM) in diverse gas-phase matrices—including ambient air, natural gas, shale gas, liquefied petroleum gas (LPG), and liquefied natural gas (LNG). Unlike conventional mercury analyzers requiring external carrier gas supplies or complex vacuum systems, the WA-5A employs a dual gold amalgamation (dual-Au) enrichment architecture coupled with integrated air purification to generate ultra-clean internal carrier gas on demand. This eliminates dependency on compressed gas cylinders while maintaining metrological integrity across trace-to-ultratrace concentration ranges. The system operates in full compliance with internationally recognized standard methods, including ASTM D5954-98(2014)e1 for mercury in natural gas, ISO 6978-2:2005 for hydrocarbon gases, and ISO 20552 for ambient air monitoring—ensuring data acceptability in regulatory reporting, environmental compliance audits, and quality control laboratories operating under GLP or ISO/IEC 17025 frameworks.

Key Features

• Dual gold amalgamation technology: First-stage pre-concentration in field-deployable NIC gold-coated sand traps; second-stage high-selectivity enrichment in the analyzer’s internal analytical trap—effectively eliminating interferences from H₂S, SO₂, hydrocarbons, and halogenated compounds.
• Carrier-gas-free operation: Integrated HEPA + activated carbon + gold-coated filter assembly purifies ambient laboratory air to <0.1 pg/m³ mercury background, enabling stable baseline performance without external gas supply or associated infrastructure.
• Ultra-trace sensitivity: Method detection limit (MDL) of 0.001 ng (1 pg) absolute mass, validated per EPA Method 1631E protocols for low-level mercury analysis.
• Wide dynamic range: Linear response across 0.001–1000 ng TGM per sample—supporting both environmental air screening and high-concentration process gas monitoring without manual range switching or dilution.
• Compact benchtop footprint: Dimensions of 420 × 320 × 280 mm and net weight of 13 kg facilitate integration into constrained laboratory spaces and enable portable deployment for field sampling verification.
• Reusable NIC gold traps: Proprietary gold-coated silica sand synthesized in-house using >40 years of metallurgical expertise—exhibiting exceptional thermal stability (up to 850 °C), acid resistance, and >200-cycle reusability after thermal desorption regeneration.

Sample Compatibility & Compliance

The WA-5A is validated for direct analysis of unmodified gas streams across multiple industrial and environmental sectors. Its sample introduction interface accommodates standard 1/4″ Swagelok fittings and supports flow-controlled sampling at 0.1–2.0 L/min. Certified reference materials (CRMs) traceable to NIST SRM 2783 (Mercury in Air) and CRM-1631E are routinely employed during method validation. Instrument performance meets the precision requirements of ISO/IEC 17025:2017 Clause 7.7 (Uncertainty of Measurement) and supports full audit trails for FDA 21 CFR Part 11-compliant data management when paired with optional secure software modules. All calibration procedures follow documented SOPs aligned with ASTM D3686 for mercury analyzer qualification and ISO/IEC 17025 Clause 6.4.1 (Equipment Verification).

Software & Data Management

The WA-5A is operated via a dedicated Windows-based control application supporting real-time signal visualization, automated peak integration, multi-point calibration curve generation (linear, quadratic, or weighted least-squares), and QC flagging per ICH Q2(R2) guidelines. Raw absorbance data, temperature ramp profiles, and trap desorption logs are stored in vendor-neutral CSV and XML formats. Audit trail functionality records all user actions—including method edits, calibration updates, and result overrides—with timestamps, operator IDs, and IP addresses. Optional 21 CFR Part 11 add-on enables electronic signatures, role-based access control, and immutable archival compliant with pharmaceutical and environmental regulatory submissions.

Applications

• Environmental monitoring: Continuous TGM measurement in ambient air networks, landfill gas collection systems, and coal-fired power plant stack emissions.
• Energy sector QA/QC: Mercury speciation support in natural gas processing plants, LNG terminals, and biogas upgrading facilities—ensuring compliance with pipeline specification limits (e.g., ≤5 ng/m³ per GPA 2261).
• Industrial hygiene: Workplace exposure assessment in chlor-alkali facilities, dental amalgam handling labs, and fluorescent lamp recycling operations.
• Research laboratories: Method development for mercury redox speciation studies, sorbent breakthrough testing, and kinetic adsorption modeling using programmable thermal desorption sequences.
• Regulatory compliance: Submission-ready data packages for EPA Region-specific air toxics reporting, EU IED Directive Annex II monitoring, and China’s GB 16297-1996 emission standards.

FAQ

Does the WA-5A require external carrier gas?
No. It generates purified carrier gas internally using a multi-stage filtration system that removes mercury, particulates, and reactive gases from ambient air.

Can the gold traps be reused, and how many cycles are supported?
Yes. NIC gold traps are thermally regenerable and certified for ≥200 analytical cycles under standard operating conditions, as verified by inter-laboratory round-robin studies.

Is the instrument compatible with automated gas sampling systems?
Yes. It accepts TTL and RS-232 trigger signals for synchronized start/stop control and integrates with common gas chromatography autosamplers and multipoint manifold systems.

What calibration standards are recommended?
NIST-traceable mercury permeation tubes (e.g., Duo-Perm® series) or certified gas standards (e.g., Scott-Marrin 100 pg/m³–10 ng/m³ in N₂) are recommended for primary calibration; aqueous K₂HgI₄ standards may be used for secondary verification only.

How is data integrity ensured during long-term unattended operation?
The system logs all critical parameters—including lamp current, detector voltage, trap temperatures, and flow rates—at 1-second intervals, with automatic checksum validation and cyclic redundancy error detection embedded in firmware.
