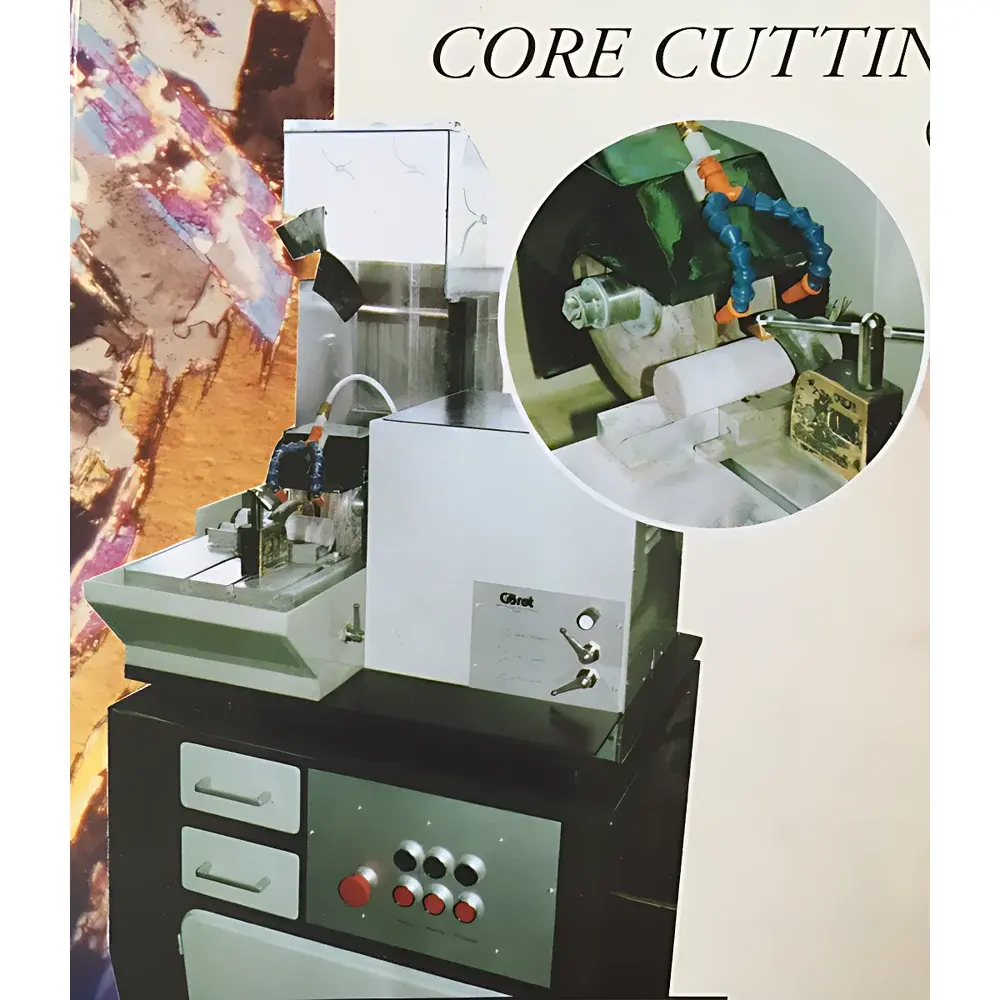

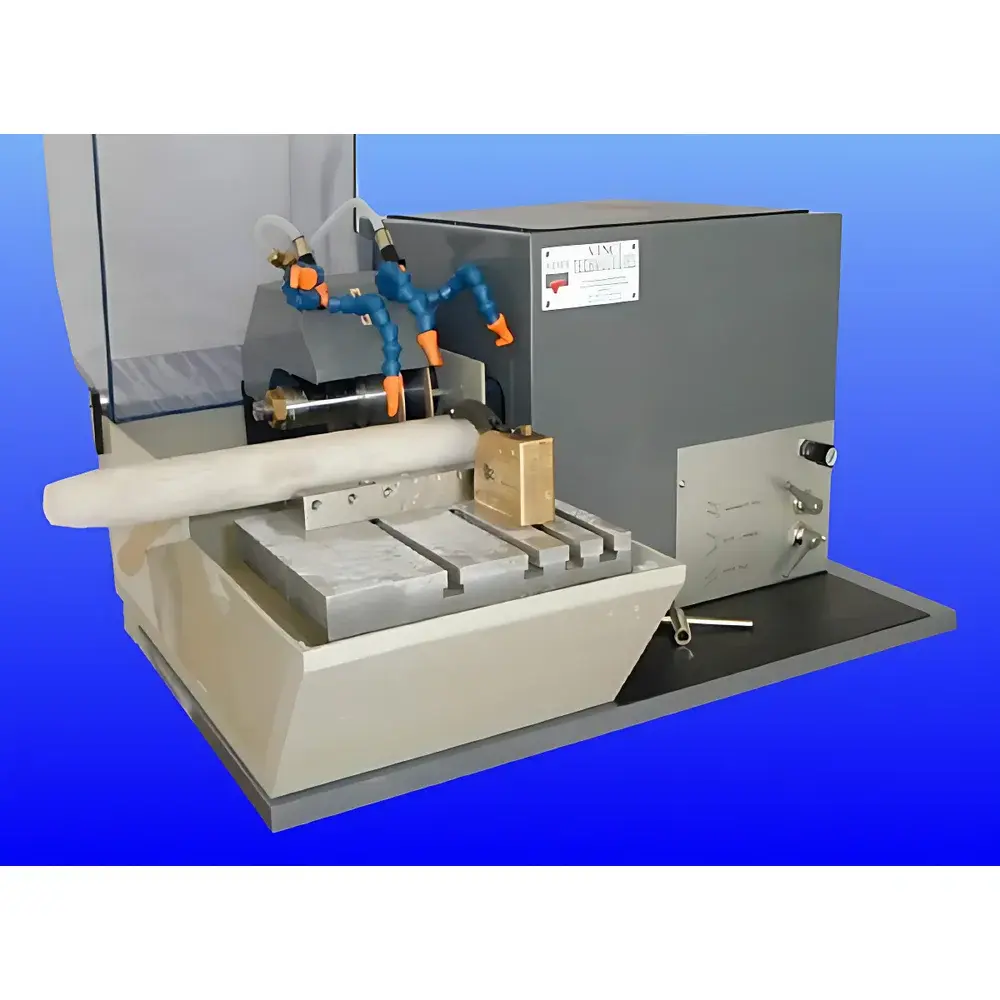

BROT-LAB 10203 Dual-Blade Precision Column Cutting System

Overview

The BROT-LAB 10203 Dual-Blade Precision Column Cutting System is an engineered solution for the reproducible, high-fidelity sectioning of cylindrical specimens—particularly geological core samples, ceramic or polymer rods, metallurgical pins, and pharmaceutical tablet columns—into dimensionally accurate, parallel-faced segments. Designed around a dual-rotating diamond-blade architecture operating in counter-rotational or synchronized mode, the system minimizes lateral deflection and thermal distortion during cutting, ensuring surface flatness ≤ 5 µm and edge perpendicularity within ±0.1° across cuts up to 150 mm in diameter. Unlike single-blade saws that induce asymmetric stress and taper, the dual-blade configuration balances cutting forces axially and radially, enabling stable feed rates from 0.05 to 5 mm/min under closed-loop positional control. The system adheres to mechanical principles of orthogonal abrasive machining, where material removal occurs via controlled micro-fracture at the diamond grit–substrate interface, supported by continuous coolant delivery to suppress debris accumulation and localized heating.

Key Features

• Dual independent diamond-coated blades (standard 100–200 mm diameter, ISO 5211-compliant arbor mounting) with adjustable inter-blade spacing (1.5–120 mm range) for simultaneous double-sided cutting or sequential offset slicing.
• High-torque brushless DC motor drive (0.75 kW per spindle), delivering consistent rotational speed (1,200–4,500 rpm) with <±0.3% speed regulation under variable load conditions.
• Precision-ground linear motion stage with recirculating ball screw (C3 grade, 10 µm positioning repeatability) and integrated optical encoder feedback (1 µm resolution).
• Programmable Z-axis descent control with force-sensing feedback (0–500 N range) to maintain constant blade engagement pressure during heterogeneous sample sections.
• Recirculating deionized water cooling circuit (flow rate: 2.5–8 L/min; temperature stability: ±0.5°C), equipped with particle filter (5 µm nominal), conductivity monitor, and automatic level compensation.
• IP54-rated enclosure with interlocked transparent polycarbonate guard, CE-compliant emergency stop circuitry, and acoustic noise reduction (<72 dB(A) at 1 m).

Sample Compatibility & Compliance

The 10203 accommodates cylindrical specimens from 6 mm to 150 mm in diameter and up to 300 mm in length, including brittle materials (e.g., shale, sintered oxides), ductile alloys (e.g., stainless steel pins), composite laminates, and hygroscopic pharmaceutical compacts. Sample clamping employs pneumatically actuated V-groove jaws with adjustable contact pressure (0.2–2.0 MPa) and elastomeric liners to prevent surface marring. The system complies with EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions), meets ISO 12100:2010 requirements for machinery safety, and supports GLP/GMP documentation workflows through audit-trail-enabled operation logging. Optional calibration kits traceable to NIST standards are available for periodic verification of dimensional output accuracy.

Software & Data Management

Control is managed via the BROT-LAB CutLogic™ v3.2 embedded HMI (7″ capacitive touchscreen, Linux RT kernel), supporting recipe-based operation with up to 99 stored protocols—including blade wear compensation tables, multi-pass depth scheduling, and coolant flow ramp profiles. All operational parameters (feed rate, RPM, cut depth, coolant temp/pressure, motor current draw) are timestamped and exported in CSV or ASTM E1447-compliant .xmi format. Integration with LIMS platforms is achieved via OPC UA 1.04 server interface; raw sensor logs include SHA-256 hashed integrity signatures for FDA 21 CFR Part 11 compliance when paired with validated electronic signature modules.

Applications

• Geoscience laboratories preparing core plugs for permeability and porosity testing per API RP 40 and ISO 15136-1.
• Materials R&D facilities sectioning ceramic matrix composites for SEM cross-section analysis and residual stress mapping.
• Pharmaceutical QA/QC labs generating uniform tablet column arrays for dissolution kinetics validation (USP ).
• Nuclear fuel research centers fabricating UO₂ pellet segments for thermal conductivity benchmarking under ASTM C779.
• Academic mechanics labs producing standardized polymer rod specimens for ASTM D638 tensile bar preparation.

FAQ

What types of diamond blades are compatible with the 10203 system?

Standard ISO-threaded blades with kerf widths of 0.35 mm, 0.5 mm, or 0.8 mm are supported; custom electroplated or brazed diamond segments can be mounted upon request with prior geometric validation.
Can the system perform angled cuts or non-perpendicular sectioning?

No—the 10203 is optimized exclusively for orthogonal, planar sectioning of cylindrical geometries; angular cutting requires supplementary fixture tooling not supplied as standard equipment.
Is remote monitoring or predictive maintenance capability available?

Yes—optional Condition Monitoring Module (CMM-10203) provides real-time vibration spectrum analysis, blade wear trend forecasting, and automated service alerts via MQTT protocol to enterprise CMMS platforms.
Does the system support unattended overnight operation?

Fully—when configured with full coolant reservoir (25 L), redundant pump circuit, and validated cut recipes, the 10203 operates continuously for up to 16 hours with automatic shutdown on fault detection or low-coolant threshold.
