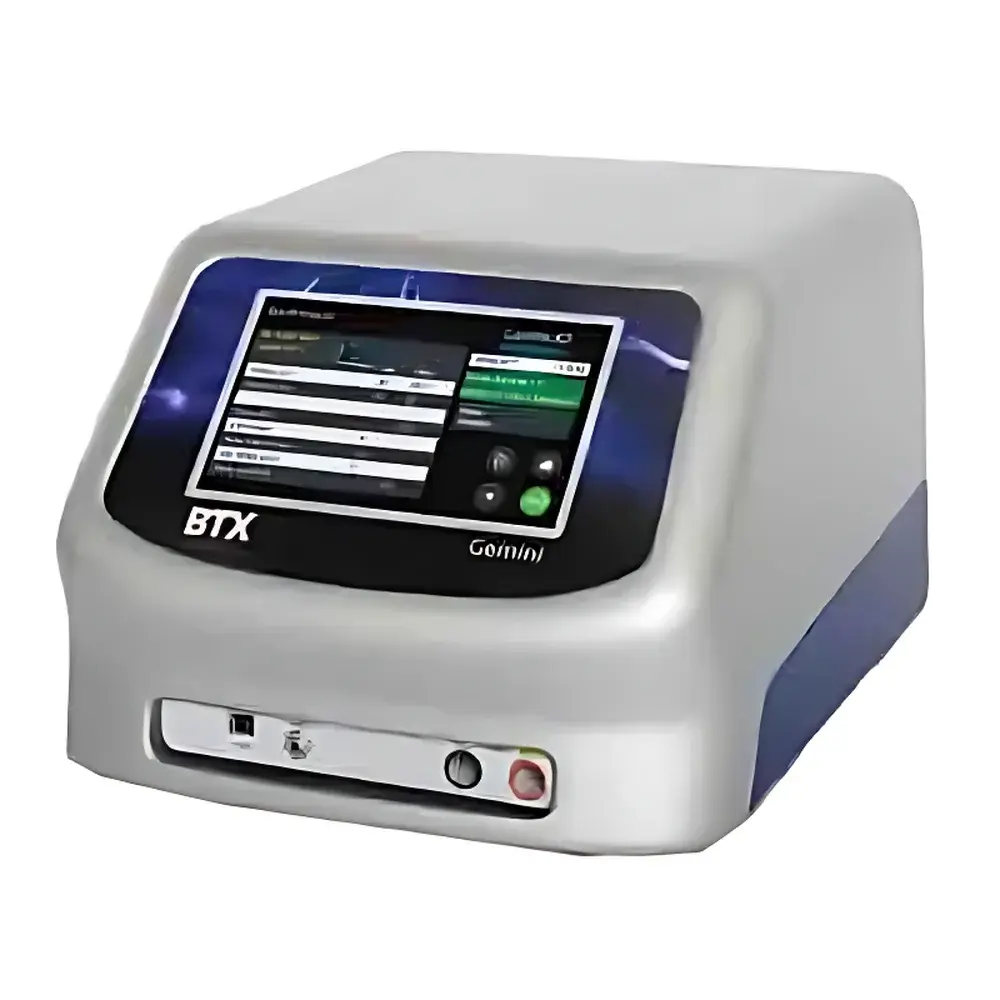

BTX Gemini X2 Dual-Wave Electroporator

Overview

The BTX Gemini X2 Dual-Wave Electroporator is an advanced, programmable electroporation system engineered for precision and versatility across diverse life science applications. Unlike single-wave electroporators, the Gemini X2 integrates two fundamentally distinct pulse waveforms—square-wave and exponential-decay—within a single platform, enabling optimal membrane permeabilization across a broad spectrum of cell types and experimental conditions. Its operation is grounded in controlled transient electroporation: application of precisely timed, amplitude-calibrated electric fields induces reversible nanopores in cellular membranes, facilitating efficient delivery of nucleic acids (e.g., plasmid DNA, siRNA, CRISPR RNP), proteins, or small-molecule therapeutics. Designed for laboratory environments requiring reproducibility, traceability, and regulatory compliance, the Gemini X2 supports both benchtop and high-throughput workflows—including bacterial transformation, primary cell transfection, and in vivo electroporation studies.

Key Features

• Integrated dual-wave architecture: Independent selection and sequential or combined deployment of square-wave (for high-efficiency, low-viability-loss transfection of mammalian cells and primary cultures) and exponential-decay pulses (optimized for microbial transformation and sensitive cell types).
• 7-inch capacitive color touchscreen interface with intuitive navigation, real-time parameter visualization, and on-device protocol editing.
• Built-in library of validated protocols for >30 cell types—including E. coli, yeast, CHO, HEK293, iPSCs, neurons, and plant protoplasts—with editable parameters (voltage, pulse length, number of pulses, interval).
• Onboard storage for up to 1,000 user-defined protocols and full experimental logs (timestamp, settings, operator ID, impedance pre-check result).
• Proprietary pre-pulse impedance measurement: Automatically measures sample resistance immediately before pulse delivery to detect air gaps, electrode misalignment, or buffer conductivity anomalies—preventing arcing and ensuring pulse fidelity.
• Multi-pulse capability: Supports up to 99 consecutive square or exponential pulses per program, with inter-pulse intervals adjustable from 10 ms to 10 s.
• Remote operation via Ethernet or USB: Compatible with Windows-based control software (BTX Navigator™) for automated experiment scheduling, batch processing, and integration into LIMS or ELN systems.

Sample Compatibility & Compliance

The Gemini X2 accommodates standard electroporation cuvettes (0.1–4.0 mm gap), specialized electrodes (e.g., BTX CUY21 EDIT II for tissue, needle-type for in vivo delivery), and 96-well electroporation plates (with optional adapter). It supports suspension and adherent cells, bacteria, yeast, plant protoplasts, primary isolates, stem cells, and ex vivo tissue slices. The system meets IEC 61010-1 safety standards for laboratory electrical equipment and includes hardware-level current limiting and thermal monitoring. Data integrity features—including electronic signatures, audit trails, and timestamped log export—support adherence to GLP, GMP, and FDA 21 CFR Part 11 requirements when used with validated software configurations.

Software & Data Management

BTX Navigator™ software (v4.2+) provides full remote configuration, real-time monitoring, and post-experiment analysis. It enables protocol cloning, version-controlled template libraries, and CSV/PDF export of raw pulse data and logs. All parameter changes are recorded with user ID and timestamp; critical events (e.g., impedance failure, overtemperature alert) trigger automatic log entries. Software validation packages—including IQ/OQ documentation—are available upon request for regulated environments.

Applications

• CRISPR-Cas9 and base editor delivery into hard-to-transfect primary T cells, hematopoietic stem cells, and neurons.
• High-efficiency bacterial transformation (>10⁹ CFU/µg pUC19 in DH5α) using multi-pulse square-wave protocols—validated per ASTM E2577 guidelines for transformation efficiency quantification.
• In vivo electroporation of skin, muscle, and tumor tissue for gene therapy and vaccine development (using BTX ECM830-compatible needle arrays).
• Transfection of suspension (e.g., Jurkat) and adherent (e.g., Huh7, MCF-7) lines without trypsinization, preserving cell surface markers and viability.
• Delivery of large plasmids (>15 kb), mRNA, and Cas12a ribonucleoprotein complexes with minimal aggregation or degradation.
• Process development for biomanufacturing: scalable parameter translation from cuvette to chamber-based systems (e.g., BTX ECM830).

FAQ

Does the Gemini X2 support both square-wave and exponential-decay pulses in a single program?
Yes—it allows sequential or interleaved execution of both waveforms within one protocol, enabling hybrid strategies such as exponential priming followed by square-wave transfection.
Can impedance measurement be disabled?
No—the pre-pulse impedance check is mandatory and non-bypassable to ensure electrical safety and experimental reliability.
Is the system compatible with third-party electroporation cuvettes?
Yes, provided they meet standard dimensions and electrical specifications (e.g., 0.2 cm gap, gold-plated electrodes); however, BTX-qualified cuvettes are recommended for full warranty coverage and optimal waveform fidelity.
What file formats does the Navigator software export?
CSV (pulse metadata and log timestamps), PDF (formatted protocol reports), and XML (for LIMS integration via custom API endpoints).
Does the Gemini X2 require annual calibration?
No routine recalibration is required; however, BTX recommends biannual verification using the included calibration test load and traceable multimeter per ISO/IEC 17025 guidance for electroporation system performance validation.
