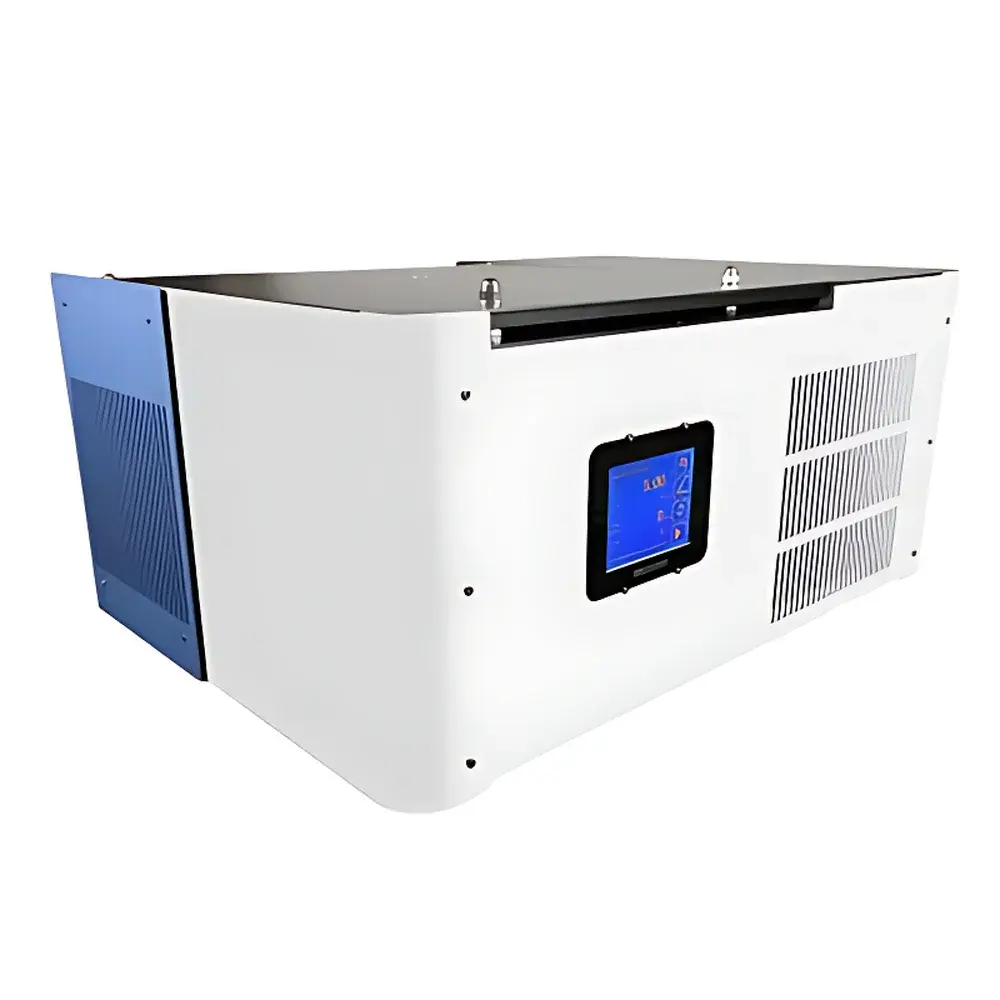

Centurion Scientific K242R Benchtop High-Speed Refrigerated Centrifuge

Overview

The Centurion Scientific K242R is a high-performance benchtop refrigerated centrifuge engineered for precision separation of biological macromolecules—including nucleic acids, proteins, subcellular organelles, and viral particles—in research, clinical diagnostics, and quality control laboratories. Utilizing proven fixed-angle and swing-bucket rotor configurations, the K242R operates on the principle of sedimentation under controlled gravitational force (RCF), enabling reproducible pelleting, clarification, and density-gradient separations. Its refrigerated design maintains sample integrity during extended high-speed runs, with precise temperature control from –9 °C to 40 °C—critical for thermolabile biomolecules and enzymatic assays. Designed and assembled in the UK, the instrument complies with IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meets electromagnetic compatibility standards per EN 61326-1.

Key Features

• Intuitive 7-inch full-color LCD touchscreen interface with multi-language support (English, German, French, Spanish) and real-time graphical display of speed, RCF, time, temperature, and rotor status.
• 10 programmable acceleration and deceleration profiles—enabling gentle pelleting of fragile samples or rapid braking for high-throughput workflows.
• 108 user-definable methods with password-protected access levels—supporting GLP-compliant audit trails when integrated with optional Centurion LabManager software.
• Dual-mode operation: direct RPM selection (1-rpm resolution) or RCF-based setpoint control—ensuring method transferability across instruments with varying rotor radii.
• Robust monocoque chassis constructed from reinforced steel alloy, minimizing operational vibration and enhancing long-term mechanical stability.
• Four-point positive-lock lid mechanism with redundant interlock sensors—physically preventing rotor rotation unless fully engaged and sealed.
• Real-time imbalance detection with automatic deceleration and fault logging; overspeed monitoring via Hall-effect sensor; motor thermal cutoff at >85 °C.
• Electropolished stainless-steel centrifuge chamber resistant to corrosion from common decontaminants (e.g., 70% ethanol, 0.5% sodium hypochlorite).

Sample Compatibility & Compliance

The K242R accommodates a broad spectrum of sample formats through interchangeable rotors certified to ISO 15197:2013 and ISO 20943:2020 for rotor safety validation. Compatible vessels include microcentrifuge tubes (0.2–2.2 mL), PCR strips, conical tubes (15–100 mL), capillary tubes, microplates (96-well), and large-volume bottles (up to 500 mL). All angular rotors achieve maximum RCF of 22,000 × g at 15,000 rpm; horizontal rotors deliver up to 3,600 × g for low-shear applications such as whole blood fractionation. The system supports compliance with FDA 21 CFR Part 11 when paired with validated electronic signature modules and time-stamped audit logs. Routine maintenance and calibration procedures align with ISO/IEC 17025 requirements for accredited testing laboratories.

Software & Data Management

Centurion LabManager v3.2 (optional) provides centralized instrument control, remote monitoring via Ethernet/Wi-Fi, and secure data export in CSV, PDF, and XML formats. The software enforces role-based user permissions, generates electronic batch records, and retains full traceability—including operator ID, timestamped run parameters, environmental logs (temperature drift, vibration events), and automatic error reporting. All data files are SHA-256 hashed and stored with immutable metadata, satisfying ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) principles for regulated environments.

Applications

• Purification of plasmid DNA and RNA from bacterial lysates using high-RCF angular rotors (e.g., BRK5424, BRK5448).
• Isolation of mitochondria and nuclei from mammalian tissue homogenates under chilled conditions (≤4 °C).
• Clarification of cell culture supernatants prior to HPLC or ELISA analysis.
• Preparative ultracentrifugation of exosomes and lipoprotein fractions (when used with compatible swing-out rotors and density gradients).
• Routine QC testing of vaccine suspensions, monoclonal antibody formulations, and nanoparticle dispersions per USP and EP 2.2.31.
• High-throughput processing of clinical specimens in diagnostic labs—validated for CAP-accredited workflows.

FAQ

What is the difference between the K242 and K242R models?
The K242 is a non-refrigerated high-speed benchtop centrifuge; the K242R adds a closed-loop compressor-based cooling system with independent temperature control (–9 °C to 40 °C), enhanced insulation, and a larger footprint (41 × 99 × 63 cm) to accommodate the condenser unit.
Can the K242R be used for continuous operation at maximum speed?
Yes—thermal management allows uninterrupted operation at 15,000 rpm for ≥60 minutes at ambient temperatures ≤25 °C and setpoints ≥4 °C, provided appropriate ventilation (minimum 10 cm clearance on all sides) is maintained.
Are rotor certifications included with purchase?
Each rotor ships with a CE-marked Declaration of Conformity and individual serial-numbered calibration certificate traceable to NPL (UK National Physical Laboratory) standards.
Does the instrument support IQ/OQ documentation packages?
Centurion Scientific provides GMP-compliant Installation Qualification (IQ) and Operational Qualification (OQ) templates, including test protocols, acceptance criteria, and blank execution records—available upon request for regulated users.
How often does the centrifuge require preventive maintenance?
Annual service is recommended, including vacuum grease replacement on lid seals, rotor inspection per ISO 20943, bearing health assessment, and refrigerant pressure verification for K242R units.
