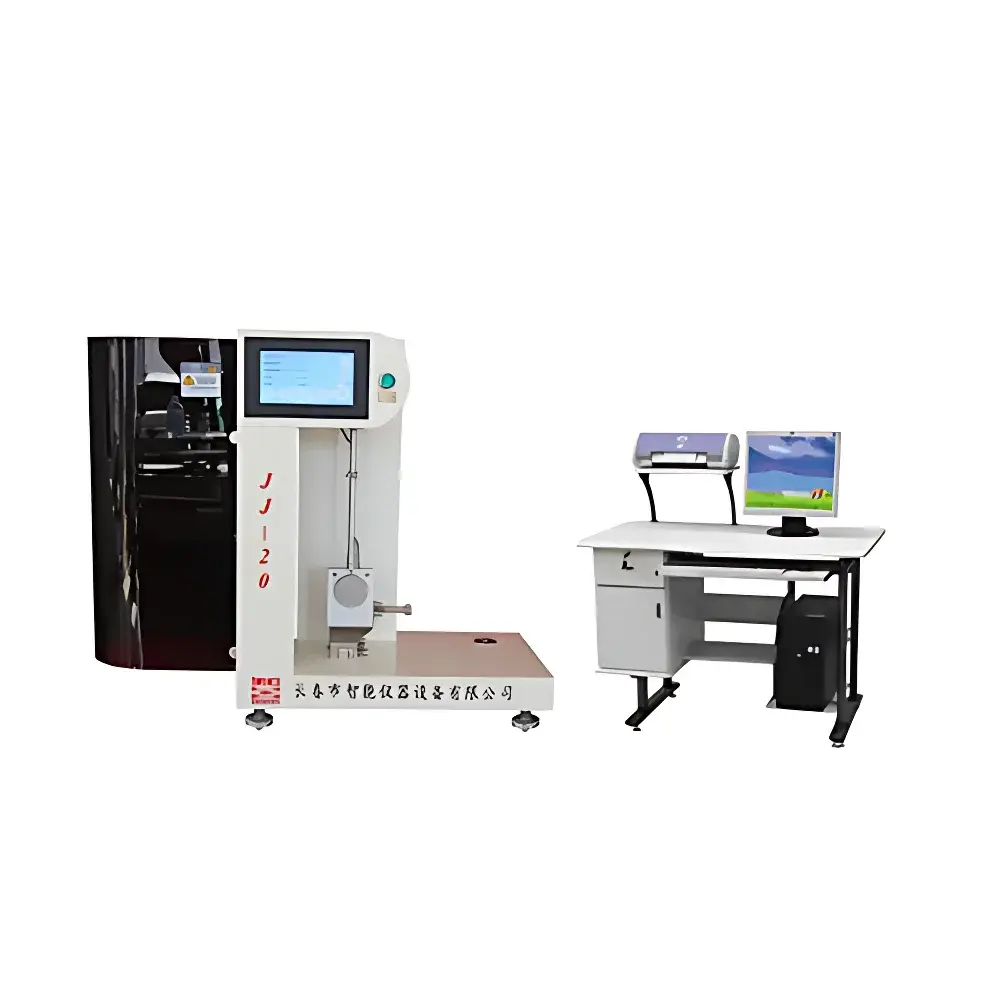

Changchun Intelligent JJ-20B Digital Pendulum Impact Tester

Overview

The Changchun Intelligent JJ-20B Digital Pendulum Impact Tester is a precision-engineered instrument designed for standardized Charpy and Izod impact testing of polymeric, composite, and metallic materials under controlled mechanical loading conditions. Based on the classical pendulum principle—where gravitational potential energy is converted into kinetic energy upon release—the system delivers repeatable, traceable impact events at defined velocities and energies. The tester conforms to fundamental mechanical impact theory governed by conservation of angular momentum and energy transfer across a notched or unnotched specimen cross-section. Its dual-mode configuration (simply supported beam for Charpy, cantilevered for Izod) enables compliance with internationally harmonized test methodologies critical for quality assurance in automotive, aerospace, and advanced polymer manufacturing sectors.

Key Features

• Dual-test capability: Interchangeable pendulum hammers and support fixtures allow seamless transition between Charpy (GB/T 1043.1–2008, ISO 179–2010) and Izod (GB/T 1843–2008, ISO 180–2000) configurations without recalibration.
• High-speed digital acquisition: Integrated load cell and angular displacement sensors sample at 1.2 µs intervals with 16-bit A/D resolution (1/65536), enabling reconstruction of force–time (F–t) and energy–time (J–t) profiles.
• Precision pendulum dynamics: Three calibrated torque constants (2.1436 N·m, 1.0718 N·m, 0.5359 N·m) accommodate varying specimen stiffness and energy absorption ranges while maintaining ASTM E23 and ISO 148/148-1 alignment.
• Adjustable span and notch geometry: Modular base assemblies support standardized span lengths (40–95 mm) and specimen dimensions per GB/T 1043.1 and ISO 179, including thicknesses from 3.2 mm to 13 mm.
• Traceable metrology: Factory-calibrated against national metrological standards (JJG 145–2007, GB 3808–2018); certified by China National Institute of Metrology; suitable for GLP-compliant laboratories requiring audit-ready calibration records.

Sample Compatibility & Compliance

The JJ-20B accommodates rigid thermoplastics (e.g., PP, ABS, PC), fiber-reinforced composites, engineering alloys, and elastomeric blends. Specimen preparation follows strict dimensional tolerances specified in GB/T 1043.1 (Charpy) and GB/T 1843 (Izod), with optional V-notch or U-notch machining per ISO 13584–2016 part libraries. All mechanical components—including pendulum shaft bearings, anvil surfaces, and clamping mechanisms—meet surface roughness (Ra ≤ 0.8 µm) and hardness (HRC 58–62) requirements outlined in ISO 148-1:2016 Annex B. The system supports full traceability to SI units through NIST-traceable reference standards applied during initial verification and periodic recalibration.

Software & Data Management

Bundled Windows-based software provides real-time visualization of F–t and J–t curves, automatic peak force detection, energy integration, and statistical reporting (mean, SD, CV%). Raw binary data files (.bin) are stored with embedded metadata: timestamp, operator ID, specimen ID, test mode, span setting, and environmental conditions (optional via external sensor input). Export formats include CSV, PDF, and XML for integration into LIMS environments. Audit trail functionality logs all user actions—including parameter edits and report generation—in accordance with FDA 21 CFR Part 11 requirements when deployed with electronic signature modules. Data encryption and role-based access control ensure integrity during multi-user operation in regulated QA/QC settings.

Applications

• Automotive component validation: Impact resistance evaluation of bumper systems, interior trim, and under-hood polymer housings per OEM specifications (e.g., GMW14872, Ford CETP).
• Polymer formulation development: Correlation of Izod/Charpy values with molecular weight distribution, plasticizer content, and filler dispersion in R&D labs.
• Quality control in extrusion and injection molding lines: In-process verification of batch-to-batch consistency using standardized specimens cut from production parts.
• Academic research: Dynamic fracture mechanics studies, temperature-dependent toughness mapping (with optional environmental chamber), and comparative analysis of bio-based vs. petrochemical resins.
• Third-party certification: Supporting ISO/IEC 17025 accredited testing for CE marking, UL recognition, and RoHS compliance documentation.

FAQ

Does the JJ-20B comply with ISO 148 and ISO 13802 for metallic impact testing?
Yes—the pendulum geometry, striker radius, anvil radius, and support span tolerances meet ISO 148-1:2016 and ISO 13802:2015 requirements for metallic Charpy testing when configured with appropriate accessories.
Can the system be integrated into an automated test cell?
The device features RS-232 and USB 2.0 interfaces compatible with SCADA platforms and PLC-controlled material handling systems; custom API documentation is available upon request.
What calibration documentation is supplied with delivery?
Each unit ships with a Certificate of Conformance referencing JJG 145–2007 and GB 3808–2018, plus a factory calibration report listing measured energy deviation (<±1%), velocity error (<±0.5%), and repeatability (CV < 1.2%).
Is remote software support available for international users?
Yes—cloud-based remote diagnostics, firmware updates, and live technical assistance are provided via secure TLS-encrypted sessions during standard warranty coverage.
Are spare pendulum hammers and anvils available as consumables?
Original-equipment spare parts—including ISO-certified strikers, V-notch anvils, and hardened support blocks—are stocked globally and shipped with individual calibration certificates.
