ChemTron Cannon-Fenske Viscometer

Overview

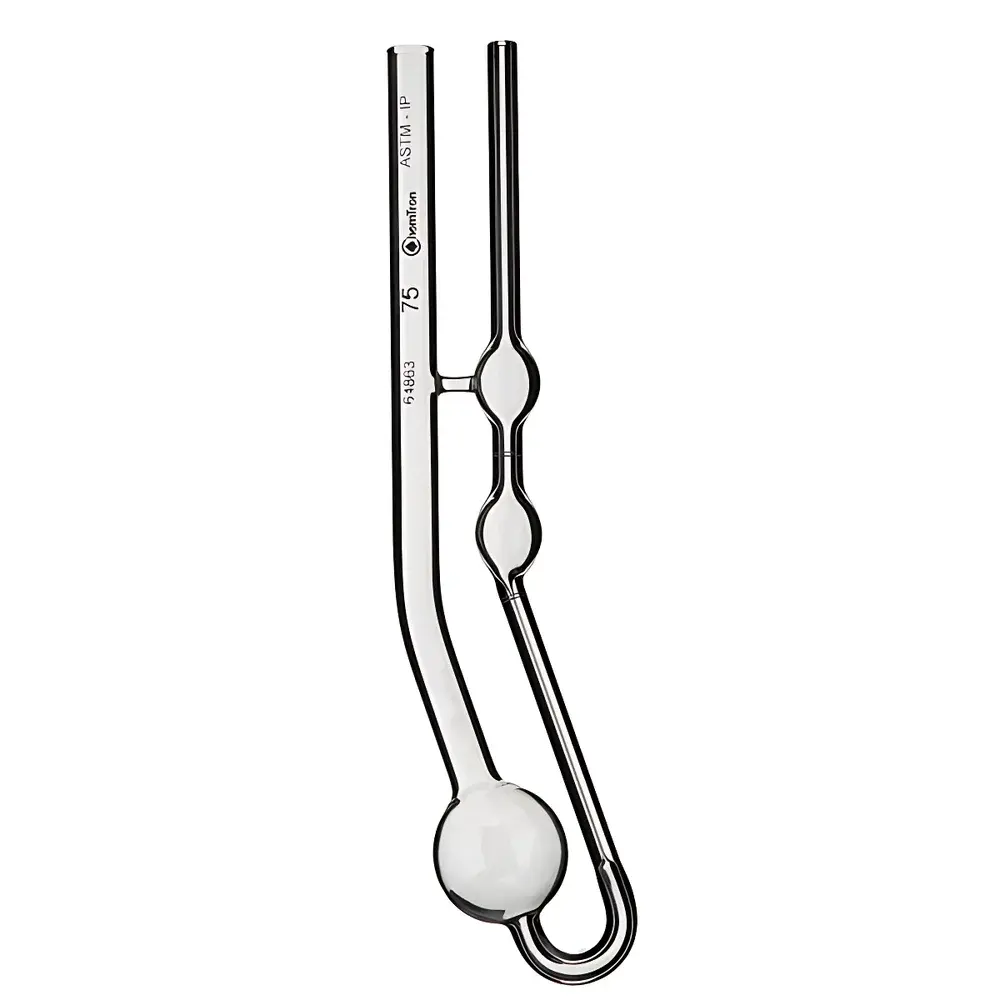

The ChemTron Cannon-Fenske Viscometer is a precision-engineered capillary viscometer designed for kinematic viscosity measurement of Newtonian and near-Newtonian liquids in accordance with internationally recognized standards. Based on the principle of Poiseuille flow, it determines kinematic viscosity (ν, in mm²/s) by measuring the efflux time of a fixed volume of liquid under gravity through a calibrated capillary tube. The instrument operates on the fundamental relationship ν = K × t, where K is the instrument constant (determined via traceable calibration against reference oils) and t is the measured flow time. Its robust borosilicate glass construction ensures thermal stability, chemical resistance, and long-term dimensional integrity—critical for reproducible measurements across routine QC labs, petrochemical refineries, lubricant formulation facilities, and academic rheology laboratories.

Key Features

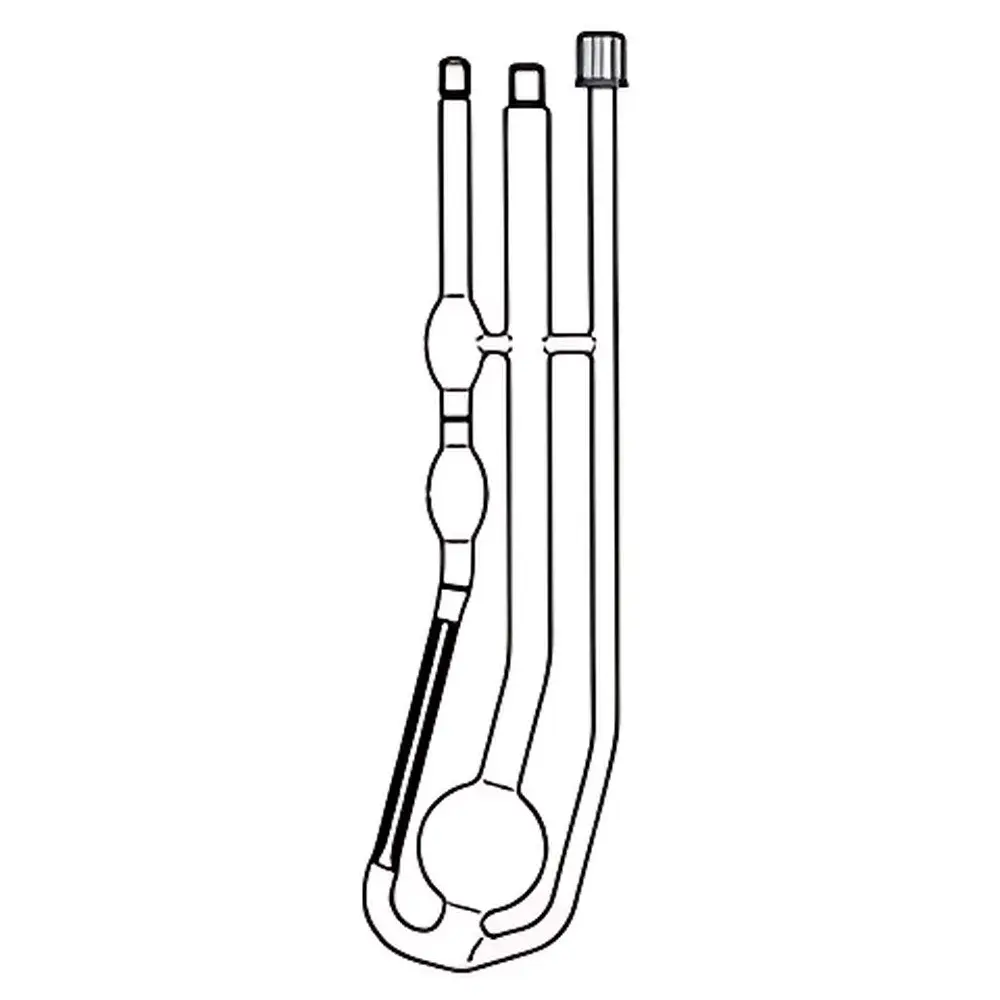

• Multiple standardized configurations: Cannon-Fenske (transparent fluids), modified Ostwald (AVS/SK-CF series), and reverse-flow (for opaque samples), each conforming to ISO/DIS 3105 and ASTM D2515.
• Comprehensive model range: Over 30 calibrated capillary variants (e.g., models 54600, 51300, 51100, 1634, 1641) covering kinematic viscosity from 0.35 mm²/s (low-viscosity solvents) up to 100,000 mm²/s (heavy residual fuels or polymer melts).
• Traceable calibration: All units are factory-calibrated per ISO/IEC 17025 requirements at 40 °C and 100 °C using NIST-traceable reference oils; K-values and annular timing marks are permanently etched for unambiguous identification.
• Optimized geometry: Capillary inner diameters (0.25–0.60 mm) and bulb volumes engineered to ensure laminar flow (Re < 2000) and minimize meniscus error; total length standardized at 245 mm (standard types) or 295 mm (reverse-flow).
• Modular support system: Dedicated viscometer holders (e.g., AVS/SK-CF, 1833/A1, 1840/A1) provide vertical alignment within ±0.02°, thermal shielding, and secure mounting in constant-temperature baths (±0.01 °C stability recommended).

Sample Compatibility & Compliance

The ChemTron Cannon-Fenske Viscometer supports both transparent and opaque liquids without modification. Standard Cannon-Fenske and modified Ostwald types require optical clarity for meniscus detection during manual timing; reverse-flow designs incorporate dual timing marks and top-fill geometry to accommodate turbid or particulate-laden samples (e.g., asphaltene suspensions, crude oil emulsions, pigment dispersions). All models comply with regulatory and quality frameworks including ASTM D445 (standard test method for kinematic viscosity), ISO 3104 (petroleum products), and pharmacopeial methods (USP , EP 2.2.33). Data generated meets GLP and GMP documentation requirements when used with validated timing protocols and temperature-controlled bath systems compliant with ASTM D1550 or ISO 17025-accredited calibration.

Software & Data Management

While inherently analog, the ChemTron Cannon-Fenske Viscometer integrates seamlessly into digital QA/QC workflows. When paired with automated timing systems (e.g., photoelectric sensors or high-speed video capture), efflux times can be logged directly into LIMS or ELN platforms supporting 21 CFR Part 11 compliance. ChemTron provides downloadable calibration certificates with uncertainty budgets (k=2), K-value traceability statements, and SOP templates aligned with ISO/IEC 17025 clause 7.7 (uncertainty of measurement). For manual operation, the engraved annular marks and clearly labeled K-values eliminate transcription errors and support audit-ready recordkeeping.

Applications

• Petroleum industry: Kinematic viscosity grading of base oils, diesel fuels, jet fuels (ASTM D975, D1655), and bituminous binders (ASTM D36, D2170).
• Chemical manufacturing: Quality control of solvents, glycols, silicone fluids, and monomer streams where batch consistency depends on precise ν specification.
• Pharmaceutical excipients: Viscosity verification of propylene glycol, polyethylene glycols, and castor oil derivatives per USP monographs.
• Academic research: Fundamental fluid characterization in transport phenomena studies, temperature-dependent viscosity modeling (Andrade or Vogel–Fulcher–Tammann equations), and validation of rotational viscometer data.
• Lubricant development: Screening of multi-grade engine oils (SAE J300) and gear oils where low-shear-rate kinematic viscosity correlates strongly with pumpability and film formation.

FAQ

What standards does the ChemTron Cannon-Fenske Viscometer comply with?
It conforms to ISO/DIS 3105, ASTM D2515, ASTM D466, NF T 60-100, BS 188, GB/T 11137, SH/T 0654, and ISO/IEC 17025 for calibration traceability.
Can it measure opaque samples?
Yes—reverse-flow models (e.g., 51100 series, 1641 series) are specifically designed for turbid or dark liquids using dual timing marks and top-fill geometry.
Is temperature control required?
Absolutely. Kinematic viscosity is highly temperature-sensitive; measurements must be performed in a thermostatically controlled bath with stability ≤ ±0.01 °C (per ASTM D445 requirements).
How is calibration verified?
Each unit ships with a certificate listing K-values, uncertainty (typically < ±0.3% for standard ranges), and traceability to national metrology institutes (e.g., PTB, NPL, NIST). Recalibration is recommended every 12 months or after mechanical shock.
What fill volume is required?
Standard models require 7–12 mL depending on capillary size; reverse-flow types use a fixed 12 mL fill to ensure consistent hydrostatic head and eliminate meniscus variability.
