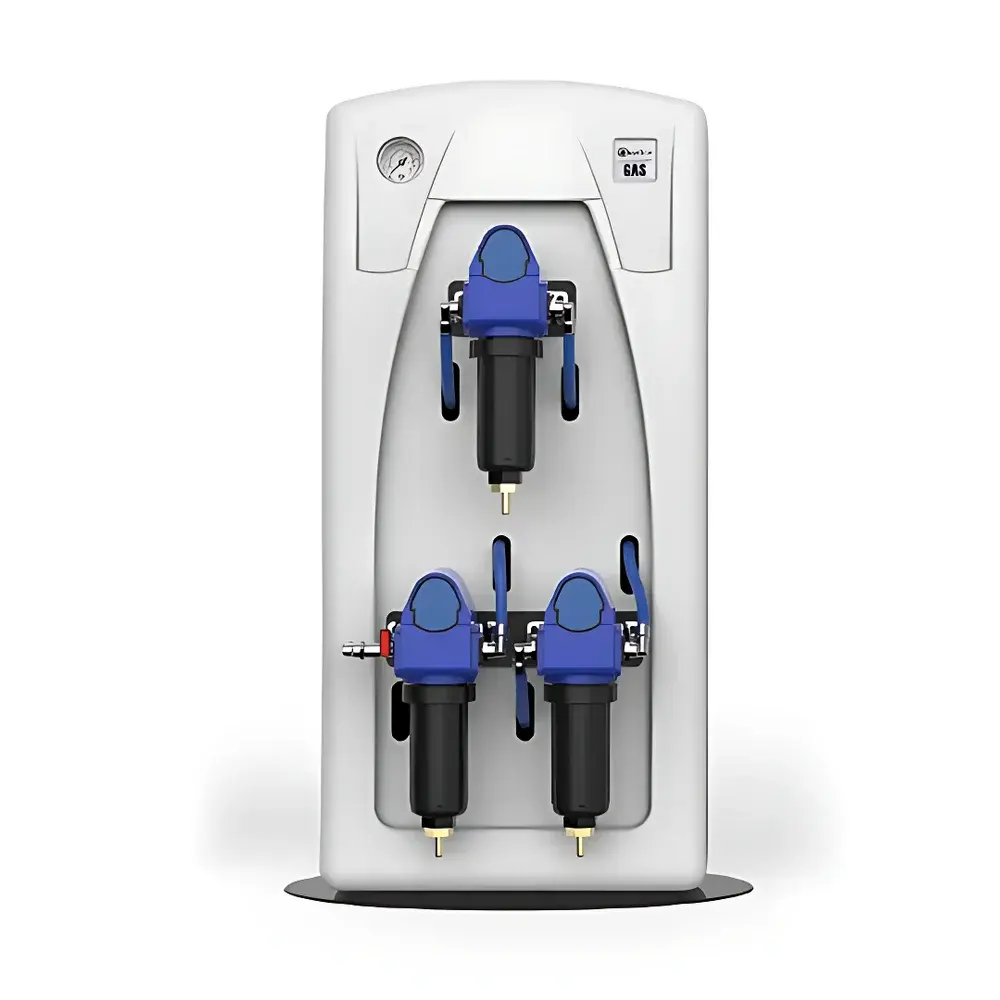

ChemTron MINI WHISPER Nitrogen Generator

Overview

The ChemTron MINI WHISPER Nitrogen Generator is a compact, passive-pressure-driven gas separation system engineered for laboratories requiring reliable, on-demand nitrogen supply without electrical dependency or operational noise. Unlike compressor-integrated or PSA-based generators, the MINI WHISPER utilizes hollow-fiber membrane technology—specifically engineered polymeric membranes with a 40 nm selective separation layer and 0.3 mm internal bore—to achieve continuous nitrogen enrichment from clean, oil-free compressed air. This principle relies on differential permeation rates of oxygen, water vapor, and CO₂ through the membrane wall, allowing faster-diffusing components to be swept away as bleed gas while retaining high-purity nitrogen in the permeate stream. Designed explicitly for low-flow analytical instrumentation—including evaporative light scattering detectors (ELSD), benchtop mass spectrometers (MS), and compact LC/MS systems—the MINI WHISPER delivers stable nitrogen output at flow rates of 5–12 L/min and adjustable outlet pressures from 1 to 7 bar (15–105 psig). Its zero-power architecture eliminates electromagnetic interference, thermal drift, and background noise—critical for sensitive detection environments where electronic artifacts or vibration could compromise signal integrity.

Key Features

• Passive operation: No internal electronics, no power supply required—ideal for EMI-sensitive MS labs and glovebox-integrated setups
• Hollow-fiber membrane core: Chemically resistant, non-degrading polymer fibers with consistent 40 nm pore structure ensure long-term stability and reproducible purity
• Modular footprint: 735 × 348 × 350 mm dimensions support flexible integration—benchtop placement or wall-mounting via standardized brackets
• Adjustable pressure regulation: Integrated precision pressure-reducing valve enables fine-tuned outlet pressure control across full 1–7 bar range
• Ultra-low particulate output: Final nitrogen stream meets ISO 8573-1:2010 Class 1.2.1 for particles (<0.01 µm), water (−40 °C dew point), and oil (Class 1)
• Zero maintenance membrane stack: No consumables, no scheduled replacement intervals—only routine upstream air filtration per facility standards
• CE-marked construction with documented IQ/OQ protocols: Supports GLP/GMP-aligned validation workflows and FDA 21 CFR Part 11-compliant instrument qualification

Sample Compatibility & Compliance

The MINI WHISPER is validated for use with nitrogen-dependent analytical platforms operating within its defined flow and pressure envelope—including Thermo Fisher ISQ, Waters ACQUITY QDa, Agilent 6100 Series, and Shimadzu LCMS-2020 systems. Its nitrogen purity (≥99% at 12 L/min, ≥99.5% at lower flows) satisfies ASTM D6349 and ISO 8573-1 requirements for carrier and collision gas applications in LC/MS and GC/MS. The −40 °C to −50 °C pressure dew point ensures condensation-free delivery under ambient lab conditions (15–35 °C), mitigating ice formation in heated transfer lines and ion sources. All wetted materials comply with USP Class VI biocompatibility standards; gas pathways are electropolished stainless steel or fluoropolymer-lined to prevent adsorption or outgassing. The unit requires an external oil-free air source meeting ISO 8573-1 Class 1.2.1 specifications—typically supplied by a certified laboratory-grade scroll or diaphragm compressor delivering 96–192 L/min at 8.5–10 bar inlet pressure.

Software & Data Management

As a fully mechanical, non-electronic device, the MINI WHISPER does not incorporate embedded firmware, data logging, or digital interfaces. This design choice intentionally avoids software-related validation overhead, cybersecurity concerns, or time-synchronization dependencies—making it inherently compatible with regulated environments governed by FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025. Comprehensive IQ/OQ documentation packages—including installation checklists, operational test protocols, calibration certificates for pressure regulators, and traceable material certifications—are provided upon request. These documents align with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and support audit readiness for pharmaceutical QC, clinical research, and contract testing laboratories.

Applications

• Carrier gas for ELSD, CAD, and low-flow LC-MS systems requiring stable, dry, particle-free nitrogen
• Collision/declustering gas in single-quadrupole and triple-quadrupole mass spectrometers
• Purge gas for FTIR sample compartments and optical path enclosures
• Blanketing gas in inert-atmosphere synthesis reactors and glovebox antechambers
• Mobile or field-deployable nitrogen supply for portable GC-MS and handheld Raman analyzers
• Backup or redundancy source during high-pressure cylinder shortages or supply chain disruptions

FAQ

Does the MINI WHISPER require electricity to operate?

No—it is a fully passive, pressure-driven system with no internal electronics, pumps, or controllers.
What air quality is required for optimal performance?

Oil-free, desiccated compressed air meeting ISO 8573-1:2010 Class 1.2.1 (particles <0.01 µm, dew point ≤−40 °C, oil content ≤0.01 mg/m³).
Can it be used with existing laboratory air compressors?

Yes—if the compressor is oil-free and equipped with coalescing + desiccant filtration stages to meet inlet air specifications.
Is the nitrogen purity flow-rate dependent?

Yes: purity is ≥99.5% at 5 L/min and ≥99% at maximum rated flow (12 L/min @ 7 bar).
What validation support is included?

CE certification, material traceability, and optional IQ/OQ execution kits with pre-approved test scripts and sign-off forms.
How is wall mounting implemented?

Standard M6 threaded inserts are integrated into the rear panel; mounting hardware and load-rating diagrams are supplied with the unit.
