Chemyx Fusion 4000-X Dual-Channel Precision Syringe Pump

Overview

The Chemyx Fusion 4000-X is a high-precision, dual-channel syringe pump engineered for reproducible, pulseless fluid delivery in demanding laboratory and research environments. Utilizing closed-loop stepper motor control with real-time position feedback, the system achieves exceptional volumetric accuracy across an ultra-wide flow range—from nanoliter-per-minute microinfusions to milliliter-per-minute bulk delivery. Its core architecture adheres to fundamental principles of positive displacement pumping: linear actuation of syringe plungers via precision-ground lead screws ensures deterministic volume displacement independent of fluid viscosity or backpressure (within mechanical limits). Designed for integration into automated workflows, the Fusion 4000-X supports both continuous unidirectional infusion and bidirectional oscillatory flow protocols—critical for applications such as gradient elution in microchromatography, synchronized reagent dosing in multi-step synthesis, and dynamic perfusion in organ-on-chip systems.

Key Features

• Dual independent pump channels with fully programmable, asynchronous rate profiles—enabling complex multi-phase injection sequences without external controllers.
• Wide syringe compatibility: accommodates standard Luer-lock syringes from 0.5 µL glass microsyringes to 100 mL stainless-steel reservoirs, with automatic calibration for plunger diameter and stroke length.

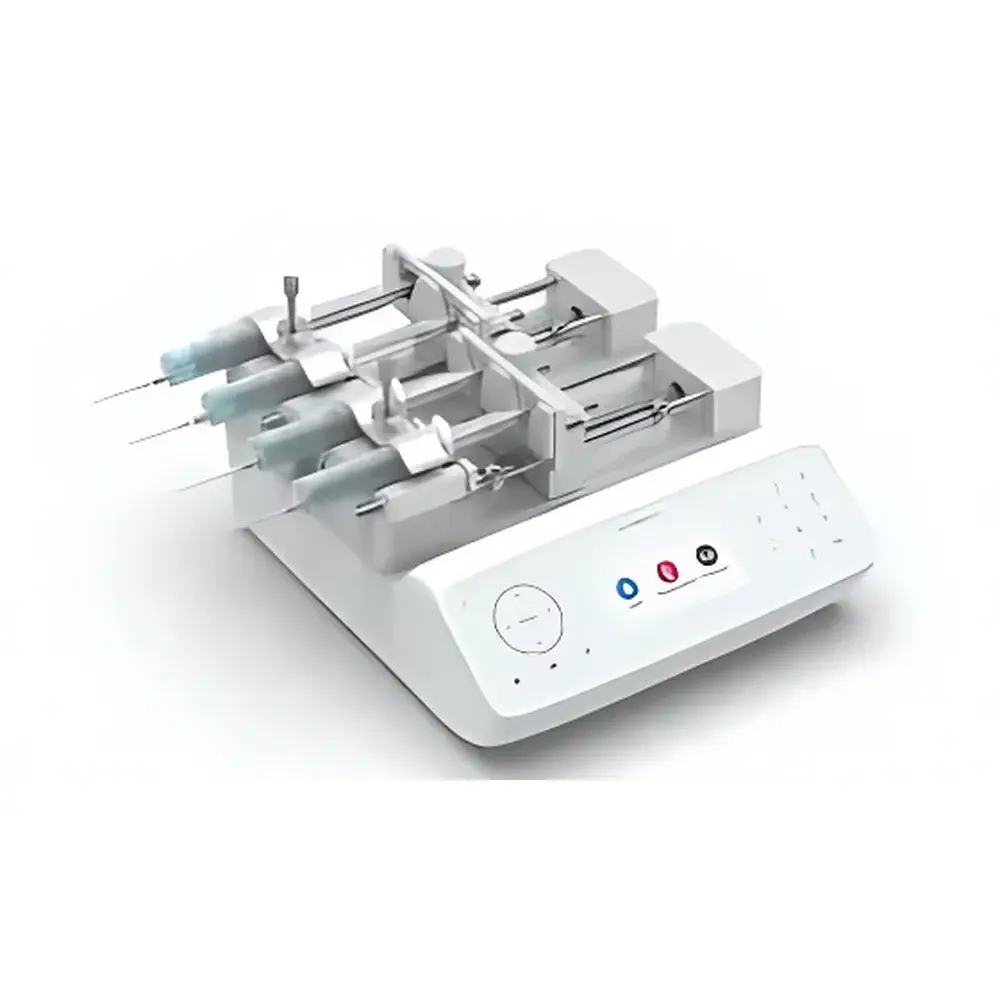

• High-resolution 4.3-inch color TFT touchscreen interface with intuitive graphical workflow editor—supports time-based ramping, stepwise rate changes, and conditional triggers (e.g., pause on sensor input).
• Chemically resistant machined aluminum chassis and sealed front panel—rated IP54 for resistance to common solvents including acetonitrile, DMSO, and aqueous buffers.
• Robust linear actuation system delivering up to 38.5 kg (85 lbf) of push force—maintaining stable flow under backpressures exceeding 100 psi with viscous or particulate-laden fluids.

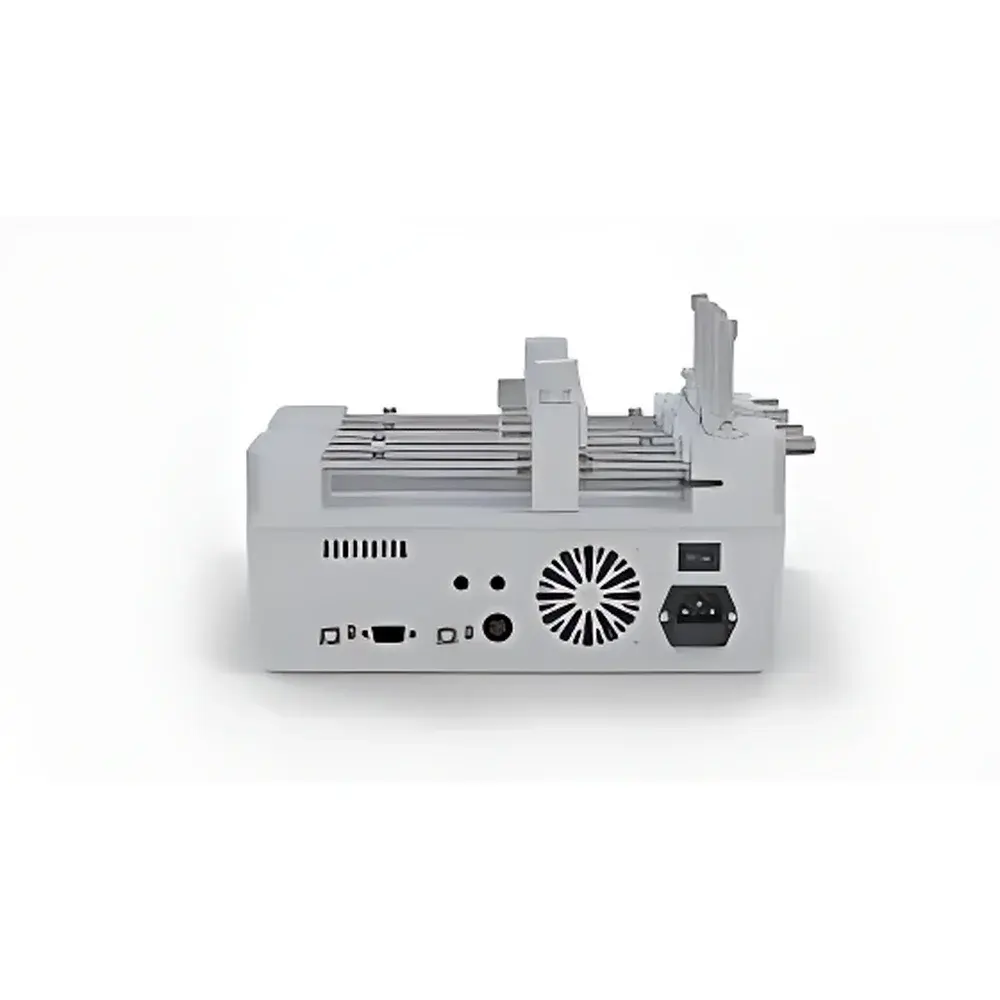

• Built-in RS-232 serial and TTL I/O ports for hardware synchronization with external devices (e.g., spectrometers, pressure sensors, or peristaltic pumps) and programmable logic control.

Sample Compatibility & Compliance

The Fusion 4000-X is compatible with syringes fabricated from borosilicate glass, polypropylene, polyethylene, and medical-grade stainless steel—ensuring inertness for sensitive biological samples, aggressive organic solvents, and high-pH reagents. Its mechanical design conforms to IEC 61000-6-2 (electromagnetic immunity) and IEC 61000-6-3 (emission) standards. While not certified as a medical device, the pump meets functional requirements aligned with ISO 8536-4 for syringe performance testing and supports audit-ready operation under GLP and GMP frameworks when paired with validated software protocols. Flow accuracy and repeatability specifications are verified per ASTM D3418 using NIST-traceable gravimetric calibration methods.

Software & Data Management

The pump operates natively via its embedded firmware but integrates seamlessly with Chemyx’s Fusion Control Suite—a Windows-based application supporting method creation, remote monitoring, and real-time data logging (flow rate, elapsed time, total volume, error status). All user-defined protocols are stored with timestamps and operator ID fields, satisfying basic 21 CFR Part 11 requirements for electronic records when deployed with system-level access controls and audit trail configuration. Export formats include CSV and Excel-compatible .xlsx files; raw data streams can be directed to third-party platforms (e.g., LabVIEW, Python via PySerial, MATLAB) through ASCII command protocol documentation provided in the technical manual.

Applications

• Neuroscience & Preclinical Research: Stereotactic microinjection of viral vectors or neurochemicals into rodent brain tissue with sub-microliter precision and zero pulsatility.
• Microfluidics & Organ-on-Chip: Stable, low-shear perfusion of endothelialized microchannels at physiological shear stresses (0.1–20 dyn/cm²) over multi-day experiments.
• Mass Spectrometry Sample Introduction: Coupled with nano-ESI sources for uninterrupted analyte delivery at 10–500 nL/min, minimizing ion suppression artifacts.
• Electrospinning & Biomaterial Fabrication: Controlled polymer solution feed rates enabling fiber diameter modulation and coaxial core-shell structure formation.
• Reaction Engineering: Precise stoichiometric addition of catalysts or initiators into continuous-flow reactors, supporting kinetic studies and residence time distribution analysis.
• In Vitro Diagnostic Development: Calibrated reagent dispensing for ELISA plate loading and lateral flow assay development under ISO 13485-aligned lab practices.

FAQ

What syringe sizes and materials are supported?
The Fusion 4000-X accepts Luer-lock syringes ranging from 0.5 µL glass microsyringes to 100 mL stainless-steel barrels. Compatible materials include borosilicate glass, polypropylene, polyethylene, and 316 stainless steel.

Can the two channels operate at different flow rates simultaneously?
Yes—each channel is independently programmable with distinct rate profiles, start delays, and duration settings, enabling true asynchronous dual-flow operation.

Is the pump compatible with third-party automation software?
Yes—via documented ASCII command protocol over RS-232 or TTL, supporting integration with LabVIEW, Python, MATLAB, and custom SCADA systems.

How is accuracy validated across the full flow range?
Accuracy is confirmed using gravimetric measurement per ASTM D3418, with calibration traceable to NIST standards; verification includes low-flow (≤1 µL/min) and high-flow (≥50 mL/min) benchmarks.

Does the system support bidirectional (infuse/withdraw) operation?
Yes—each channel supports reversible plunger motion with programmable direction switching, enabling wash cycles, sample recirculation, and oscillatory flow patterns.
