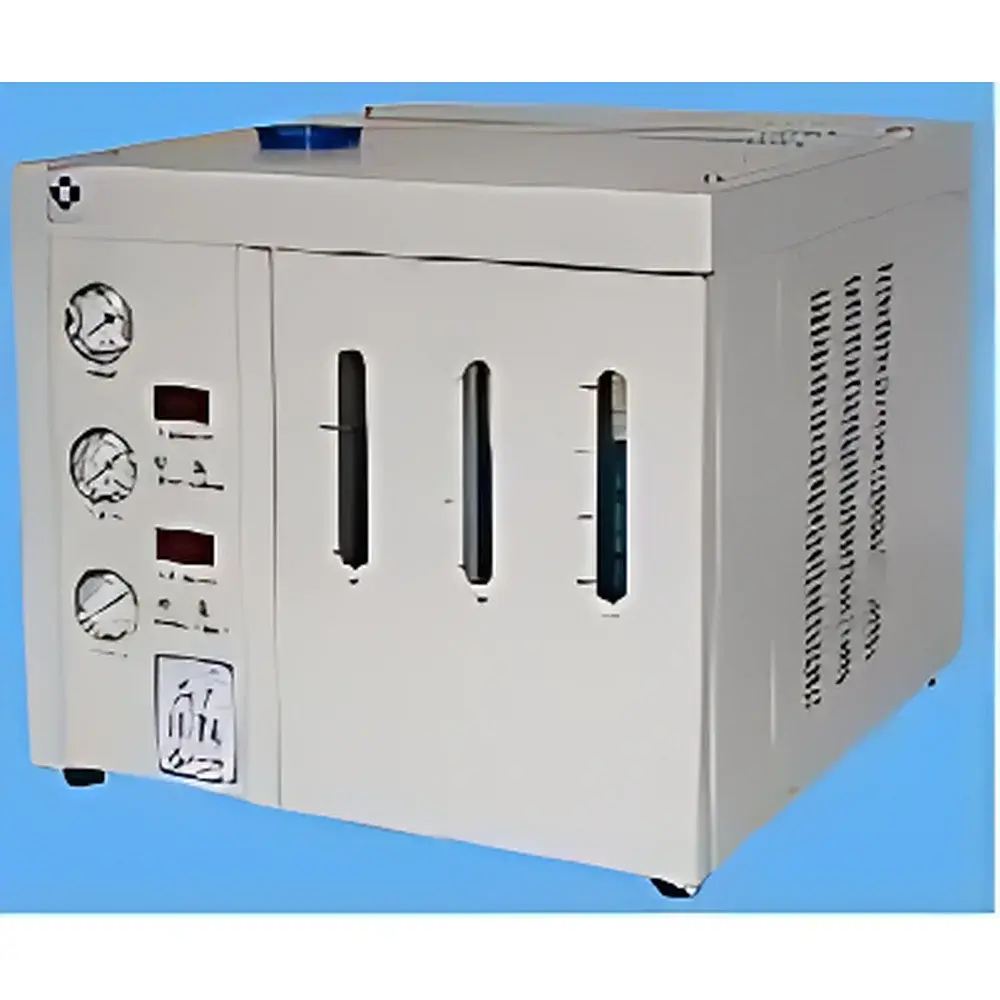

Chu Ding Technology XYT-300 Integrated Nitrogen-Hydrogen-Air Gas Generator

Overview

The Chu Ding Technology XYT-300 Integrated Nitrogen-Hydrogen-Air Gas Generator is an engineered solution for laboratories requiring simultaneous, on-demand supply of high-purity nitrogen, ultra-high-purity hydrogen, and clean, oil-free compressed air—three critical carrier, fuel, and assist gases commonly used in gas chromatography (GC), GC–mass spectrometry (GC–MS), flame ionization detection (FID), thermal conductivity detection (TCD), and other analytical instrumentation. Unlike conventional cylinder-based gas delivery, the XYT-300 employs membrane separation for nitrogen generation, PEM (proton exchange membrane) electrolysis for hydrogen production, and a multi-stage filtration system (including activated carbon, desiccant, and coalescing filters) for air purification—all housed within a single, compact chassis. This architecture eliminates dependency on high-pressure gas cylinders, reduces safety risks associated with hydrogen storage, and ensures consistent gas quality independent of ambient humidity or supply chain volatility. The system operates continuously under ambient laboratory conditions (15–30 °C, ≤80% RH) and meets baseline requirements for ISO 8573-1 Class 2:2:2 (for compressed air) and ASTM D6350–22 (for GC-grade nitrogen and hydrogen).

Key Features

• Triple-output architecture: Independent, pressure-regulated streams for N₂, H₂, and synthetic air—each with dedicated flow control, real-time pressure monitoring, and automatic cut-off upon parameter deviation.
• PEM-based hydrogen generation: Produces 99.999% pure H₂ via deionized water electrolysis; no caustic KOH electrolyte, eliminating alkali carryover risk and enabling fully automated anti-backflow protection.
• Membrane-separation nitrogen generation: Utilizes hollow-fiber polyimide membranes to achieve O₂ < 3 ppm residual oxygen and dew point < −70 °C—compliant with USP and EP 2.5.27 specifications for inert gas blanketing in pharmaceutical analysis.
• Oil-free air compression: Integrated brushless scroll compressor coupled with multi-stage filtration (particulate, hydrocarbon, moisture) delivers 2000 mL/min of ISO Class 2 air suitable for FID make-up gas and pneumatic actuation.
• Stainless-steel internal gas reservoirs: 2 L N₂ and 1 L H₂ buffer tanks minimize pressure fluctuation during transient demand spikes and eliminate reliance on external cylinders.
• Intelligent system management: Microprocessor-controlled operation with LED status indicators, over-pressure/over-temperature interlocks, low-water-level alarms (for H₂ module), and auto-drain functionality for air dryer condensate.

Sample Compatibility & Compliance

The XYT-300 is designed for compatibility with all major GC and detector platforms requiring stable, low-particulate, low-moisture gas inputs—including Agilent, Thermo Fisher, Shimadzu, PerkinElmer, and Waters systems. Its output specifications align with key regulatory expectations: nitrogen purity satisfies ICH Q5C stability testing requirements for inert atmosphere packaging; hydrogen purity meets ASTM D1945–21 Grade 5 criteria for fuel gas in FID; and air output conforms to ISO 8573-1:2010 Class 2 for particulates (< 0.1 µm), water (< −40 °C dew point), and oil (< 0.01 mg/m³). While not pre-certified to FDA 21 CFR Part 11, the unit supports audit-ready operation when integrated with validated LIMS or CDS environments through configurable event logging and manual calibration record retention.

Software & Data Management

The XYT-300 operates as a standalone hardware platform without proprietary software dependencies. All operational parameters—including real-time flow rates, outlet pressures, temperature readings, and alarm history—are displayed on a front-panel LCD interface with tactile navigation buttons. For laboratories implementing electronic lab notebooks (ELN) or instrument qualification protocols, the generator provides analog 4–20 mA outputs for N₂/H₂/air pressure and digital dry-contact signals for fault conditions (e.g., low water, high temperature), enabling integration into SCADA or building management systems. Calibration certificates for flow sensors and pressure transducers are supplied with each unit and traceable to NIM (National Institute of Metrology, China). Data integrity is maintained via non-volatile memory that retains last-known operating states across power cycles.

Applications

• Gas chromatography: Primary carrier gas (N₂), detector fuel gas (H₂), and FID/TCD make-up or reference gas (air).
• Residual solvent analysis per ICH Q2(R2): Consistent N₂ purge gas for headspace sampling and H₂ for flame-based detection.
• Pharmaceutical QC labs: On-site generation of USP-grade nitrogen for vial blanketing and hydrogen for catalytic hydrogenation monitoring.
• Environmental testing labs: Reliable air supply for EPA Method 8260/8270 purge-and-trap systems and GC–ECD configurations.
• Academic research facilities: Modular gas sourcing for teaching labs where cylinder handling restrictions apply and long-term cost-of-ownership optimization is prioritized.

FAQ

Does the XYT-300 require external cooling or ventilation?

No. The unit is convection-cooled and designed for benchtop use in standard laboratory environments (15–30 °C, non-condensing humidity). Rear-panel grilles must remain unobstructed.
Can nitrogen and hydrogen outputs be used simultaneously at maximum flow?

Yes. The system’s 400 W power budget supports concurrent operation at full rated flow (300 mL/min N₂ + 300 mL/min H₂ + 2000 mL/min air) without derating, provided inlet water conductivity remains ≤1 µS/cm.
Is the hydrogen generator compatible with deionized water from a central purification system?

Yes. Feed water resistivity must exceed 1 MΩ·cm (≤1 µS/cm conductivity); direct connection to Type II or higher DI water loops is supported.
What maintenance intervals are recommended?

Air filter cartridges every 6 months; nitrogen membrane inspection every 24 months; annual verification of pressure relief valve function and H₂ electrolyzer performance via purity check using a calibrated thermal conductivity sensor.
Does the unit support remote monitoring via Ethernet or USB?

No. Remote data acquisition requires third-party analog-to-digital conversion of the 4–20 mA outputs or integration via PLC-level dry-contact signaling.
