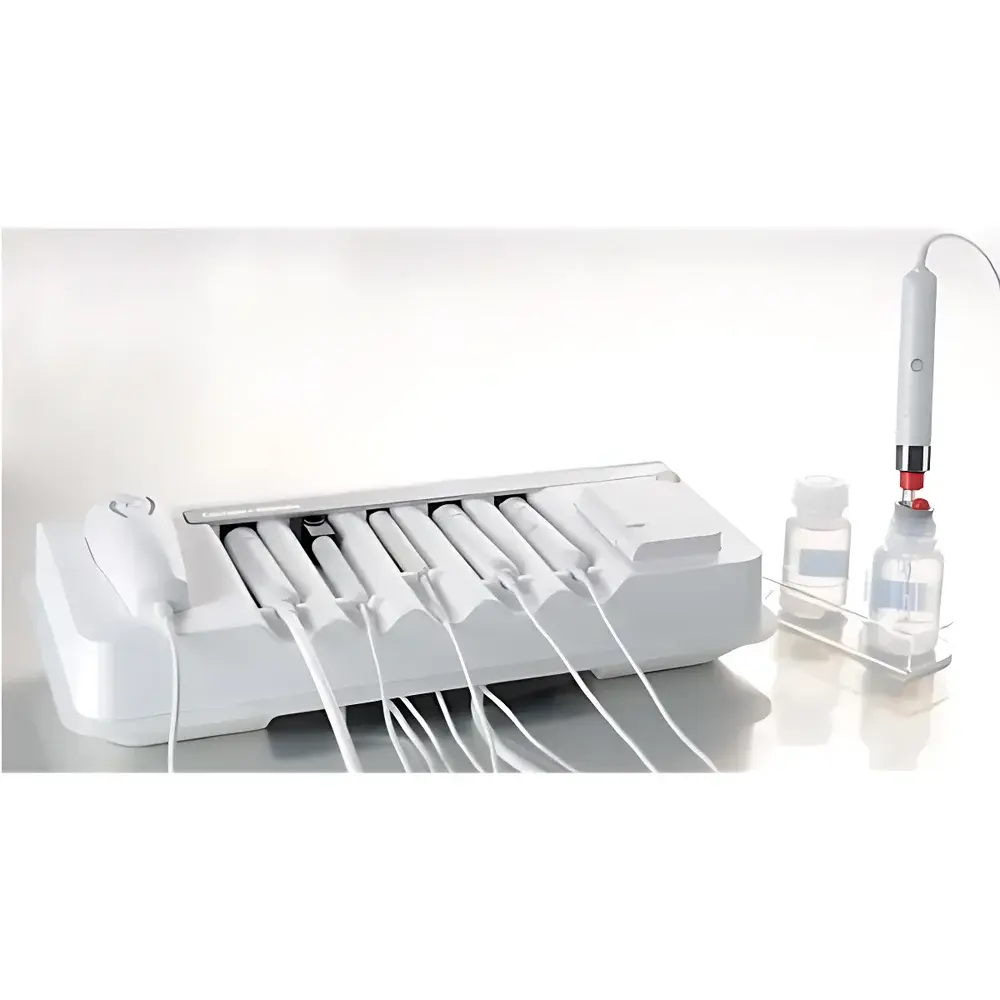

CK MC1000 Multi-Parameter Cutaneous Assessment System

Overview

The CK MC1000 Multi-Parameter Cutaneous Assessment System is a modular, research-grade instrumentation platform engineered for objective, non-invasive quantification of key biophysical skin properties in clinical dermatology, cosmetic science, and pharmaceutical development. Built upon standardized measurement principles—including capacitance-based hydration sensing, sebumeter-grade optical reflectance (635 nm LED), chromametric melanin/hemoglobin index derivation (tristimulus colorimetry), suction-induced cutaneous deformation for elasticity assessment (cutometer principle), potentiometric pH detection via flat-surface electrode, evaporimetric TEWL measurement (open-chamber gradient method), thermistor-based surface temperature monitoring, and high-resolution polarized dermoscopy—the MC1000 delivers traceable, repeatable data aligned with ISO 13041-1, ASTM E2972, and COLIPA/CTFA recommended test protocols. Its architecture supports longitudinal cohort studies, formulation efficacy trials, and regulatory-compliant safety assessments under GLP conditions.

Key Features

• Modular probe design enabling rapid interchange between eight function-specific sensors without recalibration or software reconfiguration
• Integrated USB interface supporting real-time data streaming to Windows-based acquisition software with timestamped metadata embedding
• Polarized dermoscopic imaging module (PC35) delivering 35× magnification with adjustable LED illumination and automatic glare suppression for epidermal layer visualization
• ISO 13041-1 compliant TEWL sensor featuring dual-sensor open-chamber geometry with active ambient humidity compensation
• Calibration-traceable probes certified per DIN EN ISO/IEC 17025 by CK’s accredited metrology laboratory in Cologne
• Rugged aluminum housing with IP54-rated ingress protection for controlled laboratory and clinical environment deployment
• Pre-installed firmware supporting dual-unit output (SI and conventional units) and configurable sampling intervals (0.1–10 s)

Sample Compatibility & Compliance

The MC1000 accommodates diverse anatomical sites—including facial cheek, volar forearm, dorsal hand, and postauricular regions—across subject populations spanning pediatric, adult, and geriatric cohorts. All probes meet IEC 60601-1 electrical safety requirements and are CE-marked under the EU Medical Device Regulation (MDR 2017/745) Class I (non-invasive). Data integrity conforms to FDA 21 CFR Part 11 requirements via audit trail logging, electronic signature support, and role-based user access control. Instrument validation documentation—including IQ/OQ/PQ templates, uncertainty budgets, and traceable calibration certificates—is provided with each system shipment.

Software & Data Management

The bundled CK M-SOFT v5.2 application provides synchronized multi-parameter acquisition, automated parameter calculation (e.g., melanin index = log(1/R_melanin), erythema index = R₆₃₅/R₅₉₀), statistical trend analysis (ANOVA, paired t-test), and export to CSV, Excel, or XML formats compatible with SAS, SPSS, and JMP. Raw signal logs retain full waveform resolution for retrospective reprocessing. The software includes built-in reference databases for age- and ethnicity-matched normative values (n > 12,000 subjects across 18 global centers) and supports custom protocol scripting for automated sequence execution during multicenter trials.

Applications

• Evaluation of moisturizer efficacy through concurrent stratum corneum hydration (capacitance), TEWL reduction, and barrier recovery kinetics
• Objective assessment of depigmenting agent performance via longitudinal melanin index tracking with spatial mapping capability
• Quantitative monitoring of inflammatory response using hemoglobin index, TEWL elevation, and localized temperature gradients
• Validation of anti-aging formulations via time-dependent elasticity modulus (R2, R5, R7 parameters) and viscoelastic hysteresis analysis
• Regulatory submission support for cosmetic ingredient safety dossiers (EU Annex III, SCCS Notes of Guidance)
• Standardized endpoint measurement in Phase II/III dermatological drug trials per ICH E9 guidelines

FAQ

Is the MC1000 suitable for use in Good Clinical Practice (GCP) trials?

Yes—its audit-trail-enabled software, calibration traceability, and documented validation package satisfy GCP Annex 11 requirements for electronic data capture.
Can TEWL measurements be performed simultaneously with other parameters?

No—TEWL requires stable thermal and humidity equilibrium; concurrent operation with active probes (e.g., elasticity suction) is disabled by firmware interlock.
What is the calibration frequency recommendation?

Annual factory recalibration is advised; field verification using CK-certified reference standards (e.g., Hydration Reference Gel Set HRG-1) is recommended quarterly.
Does the system support integration with LIMS or enterprise data platforms?

Yes—via HL7 v2.5 and ASTM E1384-compliant API for bidirectional data exchange with major laboratory information management systems.
Are replacement probes available with individual calibration certificates?

All probes ship with unique serial-numbered certificates of calibration valid for 12 months from date of issue.
