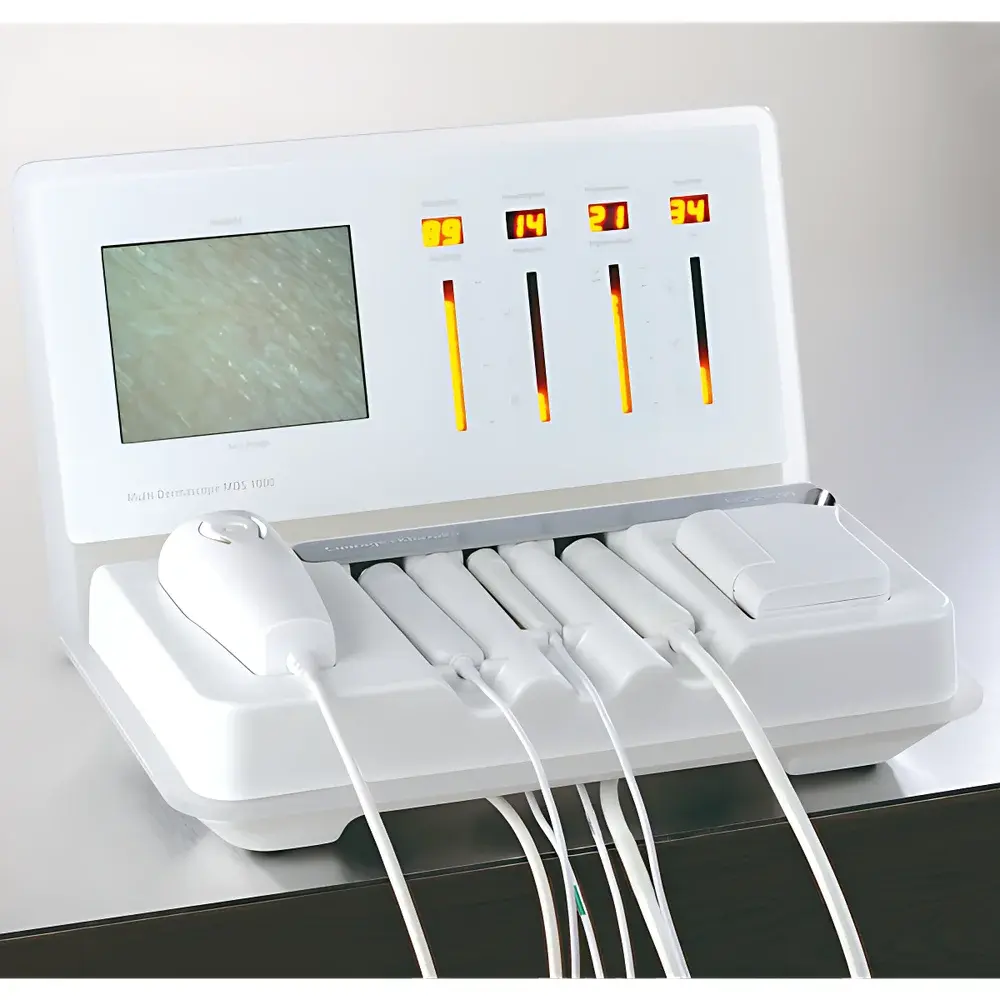

CK MDS1000 Multi-Dermascope Skin Analysis System
| Brand | CK |
|---|---|
| Origin | Germany |
| Manufacturer Status | Authorized Distributor |
| Origin Category | Imported |
| Model | MDS1000 |
| Pricing | Upon Request |
Overview
The CK MDS1000 Multi-Dermascope Skin Analysis System is a modular, non-invasive clinical-grade instrumentation platform engineered for objective, multi-parameter assessment of skin biophysical properties. Designed in accordance with ISO 13485 medical device quality management principles and aligned with Good Clinical Practice (GCP) documentation workflows, the system integrates five standardized measurement modalities—sebum quantification, corneometry-based hydration mapping, cutaneous elasticity profiling via suction-based deformation analysis, melanin index evaluation using narrow-band reflectance photometry (SPF-relevant spectral range), and high-magnification UV epiluminescence microscopy (20×–50×). Each probe employs calibrated optical and capacitive transduction principles, delivering repeatable, operator-independent outputs traceable to CK’s internal reference standards. The system is intended for use in dermatological research laboratories, cosmetic product development facilities, and clinical trial sites requiring quantitative baseline and longitudinal skin status monitoring.
Key Features
- Modular probe architecture enabling sequential or concurrent acquisition of sebum content (µg/cm²), stratum corneum water content (arbitrary capacitance units, normalized to % hydration equivalents), elasticity modulus (kPa, derived from suction-induced tissue displacement kinetics), melanin index (0–100 scale, calibrated against standard melanin phantoms), and UV-illuminated epidermal microstructure visualization.
- Dual-output display interface: numeric readouts with real-time trend graphs + color-coded LED indicators (green/yellow/red) corresponding to clinically defined thresholds per parameter.
- Integrated USB 2.0 interface supporting direct data export to CK DermSoft v4.2 software; no proprietary dongles or cloud dependencies required.
- Ergonomic handheld design with autoclavable probe housings (except UV microscope lens assembly); compliant with IEC 60601-1 electrical safety standards for Class II medical devices.
- Pre-configured test protocols aligned with OECD Test Guideline 439 (skin irritation) and ISO 16128-2 (natural ingredient characterization), facilitating regulatory dossier preparation.
Sample Compatibility & Compliance
The MDS1000 is validated for use on human facial and volar forearm skin under controlled ambient conditions (20–22°C, 40–60% RH). Probe contact surfaces are compatible with standard alcohol-based disinfectants and comply with EN 14476 virucidal efficacy requirements. All measurement algorithms are developed per ISO/IEC 17025-accredited validation protocols conducted at CK’s R&D center in Cologne. The system meets CE marking requirements under Directive 2017/746 (IVDR) as a Class A in vitro diagnostic device for aesthetic and cosmetic performance evaluation. It supports audit-ready data integrity features including user authentication, electronic signatures, and immutable timestamped records—fully compatible with FDA 21 CFR Part 11 compliance frameworks when deployed with CK DermSoft’s optional audit trail module.
Software & Data Management
CK DermSoft v4.2 provides comprehensive post-acquisition analysis, statistical comparison across cohorts (ANOVA, paired t-tests), and automated report generation in PDF/CSV formats. Raw signal files (.ckd) retain full waveform metadata—including probe ID, calibration date, ambient sensor logs, and operator credentials—for forensic traceability. The software supports multi-site synchronization via secure SFTP, enabling centralized database management for multinational clinical studies. All data exports are structured to align with CDISC SDTM standards for dermatology endpoints, ensuring seamless integration into electronic data capture (EDC) systems such as Medidata Rave or Veeva Vault.
Applications
- Quantitative evaluation of moisturizer efficacy across 28-day clinical trials (corneometry + elasticity time-series).
- In vivo SPF substantiation testing through melanin index stabilization kinetics under controlled UVB exposure.
- Objective grading of acne severity via sebum density mapping combined with UV microscopy–confirmed follicular keratosis scoring.
- Stability assessment of topical retinoid formulations by tracking transepidermal water loss (TEWL) rebound dynamics and barrier recovery rates.
- Regulatory submission support for cosmetic claims substantiation under EU Cosmetics Regulation (EC) No 1223/2009 Annex I requirements.
FAQ
Is the MDS1000 classified as a medical device in the EU?
Yes—the system carries CE marking under IVDR 2017/746 as a Class A in vitro diagnostic device for non-invasive skin parameter assessment.
Can raw measurement data be exported for third-party statistical analysis?
Yes—DermSoft supports .csv and .xlsx export with full metadata, including timestamps, probe calibration IDs, and environmental sensor readings.
What is the recommended recalibration interval for the probes?
CK recommends annual recalibration at an authorized service center; each probe includes a QR-linked calibration certificate with expiration date.
Does the UV microscope require external power or battery operation?
The UV illumination module is powered via the main unit’s DC input; no replaceable batteries are used.
Is training provided for clinical staff prior to system deployment?
CK offers on-site or virtual administrator training (8 hours), covering protocol setup, GLP-compliant data handling, and troubleshooting—certificates issued upon completion.
