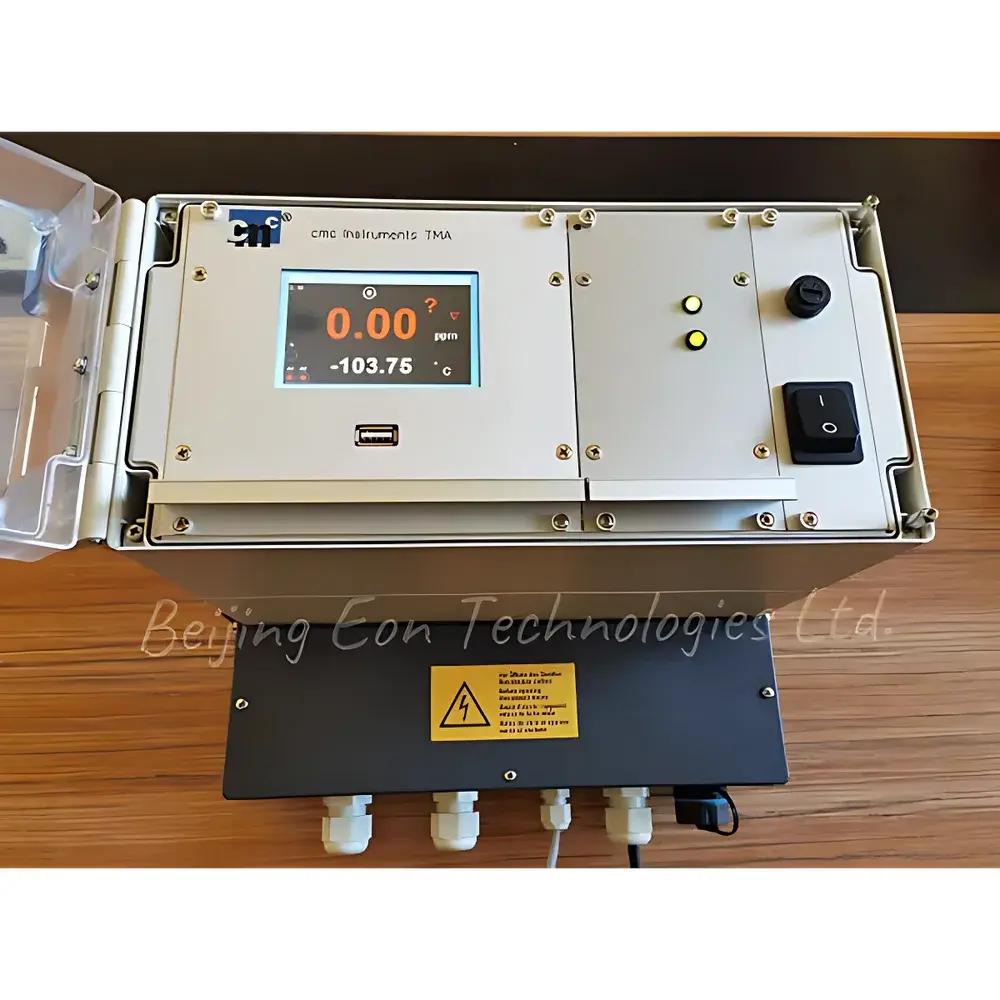

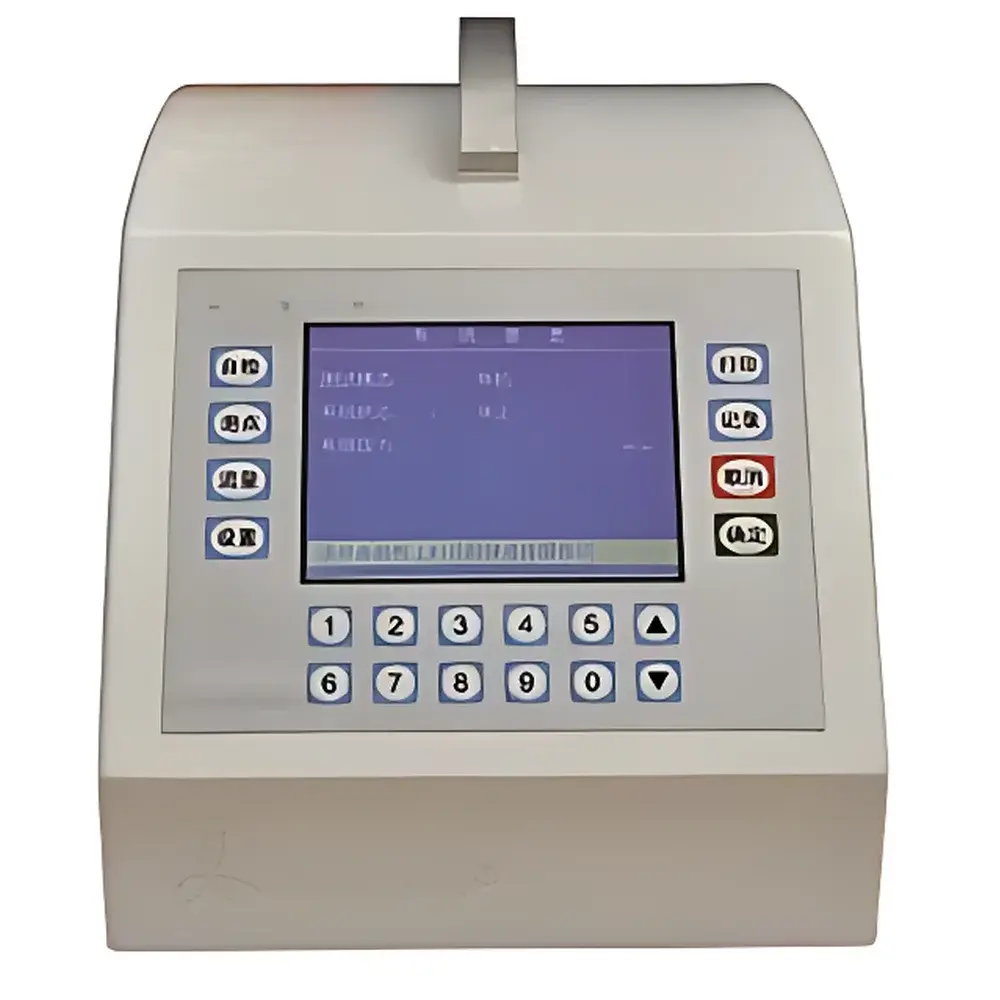

CMC iTMA-204-W P₂O₅ Electrolytic Dew Point Analyzer for Chlorine and Corrosive Gases

Overview

The CMC iTMA-204-W is a high-stability, online electrolytic dew point analyzer engineered specifically for trace moisture measurement in aggressive and reactive industrial process gases—including chlorine (Cl₂), hydrogen chloride (HCl), sulfur dioxide (SO₂), hydrogen sulfide (H₂S), and other highly corrosive or oxidizing media. It employs the well-established phosphorus pentoxide (P₂O₅) electrolytic principle: water vapor in the sample gas is quantitatively decomposed via electrolysis across a thin-film H₃PO₄-coated sensor cell, generating hydrogen and oxygen. The resulting electrolytic current is directly proportional to the absolute water concentration—enabling true primary measurement without reliance on calibration curves or reference standards. Unlike optical or capacitive methods, this technique delivers absolute, drift-free quantification over extended operational periods, making it suitable for critical applications in semiconductor feedstock purification, specialty gas production, chlor-alkali plant monitoring, and high-purity chemical synthesis where regulatory compliance and long-term measurement integrity are mandatory.

Key Features

• True absolute measurement principle based on P₂O₅ electrolysis—no zero/span recalibration required under stable operating conditions
• Chemically inert glass sensor cell with dual platinum or rhodium electrodes and ultra-thin phosphoric acid electrolyte film
• Automatic electrode regeneration capability to restore sensor sensitivity after exposure to condensable or contaminating species
• Microprocessor-controlled auto-ranging with four selectable full-scale ranges (0–10 ppm to 0–2500 ppm H₂O)
• Real-time self-diagnostics at power-on and during continuous operation per NAMUR NE 43 guidelines
• Rugged industrial enclosure rated IP65, designed for panel or wall mounting in demanding chemical plant environments
• Fast dynamic response: T₉₀ < 1 second; T₅₀ < 8 seconds—enabling closed-loop process control integration

Sample Compatibility & Compliance

The iTMA-204-W is validated for continuous analysis of non-reactive and moderately reactive gases including Ar, Kr, Xe, He, N₂, O₂, H₂, CO₂, CH₄, natural gas, SF₆, freons, acetylene (C₂H₂), and ozone (O₃). Its P₂O₅ sensor architecture is uniquely suited for high-purity acidic and halogenated streams—particularly Cl₂, HCl, SO₂, and H₂S—where conventional hygrometers suffer from catalytic poisoning, acid leaching, or membrane degradation. The instrument complies with NAMUR NE 43 (failure mode signaling), meets EMC directive 2014/30/EU, and conforms to low-voltage directive 2014/35/EU. While not intrinsically safe certified, it may be deployed in Zone 2 classified areas when installed with appropriate barrier systems. Data integrity supports GLP/GMP-aligned workflows through audit-trail-capable configuration logging (when paired with optional CMC DataHub software).

Software & Data Management

The integrated touchscreen interface provides real-time moisture concentration display, trend history (72-hour buffer), alarm status, sensor health indicators, and system diagnostics—all accessible without external PC. Configuration parameters—including range selection, analog output scaling, relay thresholds, and language preference (English, German, Chinese, Spanish)—are stored in non-volatile memory with write-protection. Optional RS-485 Modbus RTU or Ethernet TCP/IP communication modules enable integration into DCS/SCADA platforms. When connected to CMC’s DataHub v3.2 software suite, the analyzer supports time-stamped data export (CSV), configurable alarm notifications (email/SMS), electronic signature-enabled parameter change logs, and FDA 21 CFR Part 11-compliant user access control—meeting requirements for regulated pharmaceutical and fine chemical manufacturing environments.

Applications

• Continuous moisture monitoring in chlorine liquefaction and cylinder filling lines (ISO 8573-3 Class 1–2 compliance verification)
• In-line verification of dryness in HCl synthesis off-gas streams prior to absorption tower entry
• Quality assurance of SO₂ used in sulfuric acid production and flue gas desulfurization reagent supply
• Trace H₂O control in high-purity carrier gases for plasma etching and CVD processes in semiconductor fabs
• Leak detection support in vacuum systems handling reactive gases via residual moisture rise trending
• Validation of dryer performance in bulk gas distribution networks serving pharmaceutical cleanrooms

FAQ

Is the P₂O₅ sensor compatible with chlorine gas without degradation?
Yes—the sensor cell uses corrosion-resistant platinum/rhodium electrodes and a chemically stabilized H₃PO₄ electrolyte film optimized for Cl₂ service life exceeding 24 months under typical plant conditions (20 NL/h, 0.2 barg, <10 ppm H₂O).

Does the analyzer require periodic recalibration?
No. As an absolute measurement method, it does not rely on calibration standards. However, annual verification using NIST-traceable moisture generators is recommended for ISO/IEC 17025 accreditation.

Can the iTMA-204-W operate at sub-ambient sample temperatures?
No. The specified sample temperature range is 5 °C to 50 °C. For colder streams, a heated sample line with thermostatic control must be installed upstream.

What maintenance is required beyond electrode regeneration?
Routine tasks include quarterly inspection of inlet particulate filter, annual replacement of desiccant in the sample conditioning unit (if equipped), and biannual verification of zero-current baseline stability.

Is explosion-proof certification available?
Not as standard. A custom ATEX/IECEx-certified variant (iTMA-204-W-EX) is available upon request with modified housing and isolated power supply—lead time +8 weeks.
