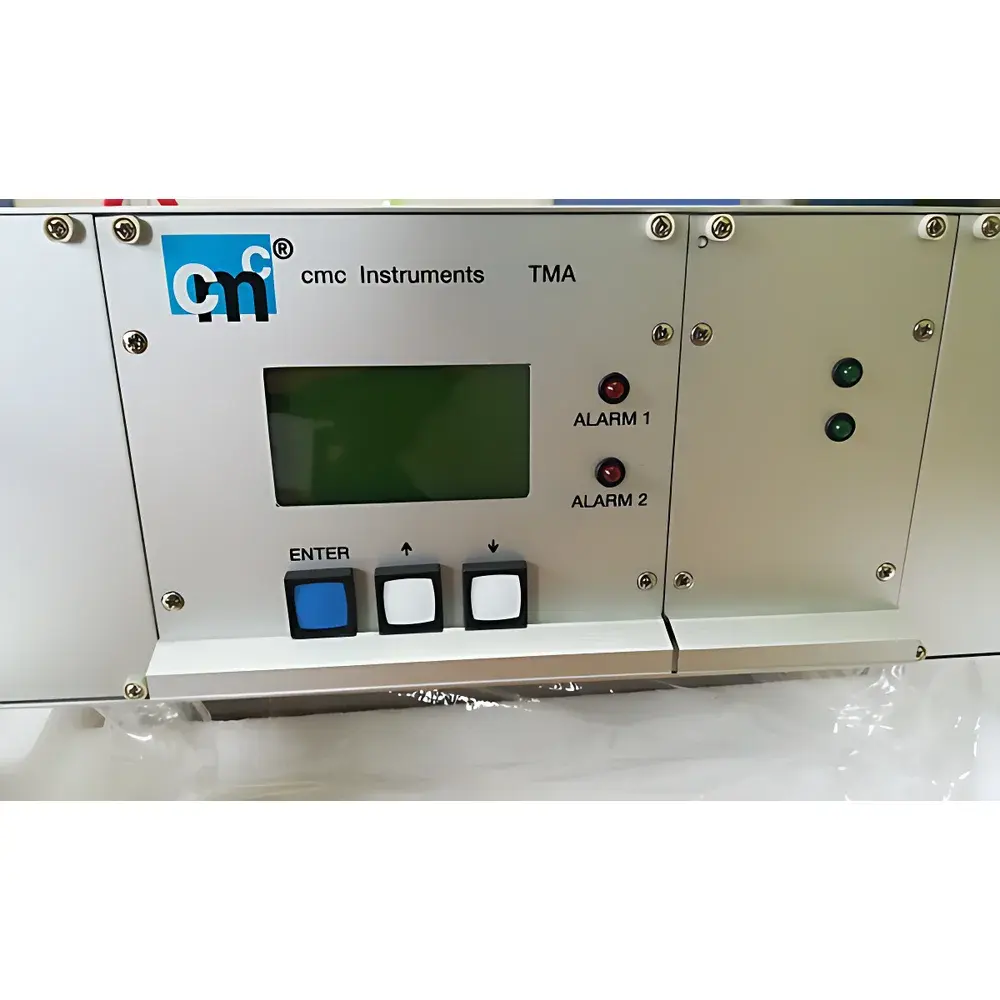

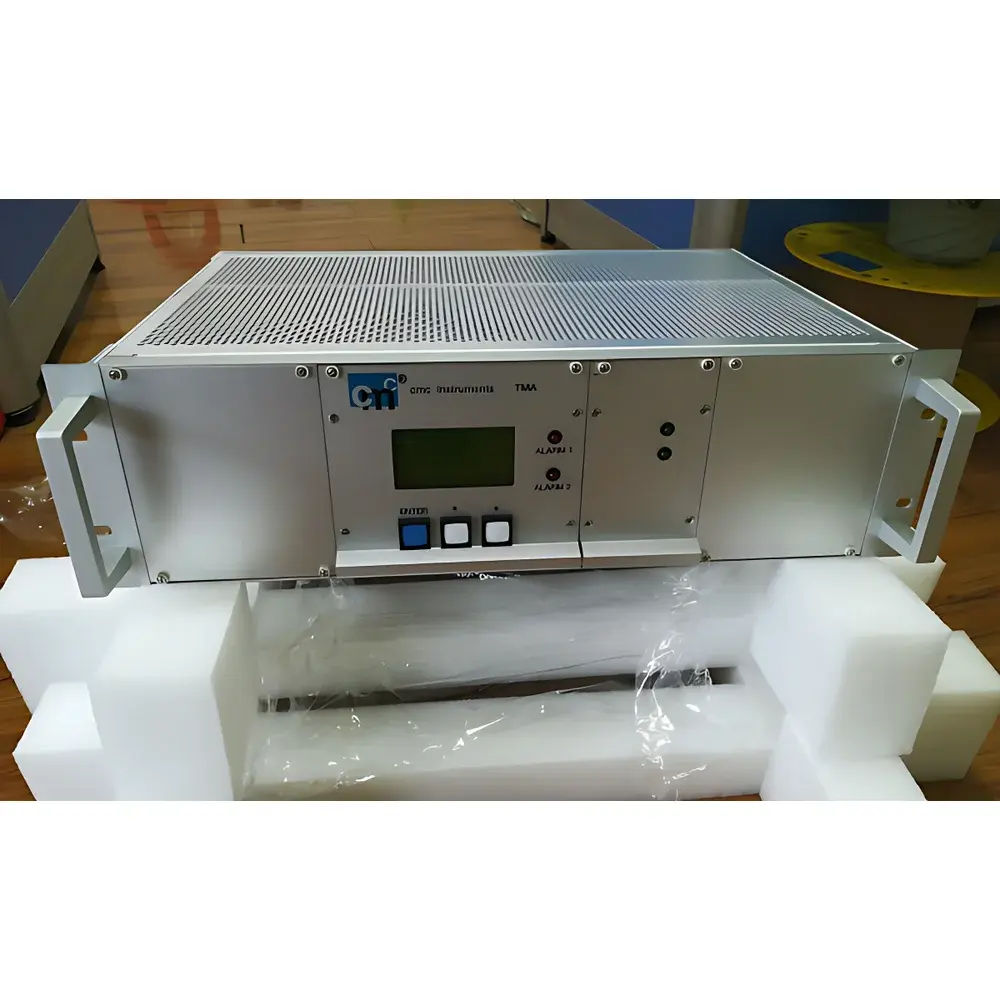

CMC TMA-202-W-EX P₂O₅ Electrolytic Trace Moisture Analyzer

Overview

The CMC TMA-202-W-EX is a high-precision, in-line trace moisture analyzer engineered for continuous, real-time monitoring of water vapor concentration in industrial process gases down to sub-ppmv levels. It operates on the well-established phosphorus pentoxide (P₂O₅) electrolytic principle: moisture in the sample gas is absorbed by a thin film of phosphoric acid (H₃PO₄) coated between two parallel electrodes—typically platinum or rhodium—within a glass electrolytic cell. Upon application of a DC voltage, water molecules undergo quantitative electrolysis into hydrogen and oxygen, regenerating P₂O₅. The resulting electrolytic current is directly proportional to the water content in the sample stream, enabling linear, stoichiometric measurement with exceptional specificity and long-term stability. Unlike optical or capacitive methods, this technique is immune to interference from hydrocarbons, CO₂, or inert gases, making it uniquely suited for ultra-high-purity and chemically aggressive applications—including chlorine, hydrogen chloride, sulfur dioxide, hydrogen sulfide, and fluorine-based process streams—where conventional sensors degrade or drift.

Key Features

• Explosion-proof (Ex-rated) design compliant with ATEX/IECEx Zone 1/21 requirements for hazardous area installation
• Ultra-fast response: T₅₀ < 8 seconds; full stabilization < 1 second—critical for dynamic process control and purge validation
• Automatic range switching across four decades (0–10, 0–100, 0–1000, 0–2500 ppmv) without manual intervention or calibration interruption
• Full microprocessor-based architecture with built-in self-diagnostic routines at power-on and during operation
• NAMUR-compliant interface logic for seamless integration into DCS, PLC, and safety instrumented systems (SIS)
• Robust P₂O₅ sensor cell with corrosion-resistant electrode materials and optimized thermal management for extended service life in reactive gas environments
• Configurable analog output (4–20 mA or 0–10 V) with galvanic isolation and dual programmable relay alarms for process deviation or sensor fault conditions

Sample Compatibility & Compliance

The TMA-202-W-EX is validated for use with a broad spectrum of technically demanding gases, including noble gases (He, Ne, Ar, Kr, Xe), diatomic gases (H₂, N₂, O₂, F₂, Cl₂), oxidizing agents (O₃, SO₂), acidic species (HCl, HBr, H₂S), halogenated compounds (SF₆, Freons), and hydrocarbon mixtures (CH₄, C₂H₂, natural gas). It excludes only gases known to react irreversibly with phosphoric acid or P₂O₅—such as strong reducing agents (e.g., PH₃ under certain conditions) or highly alkaline vapors. All configurations meet CE marking requirements per EU Directive 2014/34/EU (ATEX) and 2014/30/EU (EMC). The analyzer supports audit-ready operation in regulated environments: data logging timestamps, user-access logs, and configuration change history are retained internally, aligning with GLP and GMP documentation expectations. While not FDA 21 CFR Part 11-certified out-of-the-box, its deterministic analog output and relay behavior ensure compatibility with validated SCADA systems requiring electronic record integrity.

Software & Data Management

The TMA-202-W-EX operates autonomously without external PC dependency. Its embedded firmware provides local parameter configuration via intuitive menu navigation on the backlit LCD. All critical operational parameters—including zero/span calibration dates, sensor health status, alarm thresholds, and range selection—are stored in non-volatile memory with battery-backed retention. Optional RS-485 Modbus RTU interface (not standard, but field-upgradable) enables remote readout of live moisture values, diagnostic codes, and event logs for integration into centralized asset monitoring platforms. No proprietary software is required; configuration and diagnostics can be performed using standard Modbus master tools. Calibration certificates—including as-found/as-left data—can be printed via optional thermal printer module or exported manually via serial dump, supporting ISO/IEC 17025-compliant laboratory workflows.

Applications

• Electronics-grade gas purification: monitoring moisture in bulk N₂, Ar, and He supply lines feeding semiconductor fab tools
• Chlor-alkali and fluorocarbon production: real-time H₂O control in Cl₂, HCl, and SF₆ synthesis and recycling loops
• Power transformer oil gas analysis: dissolved moisture quantification in insulating oil headspace (via gas extraction interface)
• Cryogenic air separation units: dew point verification downstream of molecular sieve dryers
• Pharmaceutical inerting: validation of nitrogen blanket dryness during lyophilization and powder handling
• Hydrogen fuel infrastructure: moisture compliance testing per ISO 8573-8 Class 1 (≤0.1 ppmv) for PEM electrolyzer feed gas

FAQ

What gases are incompatible with the P₂O₅ sensor?
Gases that chemically reduce P₂O₅ or decompose H₃PO₄—such as phosphine (PH₃) at elevated temperatures or concentrated ammonia vapor—may poison the sensor. Consult CMC’s Application Note AN-TMA-004 for a validated compatibility matrix.
Is routine calibration required?
Yes. Zero calibration with certified dry gas (e.g., N₂ < 0.1 ppmv H₂O) is recommended before each measurement campaign. Span calibration using traceable moisture standards (e.g., NIST-traceable permeation tubes) is advised every 3–6 months depending on exposure severity and regulatory requirements.
Can the analyzer operate at elevated sample temperatures?
The sensor cell itself is rated for sample gas up to 150 °C, but the electronics housing must remain within –20 °C to +50 °C ambient. For hot-gas applications, a cooled sample probe or heat exchanger is required upstream of the analyzer inlet.
How is sensor lifetime affected by high-moisture exposure?
Continuous operation above 2000 ppmv accelerates electrolyte depletion and may reduce sensor service life from typical 24–36 months to 12–18 months. Automatic range switching mitigates this by minimizing high-current electrolysis time.
Does the TMA-202-W-EX support digital communication protocols?
Standard configuration includes isolated 4–20 mA and relay outputs. RS-485 Modbus RTU is available as a factory-installed option (TMA-202-W-EX-MB) or field retrofit kit.
