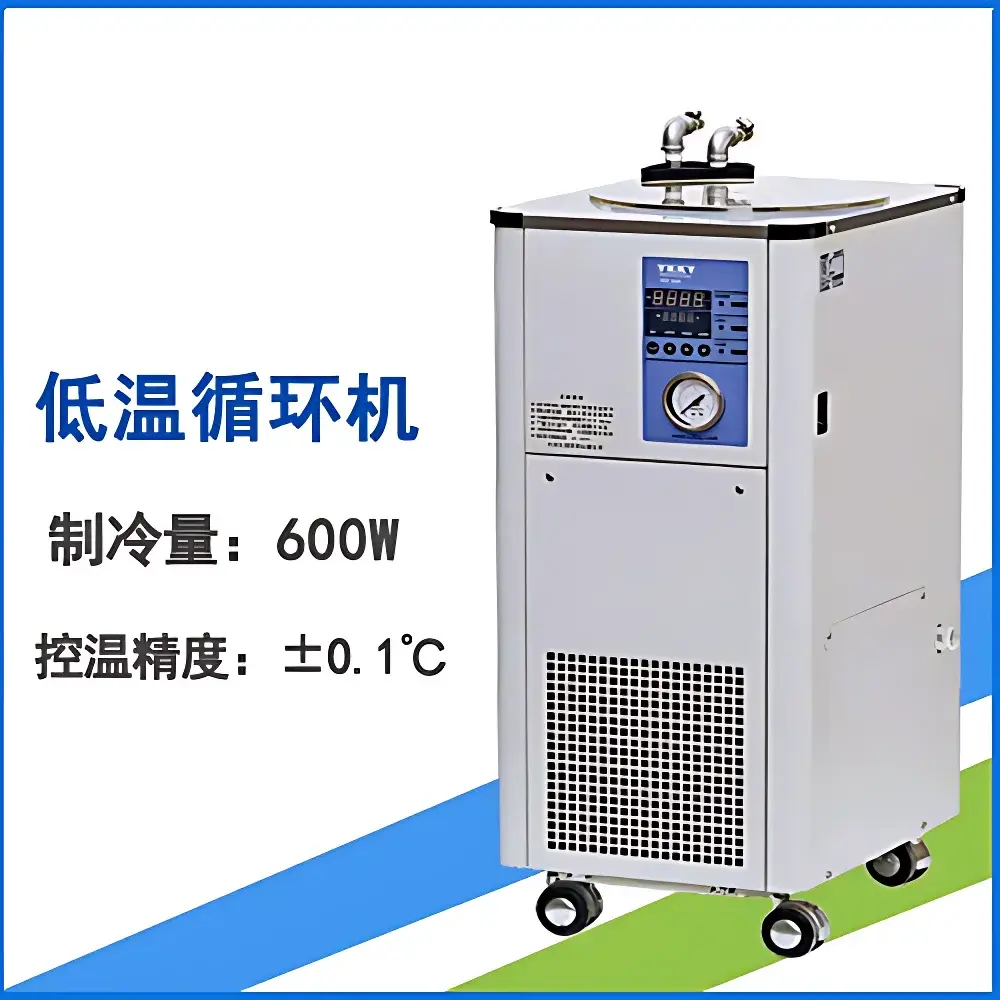

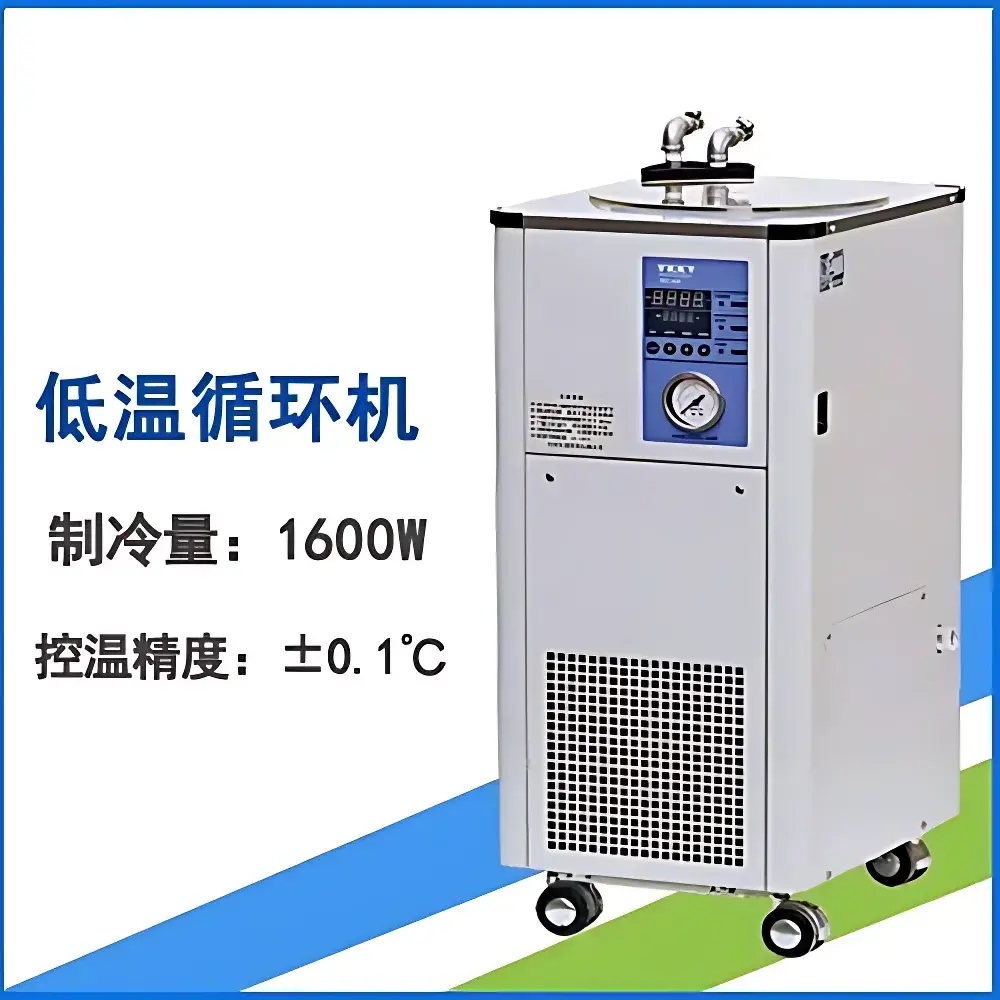

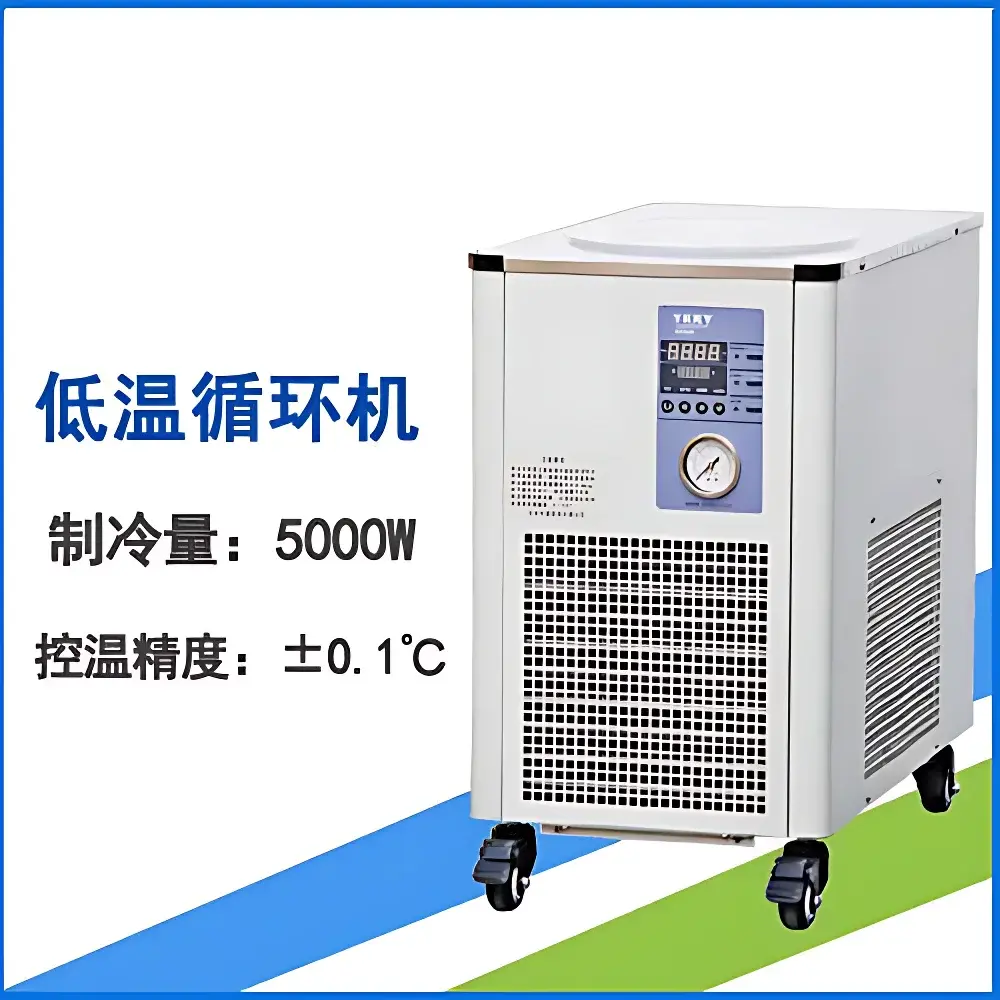

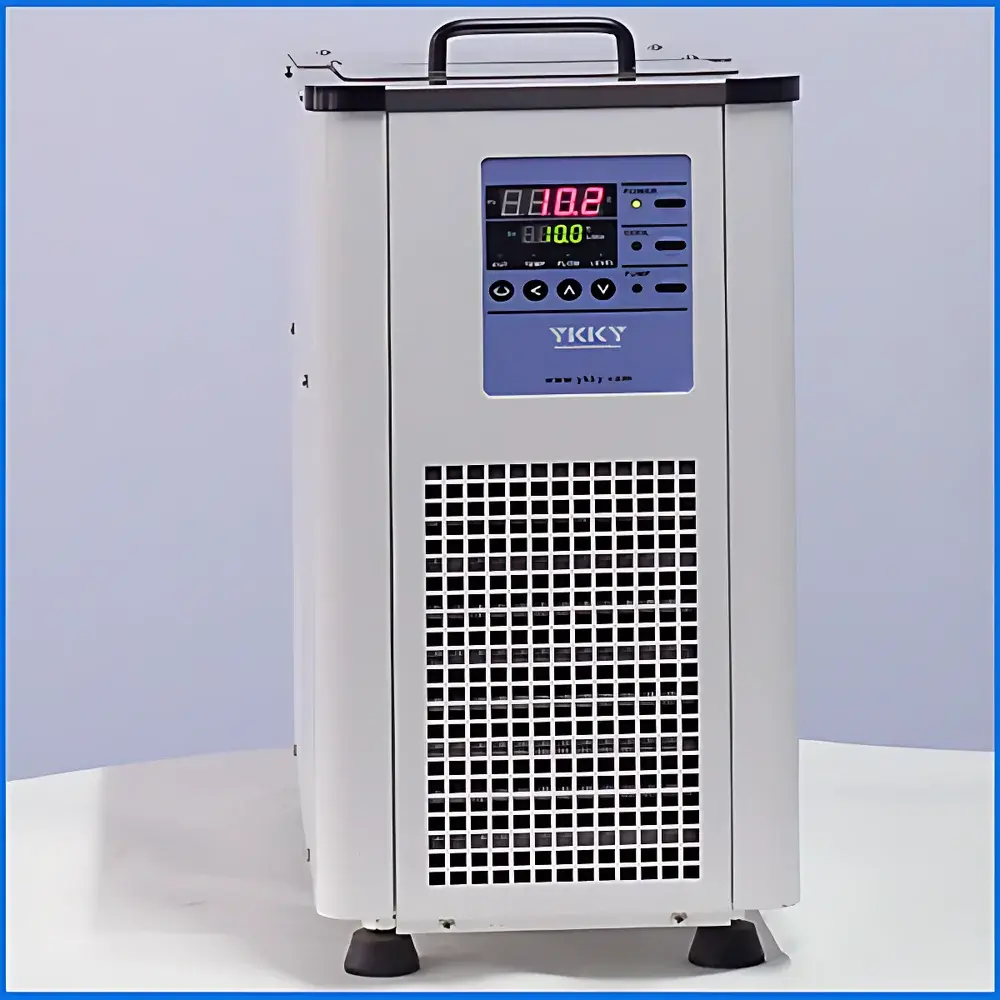

Coolium DX-208 Integrated Air-Cooled Circulating Chiller

Overview

The Coolium DX-208 is an integrated air-cooled circulating chiller engineered for precision temperature control and stable heat removal in laboratory and light industrial environments. It employs a closed-loop vapor-compression refrigeration cycle—utilizing a hermetically sealed scroll or rotary compressor, copper-aluminum finned condenser, and capillary tube expansion—to achieve reliable cooling down to –20 °C. Thermal energy exchange occurs via forced convection between the refrigerant circuit and a recirculating water-glycol mixture within the stainless steel reservoir. A PID-based digital temperature controller regulates setpoint accuracy with real-time feedback from a Pt100 platinum resistance thermometer immersed directly in the bath fluid. The system operates continuously under load, maintaining thermal equilibrium across connected equipment without manual intervention—making it suitable for long-duration analytical runs requiring unbroken thermal stability.

Key Features

• Integrated design with compact footprint (300 × 400 × 720 mm) optimized for benchtop or under-bench installation in space-constrained labs.
• Air-cooled condensation system eliminates dependency on facility chilled water or external cooling towers—ideal for facilities lacking centralized HVAC integration.
• High-reliability refrigeration components: OEM-sourced compressor (e.g., Panasonic, Embraco, or Danfoss), low-noise axial fans, and corrosion-resistant evaporator coil.
• Stainless steel reservoir (Φ250 × 200 mm, 8 L capacity) with integrated level sensor and visual fill gauge; resistant to common coolant additives including 30% ethylene glycol solutions.
• Variable-speed circulation pump delivering up to 15 L/min at 0.8 bar pressure—sufficient to overcome typical pressure drops across spectrometers, mass spectrometer ion sources, NMR probe coolers, and laser diode mounts.
• Dual-display interface showing real-time bath temperature and liquid level; intuitive keypad navigation with password-protected parameter adjustment.
• Dynamic PID temperature control algorithm minimizes overshoot and reduces settling time—achieving ±0.1 °C stability over 24-hour operation at any setpoint within –20 to 30 °C.

Sample Compatibility & Compliance

The DX-208 supports compatibility with a broad range of analytical, medical, and industrial instruments requiring active thermal management. Its flow and pressure characteristics align with manufacturer specifications for common OEM accessories—including PerkinElmer Lambda UV-Vis systems, Agilent 6470/6495 triple quadrupole MS units, Bruker Avance III NMR consoles, and Coherent OBIS laser platforms. Fluid pathways are constructed from EPDM and PTFE-compatible materials, ensuring chemical inertness against aqueous buffers, organic solvents (e.g., methanol, acetonitrile), and low-concentration glycol mixtures. While not certified to IEC 61000-6-3 (EMC) or UL 61010-1 out-of-the-box, the unit complies with general safety requirements for Class I electrical appliances and meets CE marking directives when installed per manufacturer instructions. For regulated environments, optional audit trail logging (via RS485/Modbus RTU) enables alignment with GLP/GMP documentation practices where temperature traceability is required.

Software & Data Management

The DX-208 operates as a standalone instrument with no embedded operating system or proprietary software dependency. All configuration and monitoring occur locally via its front-panel interface. However, it includes standard analog (0–5 V / 4–20 mA) and digital (RS485 Modbus RTU) outputs for integration into centralized lab infrastructure. These interfaces support third-party SCADA systems (e.g., LabVIEW, Ignition, Siemens Desigo CC) for remote setpoint adjustment, alarm notification (low-level, overtemperature, pump fault), and historical trend logging. Optional USB-to-RS485 adapters allow direct connection to Windows/Linux workstations running open-source Modbus master applications. No FDA 21 CFR Part 11 compliance features (e.g., electronic signatures, role-based access) are built-in—but external validation protocols may be applied using validated data acquisition software compliant with ALCOA+ principles.

Applications

• Analytical Instrument Cooling: Maintains optimal detector and source temperatures for HPLC autosamplers, GC-FID detectors, FTIR interferometers, and Raman spectrometers—reducing thermal drift in spectral baselines and improving signal-to-noise ratios.
• Vacuum System Thermal Management: Provides consistent cooling to diffusion pumps, turbomolecular pumps, and cryopanels—preventing oil backstreaming and extending pump lifetime through controlled condensation surface temperatures.
• Laser & Photonics Support: Stabilizes diode-pumped solid-state (DPSS) lasers, Ti:sapphire oscillators, and fiber amplifier stages where wavelength stability depends critically on junction temperature control.
• Biochemical Process Control: Supports temperature-sensitive fermentation vessels, bioreactor jackets, and chromatography column ovens—enabling reproducible elution profiles and enzyme activity preservation.
• Materials Testing: Serves as a thermal sink for dynamic mechanical analyzers (DMA), differential scanning calorimeters (DSC), and rheometers during sub-ambient modulus measurements.

FAQ

What is the minimum recommended coolant mixture for operation below 0 °C?
A 30% (v/v) aqueous solution of inhibited ethylene glycol is recommended for sustained operation between –20 °C and 0 °C. Propylene glycol may be substituted where food-grade or low-toxicity requirements apply, though freezing point depression is slightly less efficient.

Can the DX-208 be used with deionized water only?
Yes, but only for applications above 5 °C ambient and bath setpoints ≥10 °C. DI water lacks corrosion inhibitors and promotes galvanic degradation of brass and aluminum components over extended use.

Is external pressure relief required for closed-loop systems?
No—the internal reservoir incorporates a calibrated pressure-relief valve rated to 1.5 bar. However, users must ensure downstream equipment does not impose backpressure exceeding 0.8 bar at the chiller’s outlet port.

Does the unit support remote start/stop via dry contact?
Yes, a configurable TTL-level digital input (opto-isolated) is available for external interlock control, compatible with PLC outputs or emergency stop circuits.

What maintenance intervals are recommended for continuous operation?
Compressor oil and refrigerant charge require verification every 24 months under nominal load. Condenser coils should be vacuum-cleaned quarterly; reservoir fluid should be replaced annually or after contamination events.
