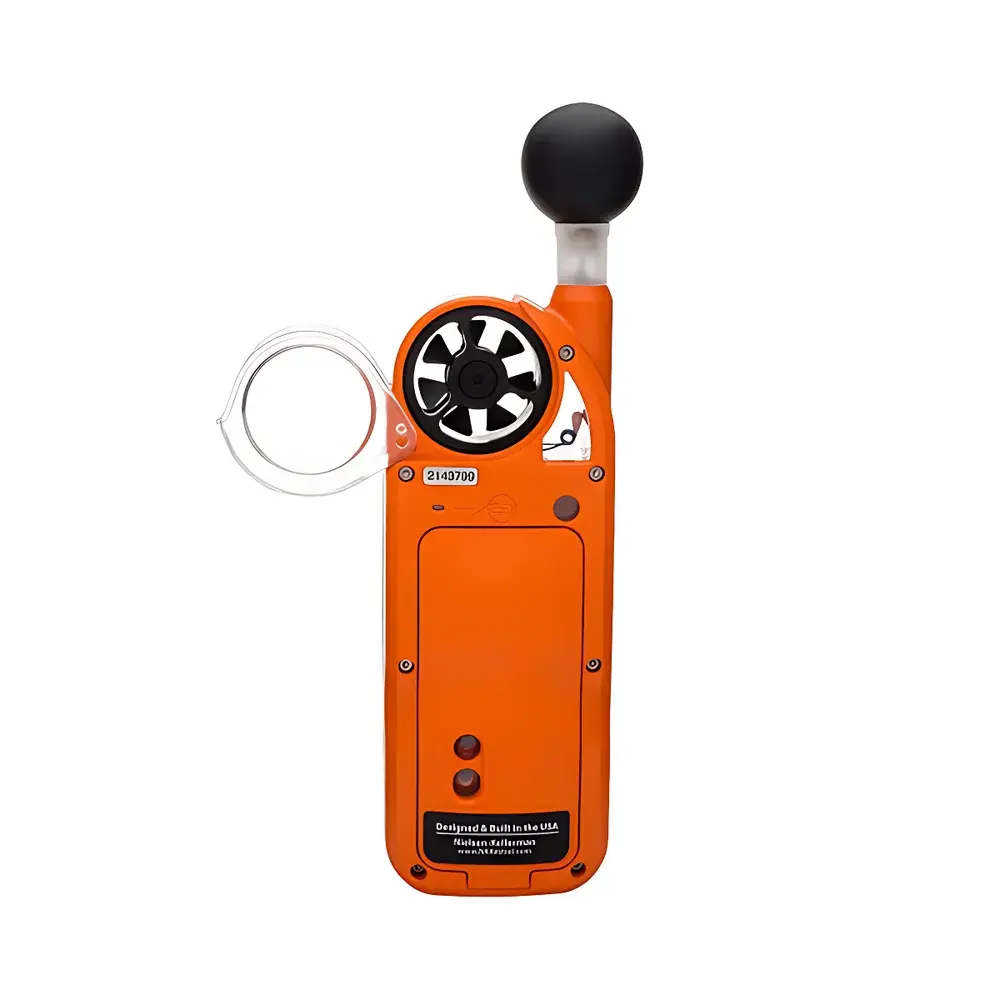

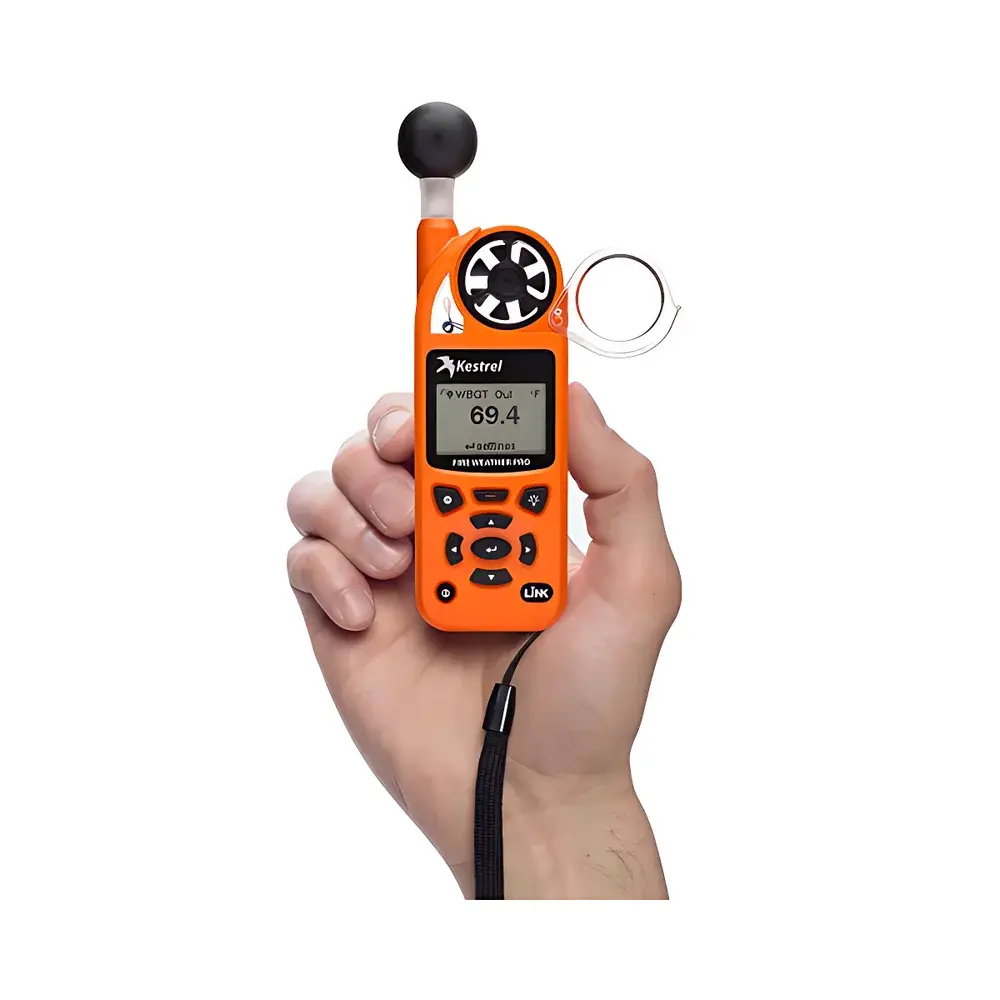

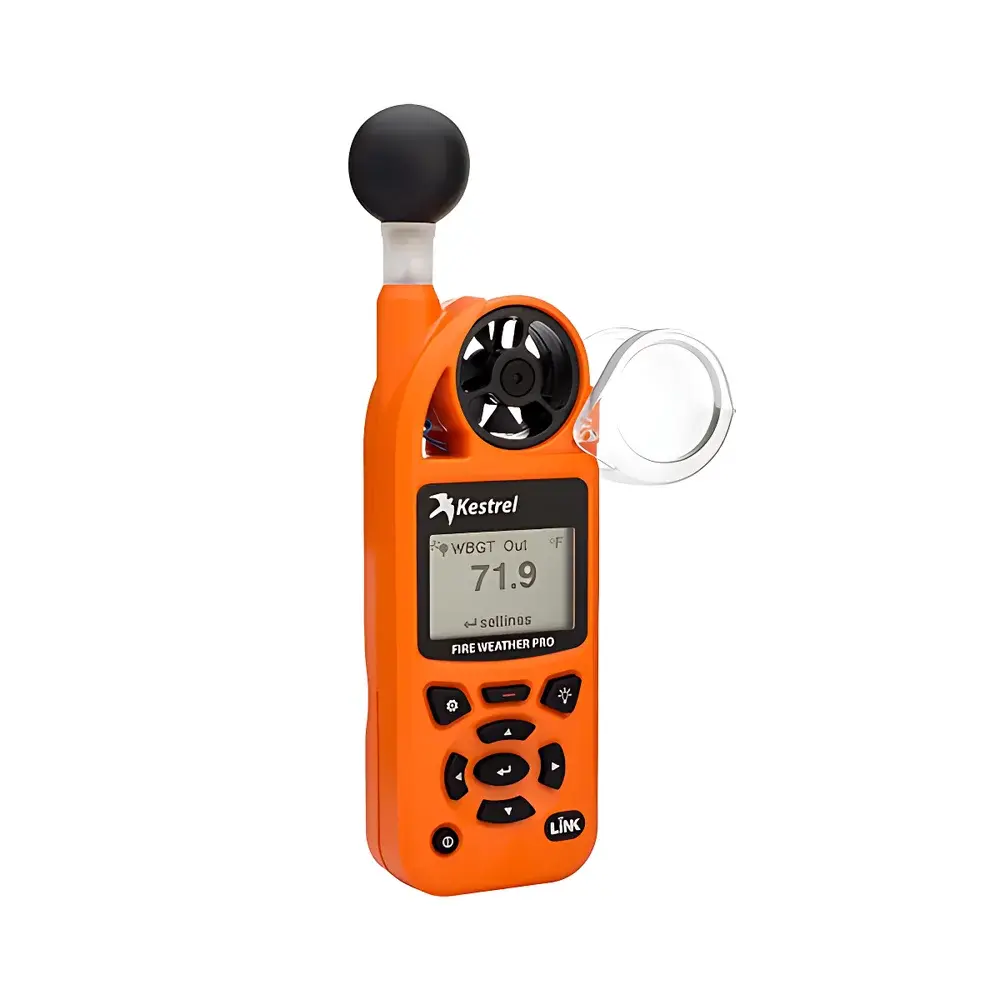

Kestrel 5400FW Fire Weather Meter

Overview

The Kestrel 5400FW Fire Weather Meter is a purpose-built, rugged handheld environmental monitoring instrument engineered for wildland fire operations, firefighter safety training, and heat stress management in high-risk outdoor environments. Unlike general-purpose weather meters, the 5400FW implements the American Conference of Governmental Industrial Hygienists (ACGIH®) recommended Wet Bulb Globe Temperature (WBGT) algorithm—integrating direct solar radiation effects via a precision black globe thermometer, natural wet-bulb temperature, and ambient dry-bulb temperature. This tri-sensor methodology provides a physiologically relevant heat stress index that accounts for radiant heat from fire, sun, and hot surfaces—critical for evaluating real-time thermal hazard exposure during structural or wildland firefighting, burnover drills, and rehab zone assessments.

Key Features

• Ruggedized IP67-rated housing constructed from high-impact polycarbonate with scratch-resistant optical glass display cover—tested to MIL-STD-810G for shock, vibration, and thermal cycling.
• Integrated WBGT sensor suite compliant with ISO 7243 and ACGIH TLV® guidelines for occupational heat stress evaluation.
• Real-time calculation of Thermal Work Limit (TWL), Ignition Probability (PIG), and Fine Dead Fuel Moisture (FDFM)—parameters directly referenced in NFPA 1051 and NWCG standards for fire behavior prediction.
• On-device configurable alarm thresholds for WBGT, heat index, wind speed, and temperature—triggering audible and visual alerts when conditions exceed pre-set safety limits.
• Triaxial wind vane and impeller anemometer enabling simultaneous measurement of wind speed (current, average, gust), wind direction, crosswind, headwind/tailwind components, and wind chill.
• High-stability capacitive humidity sensor (±2% RH accuracy) and compensated thermistor (±0.4°C) calibrated traceably to NIST standards.

Sample Compatibility & Compliance

The Kestrel 5400FW is validated for field deployment across diverse operational environments—including wildfire incident command posts, prescribed burn planning sites, fire academy training grounds, and urban interface response zones. Its measurement protocols align with ASTM D7404 (Standard Practice for Determining Heat Stress Indices), OSHA Technical Manual Section III: Chapter 4 (Heat Stress), and NFPA 1971-2022 Annex B requirements for thermal hazard instrumentation. Device firmware supports GLP-compliant data logging with embedded time stamps (RTC), and all recorded WBGT values include metadata on sensor status, battery level, and calibration verification flags—enabling audit-ready documentation for incident reports and post-event safety reviews.

Software & Data Management

Data acquisition and analysis are supported through the Kestrel LiNK mobile application (iOS/Android), which enables live telemetry streaming, customizable dashboard views, and export of CSV/Excel-compatible logs with full parameter metadata. For desktop integration, the optional Kestrel LiNK Dongle (Bluetooth-to-USB) or micro-USB cable allows direct synchronization with Windows and macOS platforms. All logged datasets retain native timestamp resolution (1-second minimum interval), support batch export, and maintain integrity under FDA 21 CFR Part 11–compatible audit trail configurations when used with enterprise-grade data management systems. Firmware updates are delivered over-the-air via the LiNK app, ensuring continued compliance with evolving ACGIH threshold limit value revisions.

Applications

• Wildland firefighter rehabilitation monitoring and heat illness prevention per NWCG PMS 461 protocols.
• Pre-burn and in-burn fire behavior assessment using FDFM, PIG, and density altitude calculations.
• Incident Command System (ICS) resource allocation based on real-time atmospheric stability indicators (e.g., lapse rate proxies derived from dew point depression and temperature gradients).
• Fire academy curriculum delivery for NFPA 1051 Chapter 5 competency validation in environmental risk assessment.
• Post-incident safety investigations requiring time-synchronized WBGT and meteorological reconstruction.

FAQ

Does the Kestrel 5400FW meet NFPA or NWCG certification requirements for fire weather instrumentation?

Yes—the device satisfies functional performance criteria outlined in NWCG PMS 461 and NFPA 1051 Annex C for portable WBGT and fire weather parameter measurement. It is not “certified” as a standalone product but is widely adopted by federal and state fire agencies as a compliant field tool.
Can WBGT measurements be performed indoors or only in direct sunlight?

The 5400FW’s black globe sensor requires exposure to radiant heat sources (sunlight or fire) for accurate WBGT calculation. Indoor use without radiant loading yields non-standard WBGT values; however, it remains valid for indoor heat index and humidity profiling.
Is calibration traceable to national standards?

All factory calibrations are NIST-traceable. Users may perform field verification using certified reference hygrometers and dry-wet bulb comparison kits; full recalibration services are available through NK-authorized service centers.
How long does the AA battery last under continuous logging mode?

With default 2-minute logging intervals and Bluetooth disabled, battery life exceeds 300 hours. Enabling LiNK telemetry reduces this to approximately 120 hours—consistent with IEC 60086-2 specifications for alkaline cells under mixed-load conditions.
