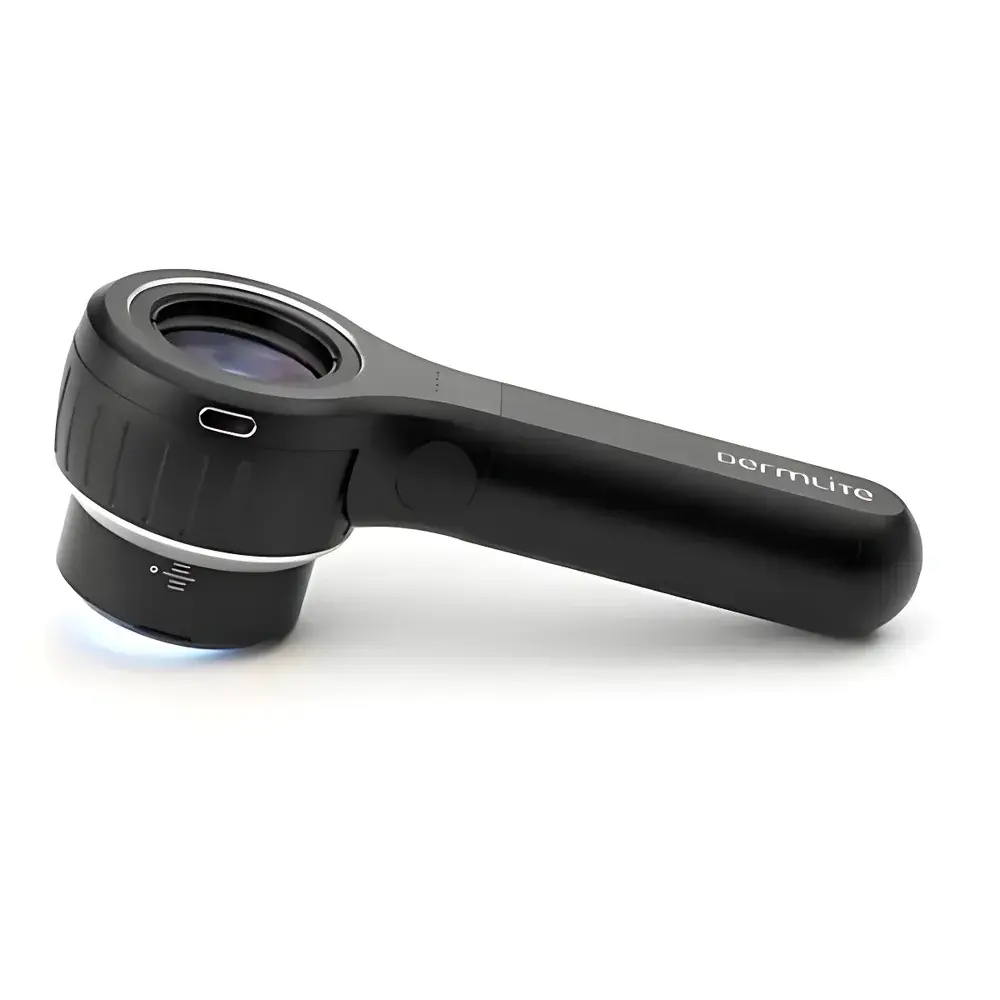

Dermlite DL4 Handheld Dermatoscope

Overview

The Dermlite DL4 Handheld Dermatoscope is a CE-marked, FDA-registered Class II medical device engineered for high-fidelity epidermal and dermal surface visualization in dermatological triage, teledermatology workflows, and longitudinal lesion monitoring. It operates on the principle of cross-polarized dermoscopy—eliminating surface glare through orthogonal polarization filters—while retaining the option to switch to non-polarized (normal) white-light illumination for comparative assessment. This dual-illumination architecture enables clinicians to differentiate between epidermal pigment networks, dermal melanocytic structures, vascular morphology, and subsurface scale or keratin patterns with enhanced contrast and reduced specular reflection. Designed for point-of-care use, the DL4 integrates optical, electronic, and ergonomic subsystems into a single-unit handheld platform compliant with IEC 60601-1 safety standards for medical electrical equipment.

Key Features

• Dual-illumination optics: Independently selectable cross-polarized and non-polarized white-light modes via integrated toggle switch—enabling side-by-side morphological comparison without repositioning.
• High-output LED array: 28 total LEDs (21 primary + 7 auxiliary) arranged in concentric rings around the lens aperture, delivering uniform, shadow-free illumination across the entire field of view.
• Optical performance: Fixed 10× magnification with 25 mm field diameter; minimal geometric distortion (<1.2% pincushion) across the full FOV; achromatic lens assembly optimized for 400–700 nm spectral transmission.
• Ergonomic focusing system: Telescoping focal plane mechanism with tactile stop positions; calibrated 10 mm reference scale engraved directly onto the contact glass plate for consistent inter-visit measurement alignment.
• Rechargeable power architecture: Integrated lithium-ion battery pack (3.7 V, 2200 mAh) supporting ≥90 minutes of continuous operation per charge; USB-C charging interface compatible with standard 5 V/2 A adapters.

Sample Compatibility & Compliance

The DL4 is intended for non-invasive, contact-based imaging of intact skin surfaces—including pigmented lesions, vascular anomalies, inflammatory plaques, and nail unit pathology. It requires no coupling gel when used in polarized mode; optional immersion fluid may be applied for enhanced refractive index matching in non-polarized mode. The device conforms to ISO 13485:2016 quality management requirements for medical device manufacturers and distributors. As an authorized CK distributor product, it carries full traceability to original US manufacturing documentation and meets applicable clauses of ASTM E2981 (Standard Guide for Dermoscopic Imaging Equipment Performance Evaluation). Device labeling and user instructions comply with ISO 15223-1 for symbols and IEC 62366-1 for usability engineering.

Software & Data Management

While the DL4 functions as a standalone optical instrument, its standardized USB-C interface supports direct connection to Windows/macOS/Linux hosts for real-time video streaming (UVC-compliant) and still-image capture at up to 1920 × 1080 resolution. Compatible with DICOM-conformant dermatology PACS systems when paired with vendor-neutral acquisition software. Audit trail functionality—including timestamped image metadata (EXIF), operator ID tagging, and device serial number embedding—is supported via third-party clinical imaging platforms that adhere to FDA 21 CFR Part 11 electronic record requirements. Firmware updates are distributed exclusively through CK’s secure portal and require digital signature verification prior to installation.

Applications

• Early detection and differential diagnosis of melanoma, basal cell carcinoma, and squamous cell carcinoma using established ABCDE and pattern analysis criteria.
• Monitoring of nevus stability over time in patients with atypical mole syndrome or familial melanoma risk.
• Assessment of inflammatory dermatoses including psoriasis, lichen planus, and discoid lupus erythematosus via vascular pattern mapping and scale morphology evaluation.
• Pre-procedural mapping of surgical margins for Mohs micrographic surgery planning.
• Teledermatology consultation support—images captured with DL4 meet minimum resolution and lighting uniformity thresholds defined in the American Academy of Dermatology Telemedicine Guidelines (2023).

FAQ

Is the Dermlite DL4 compatible with smartphone mounting accessories?
Yes—the device features a standardized 1/4″-20 threaded tripod mount beneath the grip housing, enabling secure integration with universal smartphone adapters and stereo imaging rigs.
Does the DL4 require calibration before clinical use?
No routine user calibration is required; optical alignment and LED output stability are factory-verified per CK’s internal QC protocol (documented in Certificate of Conformance included with each unit).
Can images from the DL4 be exported in DICOM format?
Native DICOM export is not built-in; however, third-party DICOM wrappers (e.g., Horos, OsiriX MD) can ingest JPEG/PNG exports and generate compliant DICOM objects with appropriate header metadata.
What is the warranty coverage for the DL4 under CK’s authorized distribution channel?
CK provides a 24-month limited warranty covering parts and labor for defects in materials and workmanship, extendable to 36 months upon registration within 30 days of purchase.
