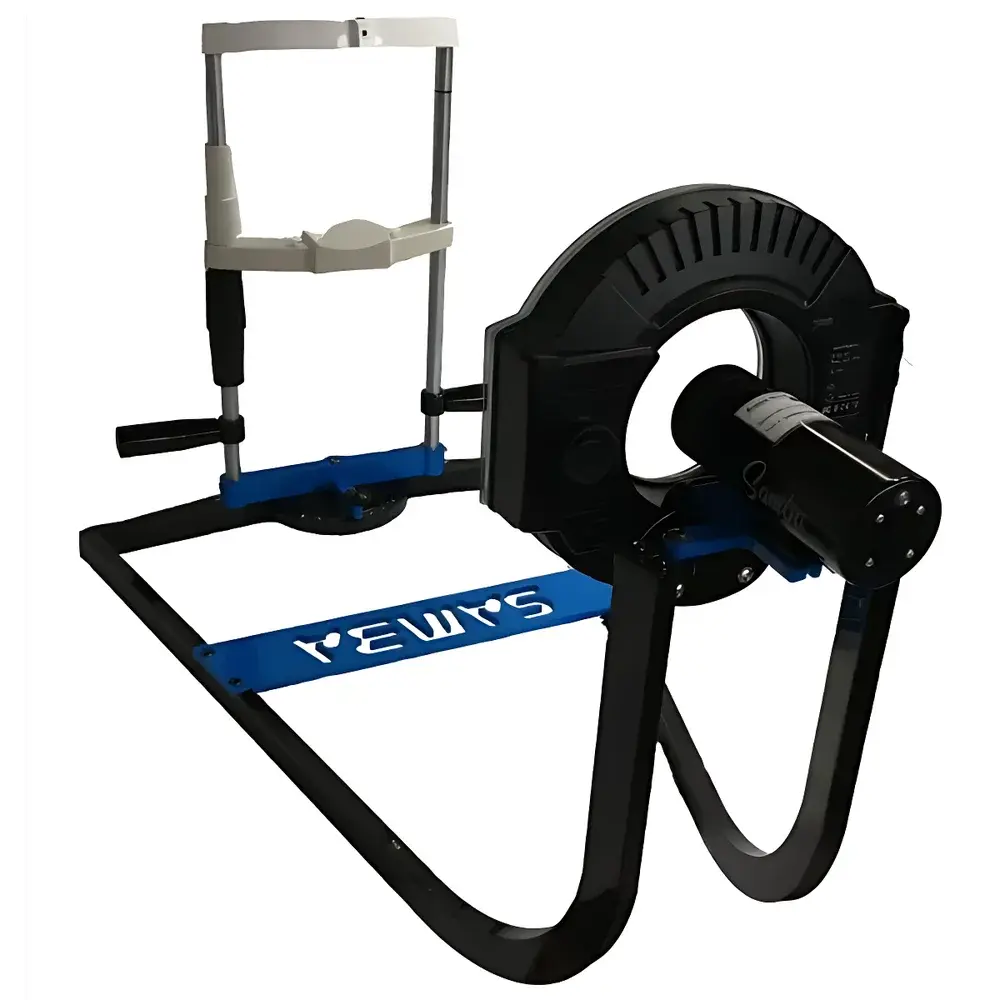

Dia-stron SAMBA FACE Facial Gloss Analyzer
| Brand | Dia-stron |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Import Status | Imported |
| Model | SAMBA FACE |
| Pricing | Available Upon Request |
Overview
The Dia-stron SAMBA FACE Facial Gloss Analyzer is a precision optical instrument engineered for objective, non-invasive quantification of skin surface gloss—specifically designed for facial skin assessment in cosmetic science, dermatological research, and product development laboratories. It operates on the principle of specular reflectance measurement at standardized geometry (typically 60° incident angle per ISO 2813 and ASTM D523), capturing directional light reflection from the stratum corneum to generate repeatable, unitless gloss units (GU). Unlike subjective visual grading or broad-spectrum imaging, the SAMBA FACE delivers traceable, instrument-based gloss values that correlate directly with sebum distribution, hydration status, and surface microtopography—critical parameters in evaluating the immediate and sustained effects of moisturizers, mattifying agents, foundation formulations, lipsticks, and sheet masks. Its compact benchtop design integrates a calibrated LED light source, high-sensitivity photodetector, and fixed-angle optical path to ensure inter-laboratory reproducibility under controlled ambient conditions.
Key Features
- Optimized 60° gloss measurement geometry compliant with ISO 2813 and ASTM D523 for facial skin applications
- High-resolution analog-to-digital conversion enabling detection of subtle gloss differentials (<0.5 GU resolution)
- Integrated reference calibration standard with NIST-traceable certification for daily verification
- Ergonomic handheld probe with spring-loaded contact mechanism ensuring consistent pressure and measurement area (12 mm aperture)
- Real-time display with on-device data logging (up to 1,000 measurements) and USB export capability
- Robust aluminum housing rated IP54 for resistance to cosmetic residues and routine laboratory cleaning protocols
Sample Compatibility & Compliance
The SAMBA FACE is validated for use on intact, non-irritated facial skin—including forehead, cheek, and chin regions—across diverse Fitzpatrick skin types (I–VI). It accommodates transient surface conditions such as post-cleansing dryness, post-application film formation, and natural sebum recovery kinetics (0–120 min time-series tracking). The device complies with IEC 61000-4 electromagnetic compatibility standards and meets essential requirements of the EU Medical Device Regulation (MDR) Annex I for Class I non-invasive instruments used in cosmetic efficacy testing. While not a diagnostic medical device, its measurement outputs support GLP-aligned study protocols and are referenced in industry white papers published by the International Federation of Societies of Cosmetic Chemists (IFSCC).
Software & Data Management

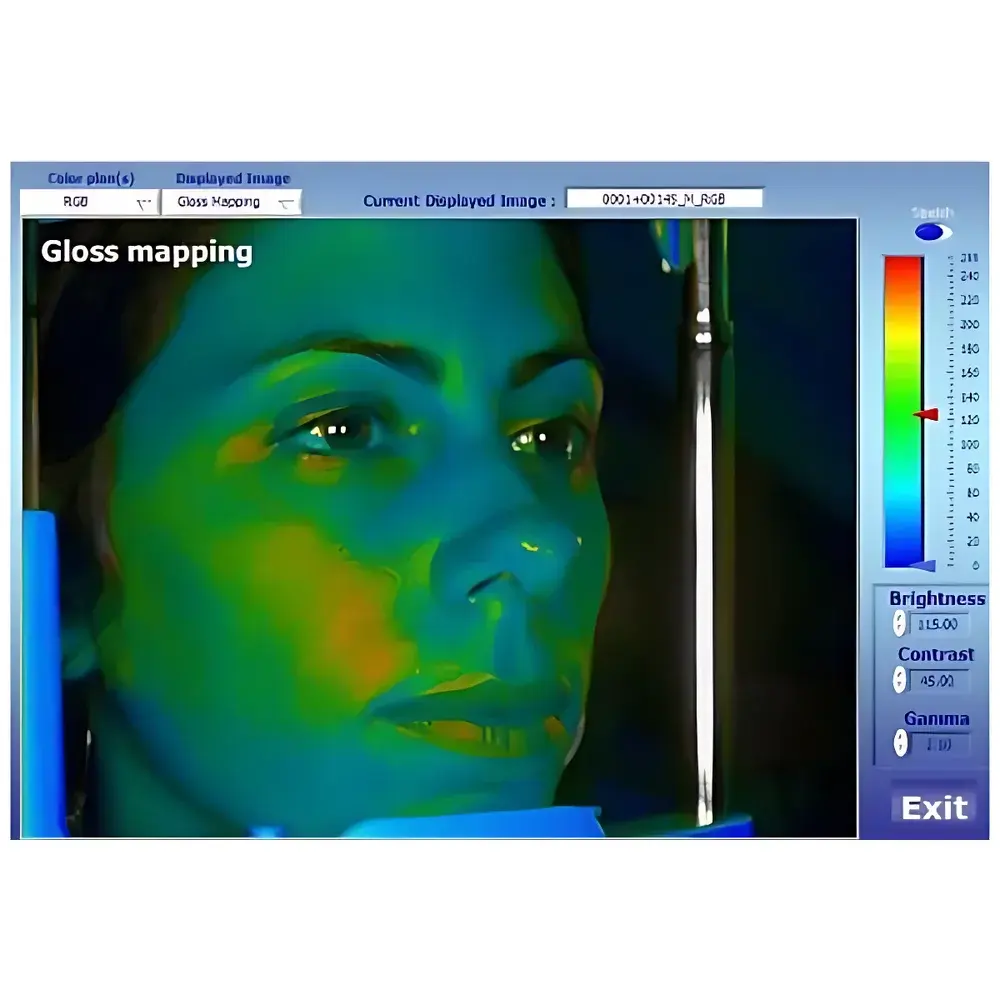

The SAMBA FACE operates standalone but interfaces seamlessly with Dia-stron’s optional SAMBA Studio software (v3.2+), enabling advanced statistical analysis, longitudinal subject tracking, and automated report generation in PDF/CSV formats. Software features include baseline subtraction, group-wise ANOVA comparison, trend visualization across timepoints, and audit trail functionality compliant with FDA 21 CFR Part 11 requirements (user authentication, electronic signatures, immutable data logs). All raw gloss values are stored with metadata: timestamp, operator ID, anatomical site tag, ambient temperature/humidity (via optional external sensor integration), and calibration status flag—ensuring full traceability for regulatory submissions or internal quality assurance reviews.
Applications
- Quantitative evaluation of anti-shine actives in oil-control foundations and primers
- Time-course analysis of gloss reduction following application of clay-based or silica-containing mattifying serums
- Comparative assessment of lip gloss versus matte lipstick formulations on vermilion border
- Correlation studies between gloss metrics and transepidermal water loss (TEWL) or capacitance-based hydration readings
- Stability testing of emulsion-based masks under accelerated aging (40°C/75% RH, 8 weeks)
- Supporting clinical documentation for cosmetic claims substantiation per ISO 16128 and CosIng ingredient classification guidelines
FAQ
Is the SAMBA FACE suitable for measuring gloss on non-facial skin areas (e.g., forearm or back)?
While optimized for facial topography and curvature, the probe’s 12 mm aperture and contact design permit reliable measurements on flat or gently contoured anatomical sites; however, validation per ISO 2813 requires re-calibration for non-standard angles.
Does the device require routine recalibration by an accredited lab?
No—daily verification using the included NIST-traceable reference standard is sufficient for routine operation; full recalibration by Dia-stron Service Center is recommended annually or after physical impact.
Can SAMBA FACE data be integrated into LIMS or enterprise QA systems?
Yes—SAMBA Studio supports ODBC-compliant database export and HL7-compatible metadata tagging for seamless ingestion into laboratory information management systems.
Is the instrument compatible with Good Clinical Practice (GCP) trial protocols?
It meets technical prerequisites for GCP-compliant instrumental endpoints when deployed within a documented SOP framework, including operator training records, equipment maintenance logs, and measurement uncertainty budgets.
