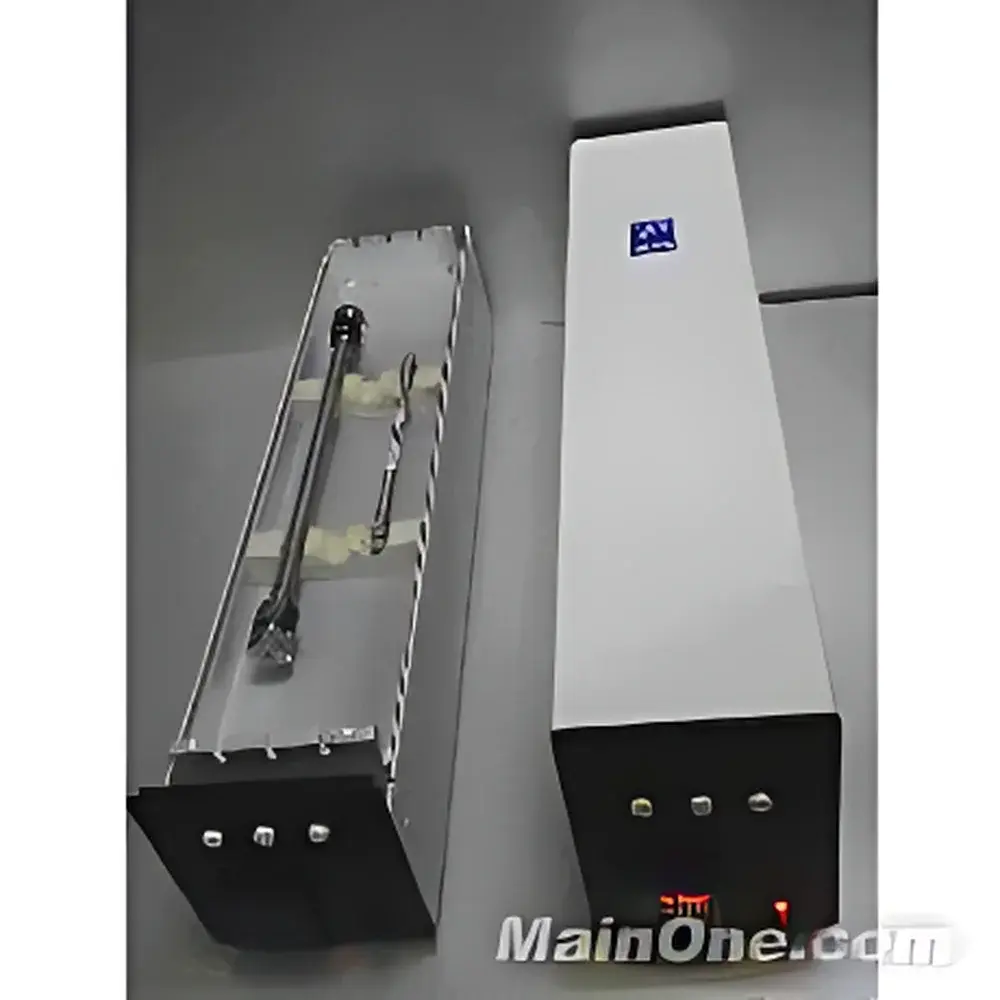

DT-230A Chromatography Column Oven

Overview

The DT-230A Chromatography Column Oven is an engineered thermal management solution designed specifically for high-performance liquid chromatography (HPLC) and ultra-high-performance liquid chromatography (UHPLC) systems. It maintains precise, uniform, and stable column temperature—critical for retention time reproducibility, peak symmetry, resolution enhancement, and backpressure optimization. Unlike ambient lab conditions that introduce thermal drift and inter-run variability, the DT-230A employs a closed-loop PID-controlled heating system with high-resolution thermistor feedback to deliver sub-degree thermal stability across its full operating range (ambient to 100 °C). This level of thermal control directly supports pharmacopeial compliance (e.g., USP , EP 2.2.46, ChP 0512), where column temperature is explicitly defined as a critical method parameter. Its compact, dual-orientation form factor enables seamless integration into both benchtop and vertically stacked HPLC configurations—making it suitable for regulated QC laboratories, method development labs, and academic core facilities.

Key Features

• Microprocessor-based PID temperature controller with auto-tuning capability ensures rapid stabilization and minimal overshoot during setpoint changes.
• High-sensitivity platinum resistance thermometer (PT100-class equivalent) provides real-time thermal feedback with <0.1 °C linearity over the operational range.
• Dual-line LED display with intuitive touch-key interface allows direct entry of setpoint, real-time temperature readout, and status indication (e.g., heating active, alarm condition).
• Tempered glass viewport integrated into the heating chamber lid enables non-invasive visual monitoring of column connections, tubing routing, and solvent flow without interrupting thermal equilibrium.
• Magnetic latching mechanism secures the chamber lid with consistent clamping force—eliminating mechanical wear and ensuring repeatable thermal seal integrity across thousands of open/close cycles.
• Independent over-temperature protection circuit triggers audible/visual alarm and cuts power to the heater if internal sensor readings exceed user-defined safety threshold (default: 105 °C), complying with IEC 61010-1 safety requirements.
• Modular chassis design supports both vertical (tower-style) and horizontal (bench-mounted) installation, facilitating space-constrained deployments in multi-instrument racks or ISO Class 5 cleanroom environments.

Sample Compatibility & Compliance

The DT-230A accommodates standard 10–250 mm analytical columns (ID 2.1–4.6 mm), guard cartridges, and in-line filters without requiring adapter kits. Its interior cavity dimensions (W × D × H: 180 × 120 × 160 mm) allow simultaneous thermostating of up to two 150-mm columns or one 250-mm column with integrated detector flow cell. The unit meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and electrical safety standards per EN 61010-1. While not certified for use in hazardous locations, it is validated for continuous operation under GLP and GMP-aligned workflows—supporting audit-ready documentation including calibration certificates traceable to NIST standards and IQ/OQ protocols upon request.

Software & Data Management

The DT-230A operates as a standalone analog-controlled instrument with no embedded firmware or network interface. However, its analog voltage output (0–5 V DC proportional to internal temperature) and digital alarm relay contact (SPST, 24 V DC, 1 A) enable integration into third-party laboratory information management systems (LIMS) or supervisory control and data acquisition (SCADA) platforms via optional analog-to-digital converters. All temperature settings and operational logs must be manually recorded per 21 CFR Part 11 Annex A guidelines when used in FDA-regulated environments; electronic record integrity is maintained through external timestamped logging solutions.

Applications

• Retention time standardization in pharmaceutical stability-indicating assays (ICH Q2(R2)).
• Improving resolution of co-eluting isomers in chiral separations (e.g., β-blockers, NSAIDs).
• Reducing system backpressure during gradient elution with viscous mobile phases (e.g., high-ACN or TFA-containing buffers).
• Enabling robust method transfer between laboratories by minimizing environmental thermal influence.
• Supporting column lifetime extension through consistent thermal cycling and avoidance of thermal shock.
• Facilitating method development studies requiring systematic temperature ramping (e.g., van’t Hoff analysis for thermodynamic parameter estimation).

FAQ

Is the DT-230A compliant with 21 CFR Part 11 for electronic records?
No—the unit lacks audit trail functionality, electronic signatures, or secure user authentication. When deployed in regulated environments, temperature data must be captured externally using validated data loggers.
Can the DT-230A be used with UHPLC systems operating above 1000 bar?
Yes—its structural design and sealing integrity are pressure-agnostic; only column hardware and fittings determine maximum pressure compatibility.
Does the oven support external temperature probe input for chamber verification?
No—it relies solely on its internal sensor; independent verification requires calibrated external probes placed adjacent to the column during qualification.
What is the warm-up time from ambient to 60 °C?
Approximately 12 minutes under no-load conditions, per factory IQ report (test conducted per ASTM E2757-20).
Is calibration certificate included with shipment?
A factory-issued calibration report (traceable to national standards) is provided; full ISO/IEC 17025 certification requires third-party service.
