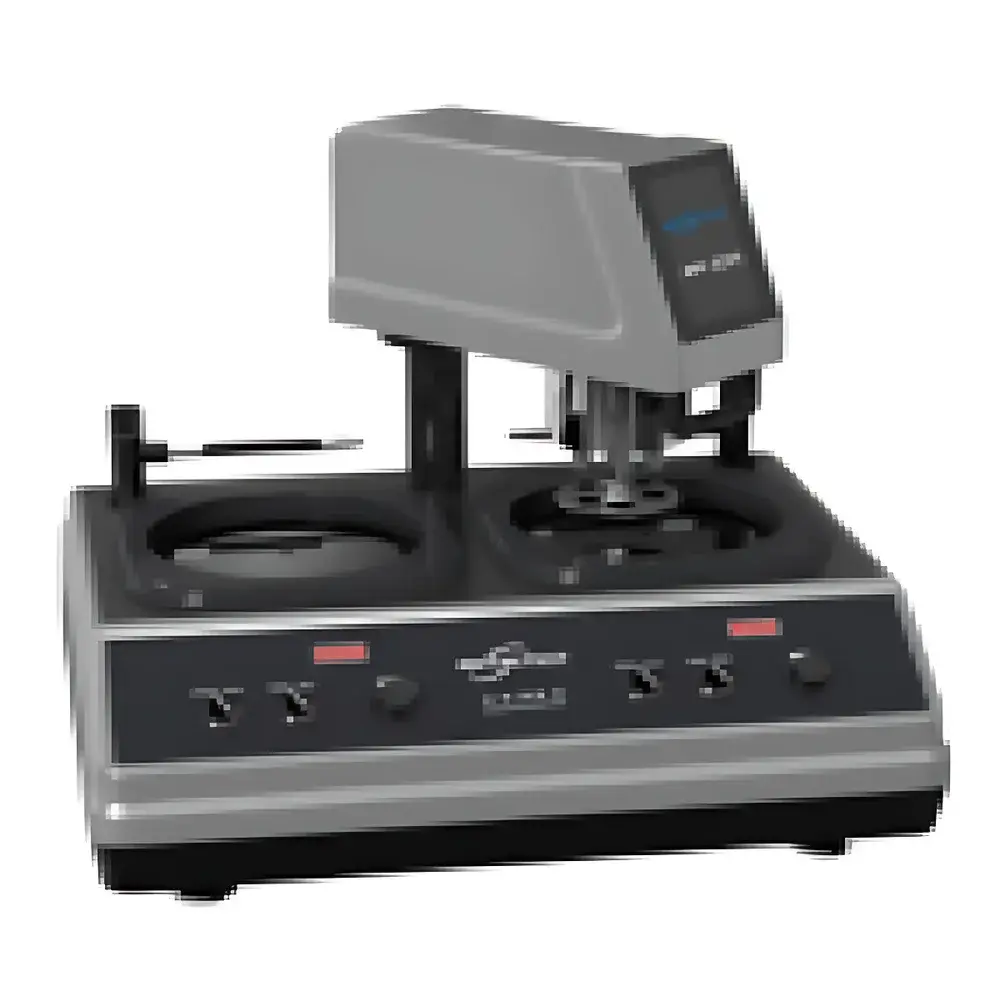

Dual-Disk Semi-Automatic Grinding and Polishing Machine WEIYEE MP-2DSH

Overview

The WEIYEE MP-2DSH Dual-Disk Semi-Automatic Grinding and Polishing Machine is engineered for precision sample preparation in metallurgical, ceramic, geological, and materials science laboratories. It operates on a dual-platen configuration with independent speed and directional control for each grinding/polishing station, enabling parallel processing of up to four specimens under identical or differentiated protocols. The machine employs conventional abrasive-based material removal principles—mechanical abrasion via rotating platens combined with controlled normal force—to achieve planarization, surface leveling, and progressive finish refinement from coarse grinding to final polishing. Its semi-automatic architecture integrates manual specimen loading/unloading with programmable rotational parameters, making it suitable for routine quality control workflows as well as research-grade microstructural analysis requiring high reproducibility.

Key Features

• Dual 200 mm (8″) grinding/polishing platens with fully independent speed control (50–1500 rpm), supporting simultaneous yet distinct operational profiles per disk.
• Adjustable mechanical pressure system for consistent normal load application across specimens—critical for minimizing edge rounding and subsurface damage during metallographic preparation.
• Polishing head rotation (20–120 rpm) with infinitely variable speed adjustment and forward/reverse polarity selection, facilitating optimized particle trajectory and uniform wear distribution on consumables.
• Reinforced plastic-steel composite housing ensures structural rigidity while providing electrical insulation and corrosion resistance in humid or chemically active lab environments.
• Single-phase 220 V AC power supply compatibility aligns with standard laboratory infrastructure in China and other 220–240 V regions, eliminating need for voltage conversion equipment.
• Integrated safety interlocks prevent operation when protective guards are disengaged, meeting basic IEC 61000-6-2 electromagnetic compatibility and EN 60204-1 machinery safety requirements.

Sample Compatibility & Compliance

The MP-2DSH accommodates standard metallographic mounts (30 mm, 40 mm, and 50 mm diameter) as well as larger custom substrates up to 200 mm in width. It supports all common abrasive media—including silicon carbide papers, diamond-impregnated pads, alumina suspensions, and colloidal silica slurries—across grit ranges from P80 to 0.02 µm. While the unit itself does not carry CE marking or UL certification, its design conforms to foundational principles outlined in ASTM E3-22 (Standard Guide for Preparation of Metallographic Specimens) and ISO 13075-1:2019 (Metallographic specimen preparation — Part 1: Grinding and polishing). Laboratories implementing GLP or ISO/IEC 17025-compliant workflows may validate method performance using documented SOPs covering platen speed, dwell time, pressure setting, and coolant flow rate.

Software & Data Management

As a semi-automatic instrument, the MP-2DSH does not incorporate embedded microprocessor control or digital data logging. All operational parameters—including platen speed, polishing head speed, rotation direction, and pressure setting—are configured manually via calibrated dials and mechanical levers. This analog interface ensures long-term reliability, minimal maintenance, and immunity to firmware obsolescence. Users maintain traceability through handwritten or LIMS-integrated logbooks recording batch ID, specimen number, abrasive type, duration per step, and observed surface condition. For labs requiring audit-ready documentation, integration with external timers and calibrated torque wrenches is recommended to support FDA 21 CFR Part 11-aligned recordkeeping where electronic signatures and change tracking are mandated.

Applications

• Routine metallographic specimen preparation for optical and electron microscopy (SEM/TEM) in foundries, heat treatment facilities, and failure analysis labs.
• Preparation of ceramic composites and sintered powders for grain size distribution analysis per ASTM C1327-20.
• Surface conditioning of geological thin sections prior to petrographic examination or X-ray fluorescence mapping.
• Controlled planarization of semiconductor packaging substrates and PCB cross-sections for solder joint integrity assessment.
• Standardized grinding/polishing of polymer blends and reinforced thermoplastics for tensile fracture surface evaluation.

FAQ

Is the MP-2DSH compatible with water-based coolants and oil-based lubricants?
Yes—the platen assembly and base structure are sealed against splash ingress, permitting use with aqueous coolants, glycol-based fluids, and light mineral oils commonly employed in metallography.
Can the two platens operate at different speeds simultaneously?
Yes—each platen features an independent speed control dial, allowing differential rotation for comparative studies (e.g., optimizing one disk for grinding while the other performs final polishing).
What is the maximum recommended operating time per cycle?
Continuous operation is rated for up to 60 minutes per session; extended use beyond this requires a 15-minute thermal cooldown period to maintain bearing longevity and motor efficiency.
Does the machine include consumables or mounting accessories?
No—the MP-2DSH is supplied as a bare platform; holders, specimen mounts, abrasive papers, and polishing cloths must be selected and procured separately based on application requirements.
Is technical support available outside mainland China?
WEIYEE provides remote troubleshooting guidance and English-language operation manuals; local service partnerships are coordinated through authorized regional distributors listed on the official WEIYEE website.
