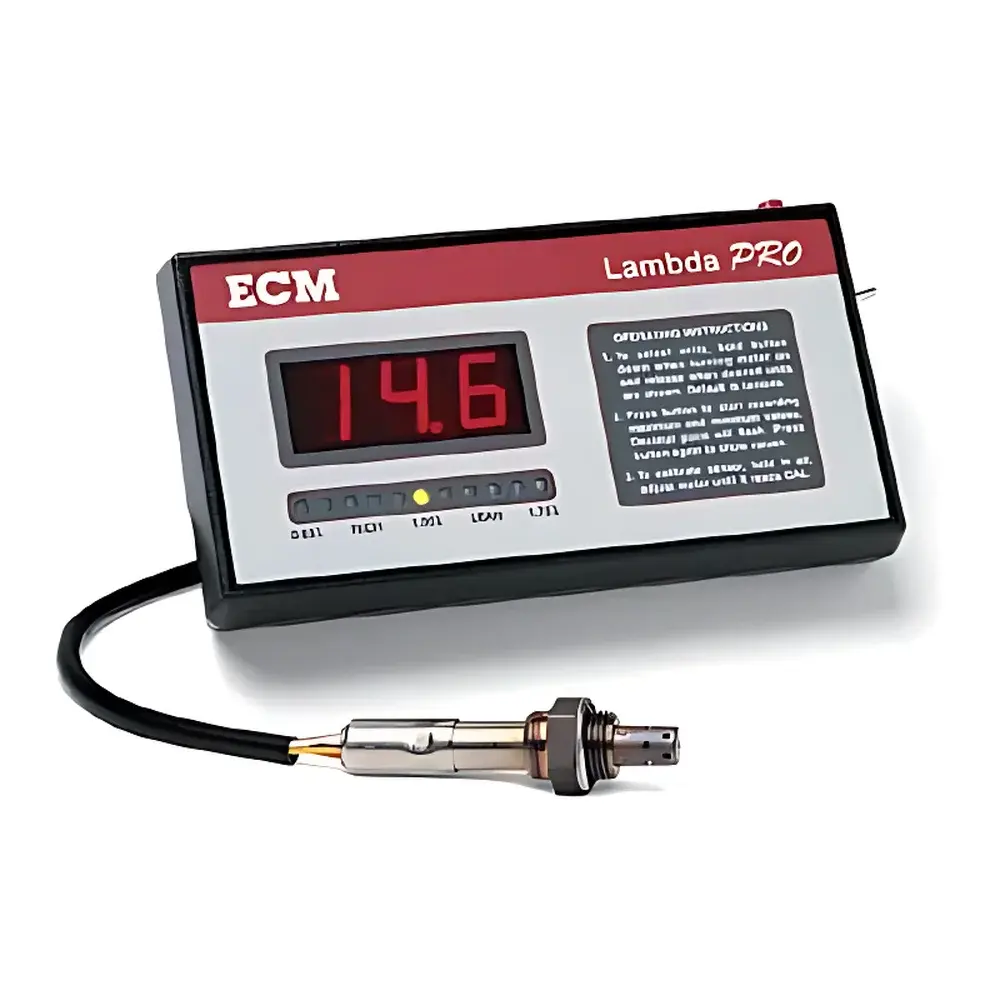

ECM Lambda PRO Portable Air-Fuel Ratio Analyzer
| Brand | ECM |
|---|---|
| Origin | USA |
| Model | Lambda PRO |
| Instrument Type | Portable |
| Detection Principle | Electrochemical Sensor (NTK Wideband) |
| Measurement Range | AFR 8.0–25.5 |
| Accuracy | ±1% of stoichiometric value, ±2% for non-stoichiometric conditions |
| Response Time | <150 ms |
| Calculation Interval | 2 ms |
| Fuel Compatibility | Gasoline, Methanol, and other combustible fuels (with appropriate sensor calibration) |
| Analog Output | Linearized 0–5 V DC, BNC female connector |
| SEGO Sensor Interface | Supported |
| Data Logging | Min/Max AFR and λ values |
| Power Supply | 11–28 VDC |
| Dimensions | 190.5 × 101.6 × 30.5 mm (W × H × D) |
| Weight | 340 g |
Overview
The ECM Lambda PRO Portable Air-Fuel Ratio Analyzer is an industrial-grade electrochemical measurement system engineered for real-time, high-fidelity air-fuel ratio (AFR) and equivalence ratio (λ) monitoring in internal combustion engine development, emissions verification, and field-based exhaust diagnostics. Built around the NTK wideband zirconia oxygen sensor platform, the Lambda PRO operates on dual-cell electrochemical pump cell technology—where one cell maintains a reference oxygen partial pressure while the second pumps oxygen ions across a solid electrolyte to sustain stoichiometric equilibrium. This closed-loop control enables precise quantification of oxygen concentration in exhaust gas streams, from rich (λ 1.0) conditions, with direct linear conversion to AFR values across gasoline, methanol, and other hydrocarbon or oxygenated fuel blends. Its compact form factor and robust 11–28 VDC power architecture make it suitable for integration into dynamometer test cells, mobile emissions audits, and onboard vehicle validation platforms.
Key Features
- True wideband electrochemical sensing using NTK-certified dual-cell zirconia sensor technology
- Real-time AFR and λ calculation at 500 Hz sampling rate (2 ms computation interval)
- Linearized 0–5 V analog output with BNC female connector for seamless integration with DAQ systems, ECUs, and oscilloscopes
- On-device min/max AFR and λ capture with non-volatile memory retention
- Field-configurable fuel type selection (gasoline, methanol, ethanol, propane, natural gas) via front-panel interface
- Rugged aluminum enclosure rated for automotive under-hood ambient conditions (–20 °C to +70 °C operating range)
- Integrated SEGO-compatible sensor interface for plug-and-play compatibility with industry-standard wideband controllers
Sample Compatibility & Compliance
The Lambda PRO supports exhaust gas analysis across certified and non-certified fuel types—including ASTM D4814 gasoline, ASTM D5798 methanol blends, and ISO 8583-compliant alternative fuels—when paired with appropriate sensor calibration files. It complies with SAE J1979 OBD-II diagnostic readiness requirements for lambda monitoring and meets electromagnetic compatibility (EMC) standards per CISPR 25 Class 3 for automotive electronic components. While not a certified emissions compliance instrument per EPA 40 CFR Part 1065 or EU Regulation (EU) 2017/1151, its measurement traceability aligns with ISO/IEC 17025 principles when used within laboratory-controlled validation workflows. The device supports GLP-aligned data integrity through timestamped min/max logging and does not include FDA 21 CFR Part 11 electronic signature functionality.
Software & Data Management
The Lambda PRO operates as a standalone hardware sensor interface without proprietary PC software dependency. All configuration and status monitoring occur via LED indicators and tactile button navigation. Analog output signals are fully compatible with third-party data acquisition systems supporting 0–5 V single-ended input (e.g., National Instruments CompactDAQ, Dewesoft X, or Keysight DAQ970A). For long-term trend analysis, users may route the analog signal into time-synchronized logging platforms that support CSV export, FFT spectral analysis, and statistical post-processing (mean, standard deviation, peak hold). No firmware updates or driver installation is required; device behavior remains invariant across operating environments due to fixed-function embedded firmware architecture.
Applications

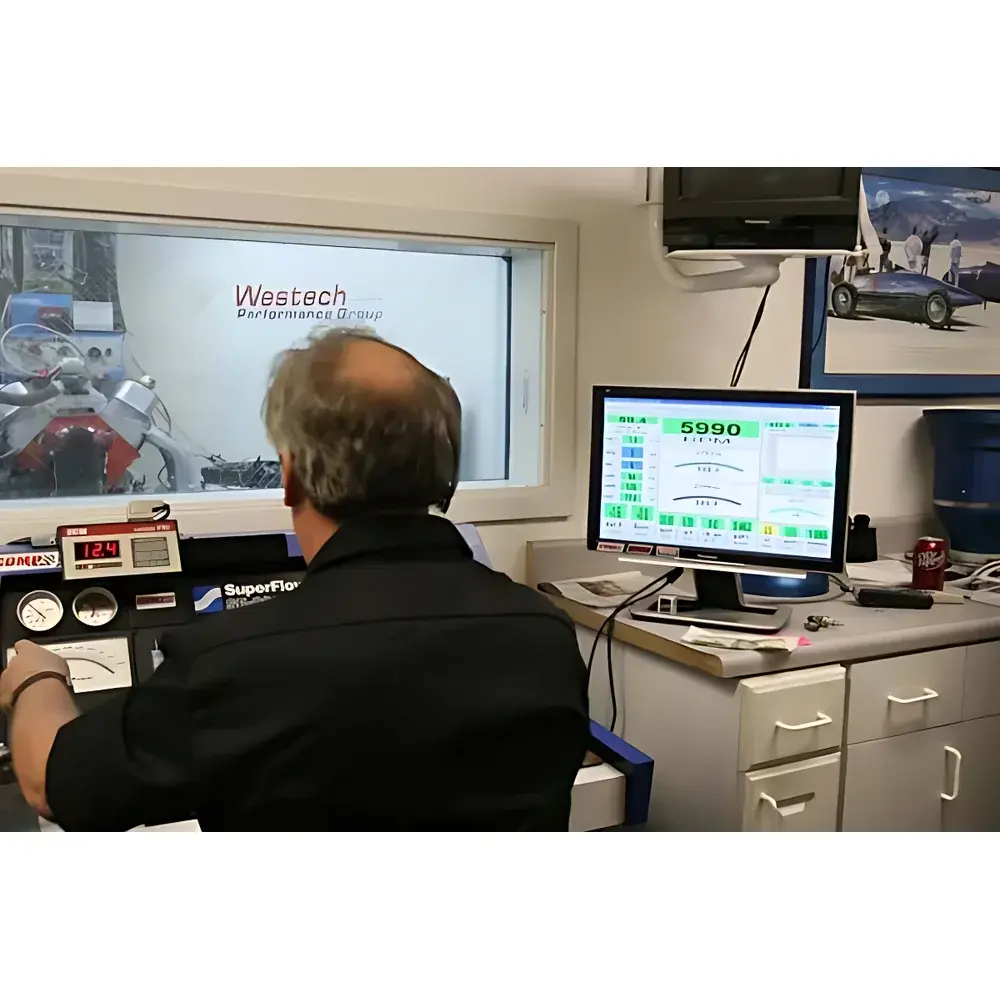

- Engine calibration and ECU mapping during steady-state and transient dynamometer testing
- Aftertreatment system efficiency evaluation (e.g., three-way catalyst light-off characterization)
- Fleet-level exhaust screening for combustion optimization and misfire detection
- Academic research on alternative fuel combustion kinetics and lambda-dependent NOx/soot trade-offs
- Mobile source emissions auditing in accordance with local air quality management protocols
- Technical training labs for automotive engineering curricula requiring hands-on lambda diagnostics
FAQ
Does the Lambda PRO require periodic sensor recalibration?
Yes—NTK wideband sensors exhibit gradual drift over extended exposure to high-temperature exhaust environments. ECM recommends full system calibration every 100 hours of cumulative operation or prior to critical test campaigns.
Can the Lambda PRO be used with diesel engines?
It is not recommended for raw diesel exhaust due to soot loading and unburned hydrocarbon interference; however, it may be deployed downstream of particulate filters or in dual-fuel (diesel-gasoline) mode with appropriate dilution and filtration.
Is the 13-foot cable shielded and rated for high-EMI environments?
Yes—the standard cable uses twisted-pair, foil-shielded construction meeting SAE J1113/11 immunity specifications for automotive test equipment.
What is the expected service life of the NTK sensor under continuous use?
Typical operational lifespan is 1,500–2,000 hours at exhaust temperatures below 750 °C; exposure above 800 °C significantly reduces longevity.
Does the device support CAN bus output?
No—Lambda PRO provides analog-only output. For digital communication, users must integrate external analog-to-CAN converters compliant with SAE J1939 or ISO 15765-2 protocols.
