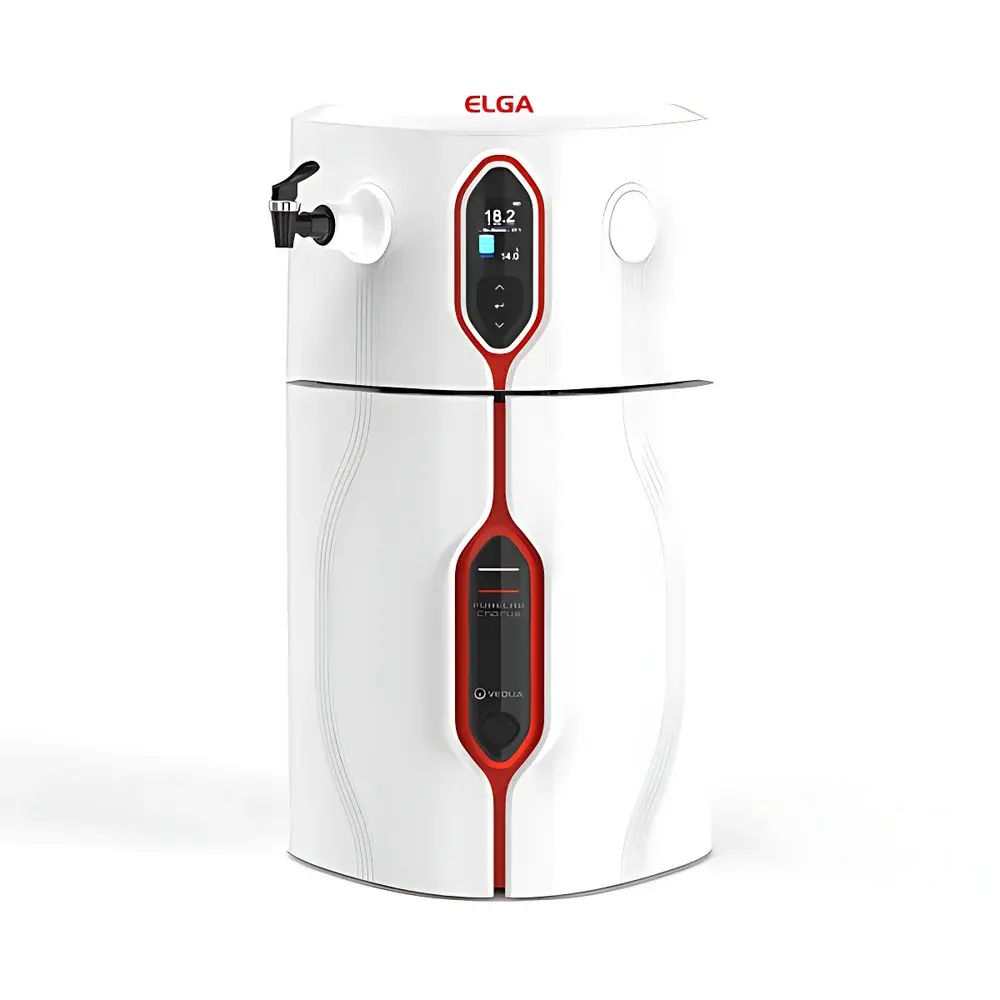

ELGA PURELAB Chorus 1 Complete Ultra-Pure Water System

Overview

The ELGA PURELAB Chorus 1 Complete is a fully integrated, modular ultra-pure water system engineered for laboratories requiring continuous, on-demand production of Type I ultrapure water directly from municipal tap feedwater. Utilizing a multi-stage purification architecture—including pretreatment, reverse osmosis (RO), electrodeionization (EDI), dual-wavelength UV oxidation (185/254 nm), and final polishing via ultra-low leaching ion-exchange and 0.1 µm membrane filtration—the system consistently delivers water meeting or exceeding ASTM D1193-20 Type I, ISO 3696:1987 Class 1, and CLSI EP22-A2 specifications. Its closed-loop recirculation design ensures stable resistivity of 18.2 MΩ·cm at 25 °C across all flow rates and storage conditions. The system operates without external pressurization or booster pumps, relying on gravity-fed distribution and intelligent pressure management to maintain laminar flow and minimize microbial adhesion.

Key Features

• Modular, space-optimized footprint: Front-access service doors and wall-mountable or under-bench installation capability reduce laboratory spatial demand by up to 40% compared to conventional tower-style systems.
• Dynamic recirculation architecture: Continuous circulation through the integrated storage tank—available in 15 L, 30 L, 60 L, and 100 L configurations—prevents stagnation and maintains TOC <5 ppb and endotoxin levels <0.001 EU/mL even during extended idle periods.
• Halo dispensing ecosystem compatibility: Supports up to four independent Halo dispensers (Halo Basic, Halo Advanced, Halo Flex) connected via dedicated Ethernet or USB-C interfaces; enables location-flexible point-of-use delivery without compromising purity integrity.
• Quantitative dispensing precision: Programmable volume delivery from 50 mL to 60 L per cycle, with flow rate control ranging from dropwise (0.5 mL/min) to 2 L/min; optional footswitch and handheld Halo Flex operation support ergonomic, hands-free workflows.
• Comprehensive data governance: Onboard USB port enables secure export of full audit trails—including conductivity, TOC, UV absorbance, flow logs, and cartridge life metrics—for IQ/OQ/PQ validation and 21 CFR Part 11–compliant record retention.
• Regulatory-ready construction: Compliant with IEC/EN 61010-1, UL 61010-1, WEEE Directive 2012/19/EU, and RoHS Directive 2011/65/EU; CE-marked and ETL-verified for electrical safety and EMC performance.

Sample Compatibility & Compliance

The PURELAB Chorus 1 Complete is validated for use in applications demanding the highest water purity tiers, including HPLC mobile phase preparation, LC-MS solvent formulation, cell culture media supplementation, molecular biology reagent synthesis (e.g., PCR, qRT-PCR), and trace metal analysis (ICP-MS, GF-AAS). All wetted materials—including fluid path tubing (EPDM-free, USP Class VI-certified fluoropolymer), tank linings, and filter housings—are selected for minimal extractables and leachables. The system conforms to GLP/GMP-relevant documentation standards and supports full traceability via factory-issued Certificate of Conformance (CoC), optional ELGA Performance Qualification (PQ) kits, and third-party calibration certificates traceable to NIST standards.

Software & Data Management

System operation and diagnostics are managed via an embedded touchscreen interface with intuitive icon-driven navigation. Real-time monitoring includes resistivity, TOC, UV transmittance at 254 nm, temperature-compensated conductivity, and cumulative flow volume. All operational parameters are timestamped and stored locally for ≥12 months. USB export functionality permits offline review of trend data, alarm history, and maintenance logs—enabling seamless integration into laboratory information management systems (LIMS) or electronic lab notebooks (ELN). Optional ELGA Connect software provides remote system status viewing, predictive cartridge replacement alerts, and automated report generation aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 requirements for audit-ready documentation.

Applications

• High-sensitivity analytical instrumentation: GC-MS, LC-MS/MS, ICP-OES, and ICP-MS require ultrapure water with sub-ppb metal and organic contamination to prevent column fouling, detector drift, and spectral interference.
• Cell and tissue culture: Endotoxin-free (<0.001 EU/mL) and low-nucleases water minimizes immune activation and supports reproducible proliferation assays and stem cell differentiation protocols.
• Genomics and proteomics: Low TOC and absence of DNase/RNase activity ensure fidelity in next-generation sequencing library prep and mass spectrometry-based protein identification.
• Pharmaceutical QC/QA: Meets USP Purified Water and Water for Injection (WFI) ancillary requirements for buffer preparation, equipment rinsing, and reference standard dilution.
• Calibration and reference material preparation: Certified stability of 18.2 MΩ·cm resistivity over time enables reliable instrument calibration across pH meters, conductivity probes, and ion-selective electrodes.

FAQ

What is the minimum inlet water quality required for optimal Chorus 1 Complete performance?
Municipal tap water meeting local potable standards (typically <200 ppm total dissolved solids, <1 ppm free chlorine, and <0.1 ppm iron) is sufficient. Integrated pretreatment modules condition feedwater to protect RO and EDI stages.
Can the system be validated for GMP environments?
Yes. The Chorus 1 Complete supports full IQ/OQ/PQ execution using ELGA’s documented protocols, and its data logging architecture satisfies 21 CFR Part 11 requirements when paired with ELGA Connect software and appropriate user access controls.
How often must consumables be replaced?
Cartridge replacement intervals are dynamically calculated based on real-time usage metrics; typical lifespans range from 6–12 months for RO membranes and 12–24 months for polishing cartridges, depending on feedwater composition and daily throughput.
Is remote monitoring supported?
Remote status viewing is enabled via ELGA Connect (optional subscription); however, remote control functions are intentionally disabled to preserve system integrity and regulatory compliance.
Does the system include microbiological control measures beyond filtration?
Yes. Dual-wavelength UV (185 nm for TOC oxidation + 254 nm for germicidal action), recirculating loop design with turbulent flow >0.9 m/s, and sterile vent filters with hydrophobic PTFE membranes collectively suppress biofilm formation and maintain microbial counts below 1 CFU/100 mL.
