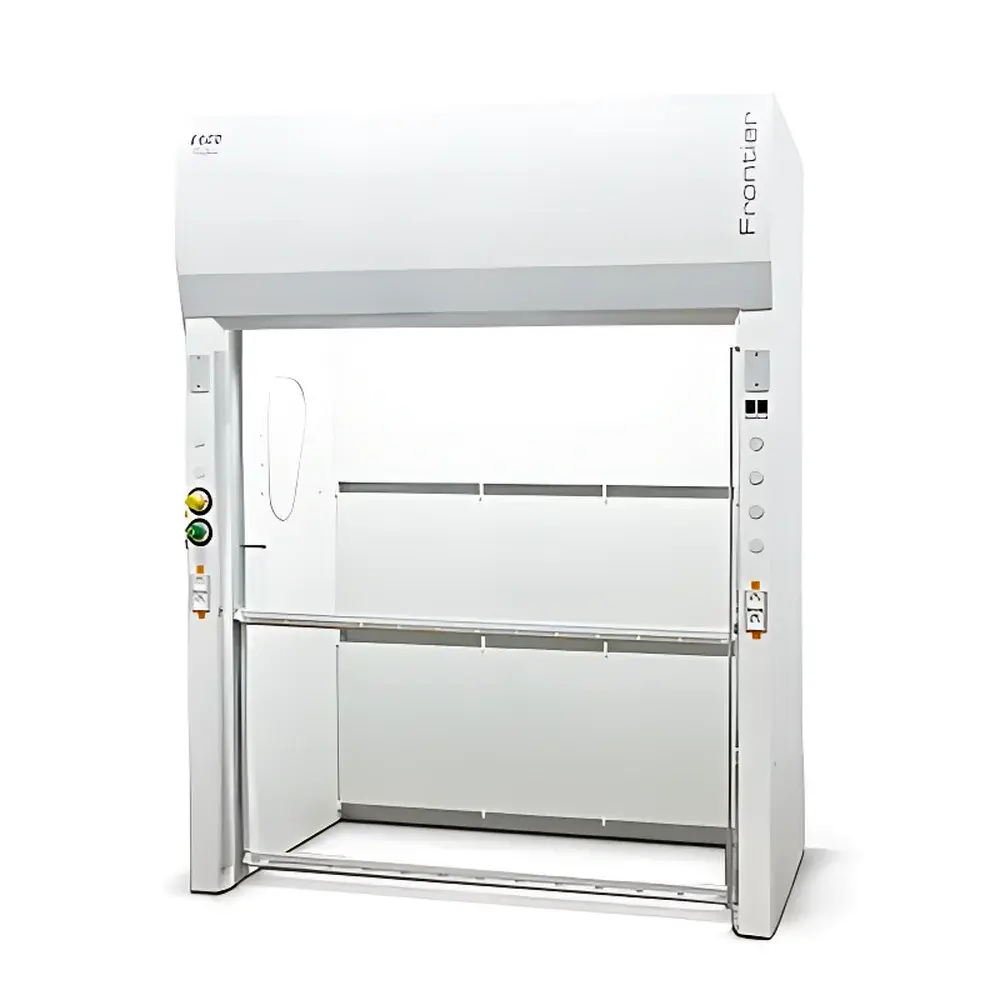

Esco Frontier Floor-Mounted Walk-In Fume Hood

Overview

The Esco Frontier Floor-Mounted Walk-In Fume Hood is an engineered solution for laboratories requiring safe, ergonomic handling of oversized equipment, large-scale chemical processes, or hazardous containment operations where standard benchtop fume hoods are physically or functionally inadequate. Designed as a floor-mounted, walk-in enclosure—not a “walk-in” in the colloquial sense—the unit enables personnel to enter the workspace only during setup, maintenance, or instrument loading; operation with personnel inside is strictly prohibited under any condition involving hazardous vapors, aerosols, or unknown emissions, per ASHRAE 110 and EN 14175 safety protocols. Its aerodynamic architecture leverages laminar airflow principles and optimized face velocity distribution (0.3 m/s minimum operational setpoint) to achieve high containment efficiency without excessive exhaust demand—reducing energy consumption while maintaining compliance with international laboratory ventilation standards.

Key Features

• Triple-wall cabinet construction using galvanized steel with ISOCIDE™ epoxy-polyester hybrid powder coating for structural rigidity, corrosion resistance, and microbial inhibition.
• Aerodynamically profiled baffle system positioned near the work surface to ensure uniform, low-turbulence inflow across the entire sash plane—minimizing eddy formation and preventing backflow of contaminants.
• Vertically or horizontally sliding sash assembly made of laminated tempered glass with aluminum framing—enabling unobstructed access for large apparatus insertion and precise positioning.
• Integrated lighting system featuring instant-start electronic-ballast fluorescent lamps delivering ≥1076 lux (≥100 foot-candles) at the work surface under ambient-free conditions.
• 5° forward-tilt design of the front fascia improves operator ergonomics and visual alignment with the sash opening, reducing neck strain during extended use.
• Modular baffle configuration allows full removal for thorough internal cleaning and routine maintenance without disassembly of structural components.
• Hinge-based sash mechanism engineered for long-term reliability with minimal service intervals and field-replaceable wear parts.

Sample Compatibility & Compliance

The Esco Frontier is certified to UL 1805 (Standard for Laboratory Hoods) and tested per ASHRAE 110:1995 and EN 14175 Parts 1–3 for containment performance, airflow uniformity, and structural integrity. While base configurations carry full UL listing, certain customizations—including non-standard electrical configurations, integrated scrubber modules, or site-specific ductwork interfaces—may fall outside the scope of the original UL label and require third-party verification prior to commissioning. The hood meets GLP/GMP-aligned installation and validation requirements when deployed with optional Esco Sentinel XL™ controller (supporting audit-trail-capable data logging per FDA 21 CFR Part 11). It is suitable for handling volatile organic compounds (VOCs), acidic digestions, solvent-based extractions, and low-to-moderate toxicity particulates—provided appropriate exhaust routing, filtration, and local exhaust ventilation (LEV) integration are implemented.

Software & Data Management

When equipped with the Esco Sentinel XL™ microprocessor-based controller (optional), the Frontier integrates real-time monitoring of face velocity, sash position, alarm status, and runtime diagnostics. The system supports configurable threshold alerts (e.g., face velocity < 0.3 m/s), event-driven logging with time/date stamps, and exportable CSV reports for regulatory review. All data entries include user ID tagging and tamper-resistant timestamps—enabling traceability required under ISO/IEC 17025 and pharmaceutical quality systems. No cloud connectivity is embedded by default; local network integration via RS-485 or Modbus RTU is available for centralized building management system (BMS) interfacing.

Applications

• Large-scale acid digestion systems for ICP-MS or AAS sample preparation.
• Installation and servicing of analytical instruments such as FTIR spectrometers, XRD units, or robotic liquid handlers requiring physical access to rear panels.
• Containment of high-volume solvent transfers, distillation setups, or reaction vessels exceeding 50 L capacity.
• Pharmaceutical process development involving potent compound handling under OEL-controlled environments.
• University core facilities supporting multi-user instrumentation with variable workflow geometries.

FAQ

Is personnel entry permitted during active chemical operations?
No. Entry is restricted to non-hazardous setup, calibration, or maintenance tasks only. Continuous occupancy during emission-generating procedures violates ASHRAE 110, EN 14175, and institutional safety policies.
What is the minimum recommended face velocity for compliant operation?
0.3 m/s (60 fpm) is the validated lower limit for containment assurance under standardized test conditions. Higher velocities may be specified based on chemical hazard class or local authority requirements.
Can the Frontier be integrated with a central exhaust system?
Yes. Units are supplied with standard 300 mm (12″) or 350 mm (14″) exhaust collar options and support static pressure compensation up to ±150 Pa for stable performance in variable-demand HVAC environments.
Does Esco provide validation documentation for GxP environments?
Factory test reports per ASHRAE 110 and EN 14175 are included. IQ/OQ protocol templates and on-site qualification support are available through Esco’s Professional Services division.
Are custom dimensions supported?
Yes. Non-standard widths, depths, or height configurations can be engineered subject to structural integrity review and revised certification pathways.
