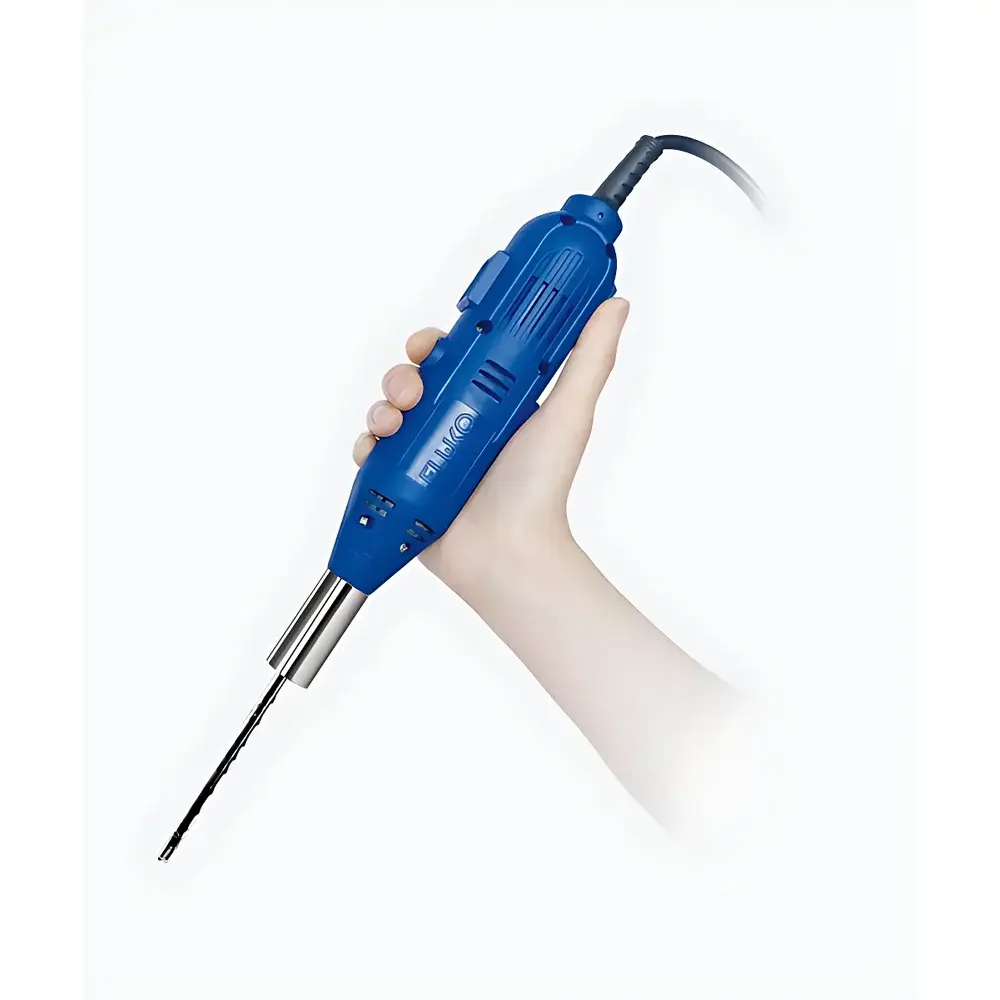

FLUKO F7 Handheld Homogenizer for Tissue Disruption, Microscale Dispersion, and Emulsification

Overview

The FLUKO F7 Handheld Homogenizer is an engineered solution for high-shear microscale sample preparation in life science and clinical laboratories. Based on rotor-stator principle, the device generates intense hydrodynamic shear forces through rapid rotation of a precision-machined polysulfone (PSU) probe within a fixed concentric sleeve—enabling efficient cell lysis, tissue homogenization, emulsion formation, and colloidal dispersion in volumes as low as 0.1 mL. Designed for ergonomic one-handed operation, the F7 delivers reproducible results across diverse biological matrices—including soft animal tissues, plant leaves, bacterial pellets, blood-derived samples, and viscous suspensions up to 200 cP—without requiring external cooling or vacuum assistance. Its compact footprint and lightweight construction (<0.85 kg) support benchtop flexibility and field-deployable use in biosafety cabinets, mobile diagnostic units, or point-of-care testing environments.

Key Features

• Continuously variable speed control (5,000–35,000 rpm) enables precise optimization of shear intensity for sensitive biomolecules or robust particulate systems.
• 7GP standard homogenizing probe fabricated from medical-grade polysulfone—chemically resistant, autoclavable (121 °C, 20 min), and compliant with ISO 10993-5 cytotoxicity requirements.
• Integrated thermal management system prevents motor overheating during extended operation; ambient operating range validated at 5–40 °C and ≤80% relative humidity.
• Low-volume processing capability (1–20 mL aqueous equivalent) supports resource-constrained workflows common in genomics, proteomics, and rapid diagnostics.
• Ergonomic handheld design with non-slip grip and balanced center of gravity reduces operator fatigue during repetitive batch processing.
• Modular accessory compatibility—including optional 12- and 24-unit probe packs—ensures traceability and eliminates cross-contamination in GLP-compliant workflows.

Sample Compatibility & Compliance

The F7 demonstrates broad compatibility with heterogeneous biological samples: mammalian liver/kidney tissue, rodent brain homogenates, leaf mesophyll extracts, microbial cultures (E. coli, yeast), whole blood lysates, and polymer-based nanoemulsions. All wetted components meet USP Class VI biocompatibility standards and are free of leachable heavy metals per ICH Q3D guidelines. The device is suitable for use in laboratories adhering to ISO/IEC 17025, CLIA, and CAP-accredited quality frameworks. While not certified for sterile manufacturing under GMP Annex 1, its design supports integration into FDA 21 CFR Part 11–aligned data capture when paired with validated digital loggers.

Software & Data Management

The FLUKO F7 operates as a standalone analog instrument without embedded firmware or digital interface. However, its continuously adjustable speed dial allows manual protocol replication with documented setpoints. For audit-ready documentation, users may pair the unit with external RPM meters (e.g., optical tachometers) and electronic lab notebooks (ELNs) that support timestamped entry of speed, duration, probe type, and sample ID. Traceable calibration of rotational speed can be performed quarterly using NIST-traceable reference standards, supporting internal QA/QC programs aligned with ISO/IEC 17025 clause 6.5.

Applications

• Routine homogenization of biopsy specimens prior to nucleic acid extraction or protein quantification (e.g., Western blot, ELISA).
• Preparation of uniform lipid nanoparticle (LNP) dispersions for mRNA formulation development.
• Disruption of Gram-negative bacteria for periplasmic protein recovery without sonication-induced denaturation.
• Generation of stable oil-in-water emulsions for cosmetic stability testing or food-grade ingredient characterization.
• Fragmentation of fibrous plant material (e.g., cellulose-rich stems) for metabolomic profiling via LC-MS.
• Standardized sample prep in public health labs conducting pathogen detection (e.g., SARS-CoV-2 RNA isolation from nasopharyngeal swabs).

FAQ

Is the F7 suitable for sterilization by autoclaving?
Yes—the 7GP polysulfone probe and shaft assembly are rated for repeated autoclaving at 121 °C for 20 minutes. Do not autoclave the motor housing.
Can the F7 process samples containing abrasive particles?
Not recommended. Abrasive solids (e.g., silica beads, ground bone) may accelerate wear of the PSU probe surface and compromise shear consistency.
What is the minimum recommended sample volume for reliable homogenization?
For optimal vortex formation and probe submersion, a minimum working volume of 1.0 mL is advised. Sub-1 mL applications require specialized low-volume tubes and careful probe immersion depth control.
Does FLUKO provide validation documentation for the F7?
Factory test reports confirming speed accuracy (±3% full scale) and electrical safety (IEC 61010-1) are available upon request. Installation Qualification (IQ) templates can be supplied for lab-specific deployment.
How often should the 7GP probe be replaced?
Under typical usage (≤2 hrs/day, aqueous buffers), probe replacement is recommended every 6–12 months or after 500 autoclave cycles—whichever occurs first—to maintain consistent shear performance.
