GASTEC Gastec Tube-Type Gas Detector

Overview

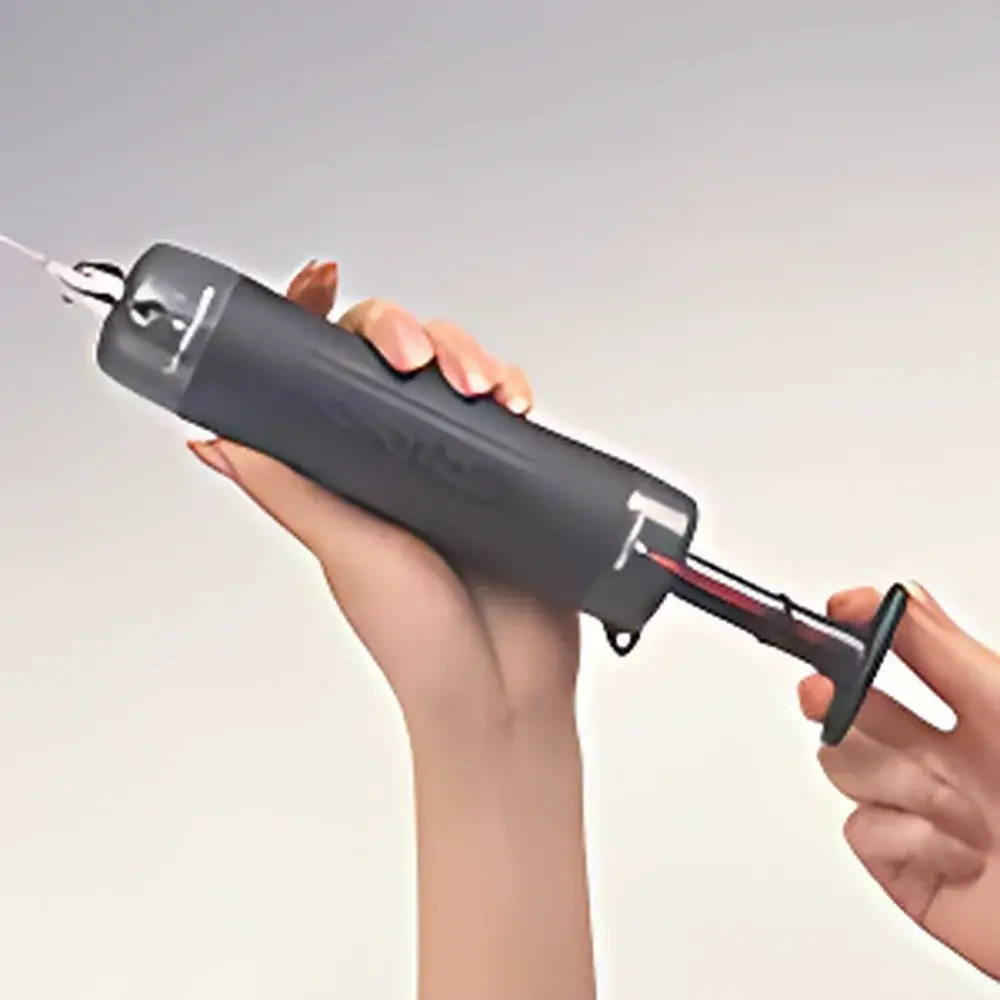

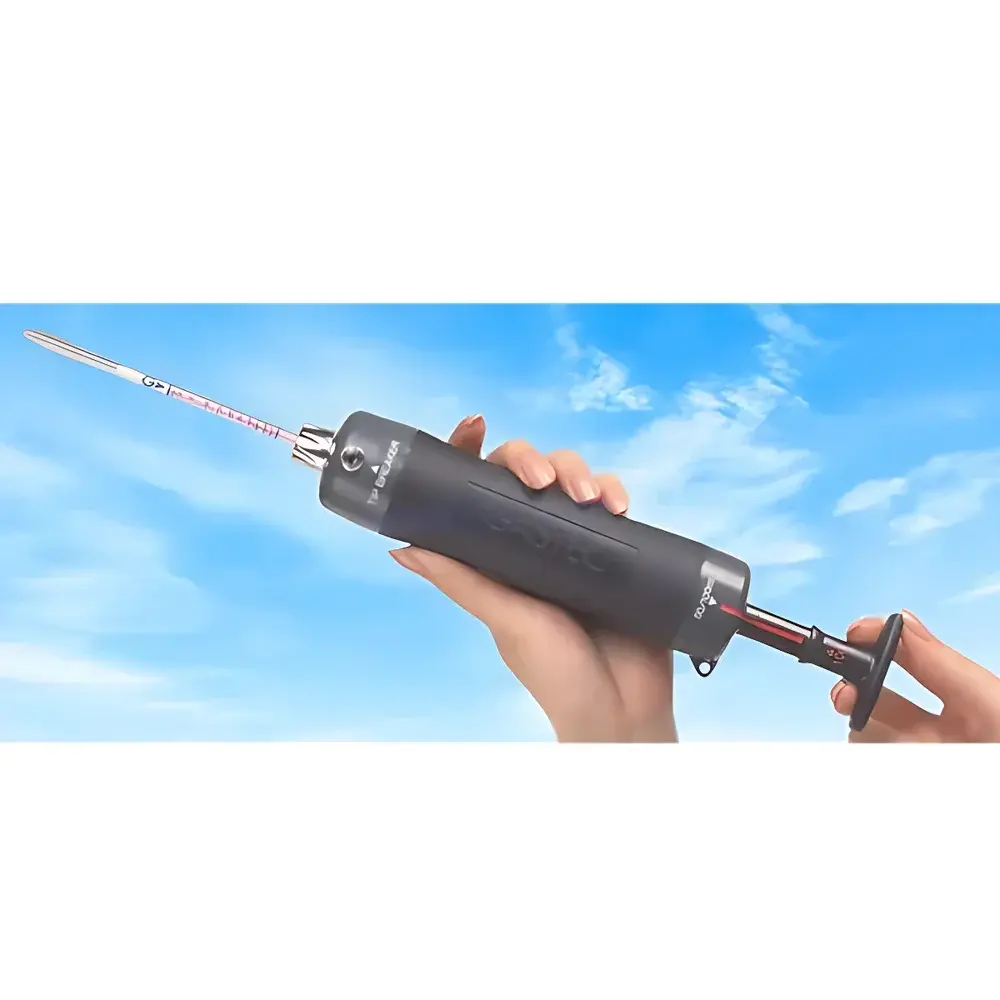

The GASTEC Tube-Type Gas Detector is a portable, qualitative-to-semiquantitative field instrument engineered for rapid on-site detection and concentration estimation of specific gases and vapors in ambient air. It operates on the principle of colorimetric chemical reaction: when a defined volume of sample gas is drawn through a sealed glass detection tube via a calibrated hand pump (gas sampler), target analytes react with immobilized reagents inside the tube, producing a visible color front. The length of the stained zone—measured directly against pre-etched linear or logarithmic calibration scales—is proportional to the gas concentration, enabling immediate visual interpretation without electronics or power supply. This method conforms to standardized colorimetric gas analysis principles referenced in ISO 8573-5 (for compressed air contaminants), ASTM D3612 (for hydrocarbon detection), and JIS K 0124 (Japanese Industrial Standard for gas detection tubes). Designed for industrial hygiene, confined space entry, emergency response, and environmental screening, the system delivers high reproducibility under field conditions where portability, speed, and operational simplicity are critical.

Key Features

• Field-deployable, battery-free operation requiring only manual actuation of the gas sampler
• Instant visual readout: concentration derived directly from stain length against printed scale (units: ppm, mg/m³, or % vol, model-dependent)
• Adjustable sampling volume (50 mL or 100 mL per stroke) enables dynamic range extension—e.g., dilution or enrichment strategies for low- or high-concentration targets
• Lot-specific calibration: each production batch undergoes laboratory verification against traceable reference standards; individual tube boxes include certified calibration curves and expiry dates
• Robust thermal and humidity tolerance: standard operating range of 0–40 °C and 0–90 % RH (non-condensing); select tubes support extended ranges—consult product-specific datasheets
• Integrated leak-check protocol: gas samplers include a built-in pressure-hold test function to verify piston seal integrity prior to sampling, ensuring volumetric accuracy per ISO 16000-23

Sample Compatibility & Compliance

The GASTEC system supports over 300 distinct gas-specific detection tubes, covering inorganic gases (e.g., CO, H₂S, Cl₂, NH₃, SO₂), organic vapors (e.g., benzene, formaldehyde, acetone, methanol), and combustion byproducts. Tubes are classified per EN 1231 (portable gas detection tubes) and comply with OSHA 29 CFR 1910.120 (HAZWOPER) requirements for preliminary hazard assessment. All tubes are manufactured in Japan under CORTEST’s ISO 9001-certified quality management system. Expiry dates are laser-printed on tube packaging; shelf life typically ranges from 18 to 36 months when stored at ≤25 °C in original foil wrapping. No regulatory approval is required for use as a screening tool; however, confirmatory analysis (e.g., GC-FID, FTIR) is recommended for compliance reporting under EPA Method TO-17 or ISO 16017-1.

Software & Data Management

This analog detection platform does not incorporate embedded software, digital interfaces, or data logging capabilities. Concentration values are recorded manually in field logs or electronic notebooks. For audit trail compliance in GLP/GMP environments, users may integrate readings into LIMS via structured templates. Traceability is maintained through lot-numbered tubes, calibrated samplers (certified annually per ISO/IEC 17025), and documented leak-check records. While not FDA 21 CFR Part 11 compliant per se, the system satisfies ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) when used with controlled documentation practices.

Applications

• Industrial hygiene surveys: real-time monitoring of workplace exposure limits (TLVs®, PELs)
• Confined space entry pre-testing (OSHA 1910.146)
• Leak detection in HVAC, refrigeration, and chemical handling systems
• Post-spill or fire scene reconnaissance for residual toxicants
• Educational demonstrations of gas diffusion, stoichiometry, and reaction kinetics
• Baseline environmental screening in soil vapor, indoor air, and wastewater treatment facilities

FAQ

How often must the gas sampler be calibrated?
Annual calibration by an ISO/IEC 17025-accredited laboratory is recommended; internal leak-check before each use satisfies daily verification.
Can detection tubes be reused?
No—each tube is single-use and chemically exhausted after one sampling cycle.
What defines the lower detection limit for a given tube?
It is determined by minimum discernible stain length (typically ≥2 mm) and stated in the tube’s technical sheet as LOD (Limit of Detection).
Are GASTEC tubes compatible with samplers from other manufacturers?
Only CORTEST-certified GASTEC samplers (e.g., #200, #201, #202) ensure precise stroke volume and pressure profile; cross-compatibility compromises accuracy.
How should expired tubes be disposed?
Treat as hazardous chemical waste per local regulations—reagents may contain heavy metals (e.g., PbO₂, CdSO₄) or reactive compounds.
