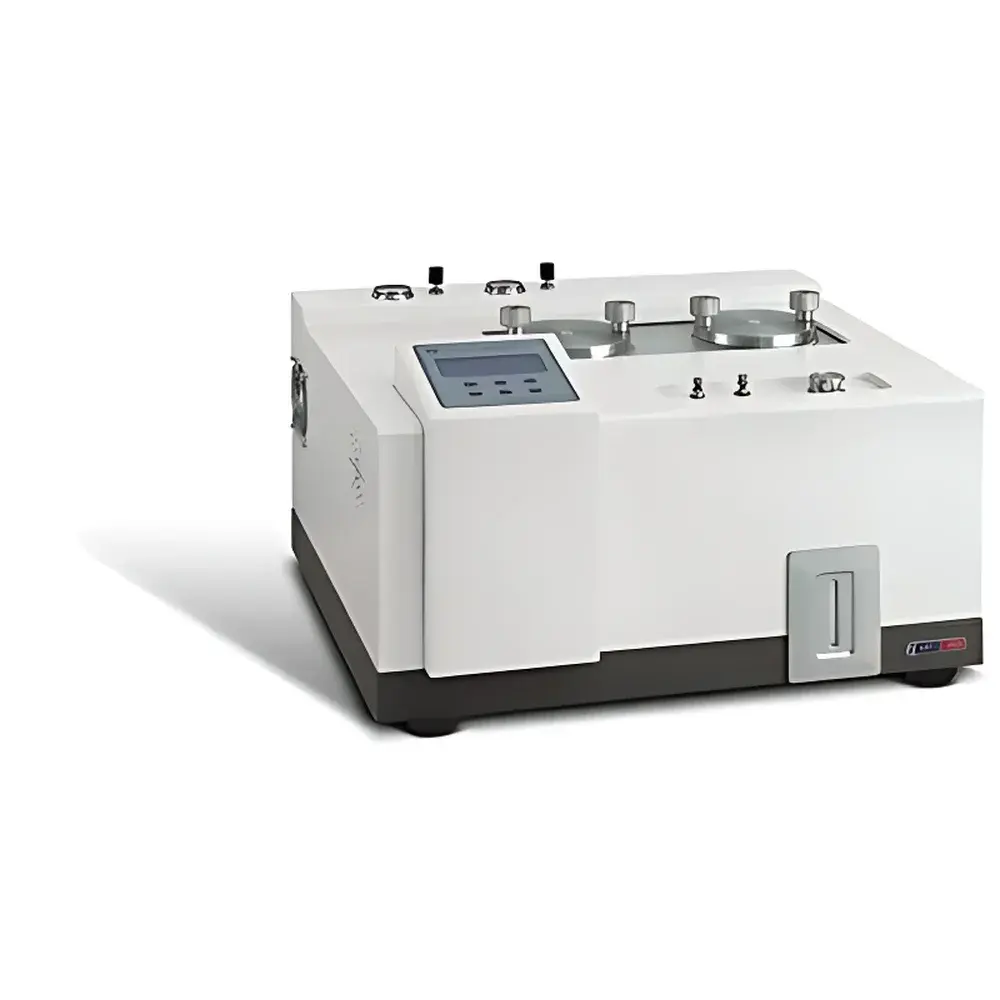

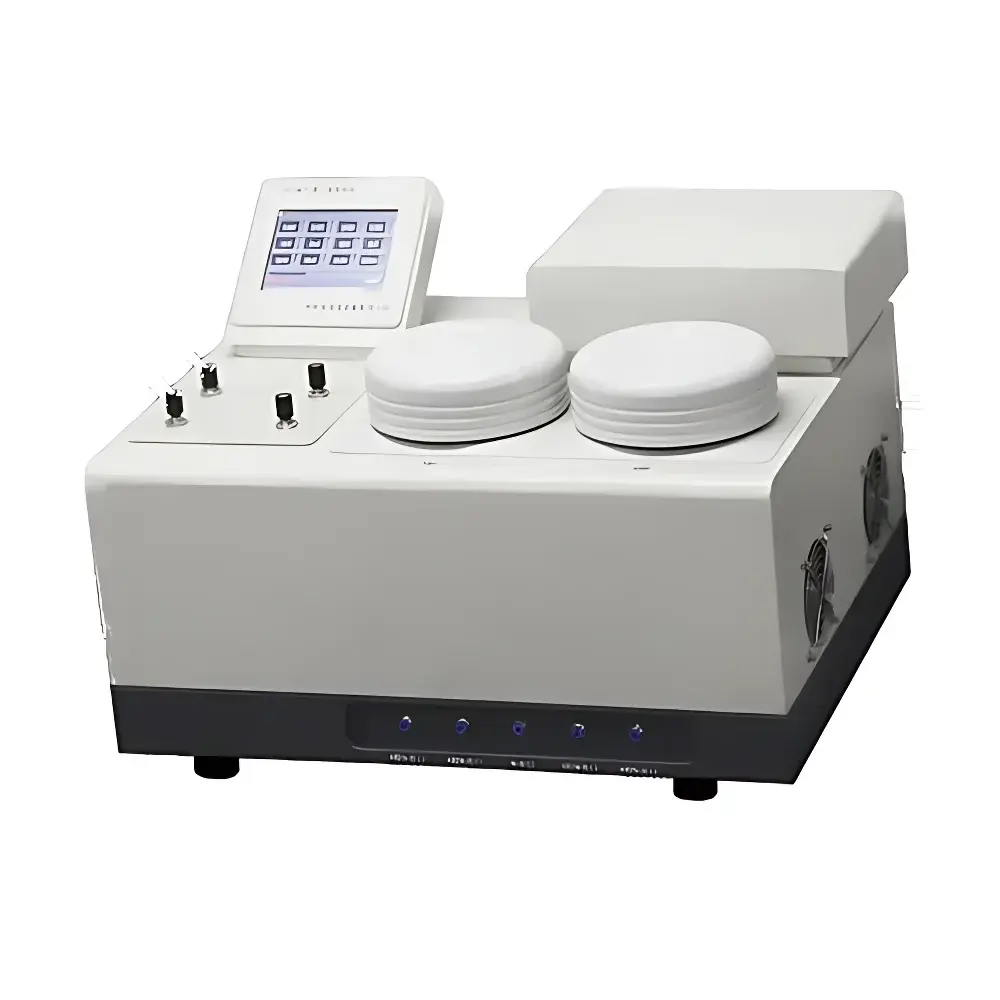

GBPI Y201D Oxygen Transmission Rate (OTR) Tester

Overview

The GBPI Y201D Oxygen Transmission Rate (OTR) Tester is a precision-manufactured differential pressure (manometric) permeation analyzer engineered for high-reproducibility gas barrier characterization of flexible packaging materials. It operates on the fundamental principle of Fickian diffusion under a controlled transmembrane partial pressure gradient: a conditioned specimen is sealed between two independent test chambers—high-pressure (supply) and low-pressure (measurement)—and the time-dependent pressure rise in the evacuated downstream chamber is measured via high-stability capacitance manometers. This quantitative pressure change, corrected for chamber volume, temperature, and gas compressibility, yields the steady-state oxygen transmission rate in standardized units (cm³/m²·day·0.1 MPa). The instrument supports multi-gas evaluation (O₂, CO₂, N₂) and is calibrated traceably to certified reference films per ISO 15105-1 and ASTM D1434 protocols. Its design prioritizes metrological integrity across wide dynamic ranges—from ultra-high-barrier pharmaceutical blister foils (10⁵ cm³/m²·day·0.1 MPa)—making it suitable for R&D, QC release testing, and regulatory submission support in food, pharma, and medical device sectors.

Key Features

• Patented dual-chamber architecture with optimized flow-path geometry to minimize boundary-layer effects and ensure uniform gas distribution across the test area.
• High-resolution capacitance-based pressure sensors (0.1 Pa resolution) coupled with real-time thermal compensation algorithms for drift-free long-duration measurements.
• Electromagnetic programmable temperature control system enabling precise ramping (0.1–5 °C/min), stabilization (±0.01 °C), and isothermal hold over 5–50 °C—fully compliant with ISO 2556 conditioning requirements.
• Integrated humidity control module (optional 5–100 %RH range) with dual-sensor feedback loop and ±2 %RH accuracy, supporting moisture-dependent barrier studies per ASTM F1249 and ISO 15105-2.
• Onboard 7-inch color LCD interface with simultaneous real-time display of OTR, chamber pressure, ΔP, temperature, and humidity—no external PC required for basic operation.
• Automated calibration routines including standard film verification (e.g., certified PET or AlOx reference films) and zero-pressure offset correction to maintain measurement traceability.
• Overpressure protection circuitry and vacuum interlock safeguards ensuring operational safety during extended unattended runs.
• Modular hardware design enabling field-upgradable gas modules (e.g., CO₂-specific sensor arrays) and future firmware enhancements without hardware replacement.

Sample Compatibility & Compliance

The Y201D accommodates flat, non-porous specimens up to 100 cm² active area—including monolayer and coextruded polymer films, metallized PET/PP laminates, aluminum foil composites, pharmaceutical blister lidding, IV bag substrates, and barrier-coated papers. Specimen thickness is unrestricted within mechanical clamping limits (typically ≤3 mm). All test methodologies adhere strictly to internationally recognized standards: ISO 2556:2001 (plastics—determination of oxygen transmission rate—manometric method), ISO 15105-1:2007 (plastics—film and sheeting—determination of gas-transmission rate—part 1: oxygen), GB/T 1038–2000 (Chinese national standard equivalent), ASTM D1434–82 (reapproved 2003), and YBB00082003 (Chinese pharmaceutical packaging standard). Data outputs include full audit trails, timestamped raw pressure logs, and certificate-ready reports aligned with GLP and FDA 21 CFR Part 11 requirements when used with validated software configurations.

Software & Data Management

The instrument integrates with GBPI’s proprietary OTR-Studio v4.x software suite (Windows 10/11 compatible), providing comprehensive data acquisition, visualization, and reporting capabilities. Functions include multi-curve overlay comparison, automatic baseline subtraction, non-linear regression fitting for transient-phase analysis, and customizable report templates compliant with ISO/IEC 17025 documentation frameworks. All measurement parameters—including environmental setpoints, sensor diagnostics, and calibration history—are embedded in exported .xlsx and PDF reports. Audit trail functionality records user login events, parameter modifications, and result approvals with electronic signatures. Raw binary data files (.gbp) are stored with SHA-256 checksums to ensure data integrity and support retrospective reprocessing without loss of fidelity.

Applications

• Quality control of primary packaging for sterile injectables, lyophilized products, and oxygen-sensitive biologics.
• Development of high-barrier pouches for snack foods, coffee, and pet food requiring shelf-life prediction modeling.
• Evaluation of water vapor–oxygen coupling effects in breathable medical packaging using synchronized RH-controlled OTR testing.
• Validation of plasma-enhanced chemical vapor deposition (PECVD) SiOₓ coatings on PET substrates.
• Comparative assessment of nanocomposite films containing layered silicates or graphene oxide fillers.
• Regulatory dossier preparation for USP , EP 3.2.1, and ICH Q5C stability protocol submissions.

FAQ

What gases can be tested besides oxygen?
The Y201D supports O₂, CO₂, and N₂ as standard test gases; additional gases may be enabled via sensor recalibration and gas-specific compressibility factor input.
Is the instrument compliant with 21 CFR Part 11 for electronic records?
Yes—when operated with validated OTR-Studio software and appropriate access controls, audit trails, and electronic signature workflows, it meets FDA 21 CFR Part 11 requirements for regulated environments.
Can the system perform accelerated aging correlation studies?
While not an aging chamber itself, the Y201D provides precise OTR data at multiple temperatures (5–50 °C), enabling Arrhenius modeling to predict shelf life under real-world storage conditions.
How often does the system require recalibration?
Annual traceable calibration against NIST-traceable reference films is recommended; internal zero-pressure and span checks should be performed before each test series.
Does the instrument support custom test protocols beyond standard methods?
Yes—advanced users can define custom ramp profiles, dwell times, and pass/fail criteria via scriptable test sequences in OTR-Studio.
