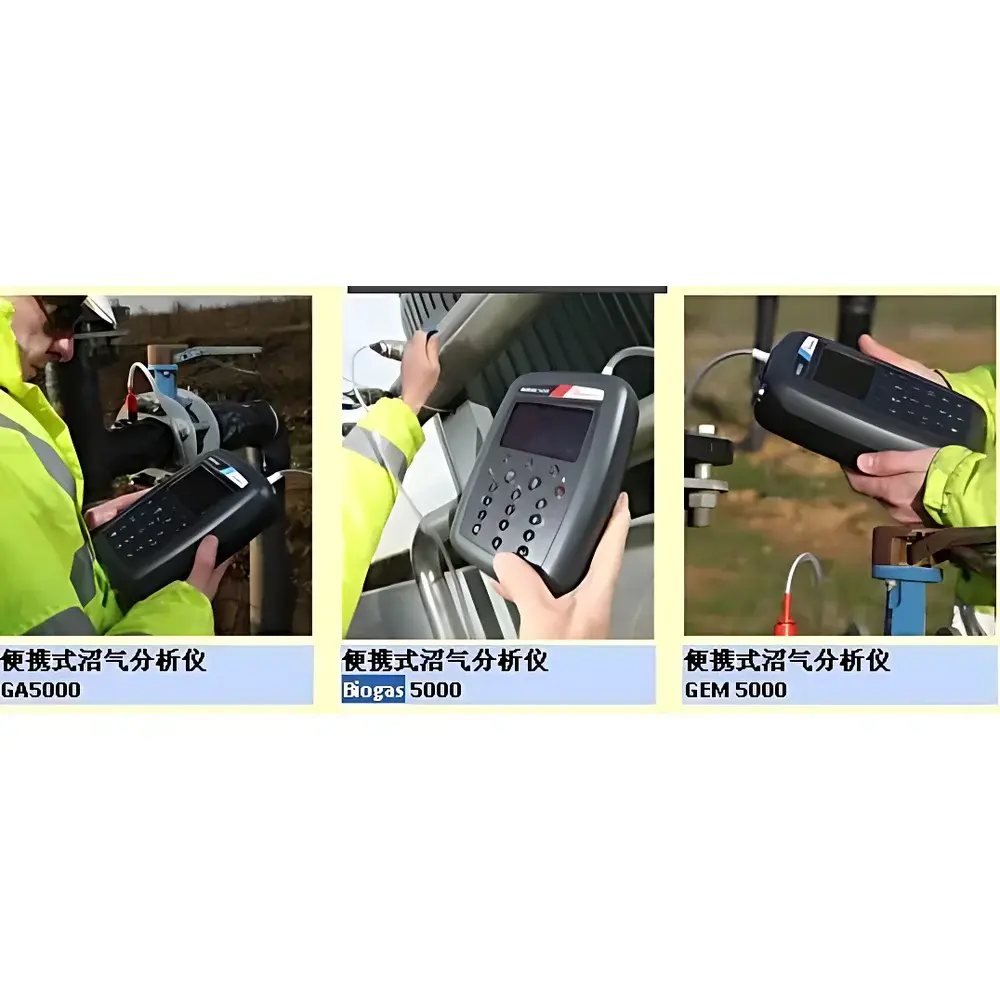

Geotech GA5000 Portable Biogas Analyzer

Overview

The Geotech GA5000 Portable Biogas Analyzer is an advanced, field-deployable gas measurement system engineered for high-accuracy, real-time analysis of biogas, landfill gas, and coal mine methane (CMM) streams. Built upon dual-channel non-dispersive infrared (NDIR) spectroscopy for CH₄ and CO₂, and temperature-stabilized electrochemical sensors for O₂, CO (with active H₂ compensation), H₂S, NH₃, and H₂, the GA5000 delivers metrologically traceable data compliant with environmental monitoring best practices. Its architecture follows ISO 17025–accredited principles under UKAS certification (No. 4533), ensuring analytical validity for regulatory reporting, process optimization, and emissions verification in accordance with EU Landfill Directive (1999/31/EC), US EPA Method TO-15 adjuncts, and IEC 61000-4 electromagnetic compatibility standards. Designed for operation across ambient temperatures from –10 °C to +50 °C and relative humidity up to 95% non-condensing, the instrument maintains measurement integrity under demanding site conditions without recalibration drift exceeding ±2% FS over 30-day intervals.

Key Features

• Dual NDIR channels optimized for CH₄ (0–100% vol) and CO₂ (0–100% vol), each with T₉₀ ≤10 seconds and accuracy of ±0.5% vol (0–70% CH₄; ±1.5% vol above 70%)
• H₂-compensated electrochemical CO sensor (0–2000 ppm) with cross-sensitivity to H₂ limited to ≤1% — critical for anaerobic digestion off-gas where H₂ may exceed 1000 ppm
• Modular sensor configuration: user-selectable H₂S ranges (0–500 / 0–5000 / 0–10,000 ppm) and NH₃ channel integration supported via factory calibration
• Integrated sample conditioning: 550 mL/min diaphragm pump with programmable flow fault detection (–200 mbar threshold), automatic restart at –375 mbar, and replaceable 2.0 µm PTFE particulate filter
• Onboard environmental sensing: calibrated temperature probe (–10 to +75 °C, ±0.5 °C), differential pressure transducer (±500 mbar, ±4 mbar), barometric pressure (500–1500 mbar, ±5 mbar), and optional GPS geotagging
• Ruggedized housing (ABS/PP-rubber composite) rated IP65, ATEX-certified for Zone 1 hazardous areas (II 2G Ex ib IIA T1 Gb), and validated for continuous 8-hour field operation on rechargeable NiMH battery pack

Sample Compatibility & Compliance

The GA5000 is validated for direct sampling of raw, humid, particulate-laden biogas streams without external conditioning—enabled by its heated sample path design, hydrophobic filtration, and corrosion-resistant internal wetted materials (e.g., gold-plated electrodes, PTFE-lined sensor chambers). It meets MCERTS performance requirements for continuous emission monitoring systems (CEMS) when deployed for landfill gas flare efficiency audits or AD plant feedstock characterization. Sensor calibrations are traceable to NPL (UK National Physical Laboratory) reference gases, and full audit trails—including calibration events, zero/span checks, and alarm logs—are retained in non-volatile memory (10,000 ID entries, 10,000 datasets, 10,000 event records) per IEC 62443-3-3 cybersecurity guidelines. The instrument supports GLP-compliant data export via USB or Bluetooth, with timestamped, digitally signed CSV files suitable for FDA 21 CFR Part 11–aligned workflows when paired with Geotech’s validated software suite.

Software & Data Management

• Geotech GasVision™ PC software (Windows 10/11) enables remote configuration, real-time telemetry display, and automated report generation in PDF/Excel formats
• Bluetooth 5.0 interface supports secure pairing with Android/iOS mobile devices for field data review and annotation
• All stored measurements include metadata: GPS coordinates, ambient temperature/pressure, battery voltage, pump status, and sensor health flags
• Calibration history is cryptographically signed and exportable as XML for third-party LIMS integration (e.g., LabWare, Thermo Fisher SampleManager)
• Firmware updates delivered via signed .bin packages with SHA-256 checksum verification to prevent unauthorized modification

Applications

The GA5000 serves as a primary analytical tool across multiple regulated and industrial domains: landfill gas collection system optimization (per EN 13640:2017); biogas upgrading plant inlet/outlet composition verification; anaerobic digester health monitoring (VFA prediction via CH₄/CO₂ ratio trends); coal mine ventilation air methane (VAM) abatement assessment; and fugitive emission surveys per ISO 16000-22. Its H₂S and NH₃ capability supports compliance with EU Industrial Emissions Directive (2010/75/EU) limits on acid gas co-emissions. Field technicians use its integrated flow meter (0–20 L/h, ±0.3 L/h low-end accuracy) to quantify wellhead extraction rates during routine monitoring campaigns—data directly usable in GHG inventory calculations aligned with IPCC 2006 Guidelines Tier 2 methodology.

FAQ

Does the GA5000 require daily calibration?
Zero and span checks are recommended before each deployment cycle; full multi-point calibration is required every 30 days or after exposure to >10,000 ppm H₂S or condensate ingress.

Can the instrument measure hydrogen sulfide at concentrations above 500 ppm?
Yes—select the 0–5000 ppm or 0–10,000 ppm H₂S sensor option at time of order; all variants maintain ±2.0% FS accuracy up to 5000 ppm, with ±5.0% FS above that range.

Is GPS data embedded in exported reports?
Yes—geotagged location (WGS84), altitude, and UTC timestamp are automatically appended to every measurement record when GPS is enabled and acquired.

What maintenance is required between uses?
Replace the 2.0 µm PTFE filter after 200 hours of cumulative sampling in dusty environments; inspect O₂ sensor (3-year nominal life) and H₂S sensor (2-year nominal life) using built-in diagnostic routines prior to critical missions.

How is data integrity ensured during power loss?
All measurements are written to flash memory with atomic commit protocols; unsaved data buffers are preserved across brownout events and restored on reboot without truncation or corruption.
