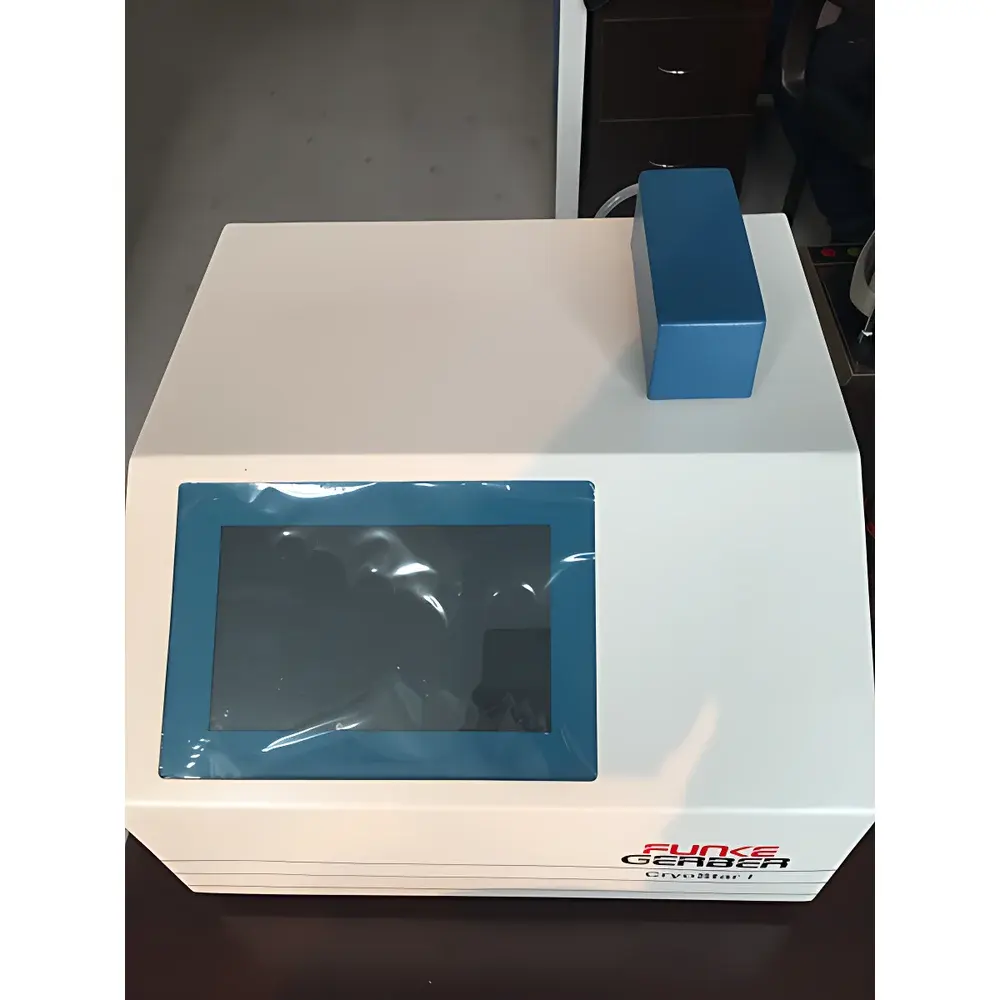

Gerber CryoStar I Milk Cryoscope

Overview

The Gerber CryoStar I Milk Cryoscope is a precision laboratory instrument engineered for the quantitative determination of milk freezing point depression—a thermodynamic colligative property directly correlated with total solute concentration. Based on the principle that the freezing point of aqueous solutions decreases linearly with increasing molal concentration of dissolved solids, the CryoStar I measures the exact temperature at which milk transitions from liquid to solid phase under controlled supercooling and controlled recrystallization conditions. In raw milk, the natural freezing point typically ranges between −0.533 °C and −0.516 °C; deviations toward higher (less negative) values indicate dilution with water, while abnormally low values may suggest addition of salts or other cryoscopic depressants. This method is internationally recognized as the reference analytical procedure for detecting water adulteration in milk, per ISO 5764:2022, IDF 109:2022, and AOAC Official Method 972.16.

Key Features

• High-resolution thermometry with ±0.0001 °C resolution (0.1 m°C), enabling detection of sub-millidegree shifts critical for regulatory compliance.
• Automated freeze-point detection algorithm incorporating dynamic supercooling control, nucleation triggering, and precise recrystallization plateau identification—minimizing operator dependency and inter-laboratory variability.
• Dedicated refrigeration module optimized for ambient stability: achieves operational thermal equilibrium within ≤15 minutes even at 35 °C ambient, ensuring consistent performance across diverse climatic lab environments.
• Integrated calculation engine automatically converts measured freezing point to percentage water adulteration using the standardized formula defined in ISO 5764, with configurable correction factors for breed-specific baseline offsets (e.g., buffalo vs. bovine milk).
• Full-touch color LCD interface with intuitive workflow navigation, multilingual UI support (English, Spanish, French, Arabic), and real-time visualization of cooling curves and phase transition events.

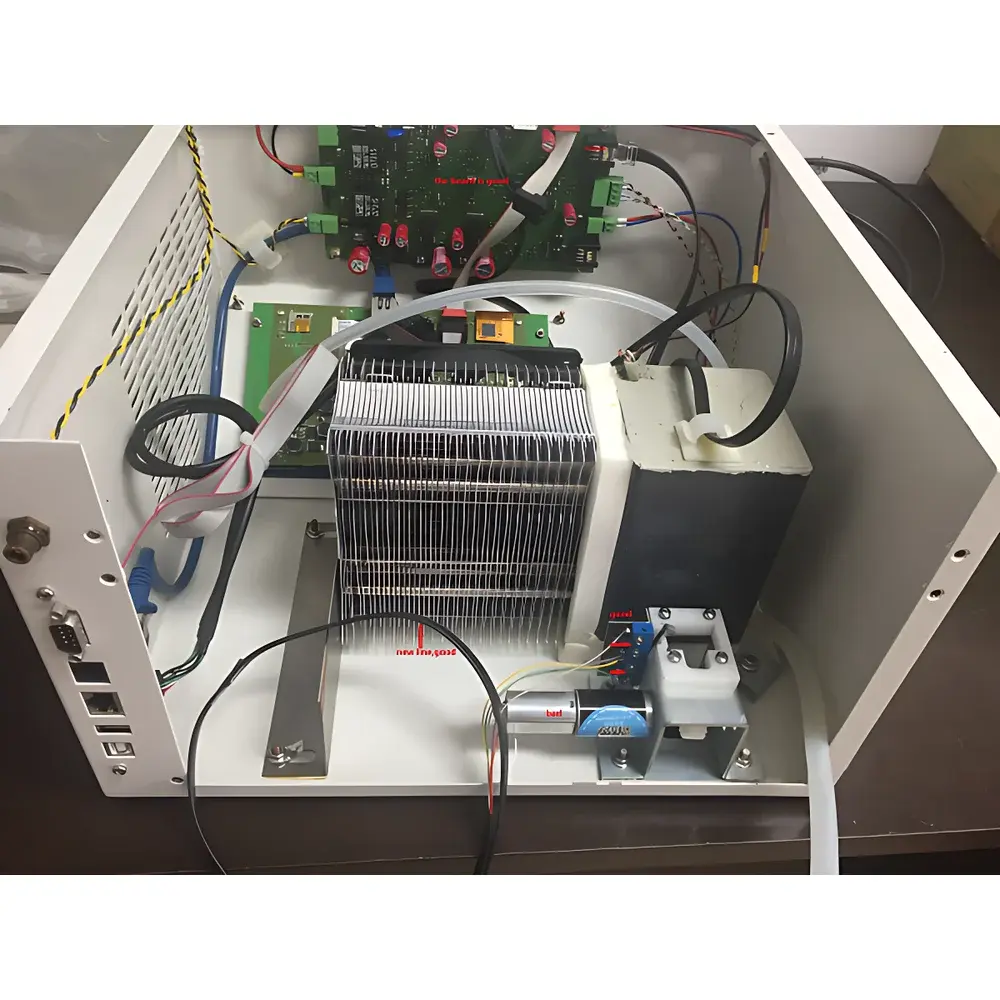

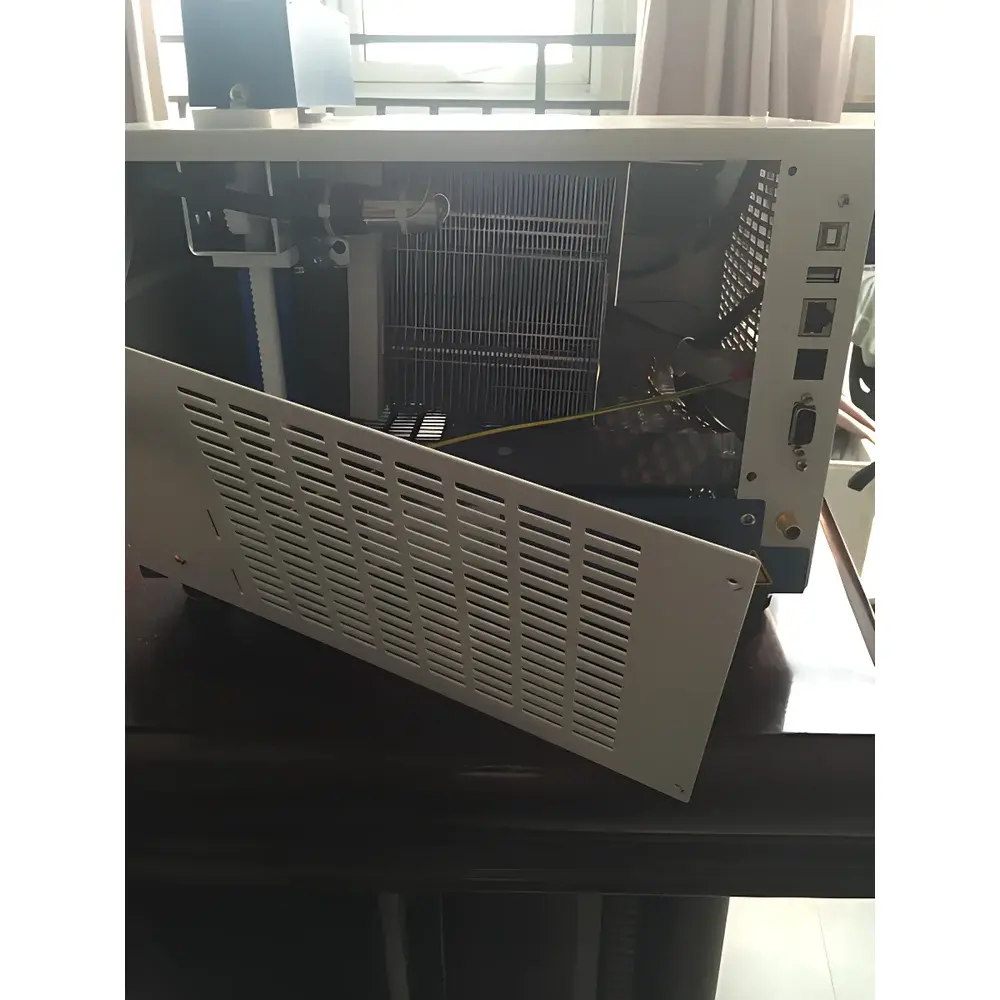

• Robust mechanical architecture: stainless-steel sample chamber, corrosion-resistant thermal probe housing, and vibration-damped base—designed for continuous operation in high-throughput dairy quality control laboratories.

Sample Compatibility & Compliance

The CryoStar I is validated for use with raw, pasteurized, and standardized bovine milk, as well as goat and sheep milk (with appropriate baseline calibration). It accommodates standard 2.0–2.5 mL aliquots delivered via calibrated pipettes or automated samplers. All measurement protocols adhere to Good Laboratory Practice (GLP) requirements, supporting full audit trails including operator ID, calibration history, sample ID, timestamp, and system error logs. Instrument firmware complies with FDA 21 CFR Part 11 data integrity standards when paired with Gerber’s optional LIMS integration package. Certified conformance to CE marking (2014/30/EU EMC Directive, 2014/35/EU Low Voltage Directive) and RoHS 2011/65/EU ensures safe deployment in EU-regulated facilities.

Software & Data Management

Data acquisition, reporting, and archiving are managed through Gerber’s CryoSoft v4.2 desktop application (Windows 10/11 compatible), which supports secure user authentication, role-based access control, and electronic signature workflows. Each analysis generates a PDF report containing raw thermogram, annotated freezing plateau, calculated adulteration %, pass/fail flag against configurable limits (e.g., −0.518 °C threshold), and metadata traceability. Raw .CSV and .DAT files are exportable via USB flash drive or RS232 serial link for third-party statistical process control (SPC) platforms. Calibration records—including standard verification with certified NaCl reference solutions (−0.549 °C and −0.521 °C)—are time-stamped and digitally signed to meet ISO/IEC 17025 accreditation requirements.

Applications

• Regulatory milk intake inspection at dairy collection centers and processing plants.
• Raw material verification prior to UHT, cheese, or powder production lines.
• Adulteration screening during farm-level quality assurance programs.
• Method validation and reference testing in national food safety laboratories.
• Research applications investigating cryoscopic behavior of novel dairy blends (e.g., plant-milk fortification, lactose-reduced formulations).
• Proficiency testing and interlaboratory comparison studies under ILAC G13 guidelines.

FAQ

What is the primary regulatory basis for freezing point analysis in milk?
The method is codified in ISO 5764:2022 (“Milk — Determination of freezing point”), adopted by Codex Alimentarius, the European Union (Commission Regulation (EU) No 589/2014), and national standards bodies including China’s GB 5009.2–2022.

Can the CryoStar I measure frozen or reconstituted milk powders?
No—only liquid-phase samples are suitable. Reconstituted powders must be fully dissolved and equilibrated to 20 °C prior to analysis; viscosity or particulate interference may require filtration per ISO 5764 Annex B.

How often must the instrument be calibrated?
Daily verification with two certified reference standards is recommended before routine analysis; full multi-point calibration is required after maintenance, software updates, or if drift exceeds ±0.002 °C over consecutive verifications.

Does the system support networked data transfer?
Yes—via optional Ethernet-to-RS232 converter or Gerber’s CryoLink gateway module, enabling integration into centralized QC dashboards and ERP systems (SAP QM, LabWare LIMS).

Is training and service documentation available in English?
Yes—comprehensive English-language operator manuals, calibration SOPs, troubleshooting guides, and video-based training modules are provided with each unit and accessible via Gerber’s secure customer portal.
